◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#46027) — 87 parça
çizim 46219
8 10 10 8 3 1 10 8 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.395 ABSORBER ASM; SHOCK,RR 8-97107-986-0 02 1 9812-9908 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97231-573-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-657-0 02 1 0004- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97160-094-0 02 1 9812-9908 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION SOFT RIDE(F49) 		8-97160-094-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION SOFT RIDE(F49) 		8-97253-651-0 02 1 0004-0105 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT) 		8-97253-651-0 02 1 0106- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 		8-97160-097-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 		8-97253-654-0 02 1 0004-0105 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) 		8-97253-654-0 02 1 0106- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) 		8-97253-664-0 02 1 0204- ●
3 07.347 NUT; S/ABS
05.816 (A) M12 		9-99110-412-0 04 1 9812- ●
3 07.347 NUT; S/ABS
08.915 (B) M16 		9-99110-516-0 02 1 9812-0203 ●
3 07.347 NUT; S/ABS
08.915 (B) M16 		9-99110-516-0 02 1 0204-0204 ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 08.915 (B) M16 		9-99110-516-0 02 1 0204-0204 ●
3 07.347 NUT; S/ABS
04.681 (B) M16 		9-99111-516-0 02 1 0205- ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 04.681 (B) M16 		9-99111-516-0 02 1 0205- ●
3 07.347 NUT; S/ABS
06.172 (C) M14 		9-99111-414-0 02 1 9812-0203 ●
3 07.347 NUT; S/ABS
06.172 (C) M14 		9-99111-414-0 02 1 0204- ● ●
3 07.347 NUT; S/ABS
EXC. REAR WIDE TREAD(V4T) 06.172 (C) M14 		9-99111-414-0 02 1 0204- ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		9-51679-021-0 04 1 9812- ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 9812- ●
8 07.347 WASHER; S/ABS
07.516 (E) ID=16.4 		8-94137-482-1 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
07.516 (E) ID=16.4 		8-94137-482-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (E) ID=16.4 		8-94137-482-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
07.172 (C) ID=16.5 		8-97070-925-1 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
07.172 (C) ID=16.5 		8-97070-925-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5 		8-97070-925-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
(D) ID=15.0 		9-51679-012-0 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
(D) ID=15.0 		9-51679-012-0 02 1 0204- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (D) ID=15.0 		9-51679-012-0 02 1 0204- ●
8 07.347 WASHER; S/ABS
(F) ID=20.0 		9-51679-013-0 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
(F) ID=20.0 		9-51679-013-0 02 1 0204- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (F) ID=20.0 		9-51679-013-0 02 1 0204- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (A) KYB 		8-94132-727-1 04 1 9812- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (B) TOKICO 		8-94224-694-0 02 1 9812- ●
10 07.388 BUSHING; RUBBER,S/ABS
(D) TOKICO 		8-94382-149-0 02 1 9812-9908 ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION SOFT RIDE(F49) (D) TOKICO 		8-94382-149-0 02 1 9909-0105 ●
10 07.388 BUSHING; RUBBER,S/ABS
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) (D) TOKICO 		8-94382-149-0 02 1 9909-0105 ●
10 07.388 BUSHING; RUBBER,S/ABS
(D) TOKICO 		8-94382-149-0 02 1 0106- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(C) TOKICO 		9-51631-014-0 04 1 9812- ● ●

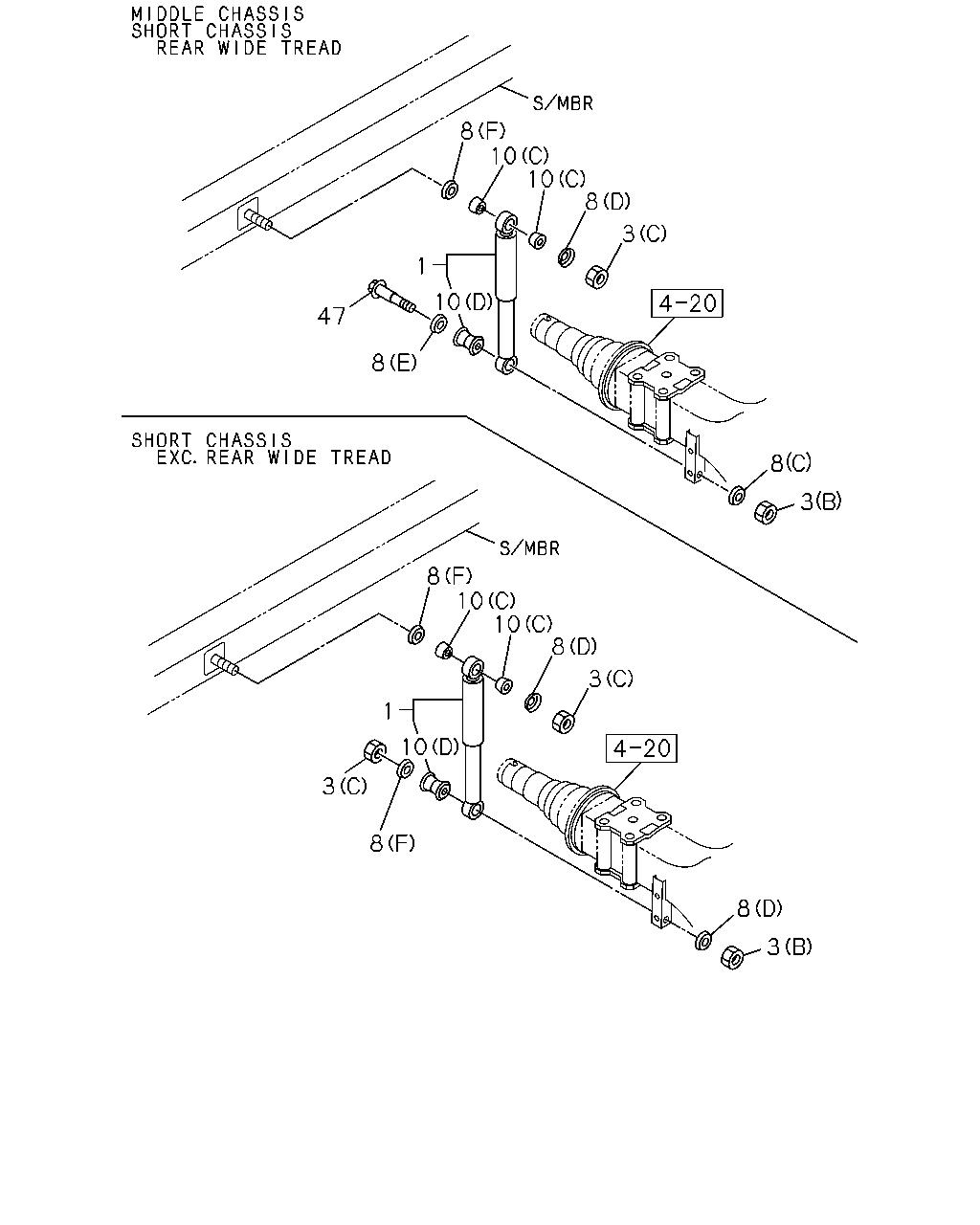

çizim 49288
8 10 10 8 3 1 10 47 8 8 3 8 10 10 8 3 1 10 3 8 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.395 ABSORBER ASM; SHOCK,RR 8-97107-986-0 02 1 9812-9908 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97231-573-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-657-0 02 1 0004- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97160-094-0 02 1 9812-9908 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION SOFT RIDE(F49) 		8-97160-094-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION SOFT RIDE(F49) 		8-97253-651-0 02 1 0004-0105 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT) 		8-97253-651-0 02 1 0106- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 		8-97160-097-0 02 1 9909-0003 ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 		8-97253-654-0 02 1 0004-0105 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) 		8-97253-654-0 02 1 0106- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) 		8-97253-664-0 02 1 0204- ●
3 07.347 NUT; S/ABS
05.816 (A) M12 		9-99110-412-0 04 1 9812- ●
3 07.347 NUT; S/ABS
08.915 (B) M16 		9-99110-516-0 02 1 9812-0203 ●
3 07.347 NUT; S/ABS
08.915 (B) M16 		9-99110-516-0 02 1 0204-0204 ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 08.915 (B) M16 		9-99110-516-0 02 1 0204-0204 ●
3 07.347 NUT; S/ABS
04.681 (B) M16 		9-99111-516-0 02 1 0205- ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 04.681 (B) M16 		9-99111-516-0 02 1 0205- ●
3 07.347 NUT; S/ABS
06.172 (C) M14 		9-99111-414-0 02 1 9812-0203 ●
3 07.347 NUT; S/ABS
06.172 (C) M14 		9-99111-414-0 02 1 0204- ● ●
3 07.347 NUT; S/ABS
EXC. REAR WIDE TREAD(V4T) 06.172 (C) M14 		9-99111-414-0 02 1 0204- ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		9-51679-021-0 04 1 9812- ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 9812- ●
8 07.347 WASHER; S/ABS
07.516 (E) ID=16.4 		8-94137-482-1 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
07.516 (E) ID=16.4 		8-94137-482-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (E) ID=16.4 		8-94137-482-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
07.172 (C) ID=16.5 		8-97070-925-1 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
07.172 (C) ID=16.5 		8-97070-925-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5 		8-97070-925-1 02 1 0204- ●
8 07.347 WASHER; S/ABS
(D) ID=15.0 		9-51679-012-0 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
(D) ID=15.0 		9-51679-012-0 02 1 0204- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (D) ID=15.0 		9-51679-012-0 02 1 0204- ●
8 07.347 WASHER; S/ABS
(F) ID=20.0 		9-51679-013-0 02 1 9812-0203 ●
8 07.347 WASHER; S/ABS
(F) ID=20.0 		9-51679-013-0 02 1 0204- ● ●
8 07.347 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (F) ID=20.0 		9-51679-013-0 02 1 0204- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (A) KYB 		8-94132-727-1 04 1 9812- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (B) TOKICO 		8-94224-694-0 02 1 9812- ●
10 07.388 BUSHING; RUBBER,S/ABS
(D) TOKICO 		8-94382-149-0 02 1 9812-9908 ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION SOFT RIDE(F49) (D) TOKICO 		8-94382-149-0 02 1 9909-0105 ●
10 07.388 BUSHING; RUBBER,S/ABS
4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) (D) TOKICO 		8-94382-149-0 02 1 9909-0105 ●
10 07.388 BUSHING; RUBBER,S/ABS
(D) TOKICO 		8-94382-149-0 02 1 0106- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(C) TOKICO 		9-51631-014-0 04 1 9812- ● ●
47 07.347 PIN; S/ABS SETTING 8-97076-931-2 02 1 9812-0203 ●
47 07.347 PIN; S/ABS SETTING 8-97076-931-2 02 1 0204-0204 ●
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97076-931-2 02 1 0204-0204 ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 0205- ●
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 0205- ●
