4-60 — REAR SUSPENSION (#46026) — 103 parça
çizim 44659
15 16 16 15 182 209 209 182 1 180 209 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97208-025-0 02 1 9812-9903 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 5-LEAF 		8-97208-025-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-448-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97227-448-0 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97220-051-0 02 1 9812-9812 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JG2 ENG(RJC) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97033-492-3 02 1 9812-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 6-LEAF 		8-97033-502-5 02 1 9812- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 4-LEAF 		8-97220-051-0 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 0106- ● ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (C) 		8-94118-511-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-94118-512-4 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (D) W/PIN 		8-94118-512-4 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
EXC. REAR WIDE TREAD(V4T) (E) 		8-97227-997-0 02 1 0204- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 9812- ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. REAR WIDE TREAD(V4T) 		8-97227-996-0 02 1 0204- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9812-0203 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0204- ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0204- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9812-0203 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0204- ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0204- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9812- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9812- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. REAR WIDE TREAD(V4T) (C) L=138 		8-97035-877-0 04 1 0204- ●
180 07.529 PIN; RR SPR
EXC. REAR WIDE TREAD(V4T),KD PREPARATORYPACK<6HF> (C) M16X128 FLANGE 		8-97076-849-2 04 1 0204- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 9812- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 9812- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (C) M16 		9-99110-516-0 04 1 9812- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE 		8-97147-389-0 04 1 9812- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 9812- ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 9812- ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (C) ID=16.5 		8-97070-925-1 04 1 9812- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 9812- ● ●

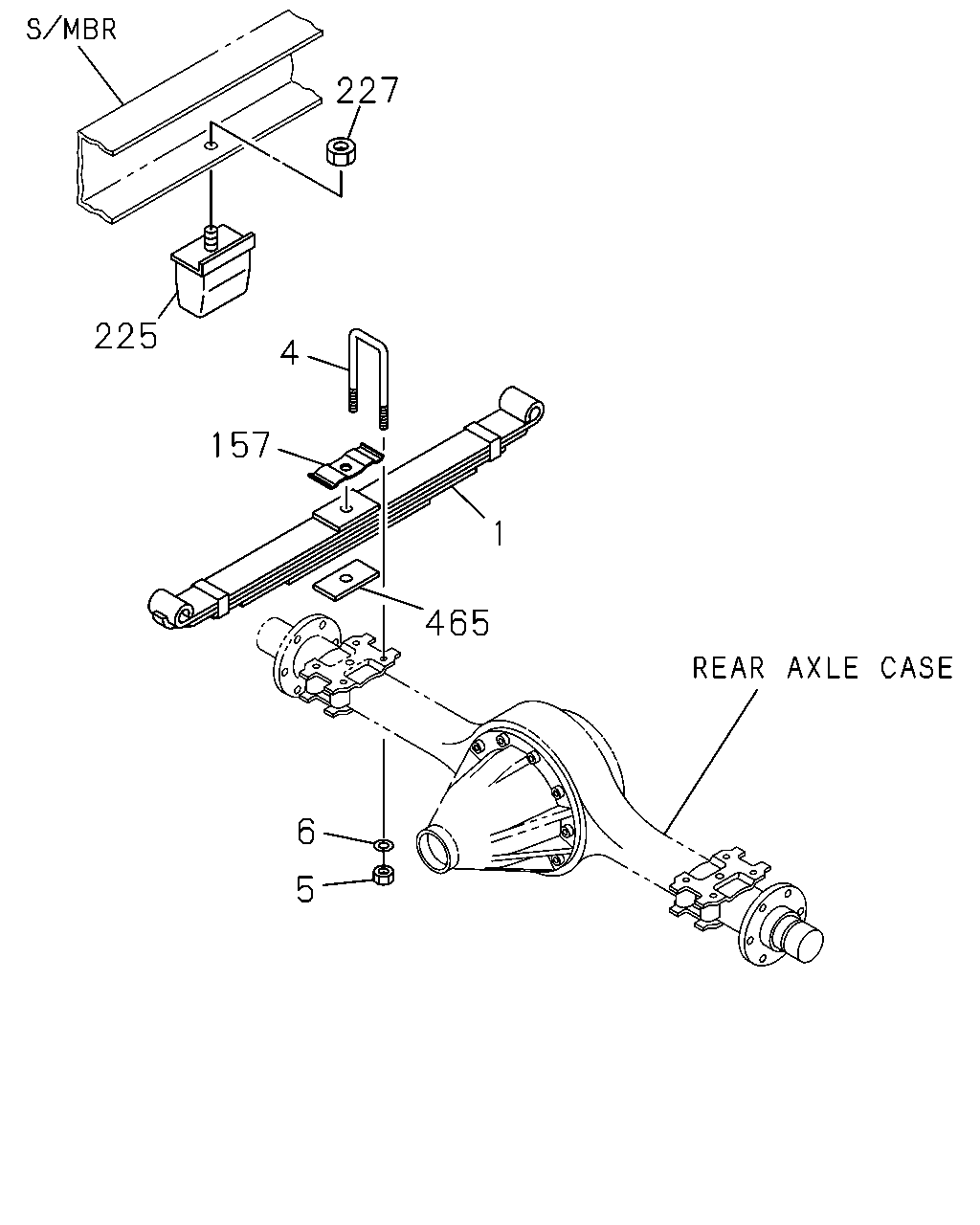

çizim 45752
227 225 4 157 1 465 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97208-025-0 02 1 9812-9903 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 5-LEAF 		8-97208-025-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-448-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97227-448-0 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97220-051-0 02 1 9812-9812 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JG2 ENG(RJC) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97033-492-3 02 1 9812-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 6-LEAF 		8-97033-502-5 02 1 9812- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 4-LEAF 		8-97220-051-0 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 0106- ● ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-2 04 1 9812- ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-2 04 1 9812- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.5-4.0TON(RPQ) L=255 		8-94127-922-1 04 1 9812-9812 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9812-9812 ●
4 07.516 U-BOLT; RR SPR
4JG2 ENG(RJC) G.V.W. 3.5-4.0TON(RPQ) L=245 		8-94127-921-1 04 1 9812-0105 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9812-0105 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-2 04 1 0106- ●
4 07.516 U-BOLT; RR SPR
4JB1 ENG(RLF) G.V.W. 3.5-4.0TON(RPQ) L=255 		8-94127-922-1 04 1 9906-0105 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.5-4.0TON(RPQ) L=255 		8-94127-922-2 04 1 0106- ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9812- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9812- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ) L=130 T=4.5 		8-94119-069-2 02 1 9812-0105 ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 9812-0105 ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0106- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94142-044-3 02 1 9812- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94118-510-4 02 1 9812- ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9812- ● ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9906-0105 ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 0106- ●
çizim 45953
180 15 15 209 182 1 209 182 180 209 182 15 16 180 209 182 1 180 209 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97208-025-0 02 1 9812-9903 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 5-LEAF 		8-97208-025-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-448-0 02 1 9904-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97227-448-0 02 1 0106- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97220-051-0 02 1 9812-9812 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JG2 ENG(RJC) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF 		8-97033-492-3 02 1 9812-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 6-LEAF 		8-97033-502-5 02 1 9812- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) G.V.W. 3.5-4.0TON(RPQ) EXC. SUSPENSION SOFT RIDE(F49) 4-LEAF 		8-97220-051-0 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JB1 ENG(RLF) SUSPENSION SOFT RIDE(F49) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 9906-0105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97227-449-1 02 1 0106- ● ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (C) 		8-94118-511-3 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-94118-512-4 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (D) W/PIN 		8-94118-512-4 02 1 9812- ●
15 07.523 SHACKLE; RR SPR
EXC. REAR WIDE TREAD(V4T) (E) 		8-97227-997-0 02 1 0204- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 9812- ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. REAR WIDE TREAD(V4T) 		8-97227-996-0 02 1 0204- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9812-0203 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0204- ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0204- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9812-0203 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0204- ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0204- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9812- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9812- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. REAR WIDE TREAD(V4T) (C) L=138 		8-97035-877-0 04 1 0204- ●
180 07.529 PIN; RR SPR
EXC. REAR WIDE TREAD(V4T),KD PREPARATORYPACK<6HF> (C) M16X128 FLANGE 		8-97076-849-2 04 1 0204- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 9812- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 9812- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (C) M16 		9-99110-516-0 04 1 9812- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE 		8-97147-389-0 04 1 9812- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 9812- ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 9812- ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (C) ID=16.5 		8-97070-925-1 04 1 9812- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 9812- ● ●
