4-55B — FRONT LEAF SPRING (#46025) — 12 parça

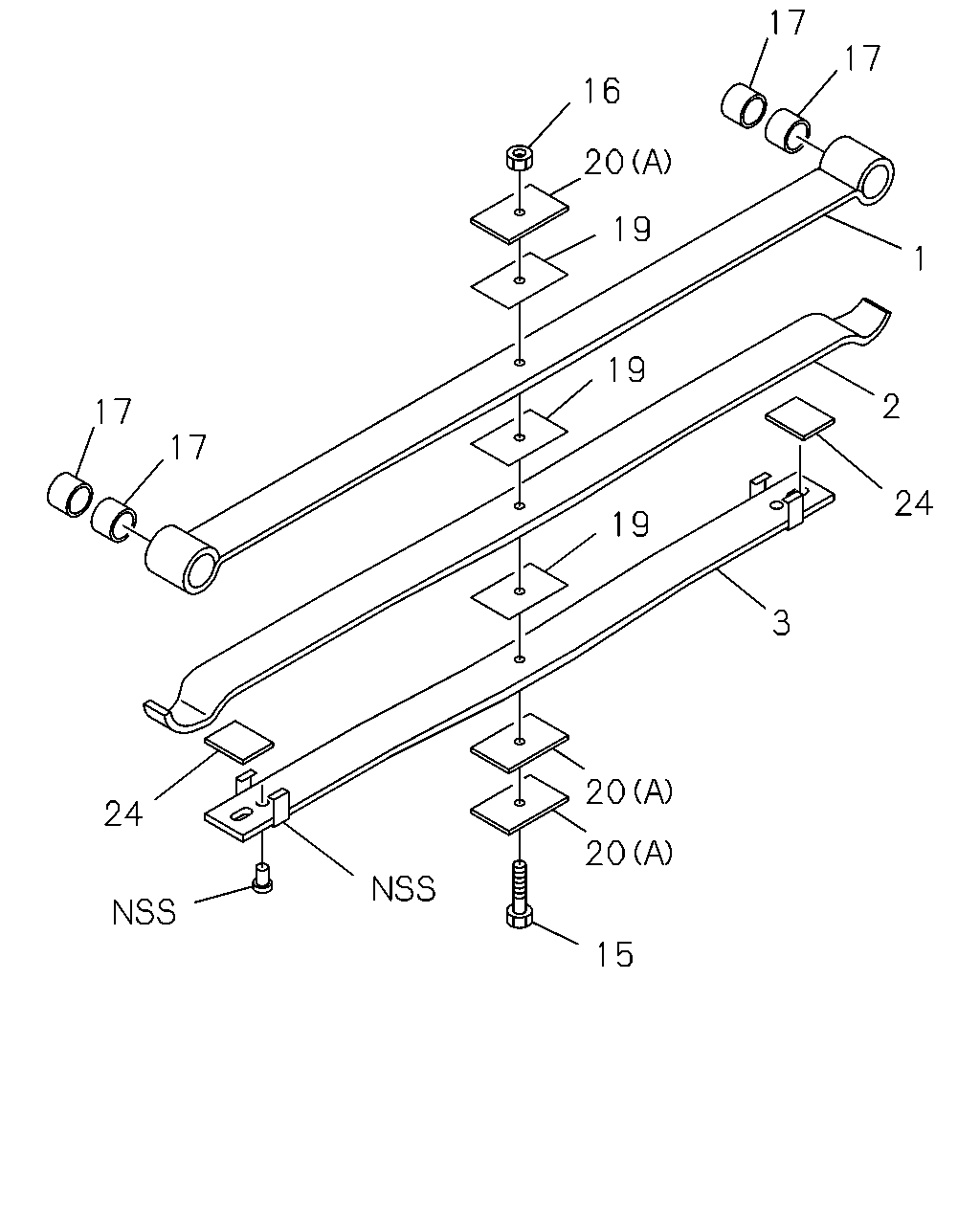

çizim 44258
17 17 16 20 19 1 19 2 17 17 24 19 3 20 24 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97033-403-2, 97033403 		8-97083-614-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97033-404-2, 97033404 		8-97083-617-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97033-403-2, 97033403 		8-97083-615-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97033-404-2, 97033404 		8-97083-618-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97033-403-2, 97033403 		8-97083-616-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97033-404-2, 97033404 		8-97083-619-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		8-94476-373-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=56 ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		8-94463-020-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		8-94478-008-1 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		8-97021-214-0 03 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97033-403-2, 97033403, B = 8-97033-404-2, 97033404 		8-97084-104-0 02 1 -
