4-55A — FRONT LEAF SPRING (#46024) — 10 parça

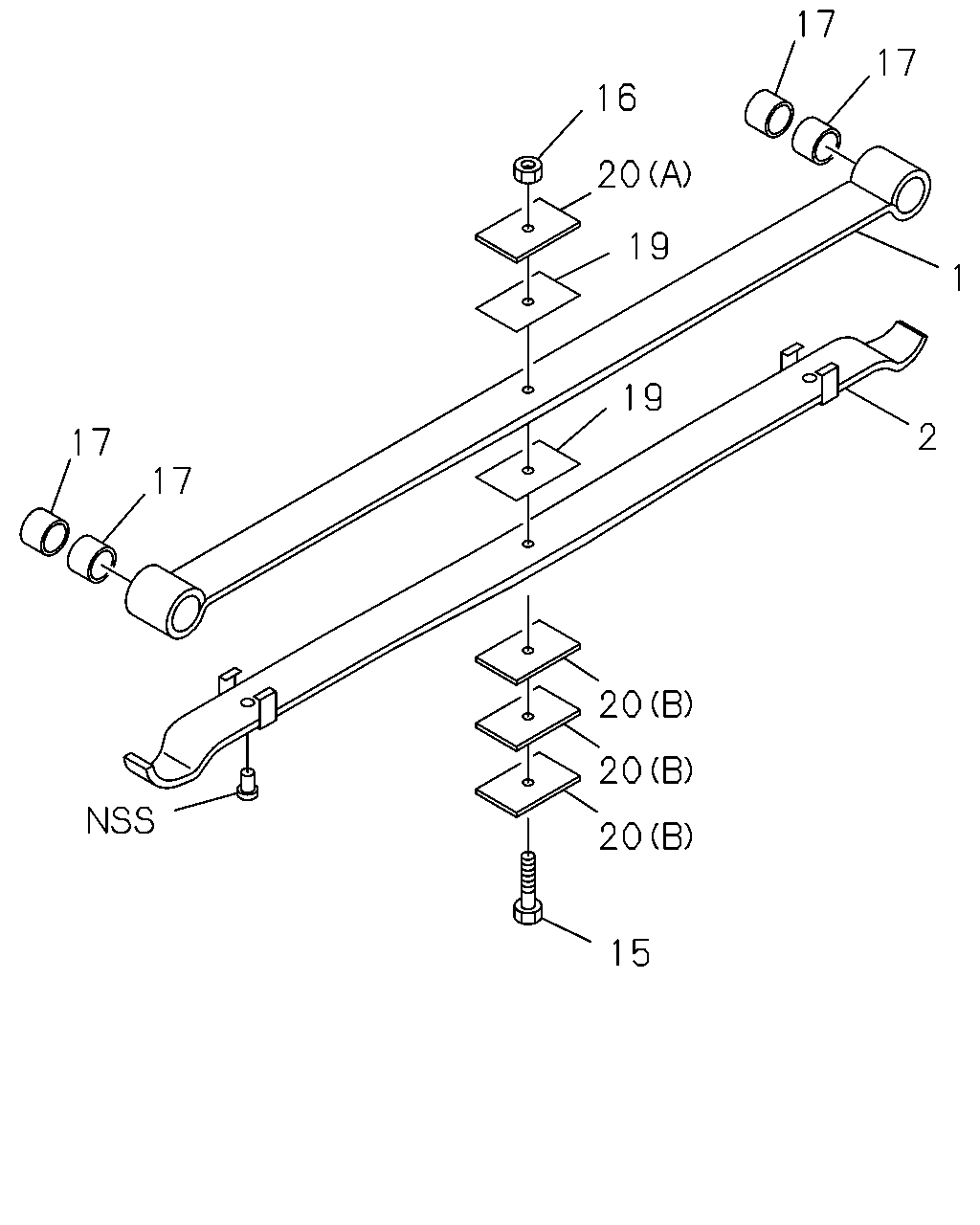

çizim 45525
17 17 16 20 19 1 19 2 17 17 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97321-844-0, 97321844 		8-97323-555-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97321-845-0, 97321845 		8-97323-557-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97321-844-0, 97321844 		8-97323-556-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97321-845-0, 97321845 		8-97323-558-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		8-94476-373-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=56 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		8-94463-020-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		8-94478-008-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		8-97021-214-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: A = 8-97321-844-0, 97321844, B = 8-97321-845-0, 97321845 		8-97323-567-0 03 1 -
