4-36 — POWER STEERING CONTROL; ENGINE SIDE (#46019) — 47 parça

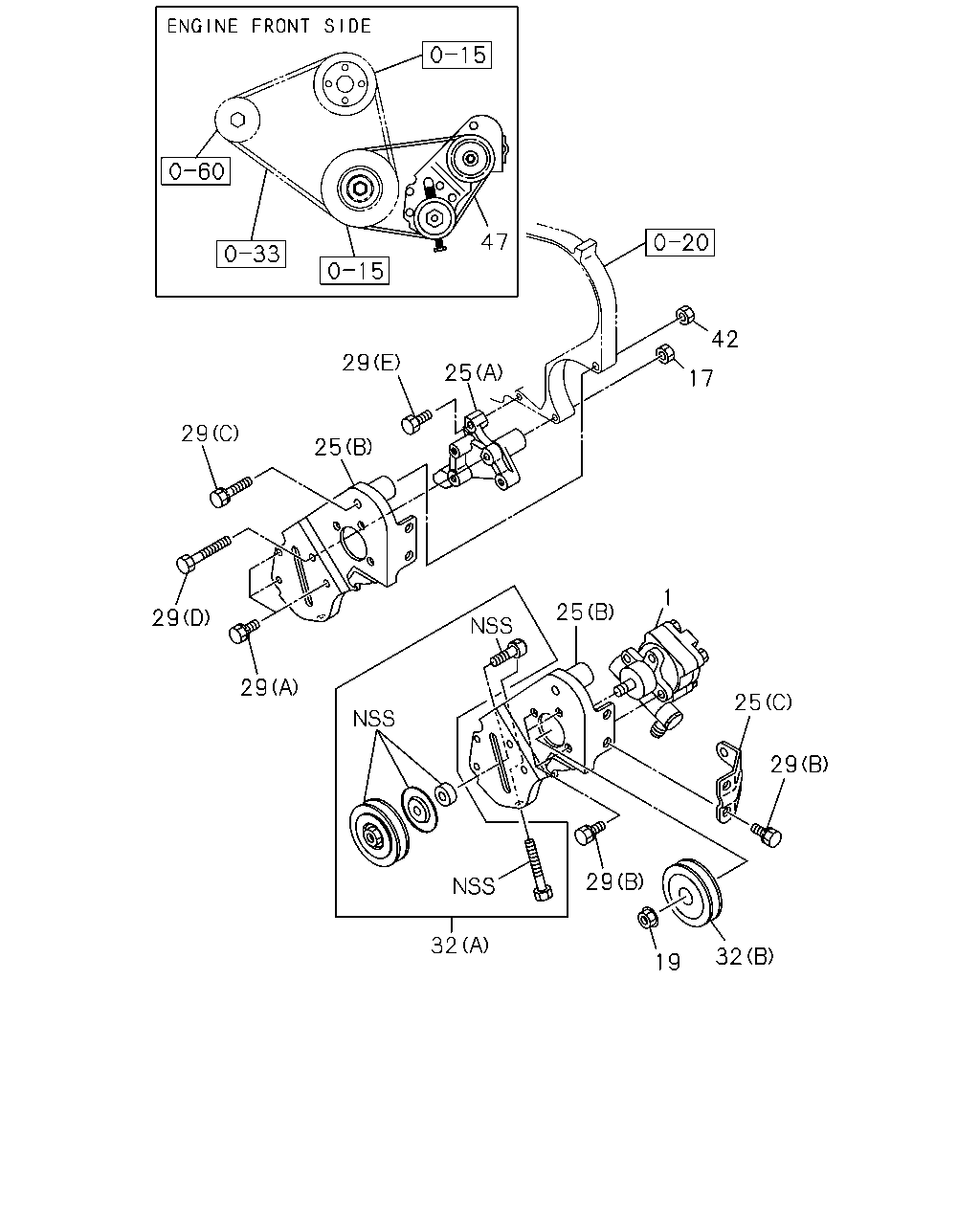

çizim 45524
47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9812-9903 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97226-344-0 01 1 9904-9905 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97226-344-0 01 1 9906-0001 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97247-061-1 01 1 0002-0105 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) 		8-97247-061-2 01 1 0106-0206 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) 		8-97354-730-0 01 1 0207- ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) 06.606 M12 		8-94139-015-0 01 1 9812-9905 ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 06.606 M12 		8-94139-015-0 01 1 9906-0105 ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1 ENG(RJX) 06.606 M12 		8-94139-015-0 01 1 0106- ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) (B) 		8-97065-974-0 01 1 9812-9905 ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97065-974-0 01 1 9906-0105 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (B) 		8-97065-974-0 01 1 0106- ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) (A) 		8-97107-869-0 01 1 9812-9905 ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97107-869-0 01 1 9906-0105 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (A) 		8-97107-869-0 01 1 0106- ● ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC) (C) 		8-97107-872-0 01 1 9812-9905 ● ●
25 06.606 BRACKET; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97107-872-0 01 1 9906-0105 ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (C) 		8-97107-872-0 01 1 0106- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9812-9905 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 9906-0105 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0106- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9812-9905 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 9906-0105 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0106- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9812-9905 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 9906-0105 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0106- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9812-9905 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 9906-0105 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0106- ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9906-0105 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106- ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) 06.655 (A) 		8-94128-866-0 01 1 9812-9905 ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) 06.655 (A) 		8-94128-866-0 01 1 9906-0105 ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) 06.655 (A) 		8-94128-866-0 01 1 0106- ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (B) 		8-97084-332-0 01 1 9812-9905 ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97084-332-0 01 1 9906-0105 ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) (B) 		8-97084-332-2 01 1 0106- ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9812-9905 ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9906-0105 ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) 		8-97085-131-0 01 1 9812-9905 ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97085-131-0 01 1 9906-0105 ● ●
47 01.066 BELT; P/S PUMP
4JH1 ENG(RJX) 		8-97085-131-0 01 1 0106- ● ● ●
