4-60 — REAR SUSPENSION
(#46013) — 72 parça
Tümü
A - FGD5MX
B - GGD5MX
C - FGR5MX
◀
[460A] AIR SUS NO.2 (9 parça)

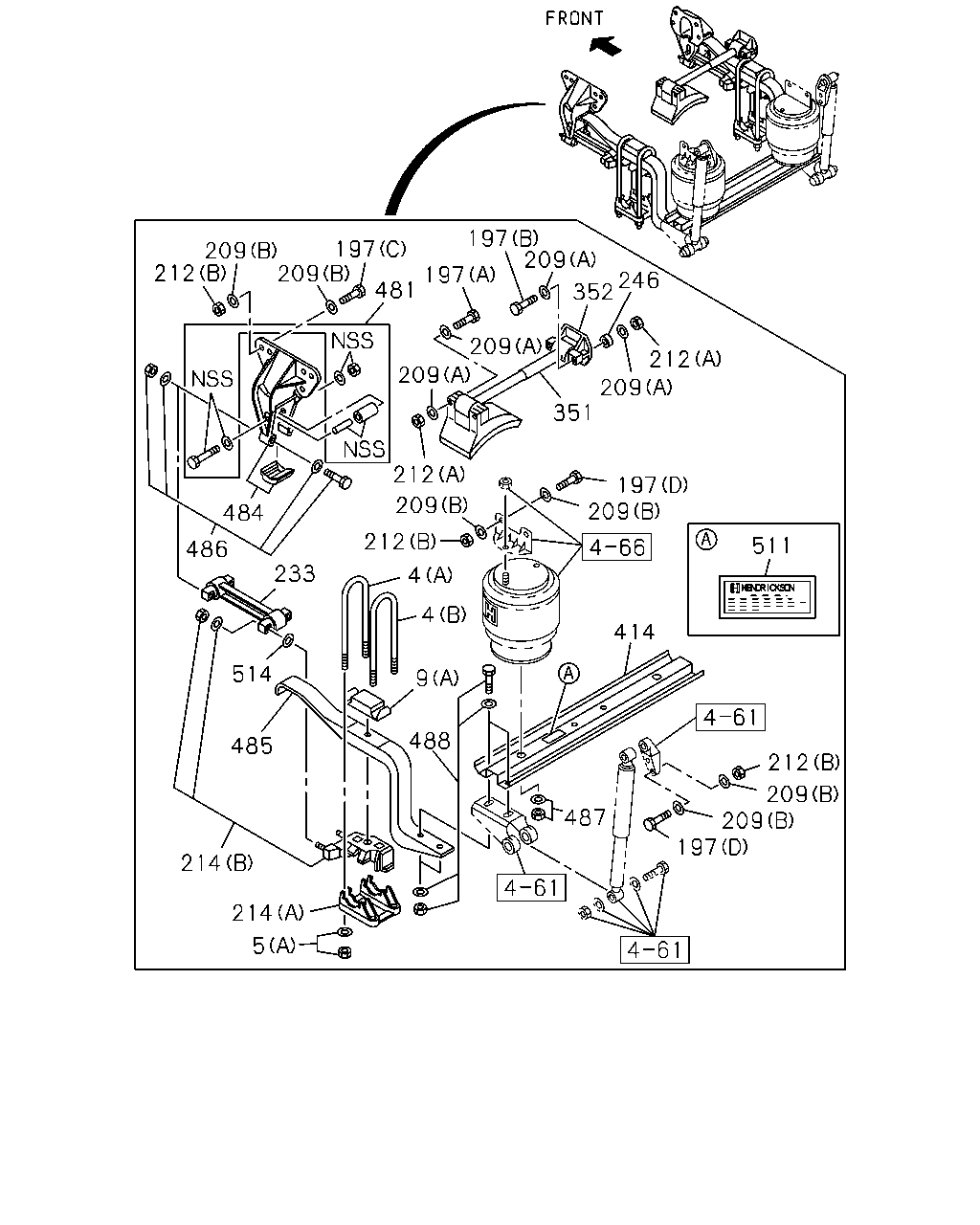

[460A] AIR SUS NO.1 (29 parça)

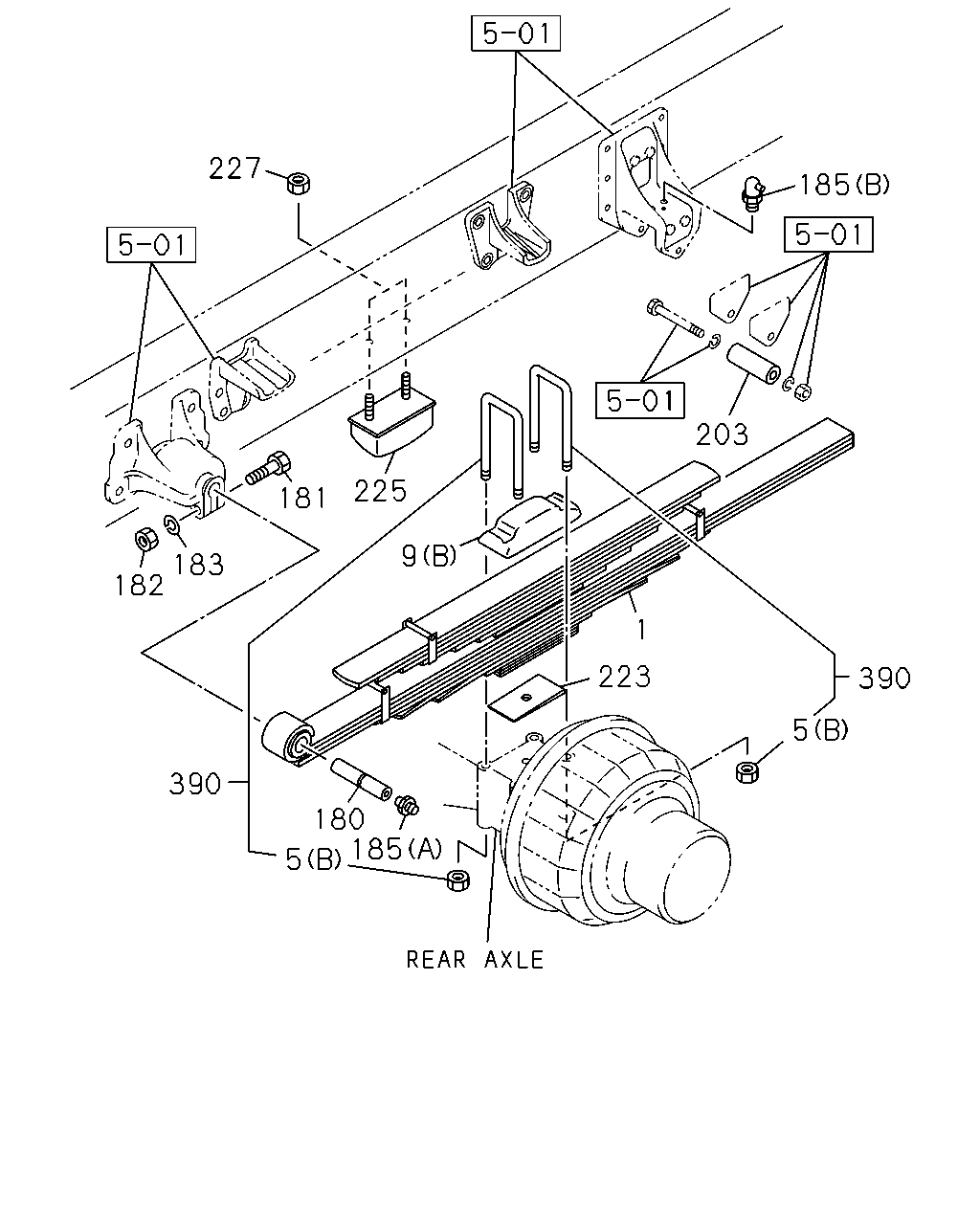

[460A] LEAF SUS NO.1 (17 parça)

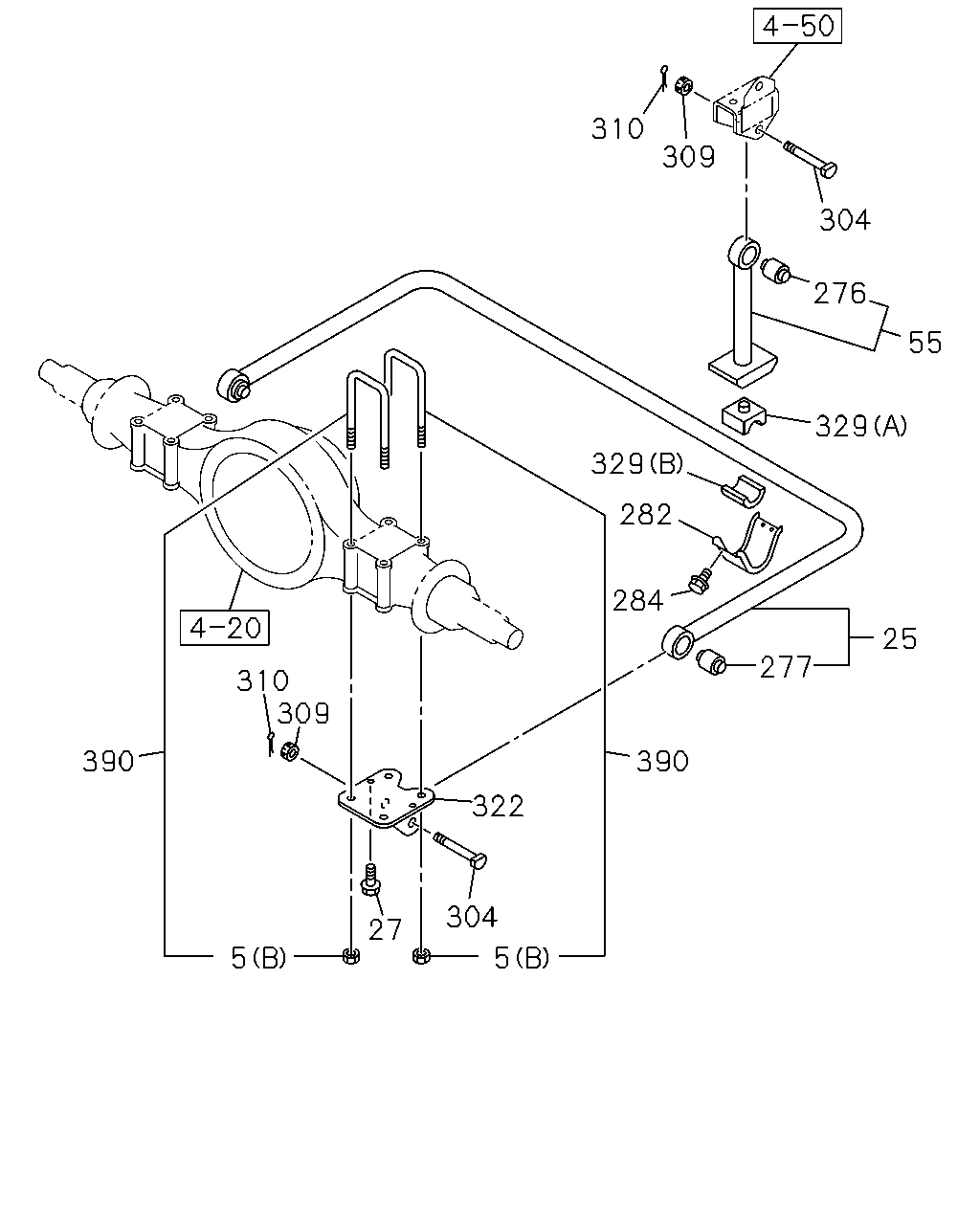

[460A] LEAF SUS NO.2 (17 parça)
▶
512
197
209
197
209
209
212
212
209
209
209
197
212
197
209
209
212
212
209
209
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
197
BOLT
(A)
1-09000-767-0
02
1
0801-
●
●
197
BOLT
(B)
1-09000-768-0
02
1
0801-
●
●
197
BOLT
(C) M20X65
1-09000-769-0
12
1
0801-
●
●
197
BOLT
(D)
1-09000-771-0
08
1
0801-
●
●
209
WASHER; PL
(A) ID=16
1-09503-314-0
08
1
0801-
●
●
209
WASHER; PL
(B) ID=20
1-09503-315-0
40
1
0801-
●
●
212
NUT
(A) M16
1-09400-160-0
04
1
0801-
●
●
212
NUT
(B) M20
1-09400-161-0
20
1
0801-
●
●
512
FIXING KIT; BRKT TO FRAME
8-98049-197-0
01
1
0801-
●
●
197
209
209
197
212
209
197
246
352
481
209
212
209
209
351
212
197
209
209
484
212
511
486
233
4
4
414
514
9
488
485
212
209
209
197
487
214
214
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
4
U-BOLT; RR SPR
(A) L=356
1-51371-229-0
02
1
0801-
●
●
4
U-BOLT; RR SPR
(B) L=381
1-51371-230-0
02
1
0801-
●
●
5
NUT; U-BOLT,RR SPR
(A)
1-52179-039-0
01
1
0801-
●
●
5
NUT; U-BOLT,RR SPR
(B) M24
0-91112-824-0
08
1
0801-
●
9
PAD; U BOLT,RR SPR
(A)
1-51372-073-0
02
1
0801-
●
●
9
PAD; U BOLT,RR SPR
(B)
1-51372-030-0
02
1
0801-
●
197
BOLT
(A)
1-09000-767-0
02
1
0801-
●
●
197
BOLT
(B)
1-09000-768-0
02
1
0801-
●
●
197
BOLT
(C) M20X65
1-09000-769-0
12
1
0801-
●
●
197
BOLT
(D)
1-09000-771-0
08
1
0801-
●
●
209
WASHER; PL
(A) ID=16
1-09503-314-0
08
1
0801-
●
●
209
WASHER; PL
(B) ID=20
1-09503-315-0
40
1
0801-
●
●
212
NUT
(A) M16
1-09400-160-0
04
1
0801-
●
●
212
NUT
(B) M20
1-09400-161-0
20
1
0801-
●
●
214
SEAT; SPR
(A)
1-51385-103-0
02
1
0801-
●
●
214
SEAT; SPR
(B)
1-51385-105-0
02
1
0801-
●
●
233
ROD ASM; TORQUE,RR SUSP
L=366
1-51510-855-0
02
1
0801-
●
●
246
WASHER; TORQUE ROD
8-97372-224-0
02
1
1101-
●
●
351
ROD ASM; RADIUS
1-51510-867-0
01
1
0801-
●
●
352
BRACKET; RADIUS ROD,FRAME
1-53353-132-0
01
1
0801-
●
●
414
BEAM; AIR SPR
1-52172-036-0
01
1
0801-
●
●
481
ROLLER; REBOUND
1-53357-043-0
01
1
0801-
●
●
484
BRACKET; REAR SPRING
1-53353-131-0
02
1
0801-
●
●
485
SPRING; LEAF
1-51410-259-0
02
1
0801-
●
●
486
FIXING KIT; TORQUE ROD
1-52000-165-0
01
1
0801-
●
●
487
FIXING KIT; AIR SPRING
1-52000-163-0
01
1
0801-
●
●
488
FIXING KIT; BEAM
1-52000-164-0
01
1
0801-
●
●
511
LABEL
1-51399-034-0
01
1
0801-
●
●
514
SPACER; TORQUE ROD
1-09503-299-0
08
1
0801-
●
●
227
185
203
225
9
181
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-565-0
02
1
0801-
●
5
NUT; U-BOLT,RR SPR
(A)
1-52179-039-0
01
1
0801-
●
●
5
NUT; U-BOLT,RR SPR
(B) M24
0-91112-824-0
08
1
0801-
●
9
PAD; U BOLT,RR SPR
(A)
1-51372-073-0
02
1
0801-
●
●
9
PAD; U BOLT,RR SPR
(B)
1-51372-030-0
02
1
0801-
●
180
PIN; RR SPR
1-51361-020-0
02
1
0801-
●
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
0801-
●
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
0801-
●
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0801-
●
185
NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0801-
●
185
NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0801-
●
203
COLLAR; LEAF SPR STOPPER
1-53359-004-0
02
1
0801-
●
223
SPACER; U BOLT,RR SPR
1-51377-367-1
02
1
0801-1407
●
223
SPACER; U BOLT,RR SPR
8-98220-148-0
02
1
1408-
●
225
RUBBER; CUSHION,RR SPR
1-53366-081-1
02
1
0801-
●
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0801-
●
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
0801-
●
310
309
304
276
55
329
329
282
284
25
277
310
309
390
390
322
304
27
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
NUT; U-BOLT,RR SPR
(A)
1-52179-039-0
01
1
0801-
●
●
5
NUT; U-BOLT,RR SPR
(B) M24
0-91112-824-0
08
1
0801-
●
25
BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61>
1-51770-030-2
01
1
0801-
●
27
BOLT; STAB
REAR STABILIZER SHAFT<F61> M10X16 FLANGE
0-28051-016-0
04
1
0801-
●
55
ROD; STAB
REAR STABILIZER SHAFT<F61>
1-51770-024-1
02
1
0801-
●
276
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61>
1-51779-019-0
02
1
0801-
●
277
BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61>
1-51779-067-0
02
1
0801-
●
282
RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61>
1-51789-015-2
02
1
0801-
●
284
BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25
8-94463-351-0
08
1
0801-
●
304
PIN; STAB ROD
REAR STABILIZER SHAFT<F61>
1-51789-020-2
04
1
0801-
●
309
NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24
9-99116-424-0
04
1
0801-
●
310
PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45
0-81125-045-0
04
1
0801-
●
322
BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61>
1-51781-127-0
01
1
0801-
●
322
BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61>
1-51781-048-4
01
1
0801-
●
329
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A)
1-51789-051-1
02
1
0801-
●
329
BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B)
1-51789-052-0
02
1
0801-
●
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
0801-
●
