Isuzu WW
▶
TRUCKS
▶
FXR
▶
11427 - FXR/GXR(AUST)JNLT05
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#46001) — 37 parça
Tümü
A - FGD5MX
B - FGR5MX
C - GGD5MX
◀

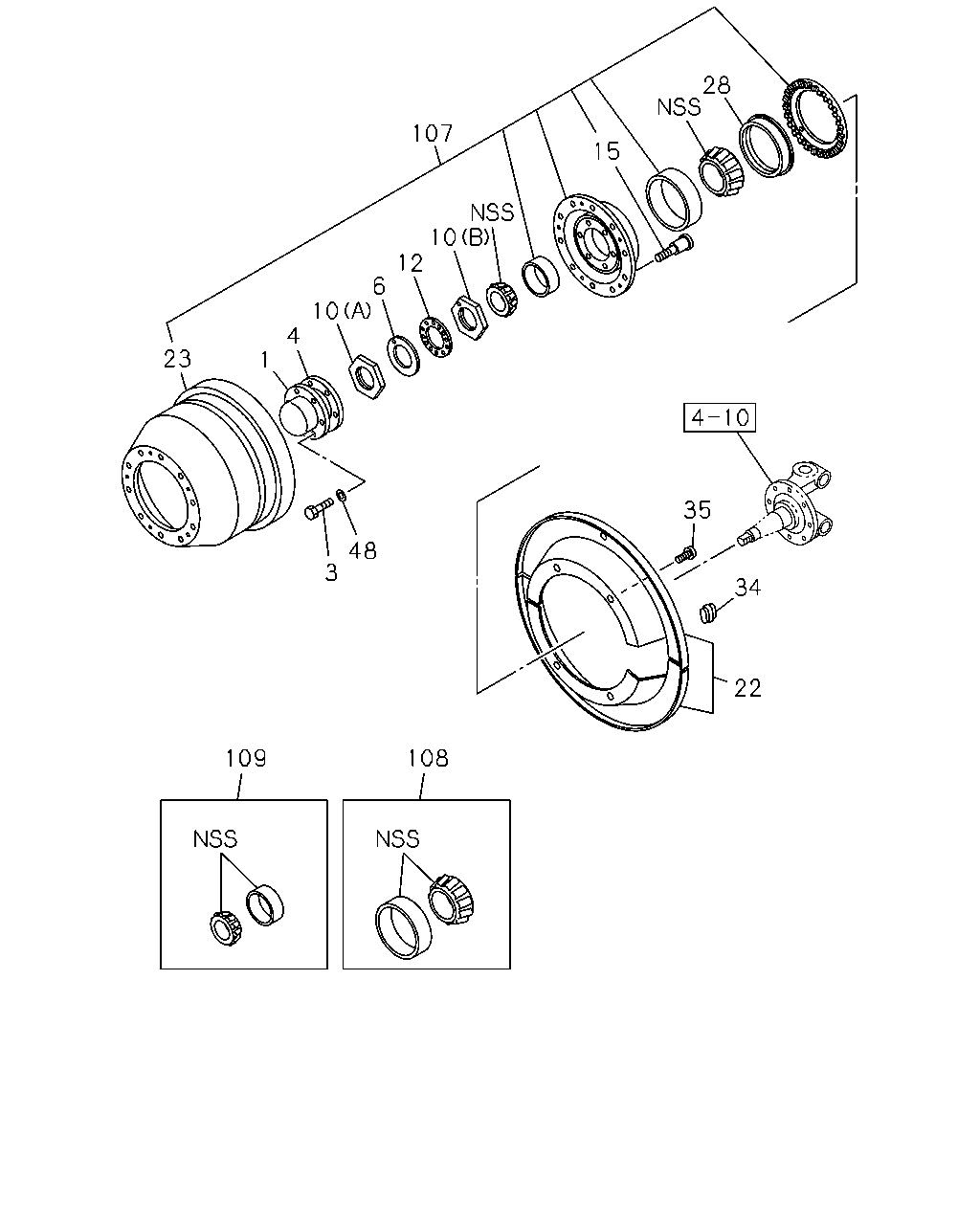

[411A] -'12/4 (18 parça)

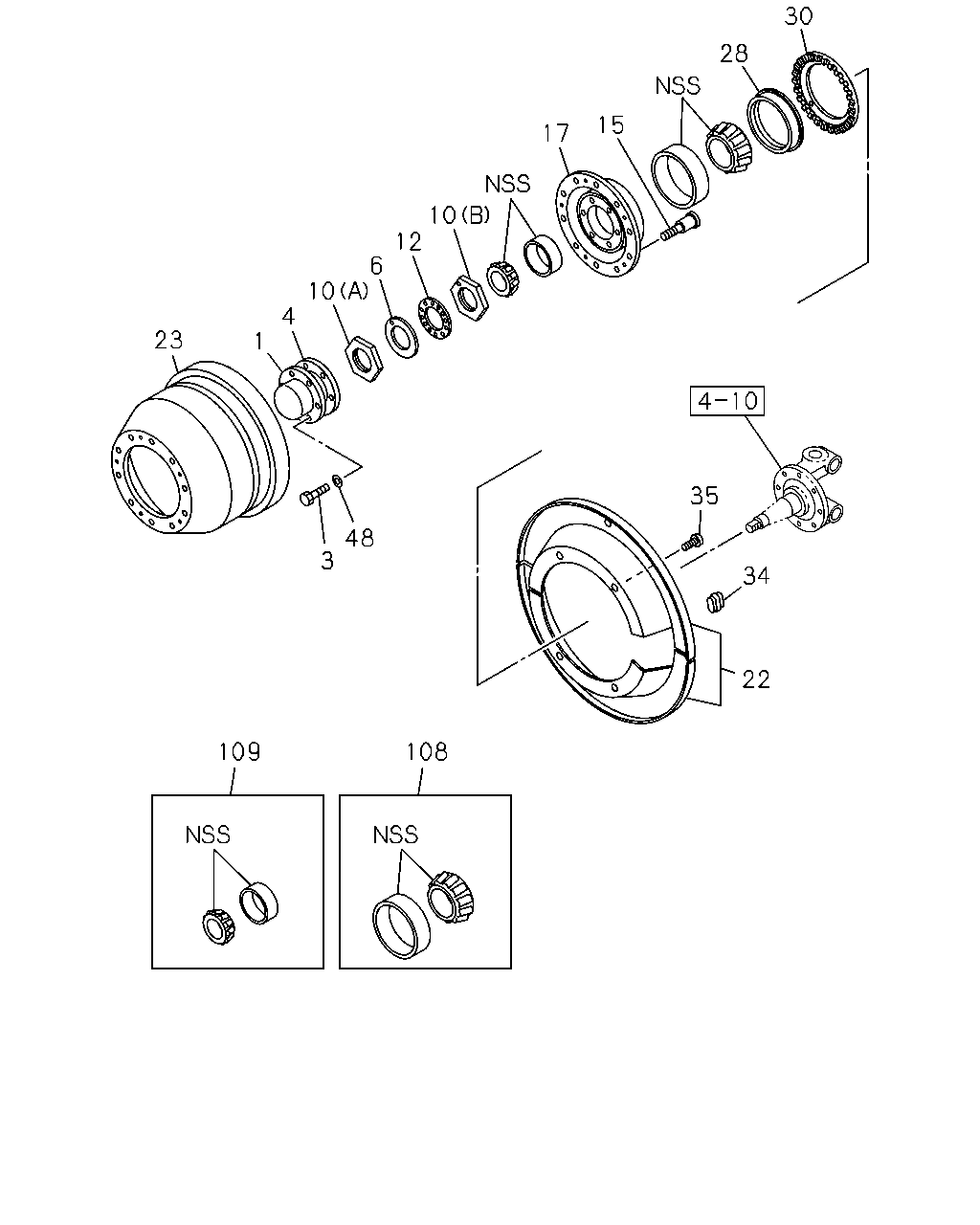

[411A] '12/5- (19 parça)
▶
108
109
3
48
35
34
22
23
1
4
10
6
12
10
15
28
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAP; HUB,FRT AXLE
1-42313-028-0
02
1
0801-
●
●
●
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0801-
●
●
●
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0801-
●
●
●
6
WASHER; LK,FRT HUB
1-42329-018-0
02
1
0801-
●
●
●
10
NUT; FRT HUB BRG
(A)
1-42329-016-0
02
1
0801-
●
●
●
10
NUT; FRT HUB BRG
(B)
1-42329-017-0
02
1
0801-
●
●
●
12
WASHER; LK,FRT HUB BRG
1-42329-015-0
02
1
0801-
●
●
●
15
PIN; WHEEL,FRT AXLE
1-42337-063-0
20
1
0801-
●
●
●
22
COVER SET; FRT BRK DRUM
1-47151-708-0
02
1
0801-
●
●
●
23
DRUM; BRK,FRT
1-42315-378-0
02
1
0801-1204
●
●
●
23
DRUM; BRK,FRT
1-42315-420-0
02
1
1205-
●
●
●
28
SEAL; OIL,FRT HUB
1-09625-636-0
02
1
0801-
●
●
●
34
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
0801-
●
●
●
35
BOLT; DRUM COVER
1-47159-176-0
12
1
0801-
●
●
●
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0801-
●
●
●
107
HUB & DRUM ASM
1-42311-152-0
02
1
0801-1204
●
●
●
108
BEARING SET; HUB,INNER
1-85573-010-0
02
1
0801-
●
●
●
109
BEARING SET; HUB,OUTER
1-85573-011-0
02
1
0801-
●
●
●
23
1
4
10
6
12
10
17
15
28
30
3
48
109
108
35
34
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAP; HUB,FRT AXLE
1-42313-028-0
02
1
0801-
●
●
●
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0801-
●
●
●
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0801-
●
●
●
6
WASHER; LK,FRT HUB
1-42329-018-0
02
1
0801-
●
●
●
10
NUT; FRT HUB BRG
(A)
1-42329-016-0
02
1
0801-
●
●
●
10
NUT; FRT HUB BRG
(B)
1-42329-017-0
02
1
0801-
●
●
●
12
WASHER; LK,FRT HUB BRG
1-42329-015-0
02
1
0801-
●
●
●
15
PIN; WHEEL,FRT AXLE
1-42337-063-0
20
1
0801-
●
●
●
17
HUB; FRT AXLE
1-42311-163-0
02
1
1205-
●
●
●
22
COVER SET; FRT BRK DRUM
1-47151-708-0
02
1
0801-
●
●
●
23
DRUM; BRK,FRT
1-42315-378-0
02
1
0801-1204
●
●
●
23
DRUM; BRK,FRT
1-42315-420-0
02
1
1205-
●
●
●
28
SEAL; OIL,FRT HUB
1-09625-636-0
02
1
0801-
●
●
●
30
RING; EXCITER,FRT HUB
1-42319-223-0
02
1
1205-
●
●
●
34
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
0801-
●
●
●
35
BOLT; DRUM COVER
1-47159-176-0
12
1
0801-
●
●
●
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0801-
●
●
●
108
BEARING SET; HUB,INNER
1-85573-010-0
02
1
0801-
●
●
●
109
BEARING SET; HUB,OUTER
1-85573-011-0
02
1
0801-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
