Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-67 - REAR LEVELING VALVE
▶

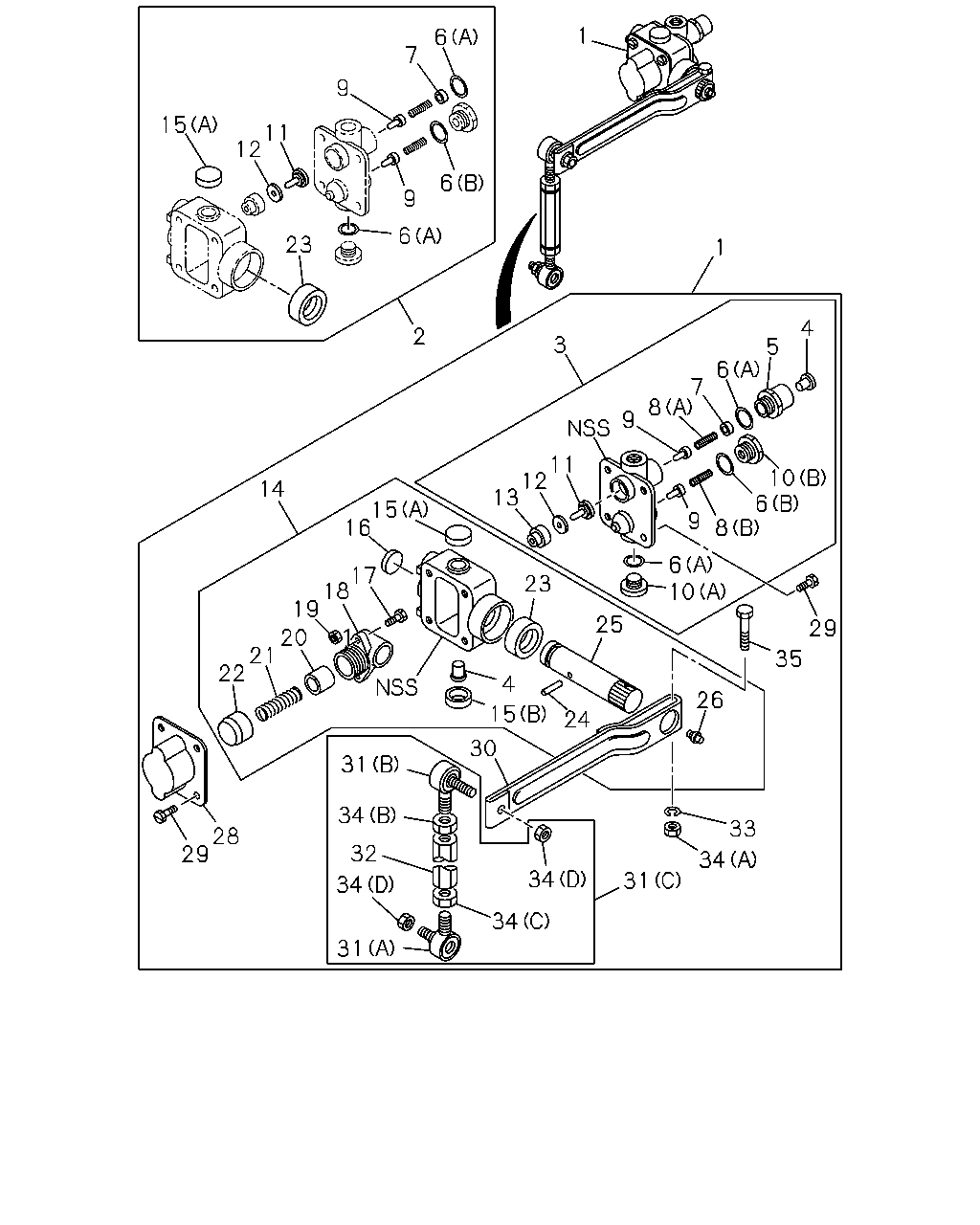

4-67 — REAR LEVELING VALVE
(#4600) — 42 parça
1
6
7
9
15
11
12
6
9
6
23
1
4
2
3
5
6
7
8
9
11
12
13
10
6
8
6
10
14
15
16
9
17
18
19
23
25
29
20
21
22
35
4
26
15
24
30
31
34
33
28
29
32
34
34
31
34
34
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LEVELING
1-52130-040-1
01
1
9712-
1
VALVE ASM; LEVELING
1-52130-041-1
01
1
9712-
2
REPAIR KIT; LEVELING VALVE
1-85573-005-0
02
1
9712-
3
VALVE ASM; LEVELING VALVE
1-52133-003-0
02
1
9712-
4
FILTER; AIR,LEVELING VALVE
9-52135-066-0
04
1
9712-
5
JOINT; LEVELING VALVE
1-52139-007-0
02
1
9712-
6
GASKET; JOINT
(A)
9-44519-063-0
04
1
9712-
6
GASKET; JOINT
(B)
9-52135-064-0
02
1
9712-
7
SEAL; LEVELING VALVE
9-52139-017-0
02
1
9712-
8
SPRING; LEVELING VALVE
(A)
9-52135-060-0
02
1
9712-
8
SPRING; LEVELING VALVE
(B)
9-52135-062-0
02
1
9712-
9
SEAL; LEVELING VALVE
9-52139-018-0
04
1
9712-
10
PLUG; BODY
(A)
9-52135-063-0
02
1
9712-
10
PLUG; BODY
(B)
9-52135-077-0
02
1
9712-
11
DIAPHRAGM ASM; LEVELING VALVE
1-52135-005-0
02
1
9712-
12
WASHER; DIAPH
1-52135-003-0
02
1
9712-
13
NUT; BODY,DIAPH
9-88510-428-0
02
1
9712-
14
ACTUATOR ASM; LEVELING VALVE
1-52139-001-0
02
1
9712-
15
COVER; ACTUATOR BODY
(A)
9-52139-019-0
02
1
9712-
15
COVER; ACTUATOR BODY
(B)
9-52139-020-0
02
1
9712-
16
PLUG; BODY
1-52139-002-0
02
1
9712-
17
BOLT; BODY TO BODY
1-52139-004-0
04
1
9712-
18
BODY; ACTUATOR
9-52131-004-0
02
1
9712-
19
NUT; LK,BODY
9-88510-079-0
04
1
9712-
20
PISTON; ACTUATOR
9-52135-072-0
02
1
9712-
21
SPRING; PISTON
9-88510-084-0
02
1
9712-
22
PLUG; BODY
9-52135-078-0
02
1
9712-
23
SEAL; OIL
9-52139-021-0
02
1
9712-
24
PIN; SPR
1-52139-003-0
02
1
9712-
25
SHAFT; ACTUATOR
9-52135-069-0
02
1
9712-
26
NIPPLE; GREASE
M6 STRAIGHT
9-09031-006-0
02
1
9712-
28
COVER; BODY
1-52139-039-0
02
1
9712-
29
SCREW; COVER
1-52139-005-0
16
1
9712-
30
LEVER; LEVELING VALVE
1-52137-033-0
02
1
9712-
31
ROD ASM; JOINT
1-52139-040-0
02
1
9712-
32
JOINT; NUT
1-09409-025-0
02
1
9712-
33
WASHER; LK
ID=8.2
9-09150-508-0
02
1
9712-
34
NUT; LK,LEVER
(D) M8 FLANGE
0-91150-108-0
04
1
9712-
34
NUT; LK,LEVER
(A)
1-09400-084-0
02
1
9712-
34
NUT; LK,LEVER
(C) M10
1-52139-008-0
02
1
9712-
34
NUT; LK,LEVER
(B)
1-52139-015-0
02
1
9712-
35
BOLT; LOCK,LEVER
9-88510-081-0
02
1
9712-
