Sayfa 3-77 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶

3-77 — BRAKE PIPING; AIR,REAR (#45995) — 202 parça

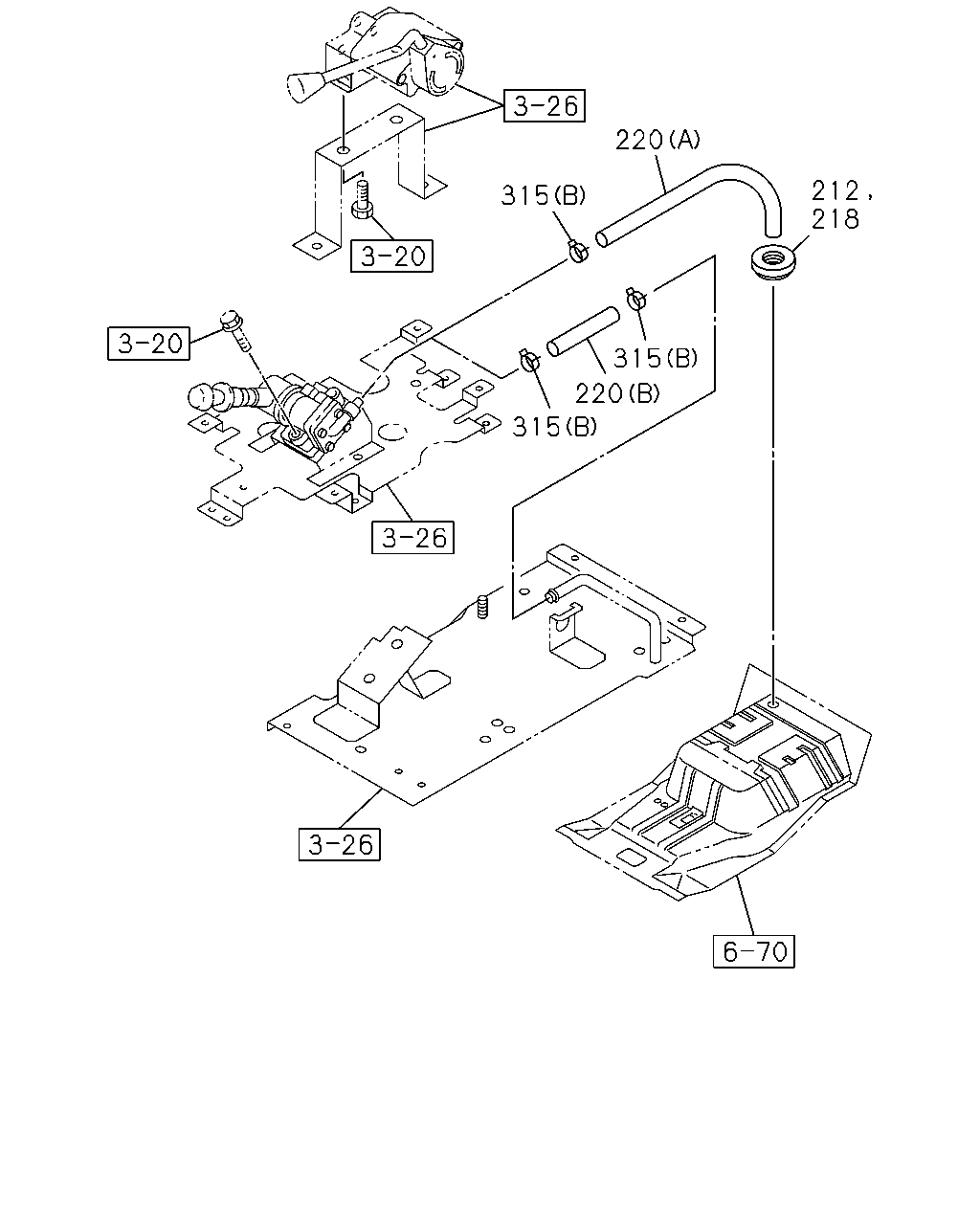

220 212 218 315 315 220 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	0801-1101	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1102	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1103-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1004-1101		●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1103-		●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV (A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1004-		●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV (B) L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1004-	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-		●	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-			●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-	●

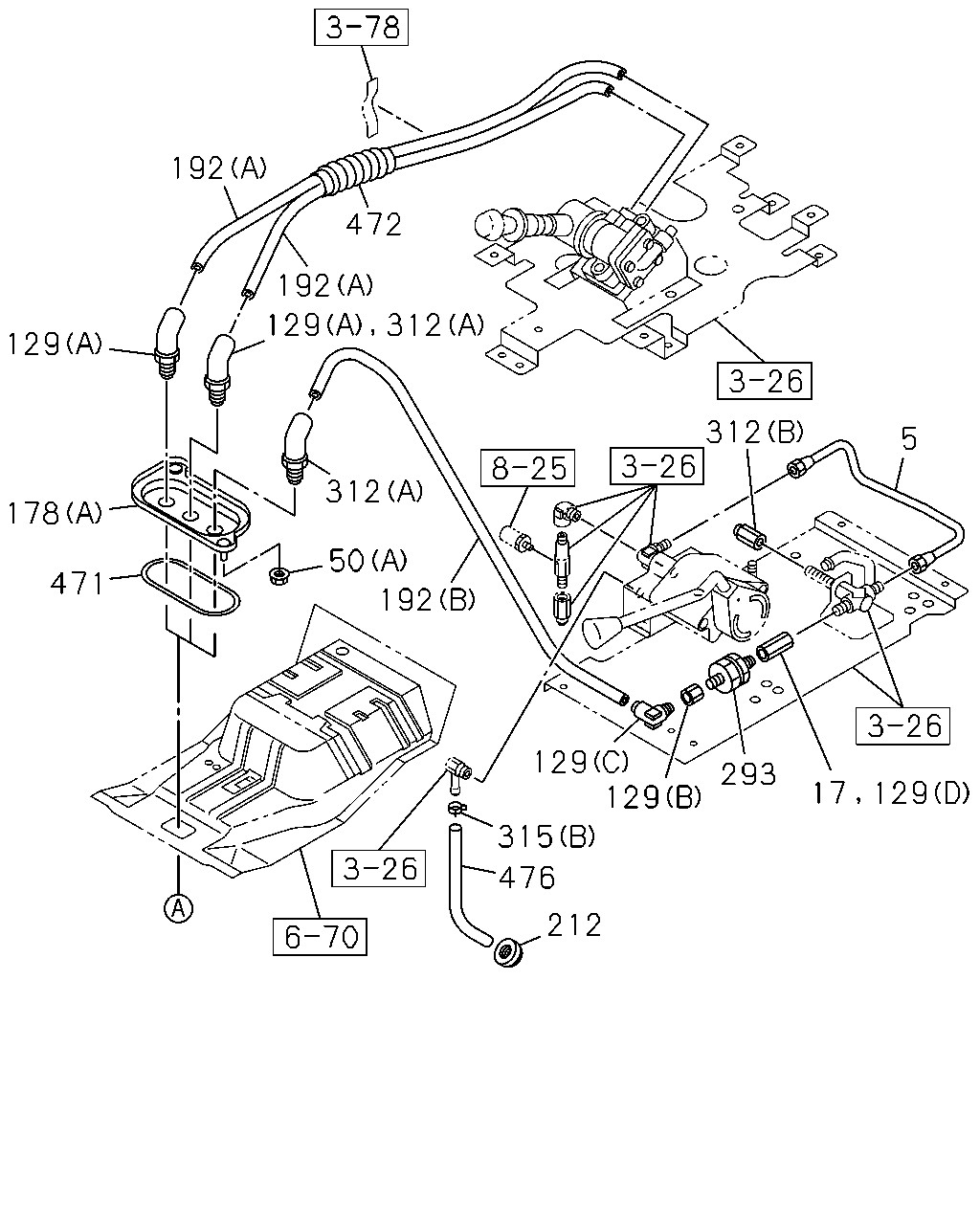

192 472 192 129 312 129 312 5 312 178 50 471 192 129 129 293 17 129 315 476 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	PIPE; AIR,UNION TO PARKING VLV	8-97610-775-1	01	1	0801-	●
17	UNION; AIR PIPE M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-1101	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
50	NUT; UNION BRKT (B) M12	0-91111-512-0	02	1	0801-			●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1102-	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	0801-1006	●
129	CONNECTOR; NYLON TUBE (C)	8-97633-756-0	01	1	1007-	●
129	CONNECTOR; NYLON TUBE (B)	1-09660-930-1	01	1	0801-1006	●
129	CONNECTOR; NYLON TUBE (B)	8-97633-768-0	01	1	1007-	●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1102-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-		●	●
178	BRACKET; UNION (B)	8-98057-822-0	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	0801-1101	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1102	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1103-	●
293	VALVE; CHECK	1-48410-479-1	01	1	0801-	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101		●	●
312	CONNECTOR; SUPPLY (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0801-	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0801-1101	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-		●	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-			●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-	●
471	SEAL; BRKT	1-79738-832-0	01	1	0801-	●	●	●
472	TUBE; SPUTTER	8-98108-051-0	01	1	0801-		●	●
472	TUBE; SPUTTER	8-98108-051-0	02	1	0801-	●
476	PIPE; VINYL,EXH L=180 SERVICED BY L=10000	9-09914-701-0	01	1	0801-1101	●

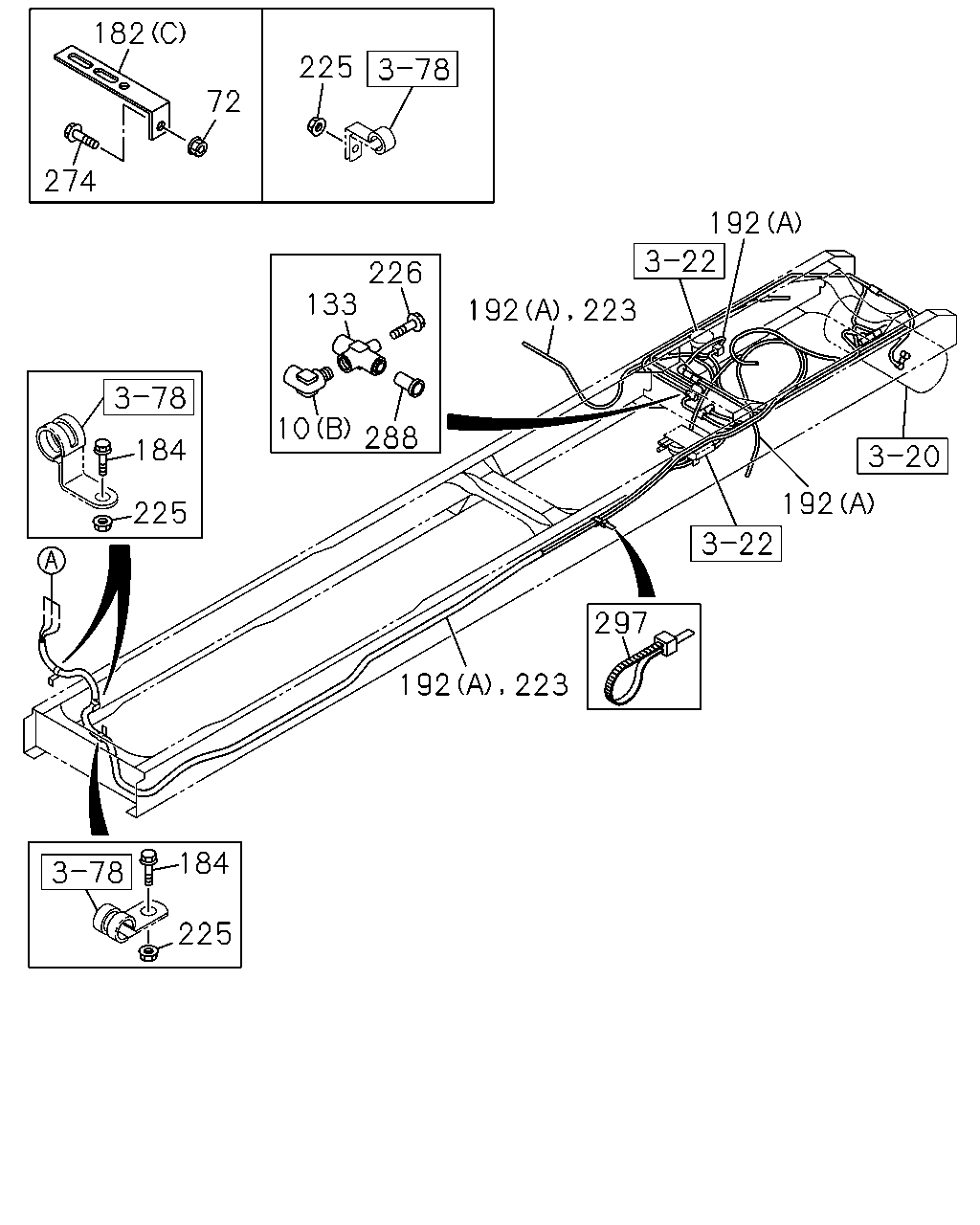

182 225 72 274 192 226 133 192 223 10 288 184 225 192 297 192 223 184 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	CONNECTOR; FLEX HOSE (A) M16 2WAY	1-09650-182-1	02	1	0801-			●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0801-0802			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0801-0802			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1101			●
133	UNION; NIPPLE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0801-	●
182	BRACKET; TUBE CLIP (B) L=100	1-47477-620-1	02	1	0801-			●
182	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-			●
182	BRACKET; TUBE CLIP (C) L=100 H=30	1-47477-645-2	01	1	0801-	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0801-0802	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●	●
184	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-		●	●
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0806-0808			●
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0809-			●
226	BOLT; UNION DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	0809-			●
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0801-	●		●
288	PLUG OD=12	1-09661-617-0	01	1	0801-	●
297	CLIP; BAND L=350	1-09707-183-0	09	1	0801-0802			●

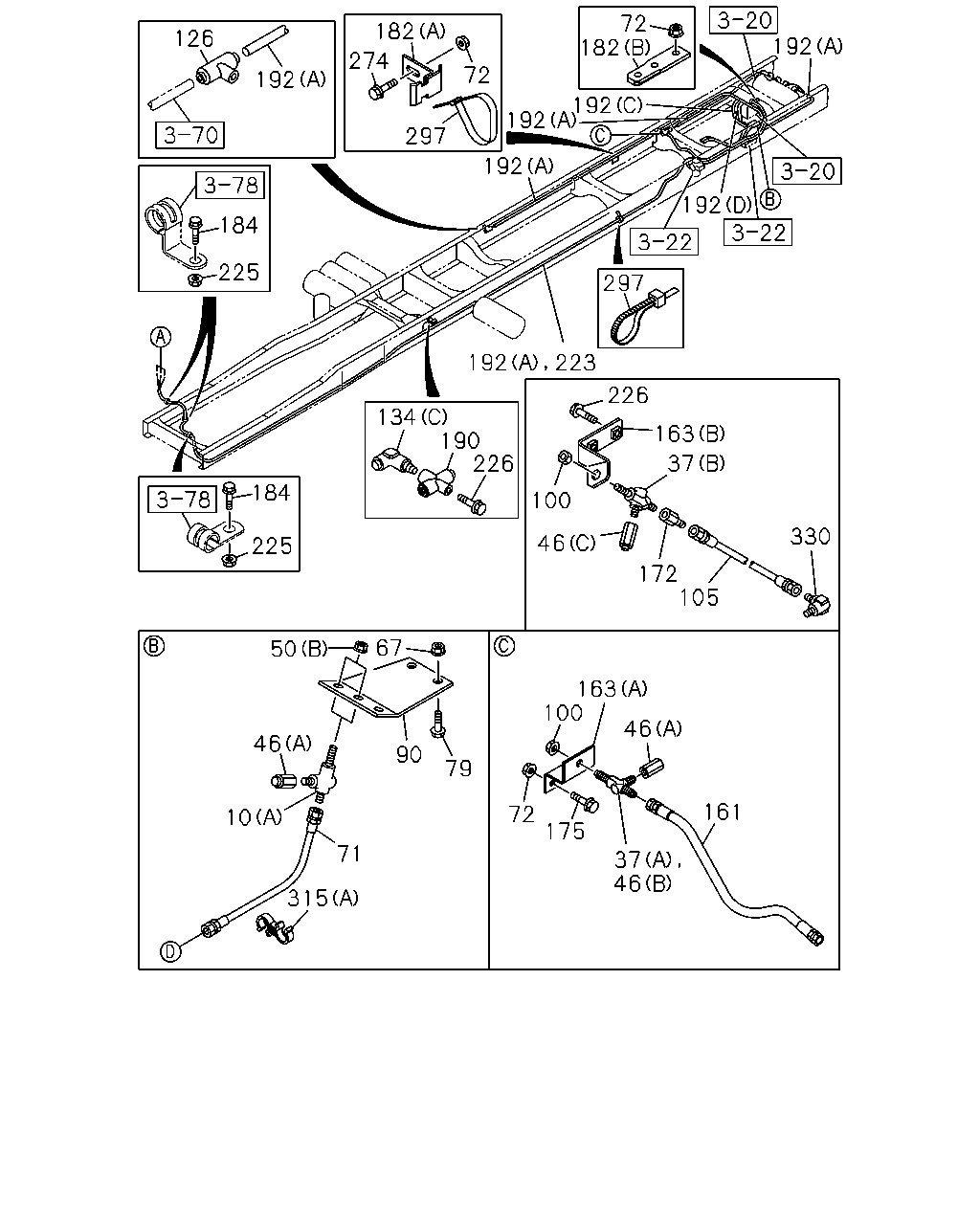

192 72 182 182 126 274 72 192 192 192 297 192 192 184 225 297 192 223 226 134 190 226 163 37 184 100 330 46 225 172 105 67 50 163 100 46 46 90 79 161 72 10 175 71 37 46 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	CONNECTOR; FLEX HOSE (A) M16 2WAY	1-09650-182-1	02	1	0801-			●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	0806-			●
37	UNION; AIR PIPE DIFF LOCK<C3N> (B) M12 2WAY	1-09654-059-2	01	1	0809-			●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	0801-0805			●
46	NIPPLE; AIR PIPE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0801-			●
46	NIPPLE; AIR PIPE DIFF LOCK<C3N> (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-			●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
50	NUT; UNION BRKT (B) M12	0-91111-512-0	02	1	0801-			●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0801-			●
71	HOSE; FLEX,RWD RR L=600	1-09363-746-0	02	1	0801-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0801-0802			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0801-0802			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1101			●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0801-			●
90	BRACKET; PIPE UNION	1-47477-851-1	01	1	0801-			●
100	NUT; UNION M12	0-91111-512-0	01	1	0801-0808			●
100	NUT; UNION M12	0-91111-512-0	01	1	0809-			●
100	NUT; UNION DIFF LOCK<C3N> M12	0-91111-512-0	01	1	0809-			●
105	HOSE; FLEX DIFF LOCK<C3N> L=430	1-09363-677-0	01	1	0809-			●
126	UNION; NYLON TUBE DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0801-		●	●
134	CONNECTOR (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-		●	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-			●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-			●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-704-0	01	1	0801-			●
163	BRACKET; FLEX HOSE (A)	8-98092-676-0	01	1	0801-			●
163	BRACKET; FLEX HOSE DIFF LOCK<C3N> (B)	8-98130-334-0	01	1	0809-			●
172	ADAPTER; UNION DIFF LOCK<C3N>	8-98120-199-0	01	1	0809-			●
175	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	0801-0805			●
182	BRACKET; TUBE CLIP (B) L=100	1-47477-620-1	02	1	0801-			●
182	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-			●
182	BRACKET; TUBE CLIP (C) L=100 H=30	1-47477-645-2	01	1	0801-	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0801-0802	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●	●
184	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-		●	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-		●	●
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0806-0808			●
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0809-			●
226	BOLT; UNION DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	0809-			●
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0801-	●		●
297	CLIP; BAND L=350	1-09707-183-0	09	1	0801-0802			●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-		●	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-			●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-	●
330	UNION; FLEX HOSE DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-			●

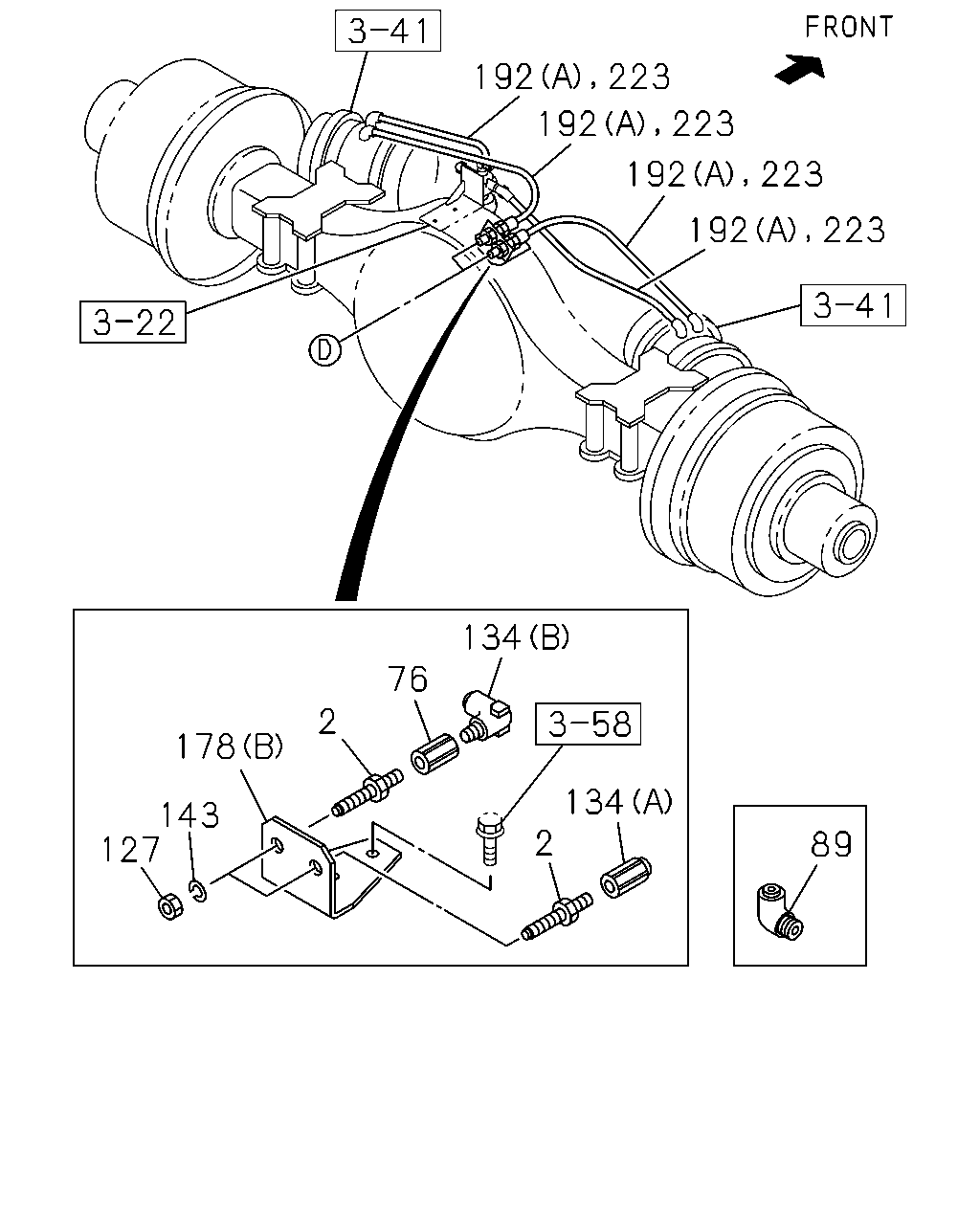

192 223 192 223 192 223 223 192 134 76 2 178 134 2 143 127 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	02	1	0801-			●
76	ADAPTER; NYLON TUBE M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-			●
89	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0809-	●	●
127	NUT; UNION M16	0-91111-516-0	02	1	0801-			●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0806-			●
134	CONNECTOR (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-		●	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-			●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-			●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	02	1	0801-			●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-		●	●
178	BRACKET; UNION (B)	8-98057-822-0	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
