3-41 — REAR BRAKE POWER CHAMBER (#45990) — 17 parça

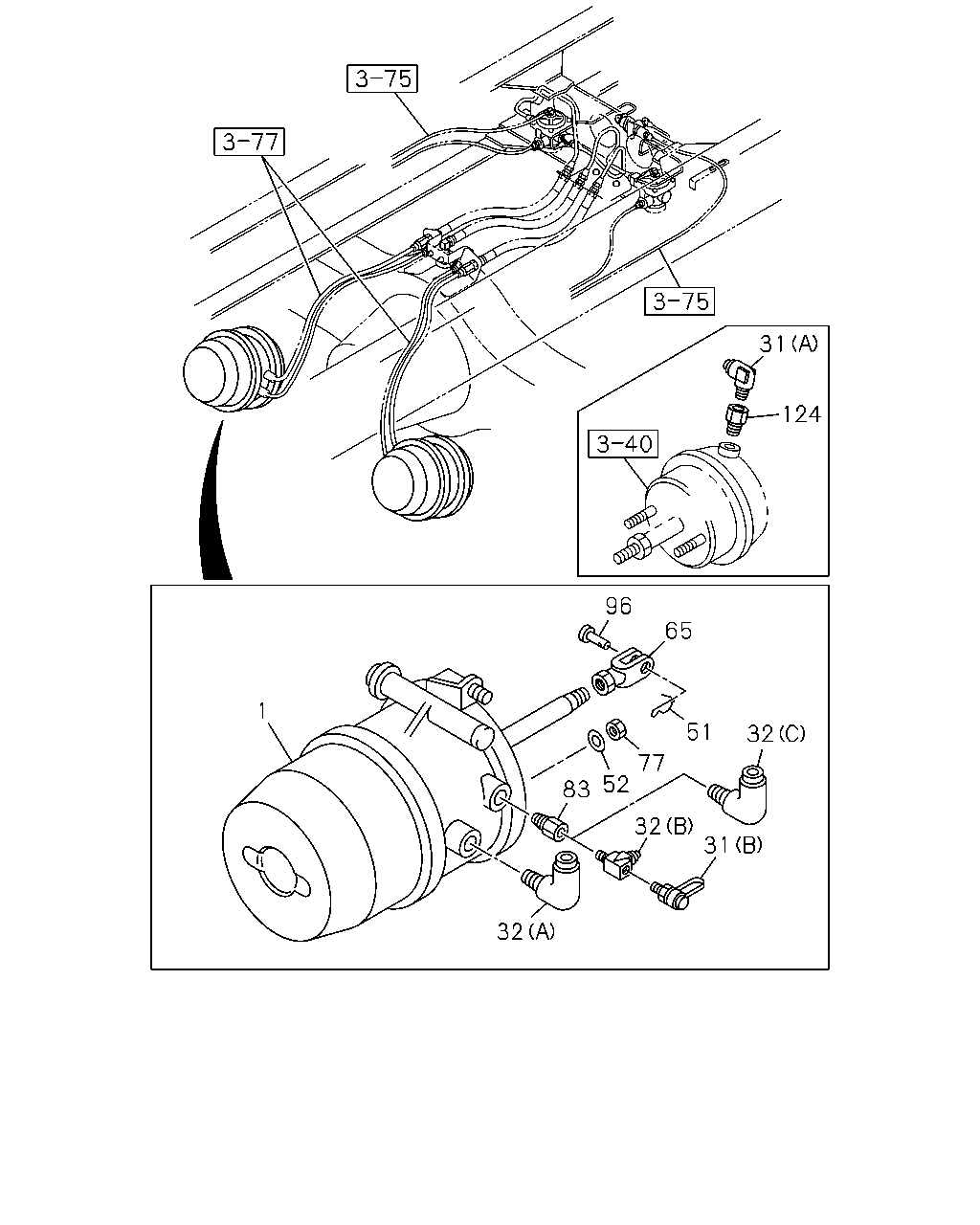

çizim 112590
31 124 96 65 1 51 32 77 52 83 32 31 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CHAMBER ASM; SPRING 1-48250-941-0 01 1 0801-1211 ● ● ●
1 CHAMBER ASM; SPRING 1-48250-959-0 01 1 1212- ● ● ●
1 CHAMBER ASM; SPRING 1-48250-942-0 01 1 0801-1211 ● ● ●
1 CHAMBER ASM; SPRING 1-48250-960-0 01 1 1212- ● ● ●
31 CONNECTOR
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0801- ● ● ●
31 CONNECTOR
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801- ● ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0801- ● ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0801- ● ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 0801- ● ● ●
52 WASHER; PL 1-41519-038-0 04 1 0801- ● ● ●
65 JOINT; JAW 1-48259-321-0 02 1 0801- ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0801- ● ● ●
83 ADAPTER; SPR CHAMBER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0801- ● ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 0801- ● ● ●
124 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) 		1-09660-547-0 01 1 0801-0805 ● ● ●
124 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) R1/4 & PT3/8 		8-98113-889-0 01 1 0806- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
