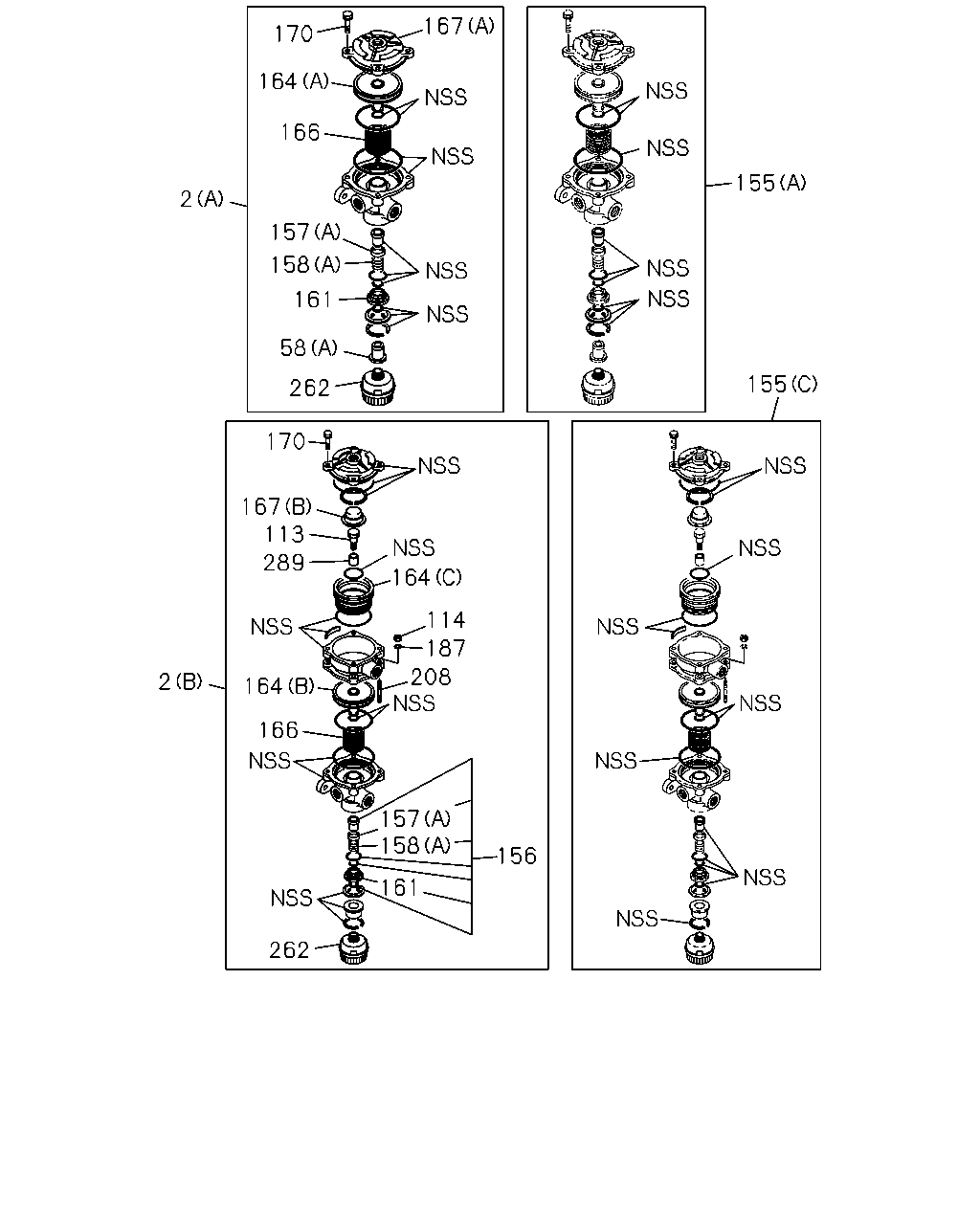

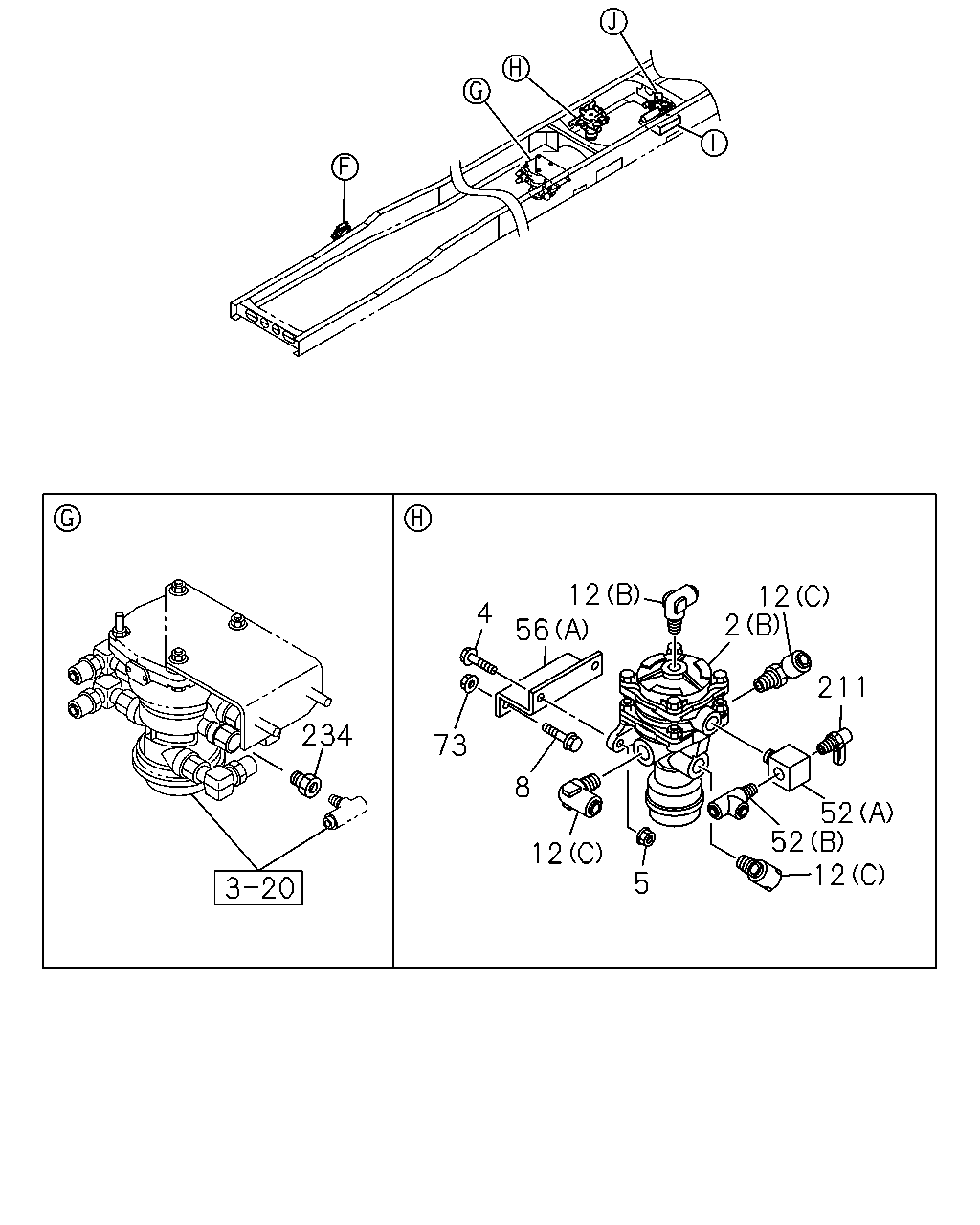

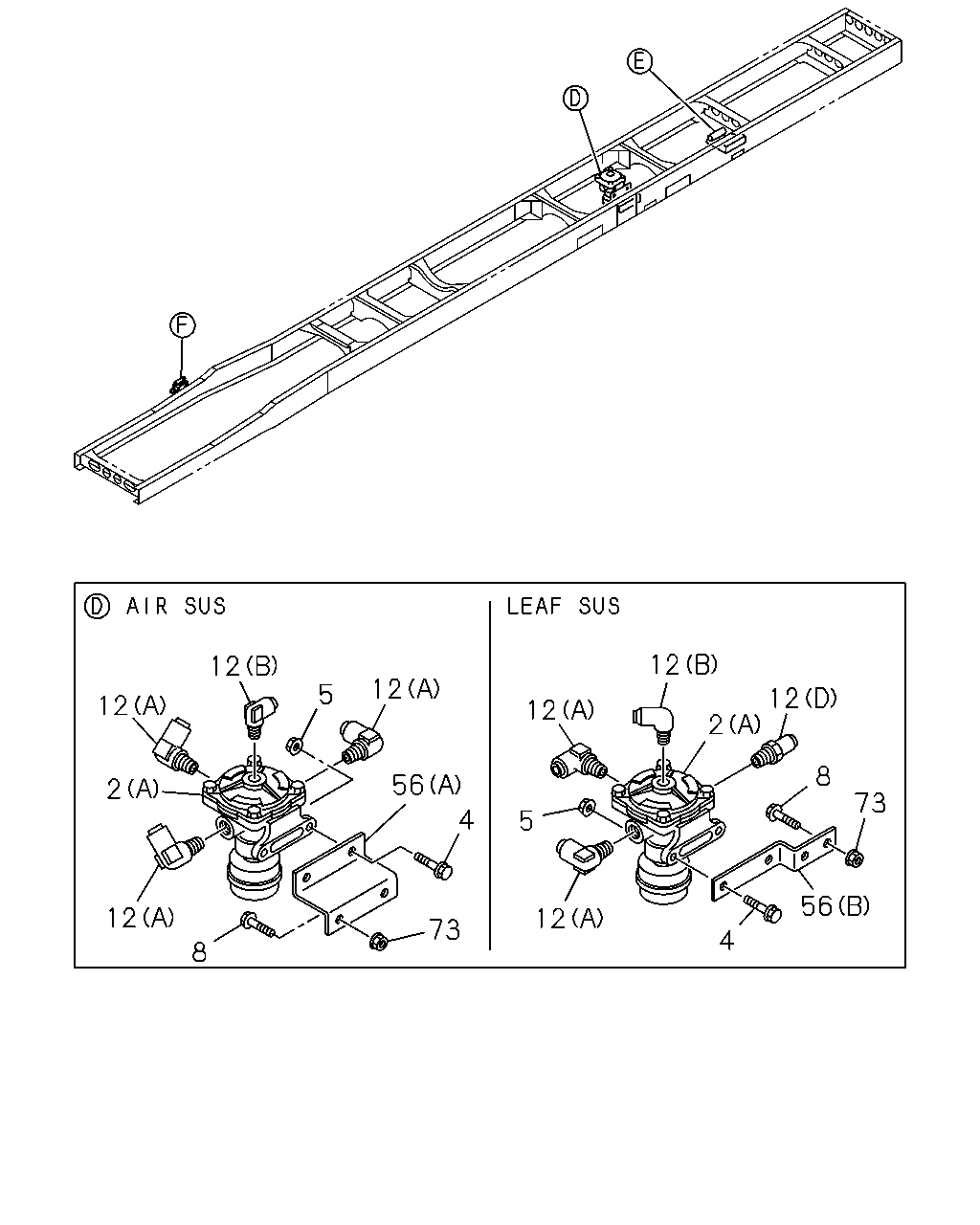

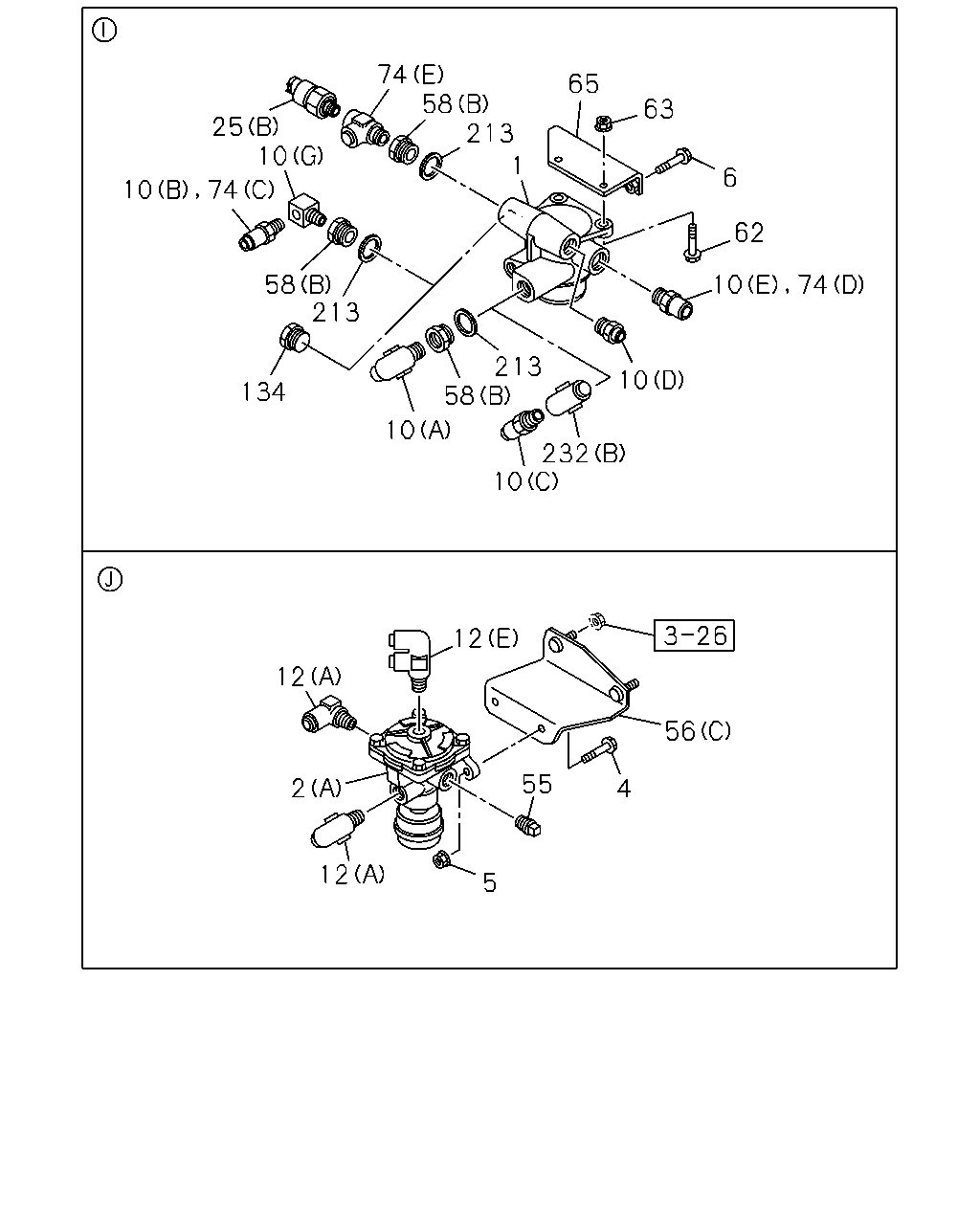

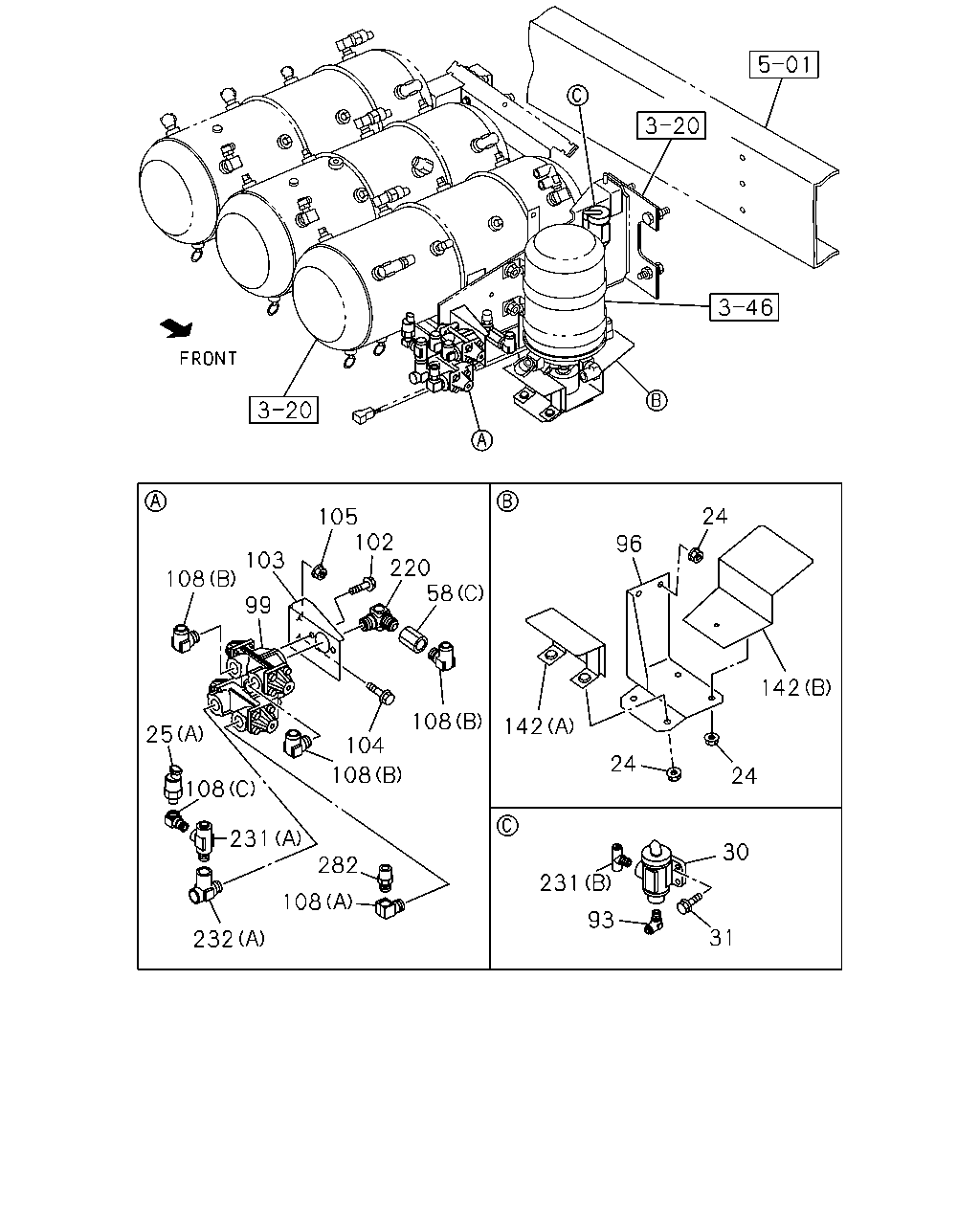

3-22 — AIR CONTROL PARTS (#45986) — 349 parça

12 56 12 2 4 211 234 73 8 52 52 12 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●	●	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●	●	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-			●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0801-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV (C)	8-98164-901-0	01	1	1002-			●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-	●	●	●
211	CONNECTOR; TEST ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-			●
234	UNION PT3/8	1-09664-210-0	01	1	0804-			●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0801-	●	●	●

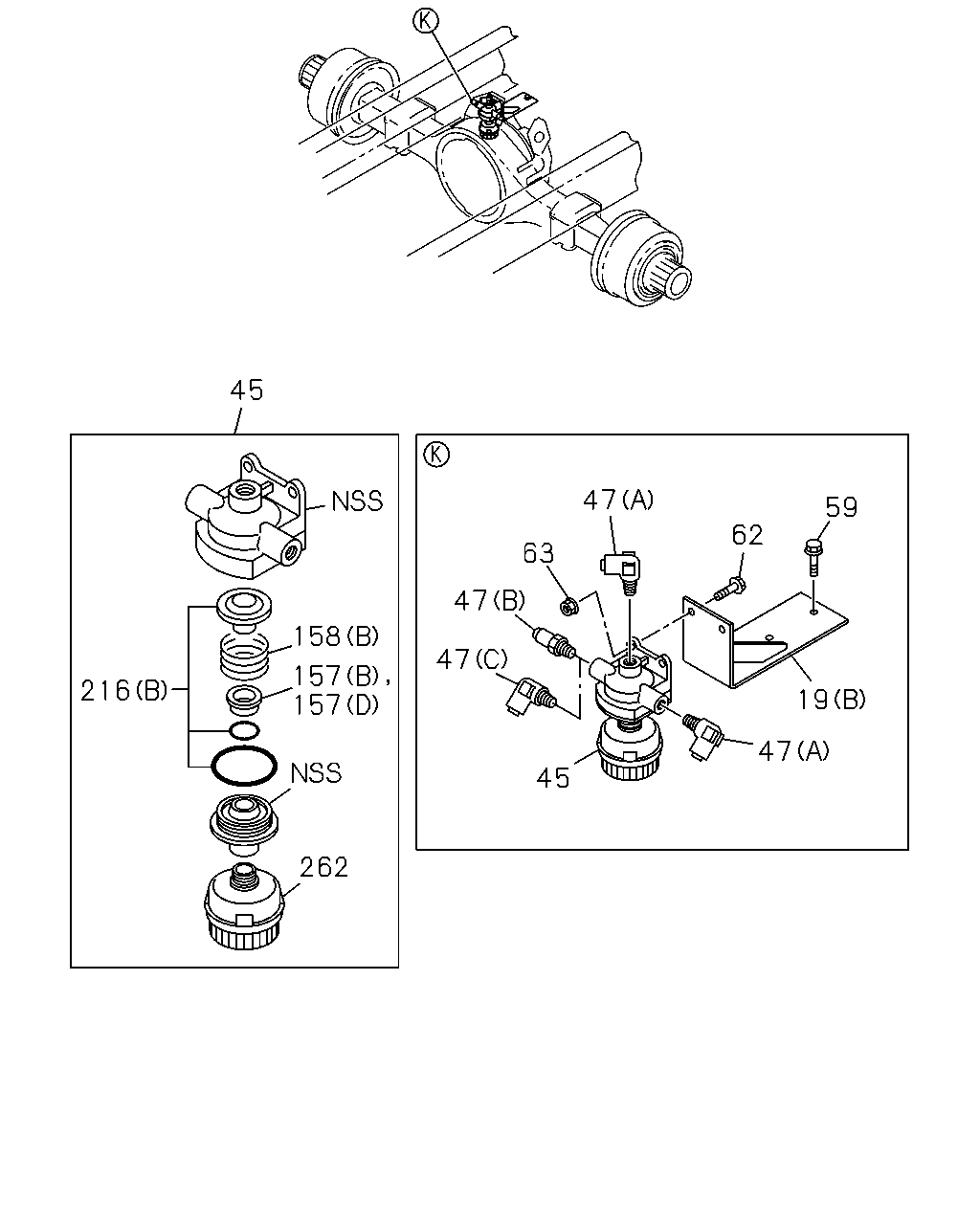

45 47 59 62 63 47 158 47 157 157 216 19 47 45 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	0801-1107	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	1108-		●
19	BRACKET; QUICK RELEASE VLV (B)	8-98179-172-0	01	1	1108-	●		●
45	VALVE; QUICK RELEASE	1-48410-733-0	01	1	0801-1008	●	●	●
45	VALVE; QUICK RELEASE	8-98170-207-0	01	1	1009-	●	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●		●
47	CONNECTOR; RELAY VLV,CONT (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0801-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	02	1	0801-	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	01	1	0801-		●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	01	1	0801-		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	01	1	0801-1008	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	01	1	1009-	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-			●

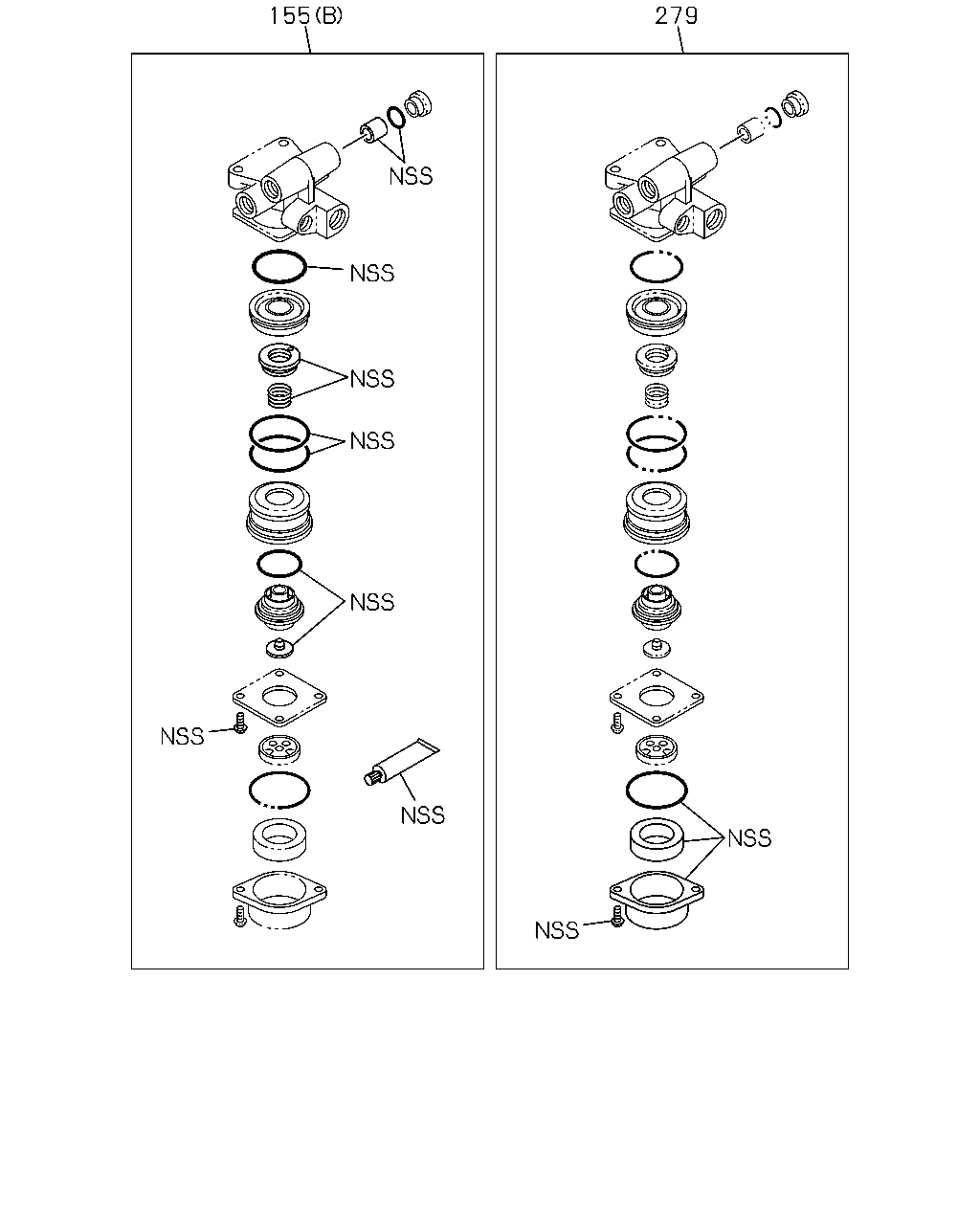

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	0801-1001	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	1002-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1002-			●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-447-0	01	1	0801-			●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0801-	●	●	●

24 105 102 220 58 96 103 108 99 142 108 142 25 104 24 108 24 108 231 30 282 231 108 93 31 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	NUT M8 FLANGE	0-91180-108-0	06	1	0801-	●	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0801-	●	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	0801-1001	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	1002-	●	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-1001		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-	●	●	●
96	BRACKET	8-98093-436-0	01	1	0801-	●	●	●
99	VALVE; PROTECTION	1-48110-294-2	01	1	0801-	●	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	0801-	●	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	0801-	●	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	0801-	●	●	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0801-	●	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0801-	●	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●	●	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	0801-	●	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	0801-	●	●	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	0801-	●	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	0801-	●	●	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	0801-	●	●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0801-	●	●	●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1002-			●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●	●	●

167 170 164 166 155 2 157 158 161 58 155 262 170 167 113 289 164 114 187 208 2 164 166 157 158 156 161 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	0801-1001	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	1002-	●	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-1001		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
113	BOLT; VLV ANTILOCK BRAKE SYSTEM(BFA)	1-47769-062-0	01	1	0801-			●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
114	NUT; VLV ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	04	1	0801-			●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	0801-1001	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	1002-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1002-			●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-447-0	01	1	0801-			●
156	VALVE ASM; INL ANTILOCK BRAKE SYSTEM(BFA)	1-47842-010-0	01	1	0801-			●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	0801-1001	●	●	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	1002-	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1002-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	0801-1001	●	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	1002-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	1002-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-058-0	01	1	0801-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47769-059-0	01	1	0801-			●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	01	1	0801-1001	●	●	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	01	1	1002-	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	1002-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0801-1001	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1002-	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1002-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-063-0	01	1	0801-			●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	04	1	0801-1001	●	●	●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	04	1	1002-	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1002-			●
187	WASHER; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) ID=8.2	1-09985-177-0	04	1	0801-			●
208	STUD ANTILOCK BRAKE SYSTEM(BFA)	1-47769-064-0	04	1	0801-			●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	0801-1001	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	1002-	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-			●
289	COLLOR ANTILOCK BRAKE SYSTEM(BFA)	1-47769-061-0	01	1	0801-			●

74 58 213 65 63 25 10 1 6 62 58 213 213 58 10 134 10 232 10 12 12 56 55 2 4 12 5 10 74 10 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0801-	●	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●	●	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●	●	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-1001	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1002-	●	●	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-0806	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0807-	●		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0806	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-	●	●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0802		●
10	CONNECTOR (G) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0806			●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0807-1001			●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-	●	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1002-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV (C)	8-98164-901-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	0801-1001	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	1002-	●	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-1001		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (E) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-	●		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	0801-1001	●	●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	1002-	●	●	●
213	GASKET ID=22.5	9-09571-422-0	02	1	0801-1001	●
213	GASKET ID=22.5	9-09571-422-0	02	1	1002-	●		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0801-0802		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0803-1001		●	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1002-		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0802			●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0801-	●	●	●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1002-			●

54 74 6 114 19 54 13 13 48 54 64 158 157 157 216 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	0801-	●	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	0801-1107	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	1108-		●
19	BRACKET; QUICK RELEASE VLV (B)	8-98179-172-0	01	1	1108-	●		●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-	●	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-	●	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (E) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-	●		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
114	NUT; VLV ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	04	1	0801-			●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (D)	1-48419-020-0	01	1	1009-	●	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	01	1	0801-1008	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	01	1	1009-	●	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●	●

74 65 63 1 25 58 213 6 62 134 10 213 58 10 10 58 213 63 10 65 1 6 62 10 58 213 134 58 74 213 213 58 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0801-	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-1001	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1002-	●	●	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-0806	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0807-	●		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0806	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-	●	●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0802		●
10	CONNECTOR (G) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0806			●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0807-1001			●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-	●	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	0801-1001	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	01	1	1002-	●	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-1001		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (E) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-	●		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	0801-1001	●	●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	1002-	●	●	●
213	GASKET ID=22.5	9-09571-422-0	02	1	0801-1001	●
213	GASKET ID=22.5	9-09571-422-0	02	1	1002-	●		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0801-0802		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0803-1001		●	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1002-		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0802			●

12 12 12 5 12 12 12 2 8 56 2 73 4 5 56 12 12 73 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●	●	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●	●	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV (C)	8-98164-901-0	01	1	1002-			●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
