Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶

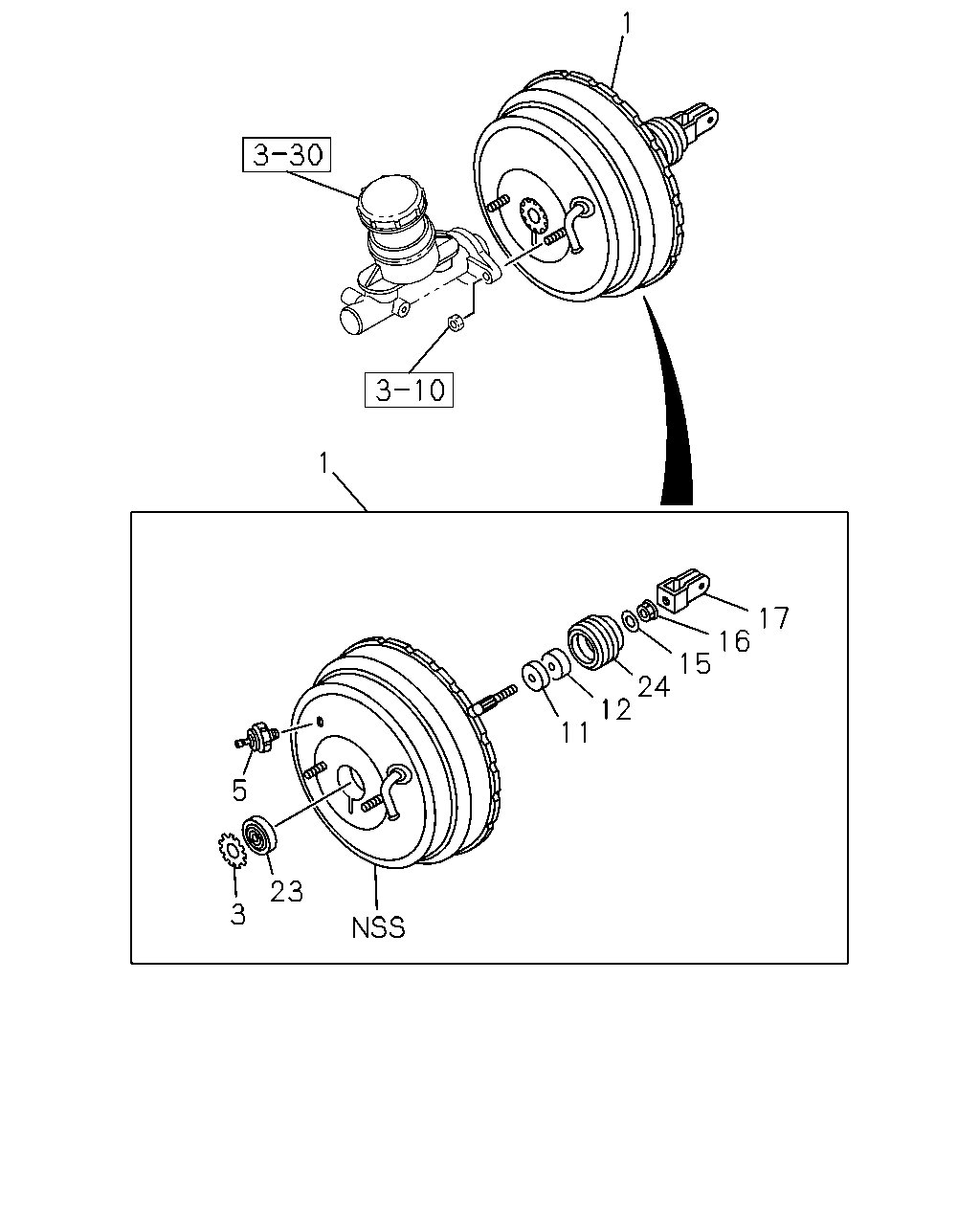

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#45984) — 10 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
1
1
17
16
15
24
12
11
5
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.901 MASTER VAC ASM; BRK
8-97021-942-1
01
1
9611-
●
●
●
●
●
●
3
04.906 RETAINER; FRT SHELL,M/VAC
9-83315-319-0
01
1
9611-
●
●
●
●
●
●
5
04.906 SWITCH; VAC,M/VAC
8-94460-517-0
01
1
9611-
●
●
●
●
●
●
11
04.906 FILTER; M/VAC
04.913
9-83345-063-0
01
1
9611-
●
●
●
●
●
●
12
04.906 SILENCER; M/VAC
8-94341-722-0
01
1
9611-
●
●
●
●
●
●
15
04.906 RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
9611-
●
●
●
●
●
●
16
04.662 NUT; VLV ROD,M/VAC
M10 FLANGE
8-97096-430-0
01
1
9611-
●
●
●
●
●
●
17
04.662 CLEVIS; YOKE,M/VAC
8-94342-517-0
01
1
9611-
●
●
●
●
●
●
23
04.910 SEAL; M/VAC
8-94152-349-0
01
1
9611-
●
●
●
●
●
●
24
04.906 GUARD; VLV BODY,M/VAC
8-94375-084-0
01
1
9611-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
