◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#45983) — 11 parça

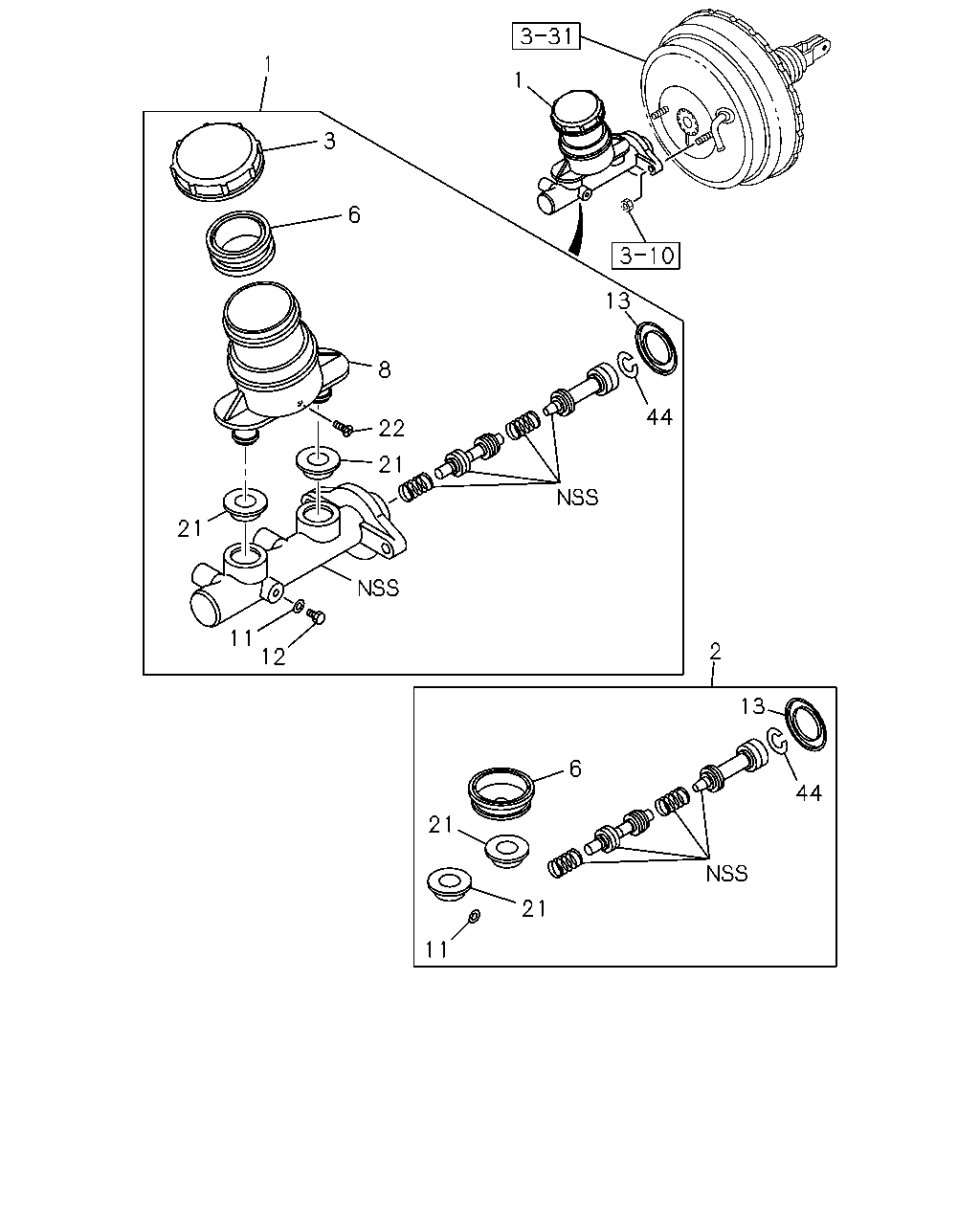

çizim 72360
1 1 3 6 13 8 44 22 21 21 11 2 12 13 6 44 21 21 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.650 CYLINDER ASM; BRK MASTER 8-97148-432-0 01 1 9611- ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97160-707-0 01 1 9611- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-97138-667-0 01 1 9611- ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9611- ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-97071-797-0 01 1 9611- ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-94107-675-0 01 1 9611- ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
M6X13 		8-94107-674-0 01 1 9611- ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC 8-94132-833-0 01 1 9611- ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-94133-716-0 02 1 9611- ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-94230-600-1 01 1 9611- ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
04.017 OD=27.9 		9-09180-126-0 01 1 9611- ● ● ● ● ● ●
