3-11 — PARKING BRAKE CONTROL (#45982) — 89 parça

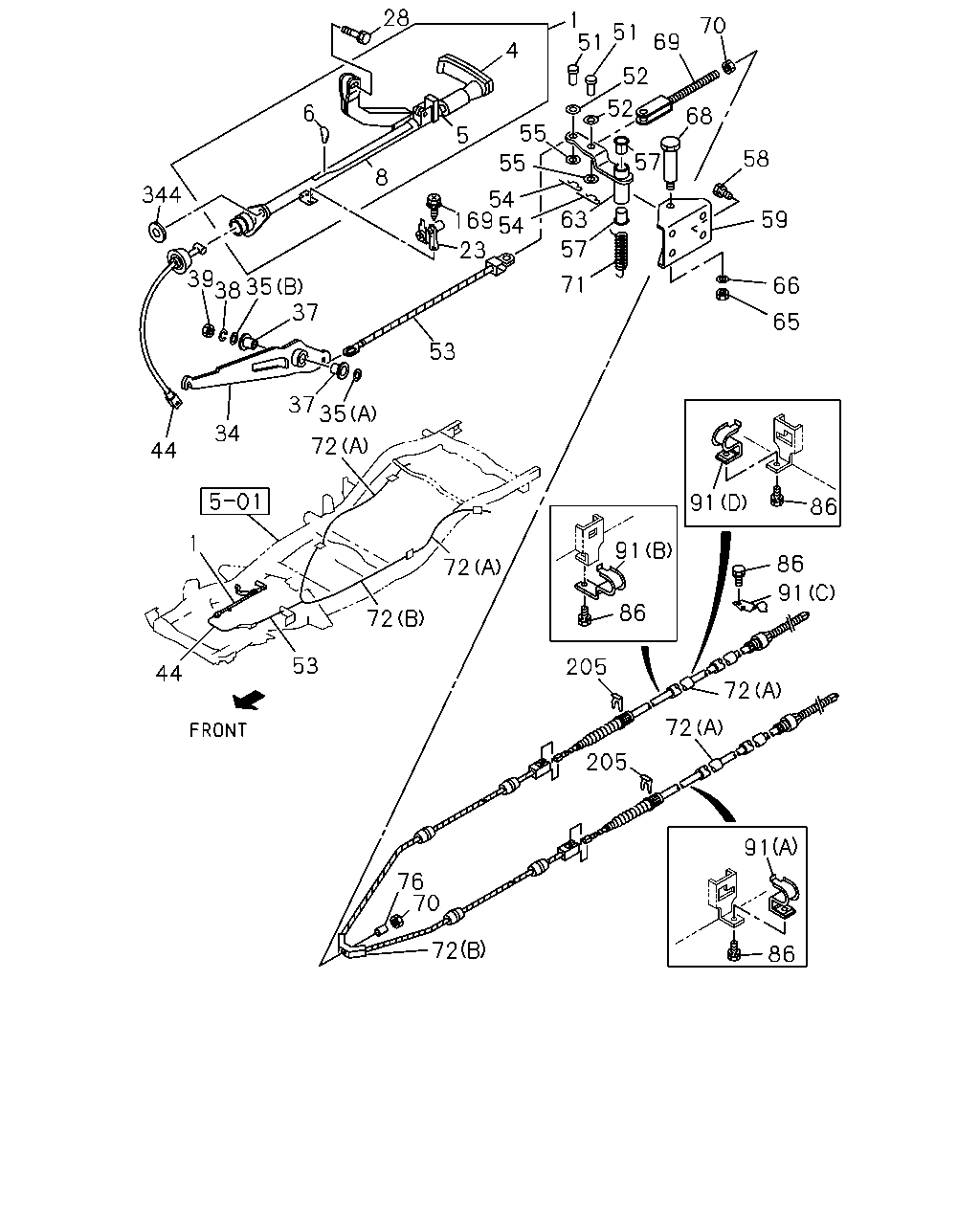

28 1 51 70 51 69 4 52 52 6 68 55 5 58 57 55 54 169 63 54 8 344 59 57 23 39 38 35 37 71 66 65 53 37 35 34 72 44 86 91 1 91 86 72 91 86 72 53 205 44 72 72 205 91 76 70 72 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK	8-97131-923-0	01	1	9611-	●	●	●
4	04.592 STEM; PARKING BRK	8-97162-053-0	01	1	9611-	●	●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9611-	●	●	●
6	04.589 PIN; STEM,PARK BRK	8-97162-045-0	01	1	9611-	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9611-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9611-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9611-				●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9611-	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-	●	●	●	●	●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9611-	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9611-	●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9611-	●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9611-	●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9611-	●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9611-	●	●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9611-	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9611-	●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9611-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9611-	●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9611-	●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9611-	●	●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9611-	●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-	●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9611-	●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9611-	●	●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9611-	●	●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9611-	●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9611-	●	●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9611-	●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9611-	●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK	8-97111-566-2	01	1	9611-				●	●	●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9611-				●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9611-	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9611-	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9611-	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9611-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9611-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	9611-				●	●	●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9611-	●	●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9611-	●	●	●
344	04.595 GASKET; DASH LWR	8-94371-873-0	01	1	9611-	●	●	●

328 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
28	04.594 BOLT; HAND BRK LEVER 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9611-	●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-	●	●	●	●	●	●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9611-				●	●	●

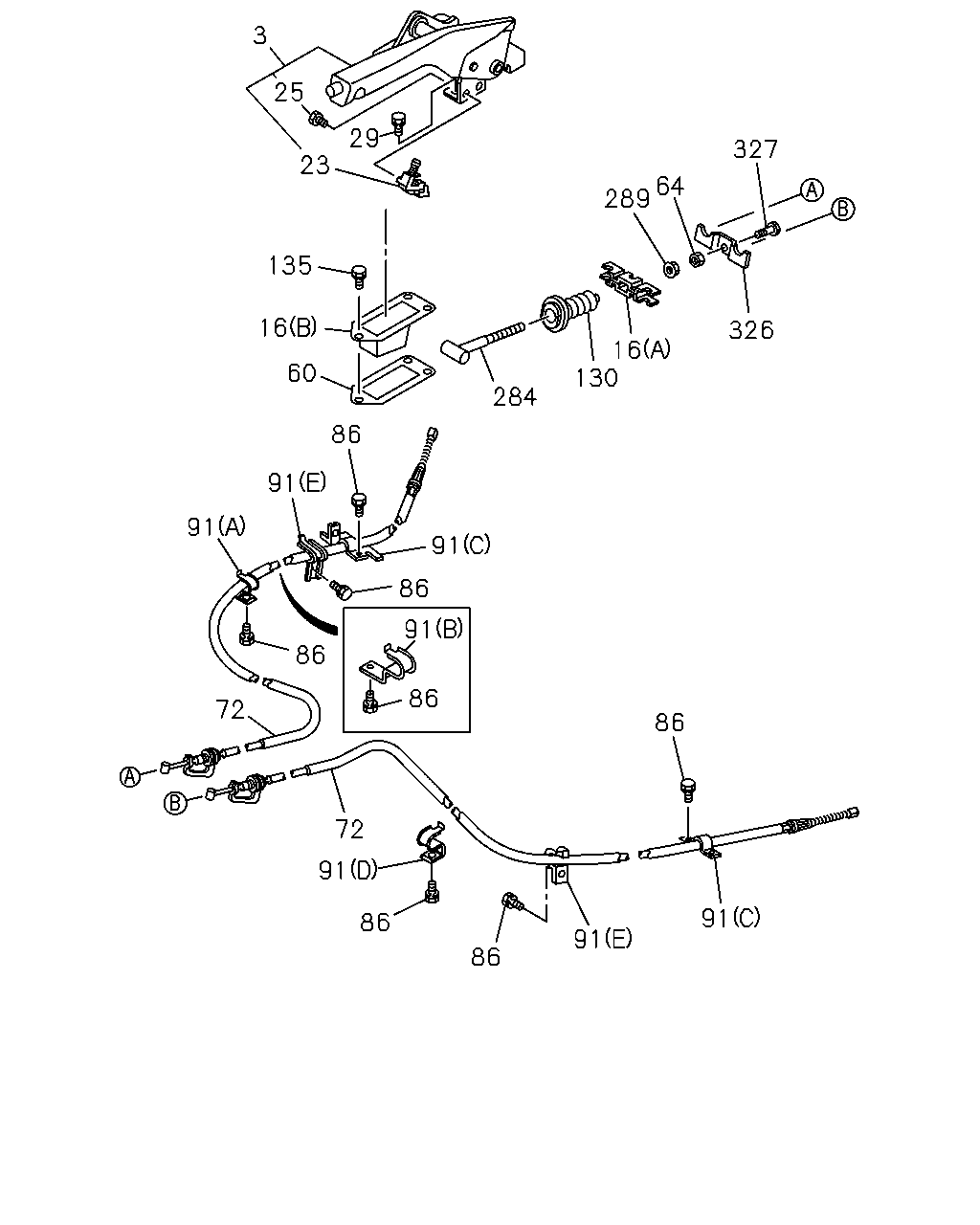

3 25 29 327 23 64 289 135 16 326 16 130 60 284 86 91 91 91 86 91 86 86 72 86 72 91 91 86 91 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	04.591 LEVER; PARKING BRK	8-97139-547-1	01	1	9611-9711				●	●	●
3	04.591 LEVER; PARKING BRK	8-97177-396-1	01	1	9712-				●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97046-793-2	01	1	9612-9711				●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9712-				●	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9612-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9611-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9611-				●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9611-				●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9611-				●	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9612-				●	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9611-				●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9611-	●	●	●
72	04.779 CABLE; PARKING BRK	8-97111-566-2	01	1	9611-				●	●	●
72	04.779 CABLE; PARKING BRK	8-97111-565-3	01	1	9611-				●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9611-	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	06	1	9611-	●	●	●	●	●	●
86	04.785 BOLT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9611-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9611-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9611-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	9611-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	9611-				●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9611-				●	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9611-				●	●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9611-				●	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-				●	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9611-				●	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-				●	●	●
