◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#45980) — 36 parça

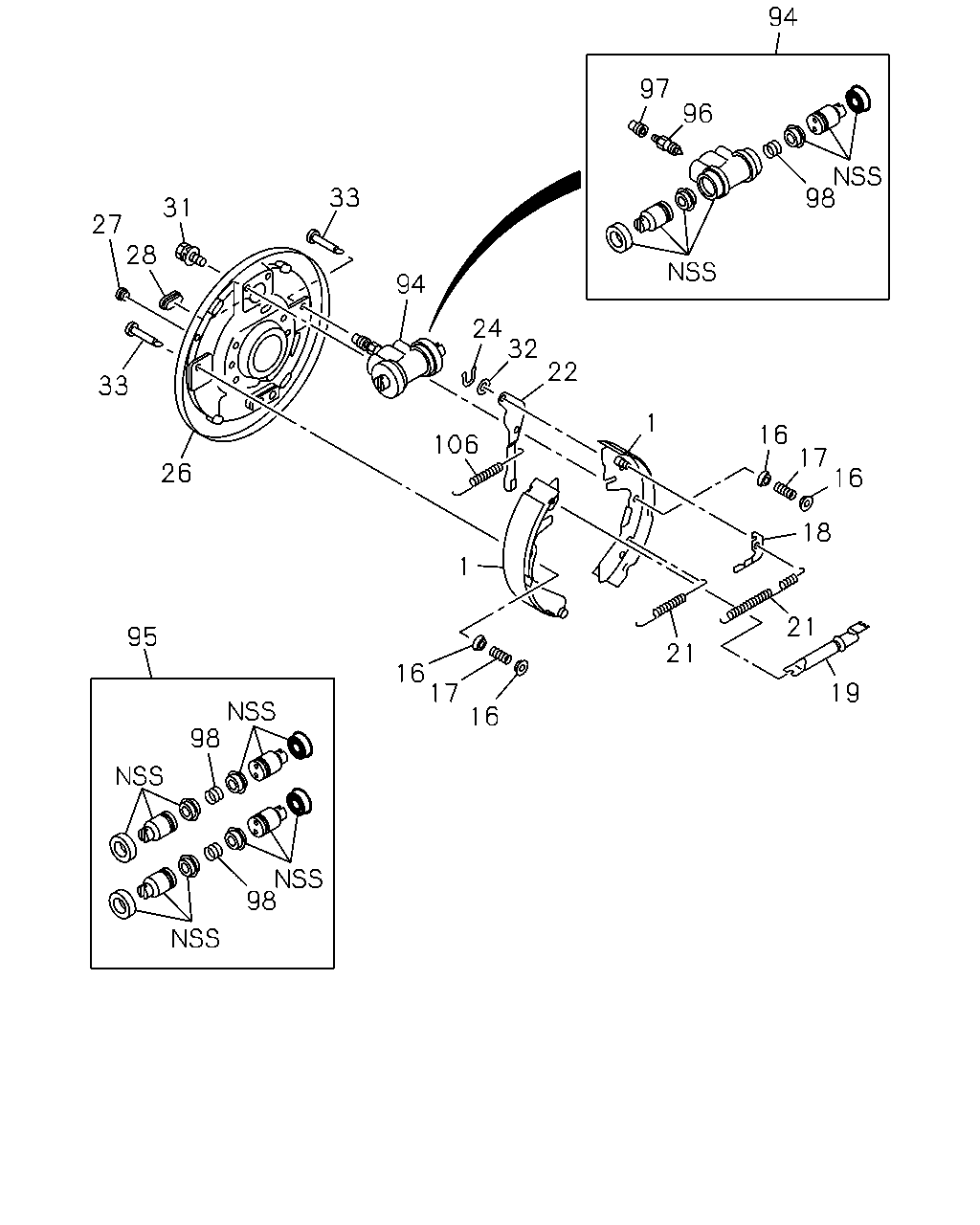

çizim 69739
19 21 18 17 16 16 1 22 32 24 94 33 31 28 27 33 26 95 98 98 17 16 16 21 1 106 96 97 94 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.017 SHOE; BRK,RR
LEADING 		8-97147-565-0 02 1 9611- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97049-177-0 01 1 9611- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97049-176-0 01 1 9611- ● ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97113-220-1 02 1 9611- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-219-1 01 1 9611- ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-218-1 01 1 9611- ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 04 1 9611- ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		8-94134-106-0 04 1 9611- ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-866-1 01 1 9611- ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-865-1 01 1 9611- ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-078-1 01 1 9611- ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-077-1 01 1 9611- ● ● ● ● ● ●
21 05.026 SPRING; SHOE,RET
LOWER 		8-94127-066-0 02 1 9611- ● ● ●
21 05.026 SPRING; SHOE,RET
UPPER 		8-94480-191-0 02 1 9611- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-868-2 01 1 9611- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
05.158 		8-94124-867-2 01 1 9611- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-628-1 01 1 9611- ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-627-1 01 1 9611- ● ● ●
24 05.158 RETAINER; PARKING BRK 9-46349-005-1 02 1 9611- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97147-567-0 01 1 9611- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97147-566-0 01 1 9611- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-217-1 01 1 9611- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-216-1 01 1 9611- ● ● ●
27 05.810 COVER; CHECK HOLE,DRUM COVER 8-97122-854-0 02 1 9611- ● ● ● ● ● ●
28 05.117 COVER; ADJ HOLE 8-94111-509-0 02 1 9611- ● ● ●
28 05.117 COVER; ADJ HOLE 8-97123-320-0 02 1 9611- ● ● ●
31 04.665 BOLT; RR WHEEL CYL
05.056 M6X10 FLANGE 		8-94134-103-0 04 1 9611- ● ● ● ● ● ●
32 05.056 WASHER; LK
05.158 ID=9.5 		9-09850-529-0 02 1 9611- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 9611- ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97127-616-0 02 1 9611- ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-543-0 01 1 9611- ● ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 9611- ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 9611- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-94482-339-0 02 1 9611- ● ● ●
98 04.669 SPRING; RR WHEEL CYL 8-94230-597-2 02 1 9611- ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER
05.026 		8-94480-190-0 02 1 9611- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
