2-30 — GEAR SHIFTER AND QUADRANT BOX (#45976) — 64 parça

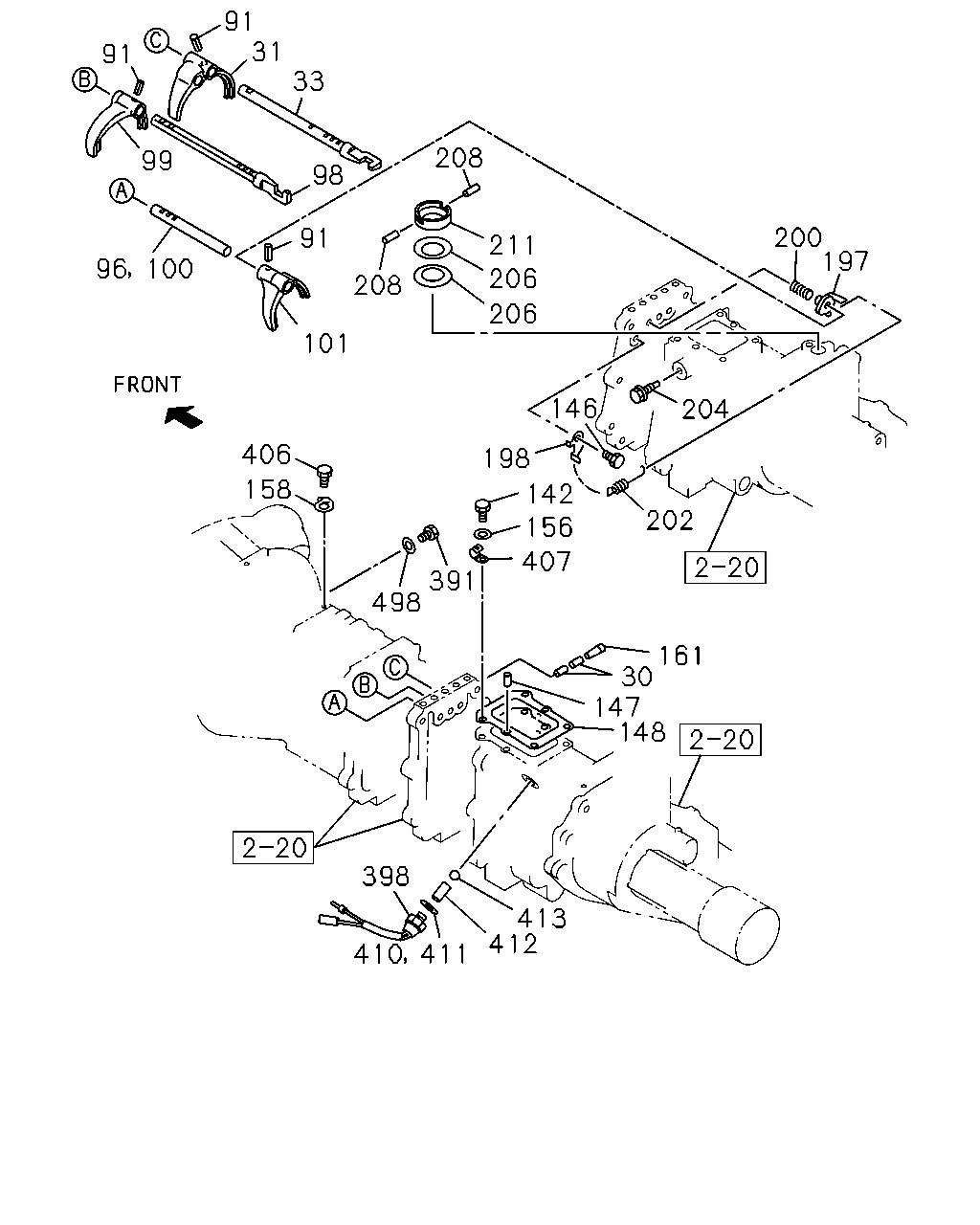

çizim 18461
91 31 91 33 208 99 98 91 200 197 211 96 100 206 208 206 101 146 204 406 198 142 156 158 202 407 391 498 161 30 147 148 398 413 412 410 411
BalonParca AdiParca NoAdetTipApplied Date A B
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9611- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9611- ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 9611- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-94455-849-1 01 1 9611- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 9611- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 9611- ● ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 9611- ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-94372-767-0 01 1 9611- ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 9611- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9611- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 9611- ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97115-185-0 01 1 9611- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 9611- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 9611- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 9611- ● ●
146 04.032 BOLT; REV INHIBITOR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9611- ●
147 04.020 PIN; KNOCK
4X2(TFB***) 04.510 OD=6 L=12 		9-08150-612-0 02 1 9611- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.012 		8-94462-113-0 01 1 9611-9709 ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 9710- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 9611- ●
156 00.349 WASHER; PL,HARNESS CLIP
4X4(TFS***) 16.674 ID=8.4 		9-09160-508-0 01 1 9611- ●
158 04.105 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 9611- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9611- ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 9611- ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 9611- ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 9611- ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 9611- ●
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 9611- ●
206 04.307 SPRING; BALL SEAT
4X4(TFS***) 04.570 		9-33619-632-0 02 1 9611-9707 ●
208 04.307 PIN; BALL SEAT
4X4(TFS***) 		8-94204-186-0 02 1 9611-9707 ●
211 04.307 SEAT; BALL
4X4(TFS***) 04.570 		5-33619-042-0 01 1 9611-9707 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 02 1 9611- ●
398 02.698 SWITCH; REV LAMP
04.439 		8-94411-366-1 01 1 9611- ●
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 9611- ●
406 02.559 BOLT; HARNESS CLIP
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ●
406 02.559 BOLT; HARNESS CLIP
4X4(TFS***) 00.206 M8X12 W/LK WASHER 		0-50040-812-0 01 1 9611- ●
407 02.698 CLIP; SWITCH HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ●
407 02.698 CLIP; SWITCH HARNESS
4X4(TFS***) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611- ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9611- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 9611- ●
412 02.698 PLUNGER; REV LAMP SW
4X4(TFS***) 04.302 D=5.5 L=26.7 		8-94161-122-0 01 1 9611- ●
413 04.307 BALL; BACK SW
4X4(TFS***) 		9-00097-517-0 01 1 9611- ●
498 04.075 GASKET; SWITCH,1ST & 2ND
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9611- ●
çizim 72173
262 22 132 22 479 186 511 174 479 459 195 271 268 166 430 172 261 271 289 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97103-102-0 02 1 9611- ● ●
132 04.027 SPRING; SELECT STOP 8-97103-106-0 01 1 9611- ● ●
166 04.302 PIN; SPR,SELECT LEVER
04.307 D=4.2 L=25 		8-97103-142-0 02 1 9611- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 9611- ●
174 04.307 SPRING; REV 8-97103-105-0 01 1 9611- ● ●
186 04.105 PLUG; SHIFTER ROD
00.253 OD=16 		9-11129-081-0 01 1 9611- ● ●
195 04.105 BOLT
01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9611- ● ●
261 04.309 ROD; GEAR CONT 8-97103-092-1 01 1 9611- ●
261 04.309 ROD; GEAR CONT 8-97103-090-1 01 1 9611- ●
262 04.105 BOX ASM; SHIFT CONT 8-97104-409-4 01 1 9611- ●
262 04.105 BOX ASM; SHIFT CONT 8-97100-878-4 01 1 9611- ●
268 04.302 LEVER; CONT,INTERNAL 8-97104-410-0 01 1 9611- ●
268 04.302 LEVER; CONT,INTERNAL 8-97103-089-0 01 1 9611- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=15 		8-94478-119-0 02 1 9611- ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97103-093-2 01 1 9611- ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94478-118-0 01 1 9611- ● ●
430 04.307 PIN; SPR,SHIFT ROD
D=4.2 L=25 		8-97103-142-0 02 1 9611- ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 OD=5.4 		9-09678-510-0 01 1 9611- ● ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 OD=3.3 		9-09678-519-0 01 1 9611- ● ●
479 04.307 PLATE; SELECT
D=13 		8-97103-110-0 02 1 9611- ● ●
511 04.302 PIPE; AIR 8-97104-725-0 01 1 9611- ● ●
