2-20 — MANUAL TRANSMISSION ASM AND CASE (#45973) — 201 parça

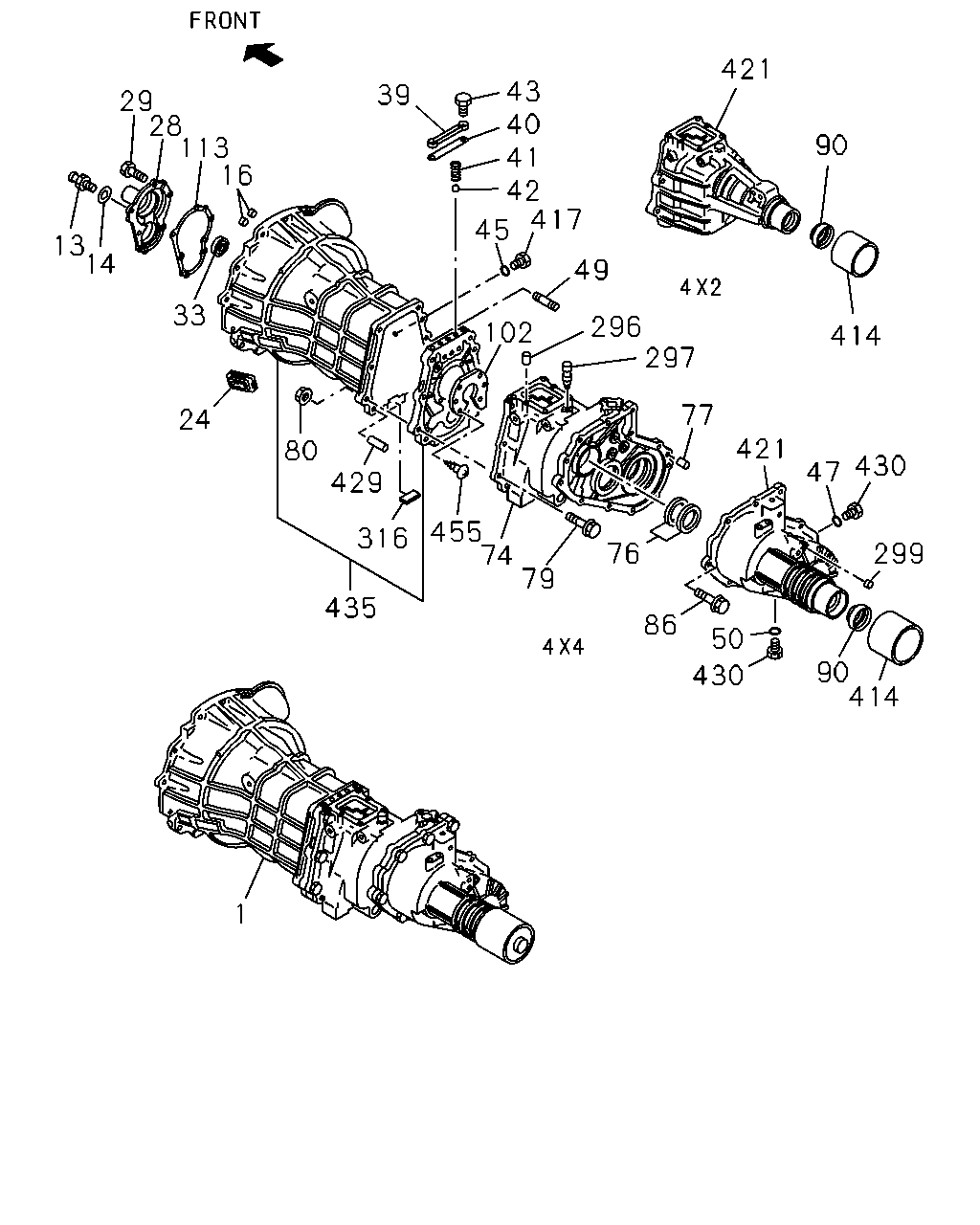

421 43 40 41 42 417 39 29 28 113 16 90 45 13 14 49 33 296 297 102 414 77 24 421 80 430 47 429 455 74 79 316 299 76 435 86 50 90 414 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-237-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97121-276-0	01	1	9611-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97145-285-0	01	1	9611-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9611-9611	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9612-	●	●
13	04.302 SUPPORT; SHIFT FORK 00.796 L=47.5	5-31345-002-1	01	1	9611-9611		●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	9611-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9611-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9611-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9611-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9611-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9611-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9611-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9611-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9611-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9611-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9611-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9611-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9611-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9611-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9611-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9611-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9611-	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9611-	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.317 M10X64 L=84	8-94176-859-1	02	1	9611-	●
49	04.510 STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9611-9708		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X51.5 L=72	8-97036-714-1	01	1	9709-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9611-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9611-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9611-		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-94322-521-1	01	1	9611-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97027-772-5	01	1	9611-9707		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-0	01	1	9708-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94340-317-0	01	1	9611-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	9611-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	9611-		●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 04.502 D=10 L=20	5-09740-014-0	02	1	9611-	●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	9611-		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X35 FLANGE	0-28081-035-0	06	1	9611-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 04.317 M10X55 FLANGE	8-94473-959-1	07	1	9611-		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9611-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	01	1	9611-		●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9611-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X35 FLANGE	8-94448-818-1	11	1	9611-9708		●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X35 FLANGE	8-94448-818-1	09	1	9709-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9611-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9611-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9611-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9611-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9611-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9611-		●
296	04.510 PIN; QUAD BOX TO CASE 4X4(TFS***) OD=6 L=12	9-08150-612-0	02	1	9611-		●
297	04.104 BREATHER; AIR,TRANSFER CASE 4X4(TFS***)	8-97035-694-2	01	1	9611-		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.309 OD=14	5-09609-004-0	03	1	9611-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9611-		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	9611-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	9611-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9611-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9611-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	02	1	9611-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9611-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9611-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9611-		●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9611-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9611-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9611-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9611-		●
435	04.103 CASE; TRANS	8-94435-127-3	01	1	9611-9707	●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9708-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9611-		●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9611-		●

28 29 113 33 446 114 43 83 39 40 13 41 42 417 45 16 114 156 435 48 47 61 56 66 74 24 49 429 78 76 75 57 58 59 81 60 77 80 50 430 79 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-237-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97121-276-0	01	1	9611-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97145-285-0	01	1	9611-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9611-9611	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9612-	●	●
13	04.302 SUPPORT; SHIFT FORK 00.796 L=47.5	5-31345-002-1	01	1	9611-9611		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9611-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9611-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9611-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9611-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9611-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9611-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9611-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9611-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9611-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9611-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9611-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9611-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9611-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9611-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9611-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9611-	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	9611-	●	●
48	04.510 PLUG; OIL FILLER,TRANSFER CASE 4X4(TFS***) 08.971	8-94310-917-0	01	1	9611-	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.317 M10X64 L=84	8-94176-859-1	02	1	9611-	●
49	04.510 STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9611-9708		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X51.5 L=72	8-97036-714-1	01	1	9709-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9611-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9611-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9611-		●
56	04.510 CASE; ADAPTER,TRANSFER 4X4(TFS***)	8-94435-168-2	01	1	9611-	●
57	04.510 BOLT; ADAPTER CASE 4X4(TFS***) 04.317 M10X55 FLANGE	8-94473-959-1	06	1	9611-	●
58	04.510 WASHER; LK,ADAPTER CASE 4X4(TFS***) 00.002 ID=10.2	9-09150-510-0	02	1	9611-	●
59	04.510 NUT; ADAPTER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9611-	●
60	04.510 STUD; ADAPTER,TRANSFER CASE 4X4(TFS***) 04.104 M10X50	8-94161-987-0	02	1	9611-	●
61	04.510 BOLT; OIL GUIDE,ADAPTER CASE 4X4(TFS***) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
66	04.510 GASKET; ADAPTER,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94482-496-0	01	1	9611-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-94322-521-1	01	1	9611-	●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97027-772-5	01	1	9611-9707		●
74	04.510 CASE ASM; TRANSFER 4X4(TFS***)	8-97149-125-0	01	1	9708-		●
75	04.510 COVER; DUST,PROP SHAFT YOKE 4X4(TFS***) 04.317	8-94310-493-0	01	1	9611-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.318	8-94340-317-0	01	1	9611-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) TKK	8-97046-700-0	02	1	9611-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97046-701-2	02	1	9611-		●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) 04.502 D=10 L=20	5-09740-014-0	02	1	9611-	●
77	04.510 PIN; KNOCK,TRANSFER CASE 4X4(TFS***) OD=10 L=20	8-97135-423-0	02	1	9611-		●
78	04.510 STUD; TRANSFER CASE 4X4(TFS***) 04.502 M10X30 L=45	9-04411-030-0	01	1	9611-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X35 FLANGE	0-28081-035-0	06	1	9611-	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 04.317 M10X55 FLANGE	8-94473-959-1	07	1	9611-		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 00.002 M10	9-09110-510-0	02	1	9611-	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	01	1	9611-		●
81	04.510 WASHER; LK,TRANSFER CASE 4X4(TFS***) 00.002 ID=10.2	9-09150-510-0	02	1	9611-	●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9611-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9611-		●
114	04.105 RING; SNAP,BALL BRG 04.422 ID=49.6	5-09589-004-0	01	1	9611-	●
114	04.105 RING; SNAP,BALL BRG 04.412 ID=71.7	5-09589-005-0	01	1	9611-	●
156	04.510 GUIDE; OIL,TRANSFER CASE 4X4(TFS***)	8-94161-124-1	01	1	9611-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9611-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9611-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	02	1	9611-		●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9611-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9611-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9611-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9611-		●
435	04.103 CASE; TRANS	8-94435-127-3	01	1	9611-9707	●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9708-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9611-		●
446	04.105 PLUG; CASE,TRANS 04.104 M14X11	8-94252-142-0	01	1	9611-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	04.083 NUT; CASE,TRANS 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●

28 29 33 113 114 446 43 83 39 40 41 13 114 42 417 16 45 435 421 90 414 24 429 50 86 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97112-188-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97112-237-0	01	1	9611-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97121-276-0	01	1	9611-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97145-285-0	01	1	9611-		●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9611-9611	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9612-	●	●
13	04.302 SUPPORT; SHIFT FORK 00.796 L=47.5	5-31345-002-1	01	1	9611-9611		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9611-	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	9611-	●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9611-	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	9611-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9611-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	9611-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9611-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9611-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9611-	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9611-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9611-		●
41	04.311 SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9611-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9611-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9611-	●	●
43	04.311 BOLT; PLATE TO PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9611-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9611-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	9611-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	9611-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	02	1	9611-		●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
86	04.317 BOLT; RR COVER 4X2(TFB***) M10X55 FLANGE	8-94473-959-1	08	1	9611-	●	●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X35 FLANGE	8-94448-818-1	11	1	9611-9708		●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X35 FLANGE	8-94448-818-1	09	1	9709-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) NOK	8-94422-387-0	01	1	9611-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-704-0	01	1	9611-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-2	01	1	9611-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9611-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9611-		●
114	04.105 RING; SNAP,BALL BRG 04.422 ID=49.6	5-09589-004-0	01	1	9611-	●
114	04.105 RING; SNAP,BALL BRG 04.412 ID=71.7	5-09589-005-0	01	1	9611-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	9611-	●
414	04.317 COVER; DUST,RR COVER	8-94310-493-0	01	1	9611-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 04.103	8-94451-478-0	01	1	9611-	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 08.971	8-94310-917-0	01	1	9611-	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971	8-94310-917-0	02	1	9611-		●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97112-207-3	01	1	9611-	●
421	04.317 COVER; RR,TRANS 4X2(TFB***)	8-97039-528-2	01	1	9611-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***)	8-97039-529-3	01	1	9611-		●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9611-	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9611-	●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***)	9-09662-004-0	01	1	9611-		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	02	1	9611-		●
435	04.103 CASE; TRANS	8-94435-127-3	01	1	9611-9707	●
435	04.103 CASE; TRANS	8-97170-229-0	01	1	9708-	●
435	04.103 CASE; TRANS	8-97087-054-0	01	1	9611-		●
446	04.105 PLUG; CASE,TRANS 04.104 M14X11	8-94252-142-0	01	1	9611-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
