◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#45971) — 38 parça
çizim 18686
1 1 11 12 13 42 16 3 4 10 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-445-0 01 1 9611-9708 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-018-0 01 1 9709-9802 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9803- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-443-0 01 1 9611-9708 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-016-0 01 1 9709-9802 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97137-261-2 01 1 9803- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611- ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9611- ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-040-0 01 1 9803- ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-039-0 01 1 9803- ●

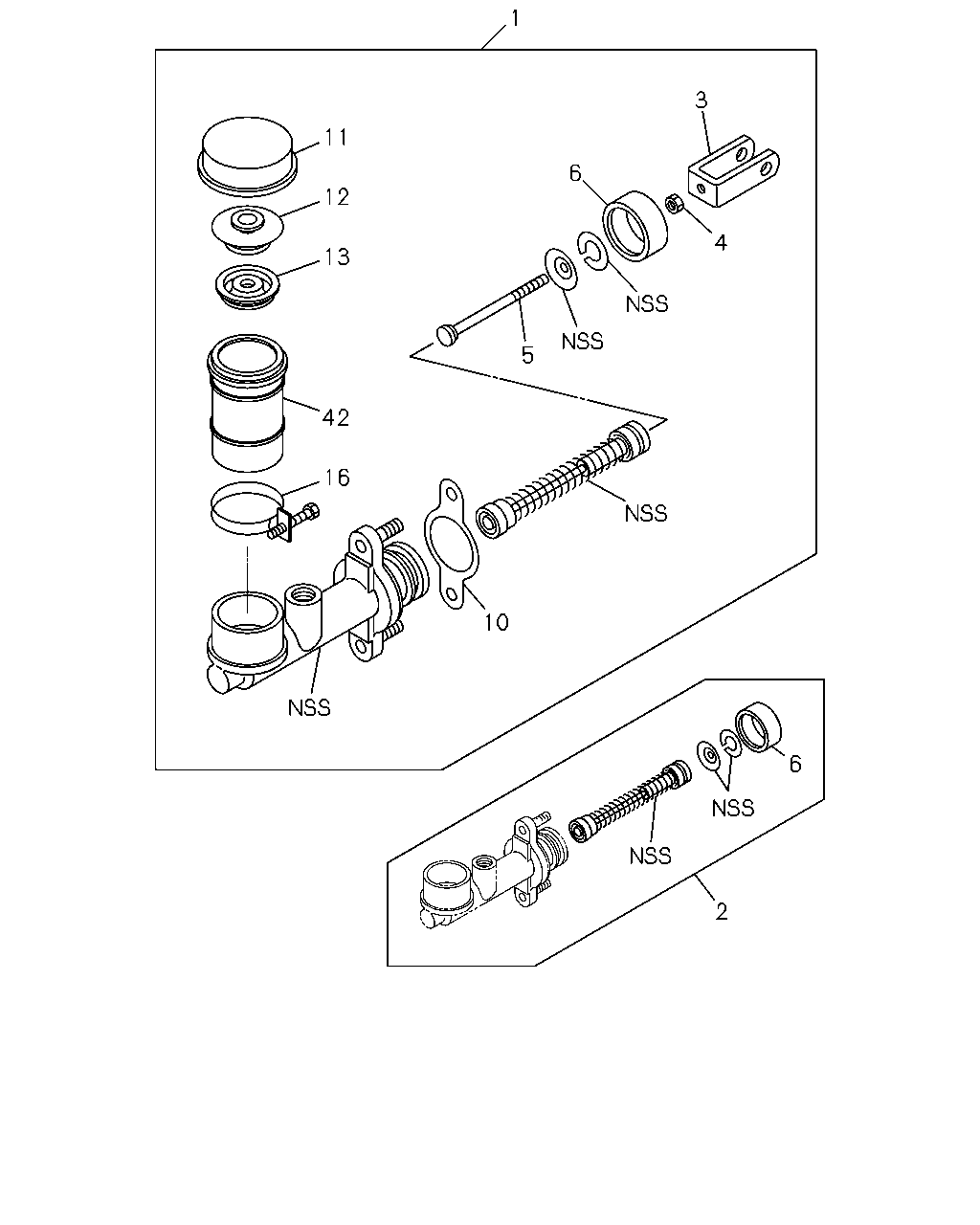

çizim 67135
1 3 11 6 12 4 13 5 42 16 10 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-445-0 01 1 9611-9708 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-018-0 01 1 9709-9802 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97201-007-0 01 1 9803- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97136-443-0 01 1 9611-9708 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97185-016-0 01 1 9709-9802 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97137-261-2 01 1 9803- ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-486-1 01 1 9611-9708 ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-659-0 01 1 9709-9802 ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611- ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97183-494-0 01 1 9709-9802 ●
5 00.775 ROD; PUSH,CLU M/CYL 8-94412-197-2 01 1 9611-9708 ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97183-495-0 01 1 9709-9711 ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9611- ● ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
