Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

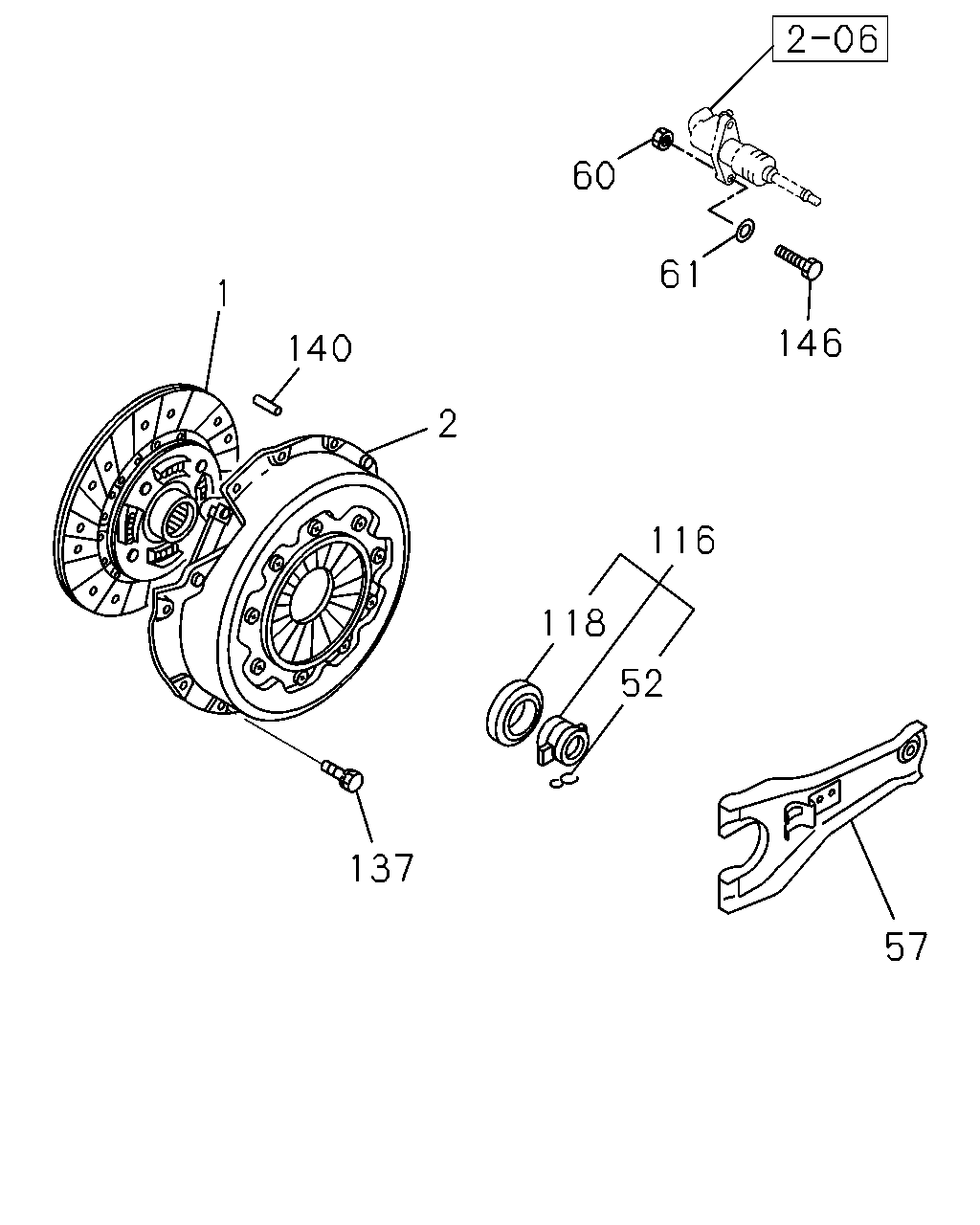

2-01 — CLUTCH
(#45967) — 21 parça
Tümü
A - 4JA1 ENG
B - 4JG2 ENG
60
61
1
146
140
2
116
118
52
137
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.886 DISC; CLUTCH
8-97143-203-0
01
1
9611-
●
1
00.886 DISC; CLUTCH
8-97135-492-0
01
1
9611-
●
2
00.859 PLATE ASM; PRESSURE,CLU
8-94435-011-1
01
1
9611-
●
2
00.859 PLATE ASM; PRESSURE,CLU
8-97109-246-0
01
1
9611-
●
52
00.797 SPRING; SHIFT BLOCK TO FORK
00.805
9-31329-010-0
01
1
9611-
●
52
00.797 SPRING; SHIFT BLOCK TO FORK
8-94311-807-0
01
1
9611-
●
57
00.795 FORK; SHIFT,CLU
8-94167-751-0
01
1
9611-
●
57
00.795 FORK; SHIFT,CLU
8-97039-266-0
01
1
9611-
●
60
00.780 NUT; SLAVE CYL
05.816 M12
9-99110-412-0
01
1
9611-
●
61
00.782 WASHER; PL,SLAVE CYL,CLU
03.430 ID=12.5
9-09160-512-0
01
1
9611-
●
116
00.799 BLOCK; SHIFT,CLU
8-94438-300-0
01
1
9611-
●
116
00.799 BLOCK; SHIFT,CLU
8-94379-441-0
01
1
9611-
●
118
00.799 BEARING; CLU RELEASE
NSK ID=43 OD=66.6
8-94101-243-0
01
1
9611-
●
118
00.799 BEARING; CLU RELEASE
JTEKT
8-94379-499-0
01
1
9611-
●
137
00.862 BOLT; CLU COVER
M8X18 W/LK WASHER
8-94321-840-1
06
1
9611-9611
●
●
137
00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE
0-28080-816-0
06
1
9612-
●
●
140
00.862 PIN; STRAIGHT
OD=6 L=24
9-09878-532-0
03
1
9611-
●
140
00.862 PIN; STRAIGHT
OD=6 L=24
9-09878-532-0
02
1
9611-
●
146
00.780 BOLT; SLAVE CYL TO TRANS CASE
00.685 M12X90
8-94475-060-1
01
1
9611-9703
●
146
00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90
0-28081-290-0
01
1
9704-
●
146
00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X85 FLANGE
8-94480-345-1
02
1
9611-
●
