Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-57 - EXHAUST THROTTLE BODY
▶

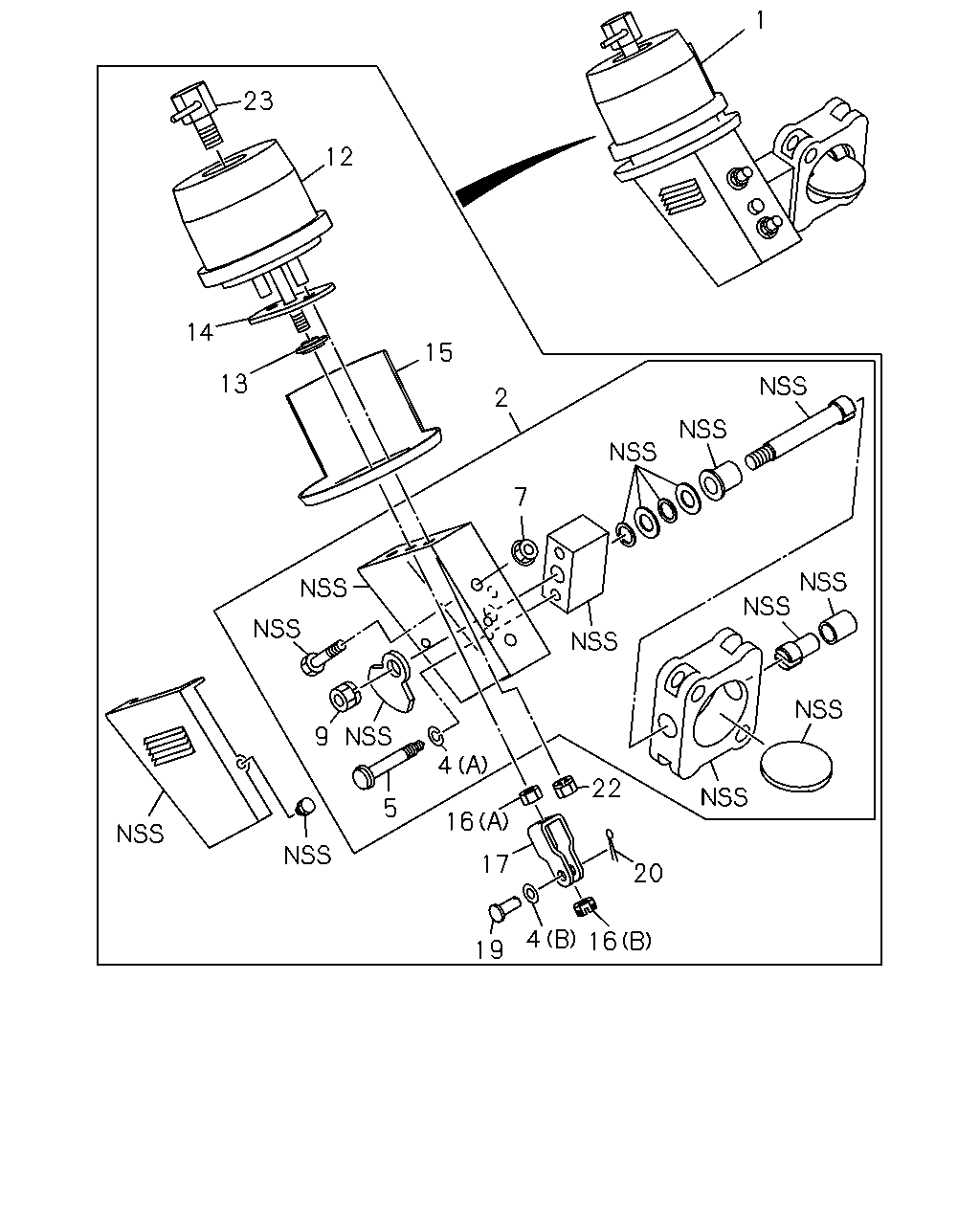

1-57 — EXHAUST THROTTLE BODY
(#45966) — 18 parça
Tümü
A - 4JG2 ENG
B - 4JA1 ENG
1
23
12
14
15
13
2
7
9
4
22
5
16
17
20
4
16
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.440 BODY ASM; EXH THROTTLE
8-97128-894-0
01
1
9611-
●
●
2
03.440 BODY; EXH THROTTLE
8-97131-329-0
01
1
9611-
●
●
4
03.440 WASHER; LEVER,EXH THROTTLE BODY
00.002 (A) LK WASHER
9-09150-508-0
02
1
9611-
●
●
4
03.440 WASHER; LEVER,EXH THROTTLE BODY
01.276 (B) PL WASHER
9-09164-608-0
01
1
9611-
●
●
5
03.444 BOLT; BRKT TO VLV
04.027 M5X8
0-20800-508-0
02
1
9611-
●
●
7
03.444 NUT; LOCK,BOLT
07.633 M8 FLANGE
0-91150-108-0
02
1
9611-
●
●
9
03.440 NUT; LEVER,EXH THROTTLE BODY
00.777 M8 W/LK WASHER
8-94279-050-0
01
1
9611-
●
●
12
03.440 CHAMBER; POWER,EXH THROTTLE BODY
03.634
8-97039-374-0
01
1
9611-
●
●
13
03.440 BEARING; POWER CHAMBER
03.634
8-94383-629-0
01
1
9611-
●
●
14
03.440 GASKET; POWER CHAMBER
03.634
8-94328-234-0
01
1
9611-
●
●
15
03.440 INSULATOR; POWER CHAMBER
03.634
8-94383-633-0
01
1
9611-
●
●
16
03.440 NUT; LK,POWER CHAMBER
05.122 (A)
8-94311-428-0
01
1
9611-
●
●
16
03.440 NUT; LK,POWER CHAMBER
(B)
8-94388-225-0
01
1
9611-
●
●
17
03.440 CLEVIS; EXH THROTTLE BODY
03.636
8-97039-375-0
01
1
9611-
●
●
19
03.440 PIN; LEVER
03.636
8-94311-452-0
01
1
9611-
●
●
20
03.440 PIN; SPLIT,LEVER
03.636
8-97028-428-0
01
1
9611-
●
●
22
03.440 NUT; BRKT TO POWER CHAMBER
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
9611-
●
●
23
03.440 ELBOW; CONNECTOR,POWER CHAMBER
8-97018-078-0
01
1
9611-
●
●
