1-50 — EXHAUST PIPE AND SILENCER (#45965) — 79 parça

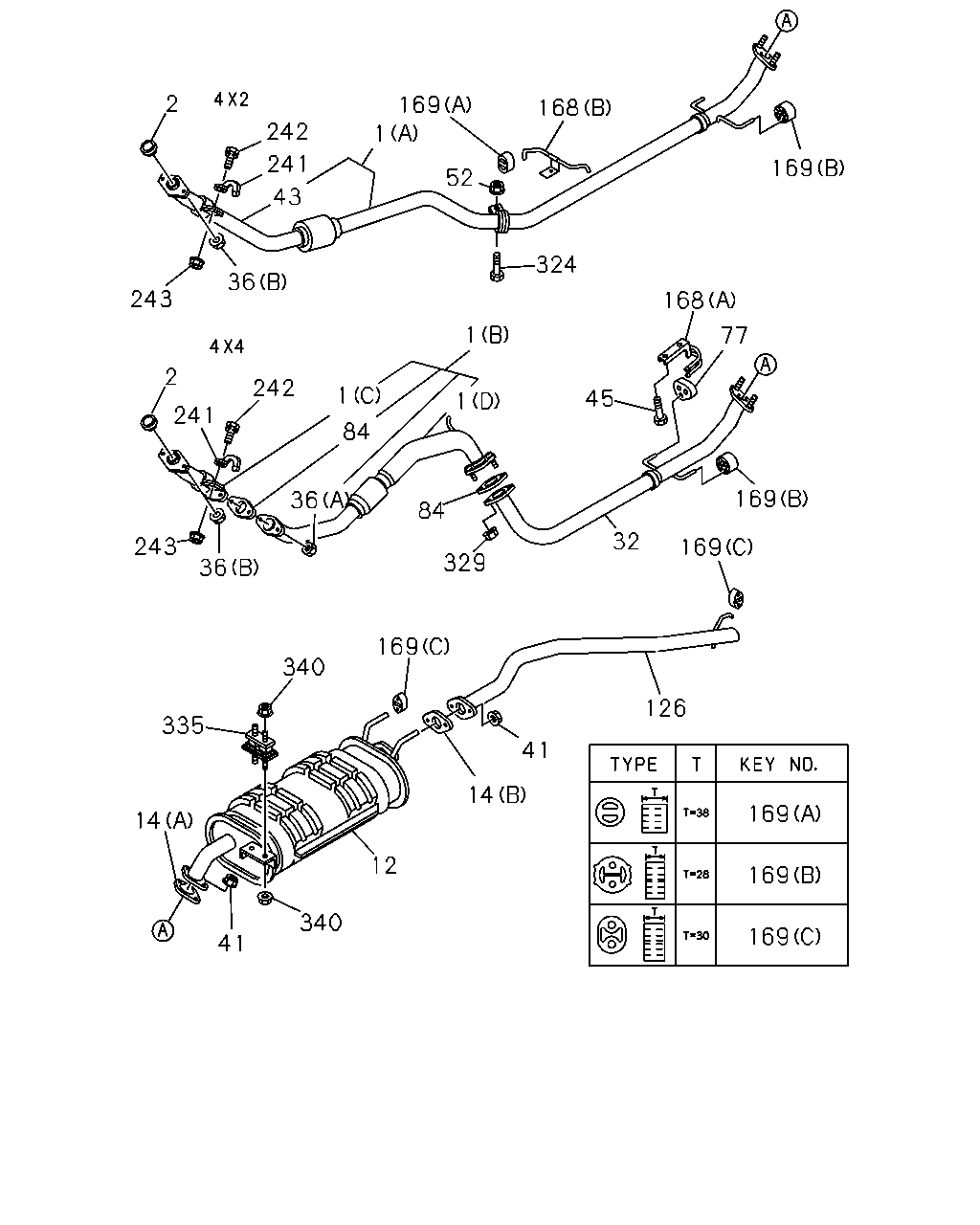

2 169 168 242 1 241 169 52 43 324 36 243 168 1 77 2 242 1 45 1 241 84 169 36 84 32 243 169 329 36 169 340 126 335 41 14 169 14 12 169 340 169 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9611-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97132-205-0	01	1	9611-9711	●
1	03.609 PIPE; EXH 4X4(TFS***) (D)	8-97134-960-0	01	1	9611-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97037-890-1	01	1	9611-	●	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9611-		●
1	03.609 PIPE; EXH 4X4(TFS***) (D)	8-97070-913-0	01	1	9611-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97084-094-1	01	1	9611-9711		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9611-	●	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9611-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9611-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9611-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9611-	●	●
32	03.609 PIPE; EXH,FRT 4X4(TFS***)	8-97070-888-1	01	1	9611-		●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9611-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
43	03.611 CLAMP; EXH PIPE 4X2(TFB***)	8-94473-418-0	01	1	9611-		●
45	03.613 BOLT; BRKT 4X4(TFS***) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-	●	●
52	03.613 NUT; BRKT 4X2(TFB***) 01.540 M8 FLANGE	0-91150-208-0	01	1	9611-		●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704	8-97080-694-0	01	1	9611-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9611-	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9611-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9611-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9611-		●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) (A)	8-97043-727-1	01	1	9611-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X2(TFB***) (B)	8-97105-047-0	01	1	9611-		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9611-	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9611-		●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9611-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9611-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9611-	●	●
324	03.613 BOLT; BRKT 4X2(TFB***) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9611-		●
329	03.613 NUT; EXH PIPE TO PIPE 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9611-		●
340	03.706 NUT; RUBBER,SUPPORT 01.540 M8 FLANGE	0-91150-208-0	04	1	9611-		●

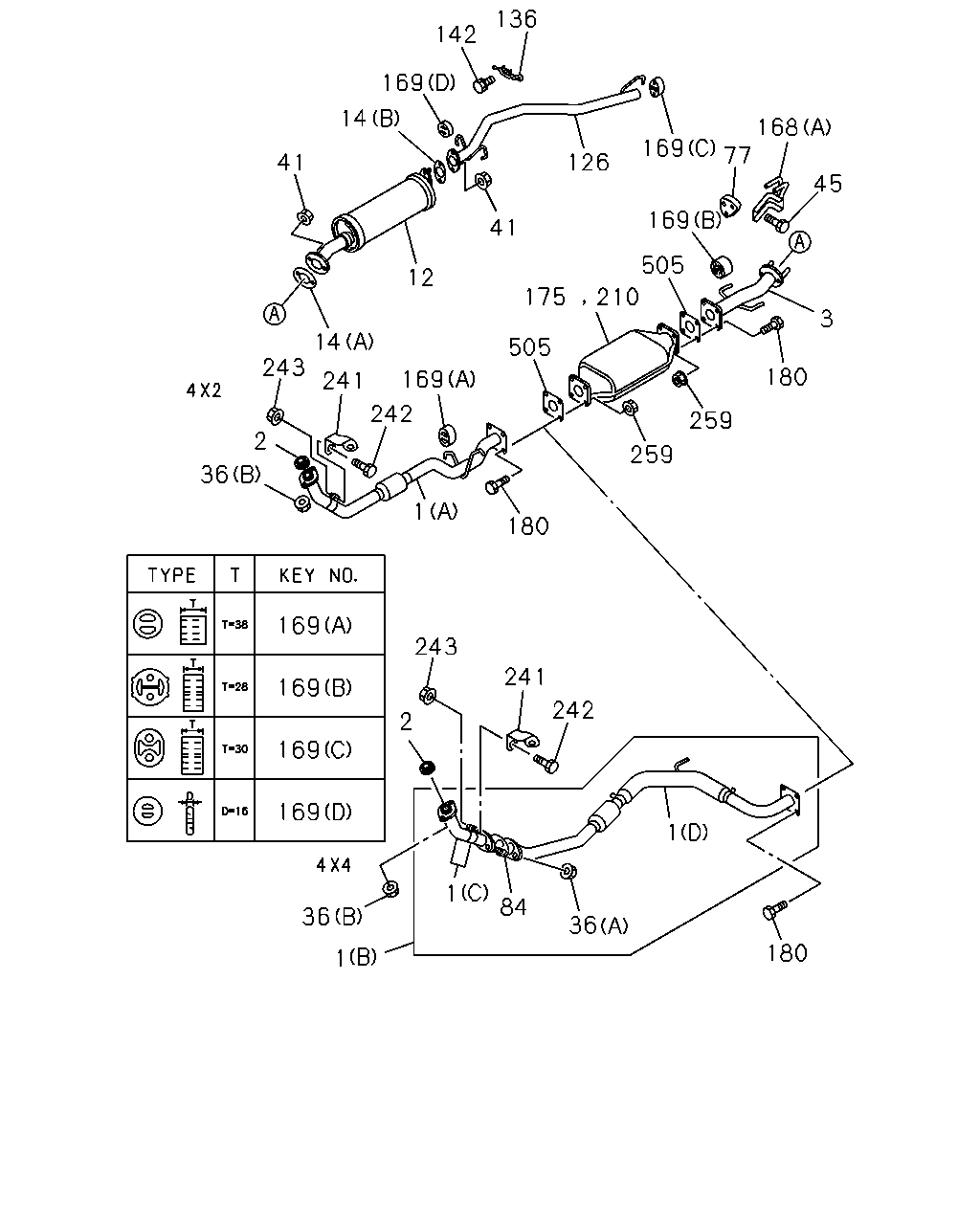

136 142 169 14 168 169 77 126 41 45 169 41 505 12 175 210 3 14 505 243 180 169 241 242 259 2 259 36 1 180 169 243 241 169 242 2 169 169 1 84 36 180 1 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97132-204-0	01	1	9611-	●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97132-205-0	01	1	9611-9711	●
1	03.609 PIPE; EXH 4X4(TFS***) (D)	8-97134-960-0	01	1	9611-	●
1	03.609 PIPE; EXH 4X4(TFS***) (C)	8-97037-890-1	01	1	9611-	●	●
1	03.609 PIPE; EXH 4X2(TFB***) (A)	8-97070-892-1	01	1	9611-		●
1	03.609 PIPE; EXH 4X4(TFS***) (D)	8-97070-913-0	01	1	9611-		●
1	03.609 PIPE; EXH 4X4(TFS***) (B)	8-97084-094-1	01	1	9611-9711		●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9611-	●	●
3	03.609 PIPE; EXH,CENTER	8-97132-206-1	01	1	9611-	●
12	03.701 SILENCER ASM; EXH	8-97115-328-0	01	1	9611-	●
12	03.701 SILENCER ASM; EXH	8-97070-883-4	01	1	9611-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9611-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (A) ID=55	8-97093-574-0	02	1	9611-	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	9611-	●	●
36	03.613 NUT; EXH PIPE 4X4(TFS***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
45	03.613 BOLT; BRKT 4X4(TFS***) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-	●	●
77	03.613 RUBBER; CUSHION,BRKT 4X4(TFS***) 03.704	8-97080-694-0	01	1	9611-	●	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	01	1	9611-	●
84	03.611 GASKET; EXH PIPE 4X4(TFS***) ID=55	8-97093-574-0	02	1	9611-		●
126	03.705 PIPE; EXH,RR	8-97022-339-1	01	1	9611-	●
126	03.705 PIPE; EXH,RR	8-97070-901-0	01	1	9611-		●
136	03.616 BRACKET; MTG,EXH PIPE 03.706	8-94235-437-0	01	1	9611-	●
142	03.611 BOLT; MTG BRKT M10X20 FLANGE	0-28681-020-0	01	1	9611-	●
168	03.613 BRACKET; EXH PIPE,FRT 4X4(TFS***) (A)	8-97043-727-1	01	1	9611-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4X2(TFB***) (B)	8-97105-047-0	01	1	9611-		●
169	03.706 RING; DAMPER,EXH PIPE (D) T=16	8-94472-679-0	02	1	9611-	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	01	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 D=55	8-97023-183-0	02	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE 4X2(TFB***) (A) T=38	8-94207-180-0	02	1	9611-	●	●
169	03.706 RING; DAMPER,EXH PIPE (C) T=30	8-94468-696-0	02	1	9611-		●
175	03.685 CONVERTER; CATALYST	8-97132-661-1	01	1	9712-	●
180	03.708 BOLT; CONV TO PIPE 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9611-	●
210	03.685 CONVERTER	8-97132-661-1	01	1	9611-9711	●
241	03.611 BRACKET; EXH PIPE TO TRANS 03.613	8-97037-539-0	01	1	9611-	●	●
242	03.613 BOLT; PIPE BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9611-	●	●
243	03.613 NUT; PIPE BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9611-	●	●
259	03.613 NUT; CONV MTG M10	8-94201-308-1	08	1	9611-	●
505	03.611 GASKET; CONV TO EXH PIPE ID=71	8-94324-194-0	02	1	9611-	●
