1-41 — FUEL PIPING; CHASSIS (#45964) — 101 parça

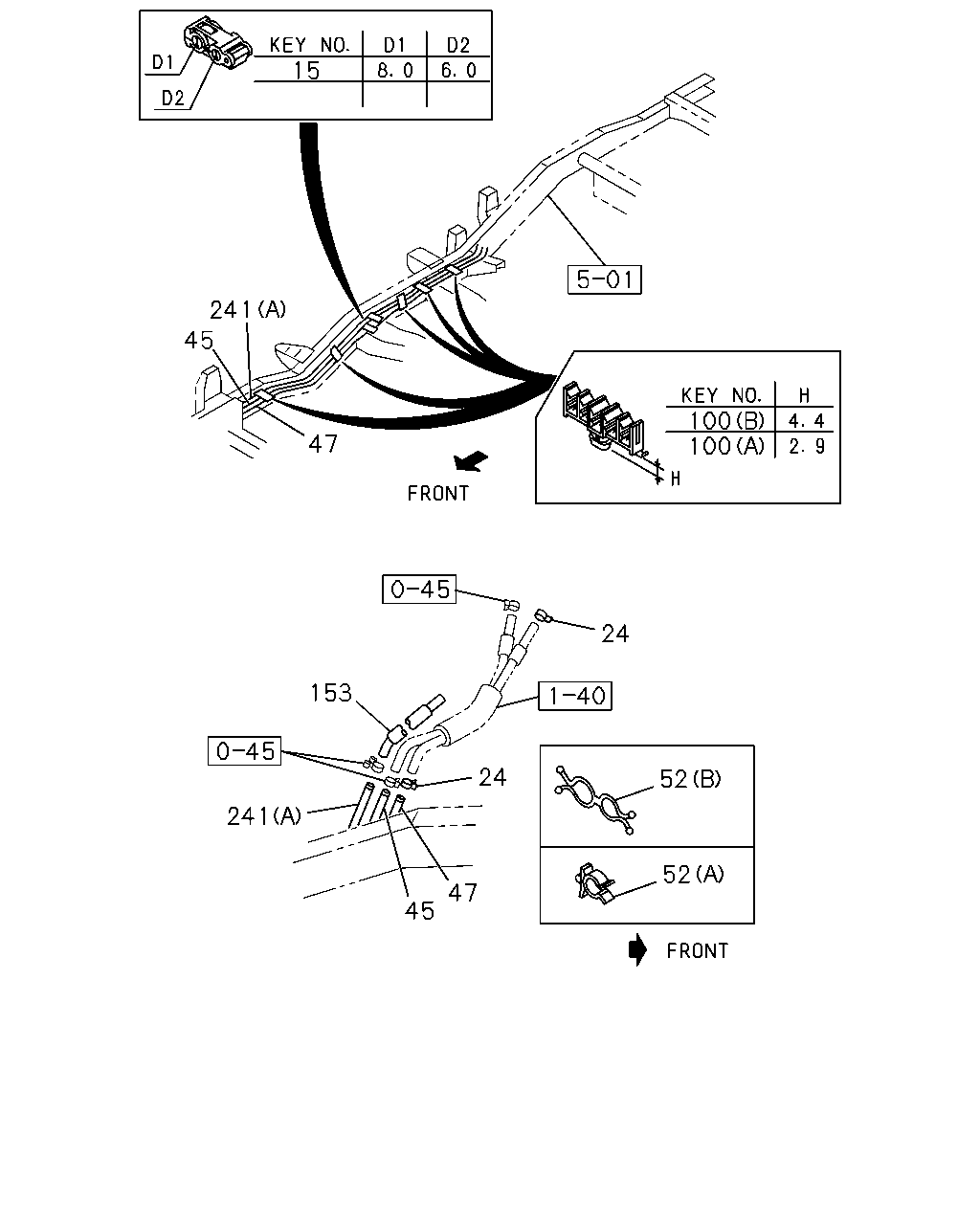

çizim 67324
15 241 45 100 100 47 24 153 24 52 241 52 47 45
BalonParca AdiParca NoAdetTipApplied Date A B
15 03.162 CLIP; FUEL PIPE
4X2(TFB***) BLUE 		8-94455-380-1 04 1 9611- ● ●
15 03.162 CLIP; FUEL PIPE
4X4(TFS***) BLUE 		8-94455-380-1 05 1 9611- ● ●
24 03.162 CLIP; FUEL HOSE
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
24 03.162 CLIP; FUEL HOSE
ID=14 		8-97173-221-0 02 1 9712- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2(TFB***) 		8-97070-758-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4(TFS***) 		8-97070-759-3 01 1 9611-9702 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4(TFS***) 		8-97173-226-0 01 1 9703- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2(TFB***) 		8-97070-760-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X4(TFS***) 		8-97070-761-2 01 1 9611-9702 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4(TFS***) 		8-97173-227-0 01 1 9703- ● ●
52 03.145 CLIP; EVAP PIPE
06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
(B) 		8-94423-042-0 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
03.163 (C) ID=11 		8-94238-570-0 02 1 9611-9711 ●
52 03.145 CLIP; EVAP PIPE
03.163 (C) ID=11 		8-97173-219-0 02 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 12 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) (D) 		8-97061-372-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) (B) L=7.4 		8-94435-550-0 13 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) (B) L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 04 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (C) L=8.5 		8-97014-423-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (E) 		8-97061-373-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) (B) L=7.4 		8-94435-550-0 05 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) (B) L=7.4 		8-94435-550-0 05 1 9703- ● ●
153 03.162 HOSE; RUBBER,PIPE TO ACL 8-97109-400-1 01 1 9611- ●
153 03.162 HOSE; RUBBER,PIPE TO ACL 8-97070-778-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
(B) 		8-97070-779-1 01 1 9611- ●

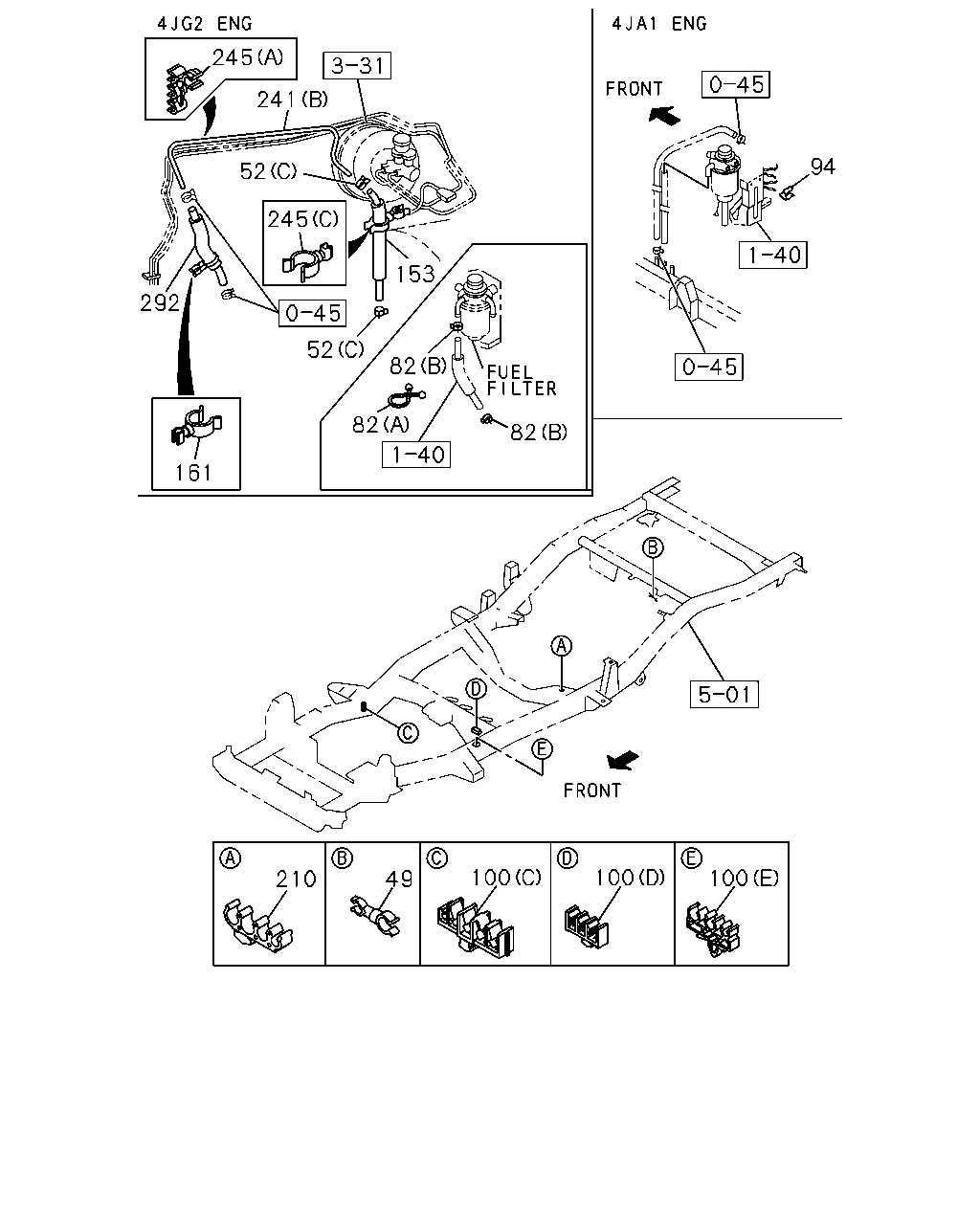

çizim 71166
245 241 52 94 245 153 292 52 82 82 82 161 100 100 100 210 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 03.162 CLIP; PIPE TO FRAME
03.430 D=6.35 & 8.0 		8-94168-480-0 01 1 9611-9711 ● ●
49 03.162 CLIP; PIPE TO FRAME
03.425 ID=6 & 8.3 		8-94167-742-0 01 1 9712- ● ●
52 03.145 CLIP; EVAP PIPE
06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
(B) 		8-94423-042-0 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
03.163 (C) ID=11 		8-94238-570-0 02 1 9611-9711 ●
52 03.145 CLIP; EVAP PIPE
03.163 (C) ID=11 		8-97173-219-0 02 1 9712- ●
82 03.163 CLIP; FUEL HOSE
01.166 (B) ID=14 		8-94238-572-0 02 1 9611- ●
82 03.163 CLIP; FUEL HOSE
03.278 (A) 		8-94463-508-0 01 1 9701- ●
94 03.890 CLIP; HOSE,FILTER
POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 12 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2(TFB***) (D) 		8-97061-372-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) (B) L=7.4 		8-94435-550-0 13 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) (B) L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 04 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (C) L=8.5 		8-97014-423-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (E) 		8-97061-373-0 01 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) (B) L=7.4 		8-94435-550-0 05 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) (B) L=7.4 		8-94435-550-0 05 1 9703- ● ●
153 03.162 HOSE; RUBBER,PIPE TO ACL 8-97109-400-1 01 1 9611- ●
153 03.162 HOSE; RUBBER,PIPE TO ACL 8-97070-778-0 01 1 9611- ●
161 03.162 CLIP; HOSE TO PIPE
03.430 ID=6 & 16.5 		8-94165-402-0 01 1 9611- ●
210 03.162 CLIP; FEED PIPE 8-97069-378-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
(B) 		8-97070-779-1 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
245 03.162 CLIP; EVAP HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
245 03.162 CLIP; EVAP HOSE
02.183 (C) ID=16.5 & 4.8 		8-94415-087-0 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
(A) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 01 1 9611- ●
292 03.163 HOSE; EVAP,FUEL PIPE 8-97070-777-0 01 1 9611- ●

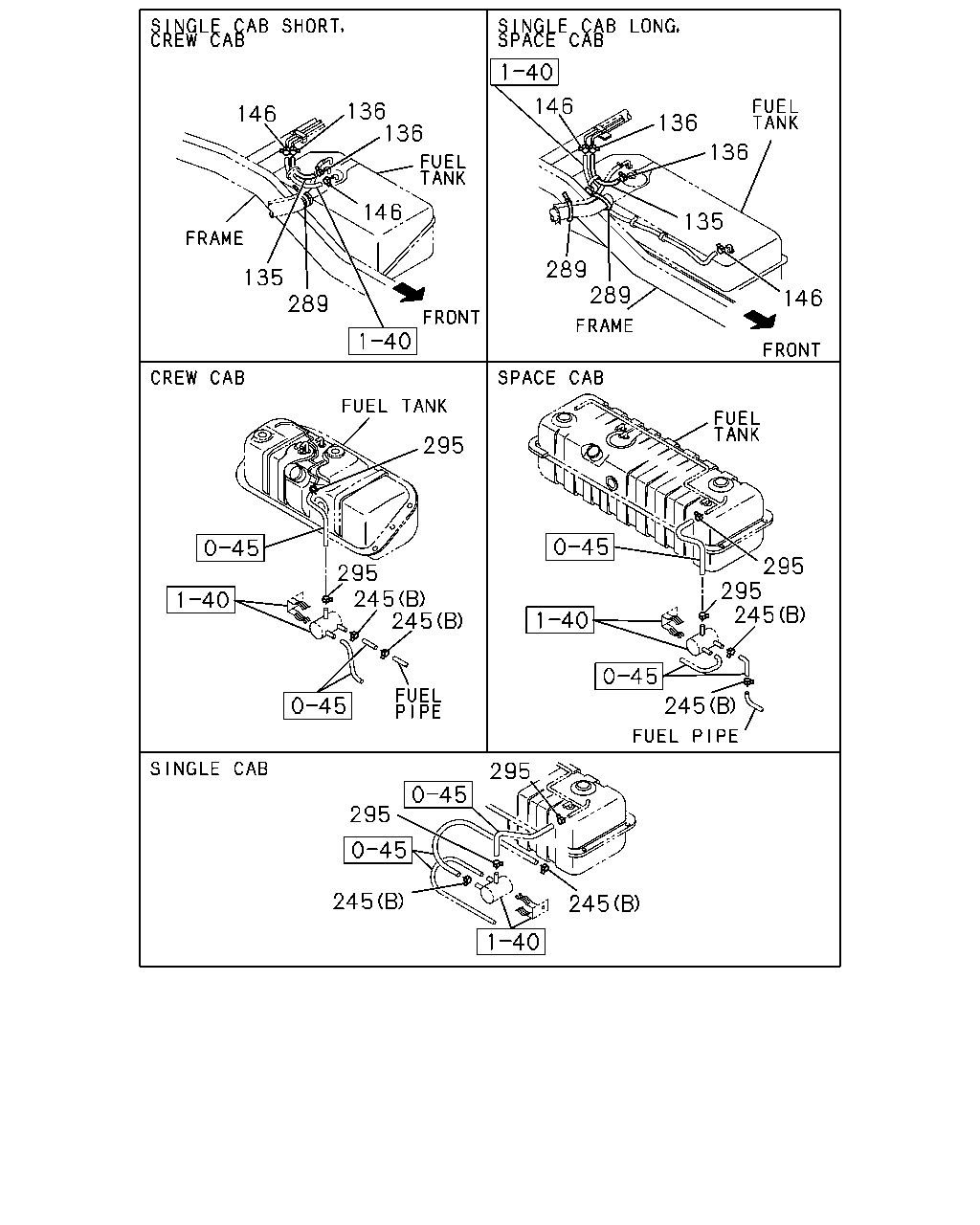

çizim 72320
146 136 136 146 136 136 146 135 289 289 135 289 146 295 295 295 245 295 245 245 245 295 295 245 245
BalonParca AdiParca NoAdetTipApplied Date A B
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
CREW CAB(TF**W*) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 08.962 L=560 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
136 03.162 CLIP; HOSE,FUEL TANK
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
136 03.162 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 9712- ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
03.162 ID=13 		8-97173-220-0 02 1 9712- ● ●
245 03.162 CLIP; EVAP HOSE
03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
245 03.162 CLIP; EVAP HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ● ●
245 03.162 CLIP; EVAP HOSE
02.183 (C) ID=16.5 & 4.8 		8-94415-087-0 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
(A) ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 01 1 9611- ●
289 03.008 CLIP; BAND,HOSE
L=330 		5-09709-118-0 02 1 9611- ● ●
295 03.003 CLIP; HOSE,EVAP
03.163 ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
295 03.003 CLIP; HOSE,EVAP
03.163 ID=11 		8-97173-219-0 02 1 9712- ● ●
