Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#45963) — 117 parça

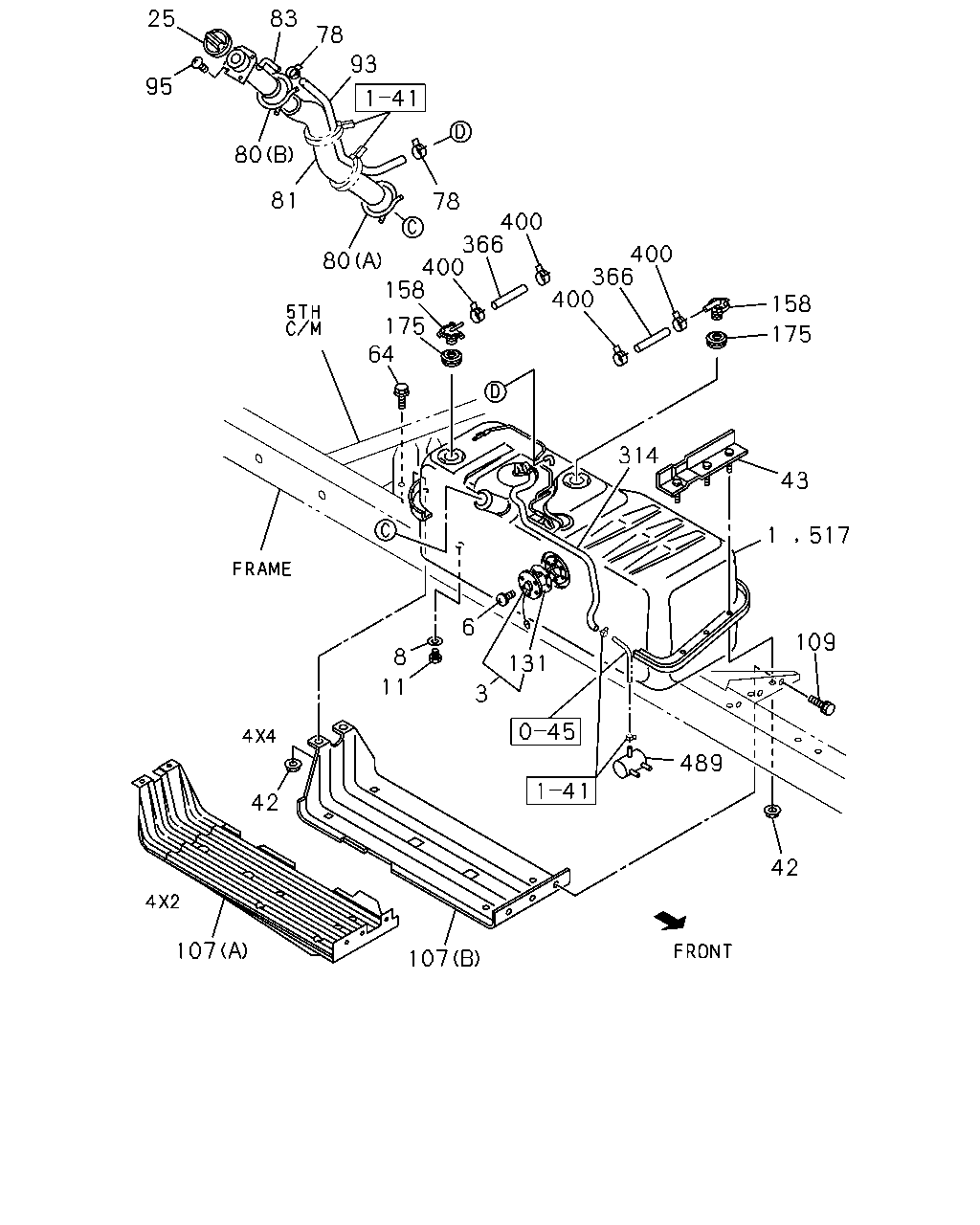

25 83 78 93 95 80 81 78 400 366 400 158 400 366 400 80 158 175 64 175 314 43 517 1 6 109 8 131 11 3 489 42 42 107 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL CREW CAB(TF*W) TURBOCHARGER<K51>	8-97112-519-2	01	1	9712-	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51>	8-97061-427-1	01	1	9611-	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) TURBOCHARGER<K51> 03.001	8-94318-396-0	01	1	9611-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51> 03.001	8-94318-398-0	01	1	9611-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN TURBOCHARGER<K51> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK TURBOCHARGER<K51> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9611-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK TURBOCHARGER<K51> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94310-199-4	01	1	9611-	●	●
42	03.023 NUT; SUPPORT BELT CREW CAB(TF*W) M8 FLANGE	8-94328-243-0	06	1	9611-	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) M8 FLANGE	8-94328-243-0	05	1	9611-	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W)	8-94318-376-1	01	1	9611-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF)	8-94328-269-0	01	1	9611-	●	●
64	03.023 BOLT; FUEL TANK CREW CAB(TF*W) 01.276 M8X24	8-97034-130-0	03	1	9611-	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 01.276 M8X24	8-97034-130-0	05	1	9611-	●	●
78	03.003 CLIP; BREATHER HOSE 04.930 ID=16	8-94238-568-0	02	1	9611-9711	●	●
78	03.003 CLIP; BREATHER HOSE 04.681 ID=16	8-97173-222-0	02	1	9712-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9611-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9611-	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 03.003 ID=59	8-94435-876-0	02	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W)	8-97132-227-1	01	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97117-704-0	01	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94468-249-1	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97117-683-0	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97122-699-0	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94460-704-4	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK FUEL TANK GUARD<6LM>	8-94434-723-1	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF)	8-94434-723-1	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 CREW CAB(TFBW) (A)	8-94313-765-0	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97160-116-0	01	1	9611-	●	●
109	03.015 BOLT; HEAT PROTECTOR FUEL TANK GUARD<6LM> M8X18	0-28480-818-0	03	1	9611-9711	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X18	0-28480-818-0	03	1	9611-9711	●	●
109	03.015 BOLT; HEAT PROTECTOR FUEL TANK GUARD<6LM> 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●
131	03.164 GASKET; SAFETY VENT TURBOCHARGER<K51> 03.112 ID=42 OD=71	5-83148-001-0	01	1	9611-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT TURBOCHARGER<K51> 03.130	8-94173-276-0	02	1	9611-	●	●
175	03.675 SEAL; VALVE TURBOCHARGER<K51> 03.163	8-94246-338-2	02	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9611-	●	●
366	03.145 HOSE; EVAP TURBOCHARGER<K51> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9611-	●	●
400	03.162 CLIP; HOSE,EVAP TURBOCHARGER<K51> ID=8.5	8-94166-071-0	04	1	9611-	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9611-	●	●
517	03.110 BODY ASM CREW CAB(TF*W) TURBOCHARGER<K51> 03.001	8-97112-519-1	01	1	9611-9711	●	●

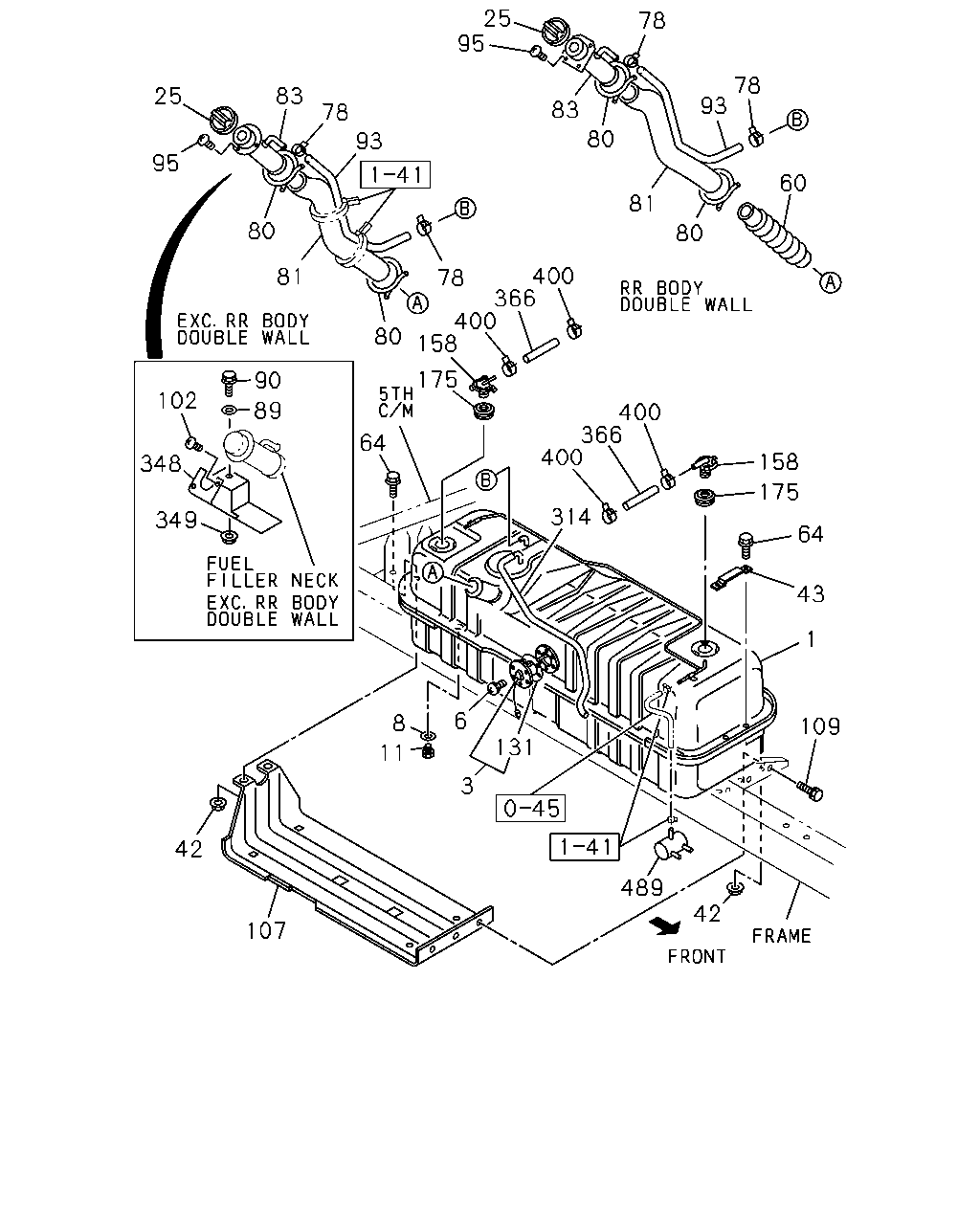

25 95 78 78 93 25 83 83 78 80 93 95 60 81 80 80 400 366 400 158 81 78 80 175 90 102 89 400 366 400 64 158 348 175 314 349 64 43 1 6 8 109 131 11 3 42 489 42 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL CREW CAB(TF*W) TURBOCHARGER<K51>	8-97112-519-2	01	1	9712-	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51>	8-97061-427-1	01	1	9611-	●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) TURBOCHARGER<K51> 03.001	8-94318-396-0	01	1	9611-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) TURBOCHARGER<K51> 03.001	8-94318-398-0	01	1	9611-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN TURBOCHARGER<K51> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK TURBOCHARGER<K51> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9611-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK TURBOCHARGER<K51> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94310-199-4	01	1	9611-	●	●
42	03.023 NUT; SUPPORT BELT CREW CAB(TF*W) M8 FLANGE	8-94328-243-0	06	1	9611-	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) M8 FLANGE	8-94328-243-0	05	1	9611-	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W)	8-94318-376-1	01	1	9611-	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF)	8-94328-269-0	01	1	9611-	●	●
60	03.008 PROTECTOR; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-94318-424-0	01	1	9611-	●	●
64	03.023 BOLT; FUEL TANK CREW CAB(TF*W) 01.276 M8X24	8-97034-130-0	03	1	9611-	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 01.276 M8X24	8-97034-130-0	05	1	9611-	●	●
78	03.003 CLIP; BREATHER HOSE 04.930 ID=16	8-94238-568-0	02	1	9611-9711	●	●
78	03.003 CLIP; BREATHER HOSE 04.681 ID=16	8-97173-222-0	02	1	9712-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9611-	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9611-	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 03.003 ID=59	8-94435-876-0	02	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W)	8-97132-227-1	01	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97117-704-0	01	1	9611-	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94468-249-1	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97117-683-0	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97122-699-0	01	1	9611-	●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94460-704-4	01	1	9611-	●	●
89	03.028 WASHER; PL,FILLER NECK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9611-	●	●
90	03.008 BOLT; FILLER TO BODY 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9611-	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9611-	●	●
102	03.008 SCREW; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 12.182 M6X16	8-94381-646-0	02	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK FUEL TANK GUARD<6LM>	8-94434-723-1	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF)	8-94434-723-1	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 CREW CAB(TFBW) (A)	8-94313-765-0	01	1	9611-	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (B)	8-97160-116-0	01	1	9611-	●	●
109	03.015 BOLT; HEAT PROTECTOR FUEL TANK GUARD<6LM> M8X18	0-28480-818-0	03	1	9611-9711	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X18	0-28480-818-0	03	1	9611-9711	●	●
109	03.015 BOLT; HEAT PROTECTOR FUEL TANK GUARD<6LM> 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) 4X4 CREW CAB(TFS6WF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●
131	03.164 GASKET; SAFETY VENT TURBOCHARGER<K51> 03.112 ID=42 OD=71	5-83148-001-0	01	1	9611-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT TURBOCHARGER<K51> 03.130	8-94173-276-0	02	1	9611-	●	●
175	03.675 SEAL; VALVE TURBOCHARGER<K51> 03.163	8-94246-338-2	02	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9611-	●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94313-471-1	01	1	9611-	●	●
349	03.023 NUT; FUEL FILLER 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB(TFS6SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.559 M8	9-09110-408-0	01	1	9611-	●	●
366	03.145 HOSE; EVAP TURBOCHARGER<K51> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9611-	●	●
400	03.162 CLIP; HOSE,EVAP TURBOCHARGER<K51> ID=8.5	8-94166-071-0	04	1	9611-	●	●
489	03.164 VALVE; CONT	8-94222-045-0	01	1	9611-	●	●

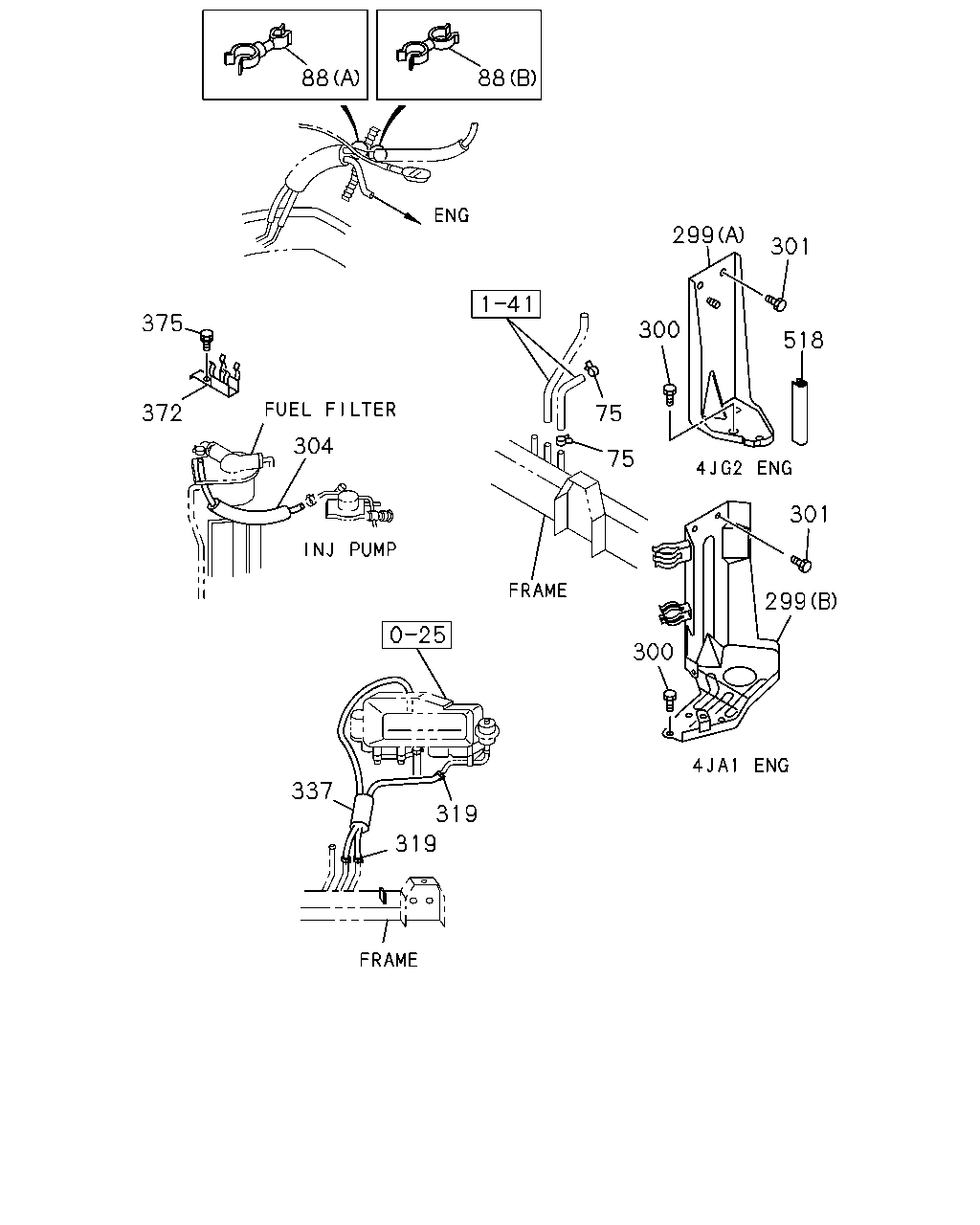

88 88 299 301 375 300 518 372 75 304 75 301 299 300 337 319 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	03.162 CLIP; RUB HOSE 01.166 ID=14	8-94238-572-0	02	1	9611-		●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9611-		●
88	03.162 CLIP; FUEL HOSE (B)	1-09709-226-0	01	1	9611-	●
88	03.162 CLIP; FUEL HOSE 04.128 (A) ID=14.5 & 7.5	8-94315-424-0	01	1	9611-	●
299	03.162 BRACKET; FUEL FILTER (B)	8-97142-691-0	01	1	9611-		●
299	03.162 BRACKET; FUEL FILTER (A)	8-97079-660-3	01	1	9611-	●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9611-		●
300	03.162 BOLT; BRKT TO BODY 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9611-9711	●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=440	8-94133-604-2	01	1	9611-		●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=540	8-94385-435-0	01	1	9611-9611	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ	8-97132-542-0	01	1	9612-	●
319	03.163 CLIP; RUBBER HOSE 01.219 ID=13	8-94238-571-0	02	1	9611-9711	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 ID=13	8-97173-220-0	02	1	9712-	●	●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97109-425-1	01	1	9611-		●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97100-961-0	01	1	9611-	●
372	03.164 CLIP; CONT VALVE	8-94413-704-0	01	1	9611-	●	●
375	03.164 BOLT; CONT VALVE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●	●
518	03.163 PROTECTOR; BRKT 03.162 L=88	8-97069-335-0	01	1	9611-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
