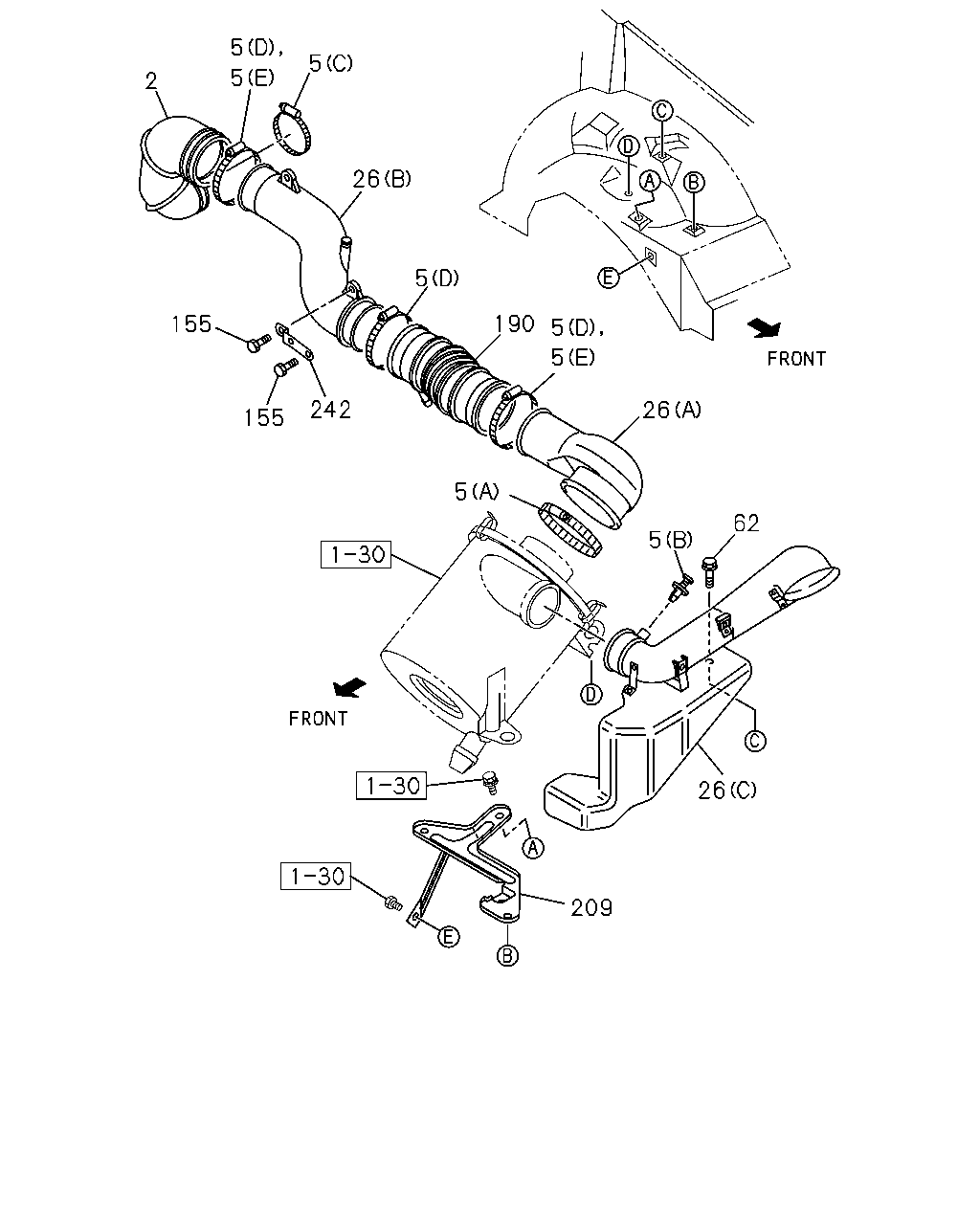

1-31 — AIR DUCT (#45962) — 47 parça

5 5 5 2 26 5 190 155 5 5 242 26 155 5 62 5 26 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.417 HOSE; ACL (A)	8-97106-248-0	01	1	9611-	●
2	03.417 HOSE; ACL (B)	8-97131-727-0	01	1	9611-	●
2	03.417 HOSE; ACL	8-97129-707-0	01	1	9611-		●
5	03.407 CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=50-69	8-94316-991-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	03	1	9611-9612	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	9701-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	9701-	●	●
26	03.417 DUCT; AIR INT (C)	8-94320-728-2	01	1	9611-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	9611-	●	●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	9611-	●	●
26	03.417 DUCT; AIR INT (C)	8-97082-061-1	01	1	9611-		●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
62	03.417 BOLT; AIR INT DUCT 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9611-9708	●
62	03.417 BOLT; AIR INT DUCT 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9709-9711	●	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●
62	03.417 BOLT; AIR INT DUCT 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9611-9711		●
62	03.417 BOLT; AIR INT DUCT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9712-		●
155	03.417 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●
190	03.417 HOSE; CONN,DUCT TO ACL	8-97069-744-5	01	1	9611-		●
209	03.405 BRACKET; ACL	8-97131-733-0	01	1	9611-	●
209	03.405 BRACKET; ACL	8-97086-960-1	01	1	9611-		●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	9611-	●	●

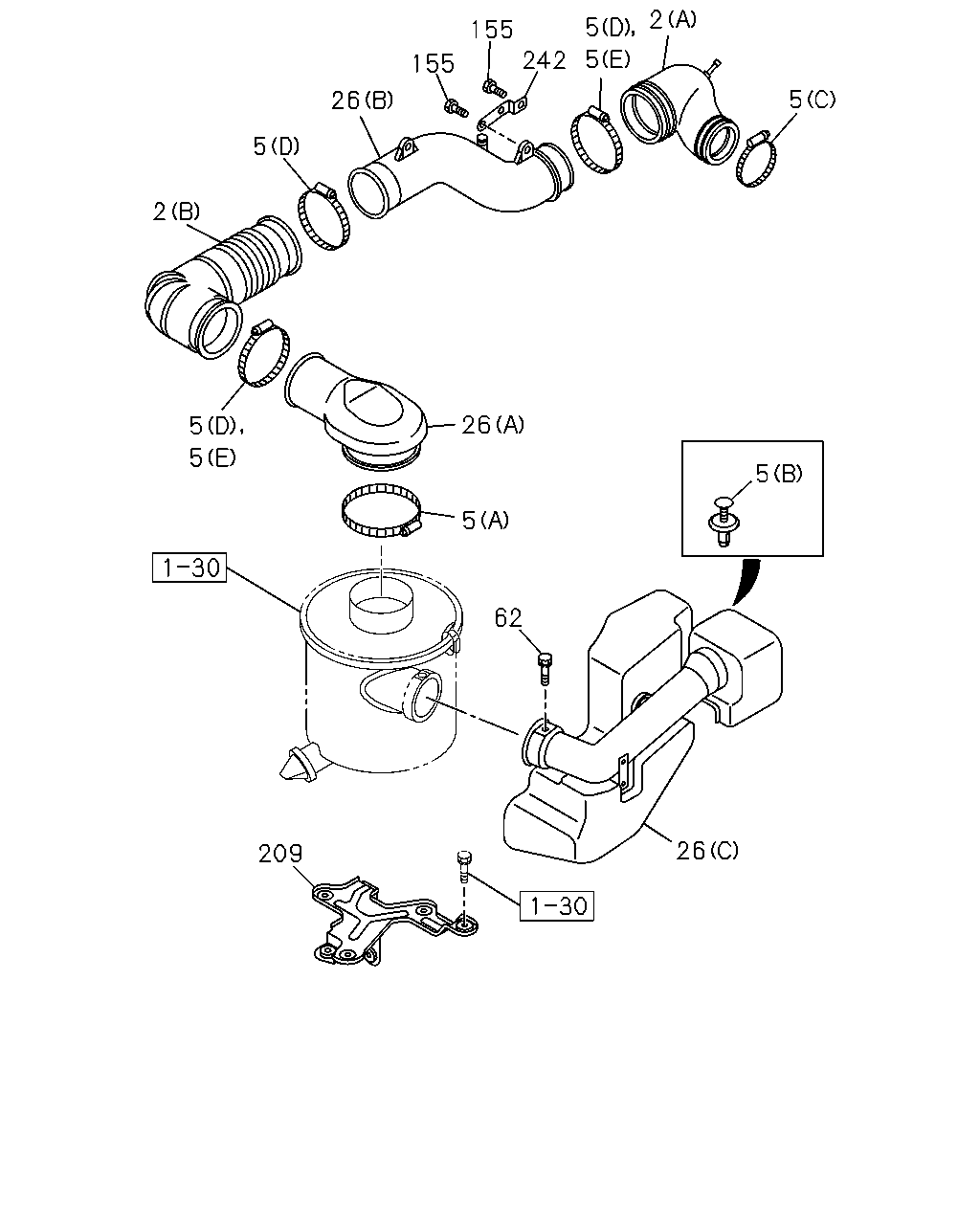

2 5 155 5 242 155 5 26 5 2 26 5 5 5 5 62 26 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.417 HOSE; ACL (A)	8-97106-248-0	01	1	9611-	●
2	03.417 HOSE; ACL (B)	8-97131-727-0	01	1	9611-	●
2	03.417 HOSE; ACL	8-97129-707-0	01	1	9611-		●
5	03.407 CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT 03.003 (B) D6X11 POP RIVET	8-94298-119-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=50-69	8-94316-991-0	01	1	9611-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	03	1	9611-9612	●	●
5	03.407 CLIP; AIR DUCT (D) ID=68-85	8-94320-428-0	01	1	9701-	●	●
5	03.407 CLIP; AIR DUCT 03.417 (E) ID=58-79	8-94126-771-0	02	1	9701-	●	●
26	03.417 DUCT; AIR INT (C)	8-94320-728-2	01	1	9611-	●
26	03.417 DUCT; AIR INT (A)	8-94382-047-2	01	1	9611-	●	●
26	03.417 DUCT; AIR INT (B)	8-97128-956-2	01	1	9611-	●	●
26	03.417 DUCT; AIR INT (C)	8-97082-061-1	01	1	9611-		●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
62	03.417 BOLT; AIR INT DUCT 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9611-9708	●
62	03.417 BOLT; AIR INT DUCT 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9709-9711	●	●
62	03.417 BOLT; AIR INT DUCT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●
62	03.417 BOLT; AIR INT DUCT 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9611-9711		●
62	03.417 BOLT; AIR INT DUCT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9712-		●
155	03.417 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●
209	03.405 BRACKET; ACL	8-97131-733-0	01	1	9611-	●
209	03.405 BRACKET; ACL	8-97086-960-1	01	1	9611-		●
242	03.417 BRACKET; AIR DUCT	8-94387-686-1	01	1	9611-	●	●
