Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

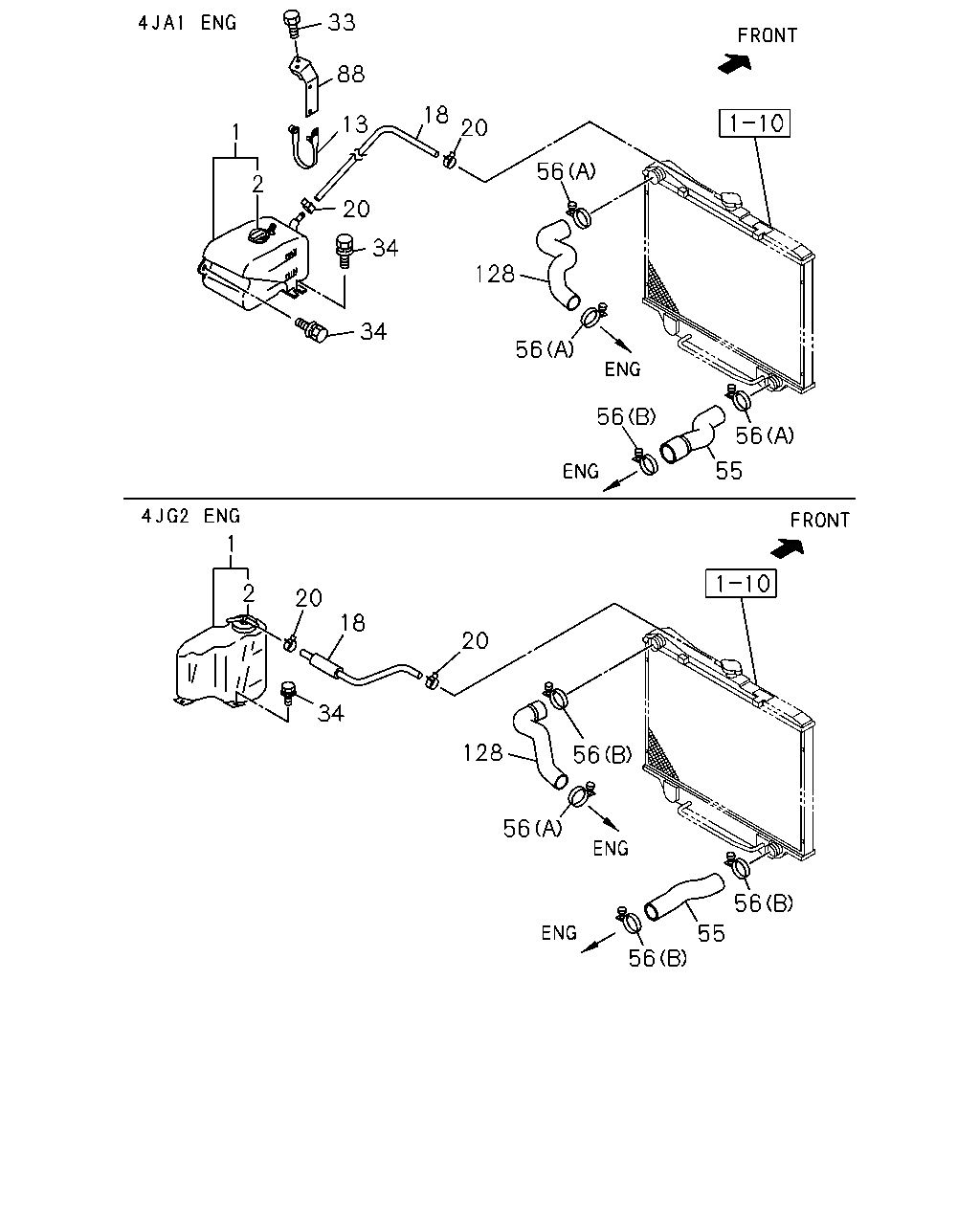

1-11 — RADIATOR HOSE AND SUB TANK
(#45960) — 20 parça
Tümü
A - 4JA1 ENG
B - 4JG2 ENG
33
88
18
13
20
1
56
2
20
34
128
34
56
56
56
55
1
2
20
18
20
34
128
56
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 TANK; SURGE,RAD
8-97101-191-1
01
1
9611-
●
1
01.219 TANK; SURGE,RAD
8-97119-467-1
01
1
9611-
●
2
01.203 CAP; SURGE TANK
8-97130-964-0
01
1
9611-
●
2
01.203 CAP; SURGE TANK
8-97079-007-0
01
1
9611-
●
13
01.240 CLIP; HOSE,SURGE TANK
02.559 L=103
8-94239-339-0
02
1
9611-
●
18
01.240 HOSE; RAD TO SURGE TANK
8-97016-104-1
01
1
9611-
●
18
01.240 HOSE; RAD TO SURGE TANK
8-97070-767-2
01
1
9611-
●
20
01.166 CLIP; HOSE,RAD
01.219 ID=12
8-94238-610-0
02
1
9611-
●
●
33
01.277 BOLT; BRKT
08.077 M6X18
8-97071-681-0
02
1
9611-
●
34
01.203 BOLT; RESERVE TANK
M8X25
8-97091-076-0
02
1
9611-
●
34
01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER
8-94112-987-1
03
1
9611-
●
55
01.173 HOSE; WATER,RAD OUTLET
8-94388-165-2
01
1
9611-
●
55
01.173 HOSE; WATER,RAD OUTLET
8-94375-170-2
01
1
9611-
●
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=42
9-09915-042-1
03
1
9611-
●
56
01.166 CLIP; WATER HOSE,RAD
(B) ID=48
9-09915-512-1
01
1
9611-
●
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=42
9-09915-042-1
01
1
9611-
●
56
01.166 CLIP; WATER HOSE,RAD
(B) ID=48
9-09915-512-1
03
1
9611-
●
88
01.219 BRACKET; SUB TANK HOSE
8-94473-988-3
01
1
9611-
●
128
01.159 HOSE; WATER,RAD INL
8-97023-019-0
01
1
9611-
●
128
01.159 HOSE; WATER,RAD INL
8-97070-938-1
01
1
9611-
●
