◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#45959) — 28 parça

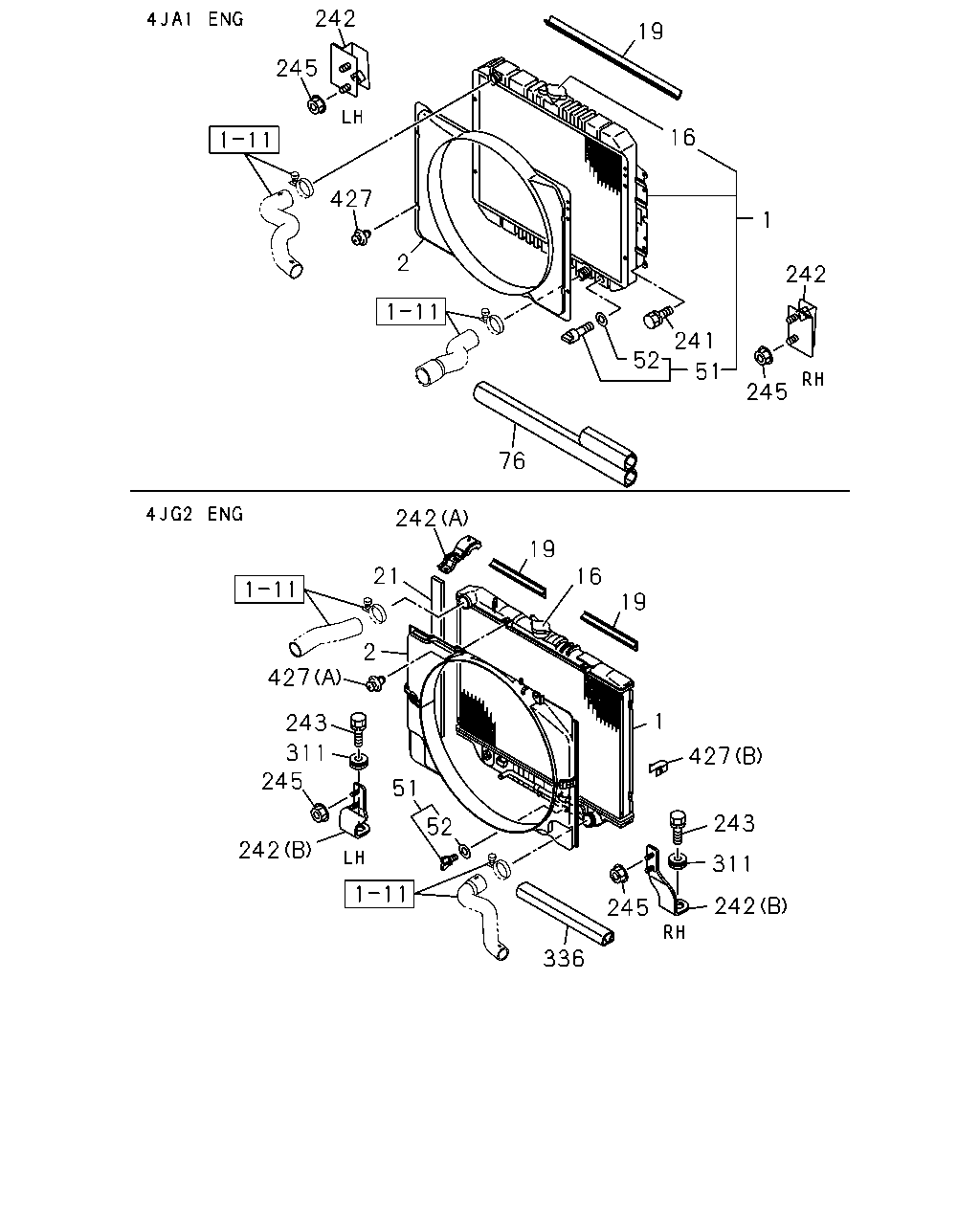

çizim 67674
242 19 245 16 427 1 2 242 241 52 51 245 76 242 19 21 16 1 2 427 1 243 311 245 427 51 243 52 242 311 242 245 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9611- ●
1 01.219 RADIATOR ASM 8-97084-924-0 01 1 9611- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9611- ●
2 01.277 GUIDE; FAN 8-97087-725-1 01 1 9611- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9611- ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9611- ●
21 01.276 SEAL; RAD 8-97084-019-0 02 1 9611-9711 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9611- ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9611- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9611- ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9611- ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9611- ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9611- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9611- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9611- ●
242 01.219 BRACKET; RAD
(A) TOP 		8-97064-431-2 01 1 9611- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9611- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-636-1 01 1 9611- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9611- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9611- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9611- ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9611- ●
336 01.270 SEAL; LWR,RAD
L=330 		8-97124-393-0 02 1 9611- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9611- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 9611- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 9611- ●
