Sayfa 0-81 - Isuzu EPC

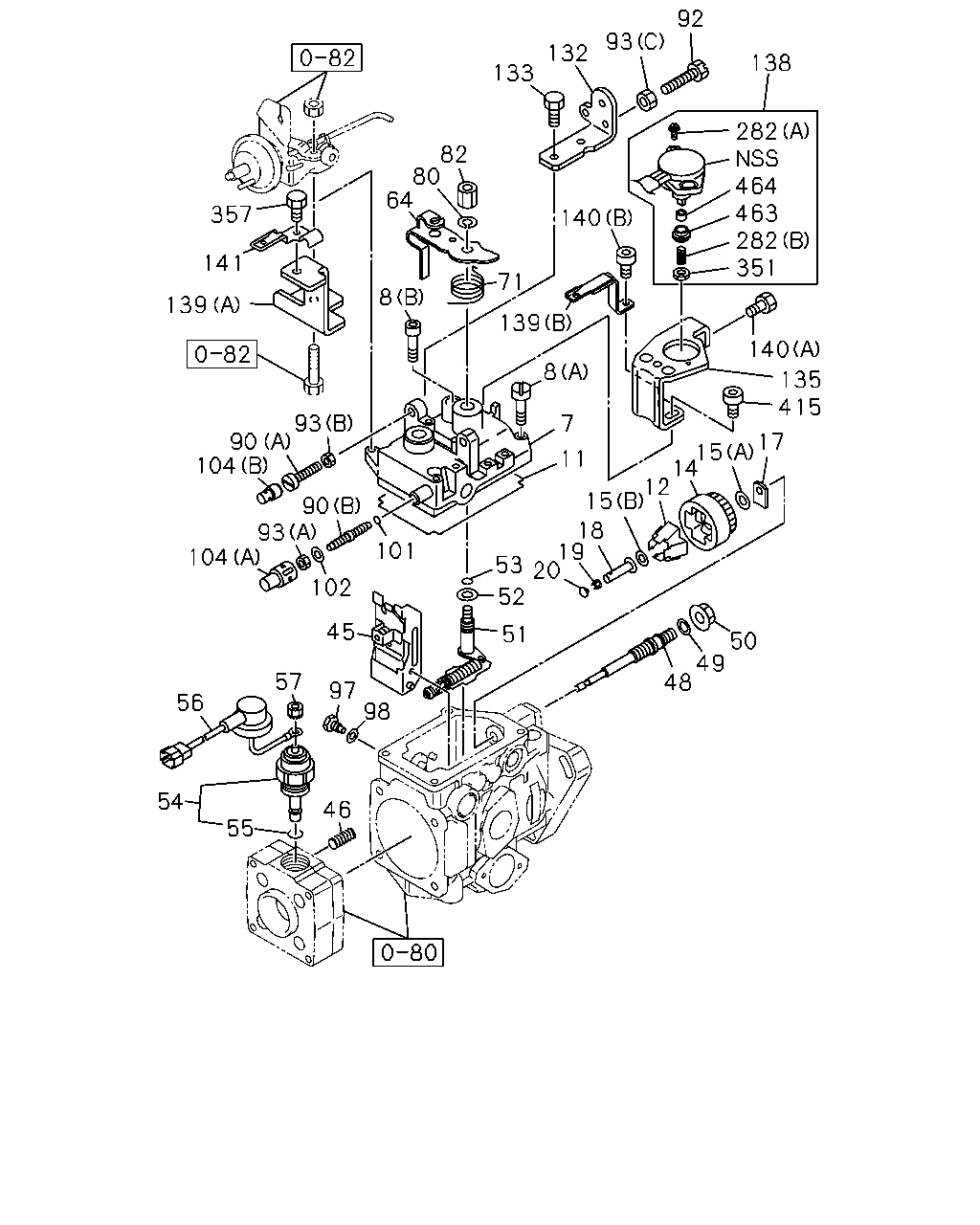

0-81 — GOVERNOR; INJECTION PUMP (#45954) — 252 parça

92 93 132 138 133 282 464 463 282 351 82 80 64 357 140 141 71 8 139 139 140 8 135 415 93 7 90 104 17 15 14 12 15 11 90 93 102 18 19 20 52 101 104 53 45 51 50 49 48 57 97 98 56 54 46 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97134-251-2, 97134251	8-97119-171-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330, (A) ASM PART: B = 8-97134-251-2, 97134251	8-94227-636-0	03	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330, (B) ASM PART: B = 8-97134-251-2, 97134251	8-94242-298-0	01	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97136-413-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97134-251-2, 97134251	8-94433-222-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97069-745-2, 97069745	8-97139-484-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97134-251-2, 97134251	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97134-251-2, 97134251	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97134-251-2, 97134251	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97134-251-2, 97134251	8-97163-170-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745	8-97078-028-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97134-251-2, 97134251	8-97119-202-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-128-0	02	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97134-251-2, 97134251	8-94248-002-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745	8-94473-130-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97069-745-2, 97069745	8-97065-710-1	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97119-180-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94242-275-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94470-582-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-135-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 957A ASM PART: A = 8-97069-745-2, 97069745	8-97047-007-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 958A ASM PART: A = 8-97069-745-2, 97069745	8-97047-008-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 118 ASM PART: B = 8-97134-251-2, 97134251	8-97119-200-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 119 ASM PART: B = 8-97134-251-2, 97134251	8-97119-201-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV 03.308 ASM PART: B = 8-97134-251-2, 97134251	8-94313-218-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97069-745-2, 97069745	8-97071-942-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97069-745-2, 97069745	8-97071-943-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97086-138-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97069-745-2, 97069745	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (A) ASM PART: A = 8-97069-745-2, 97069745	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (A) ASM PART: B = 8-97134-251-2, 97134251	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 03.318 ASM PART: A = 8-97069-745-2, 97069745	5-15729-268-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: B = 8-97134-251-2, 97134251	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.318, (C) ASM PART: B = 8-97134-251-2, 97134251	1-15729-006-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94426-047-1	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 16.176, (C) ASM PART: A = 8-97069-745-2, 97069745	9-09110-406-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-266-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97069-745-2, 97069745	8-97028-884-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97119-173-1	01	1	-
133	03.308 BOLT; BRKT FIX,GOV M6X12 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94313-267-0	02	1	-
135	03.330 BRACKET; POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97119-175-0	01	1	-
135	03.330 BRACKET; POTENTIO METER ASM PART: A = 8-97069-745-2, 97069745	8-97138-029-0	01	1	-
138	03.330 POTENTIO METER ASM PART: A = 8-97069-745-2, 97069745	8-97065-709-1	01	1	-
138	03.330 POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97119-205-0	01	1	-
139	03.485 BRACKET; INJ PUMP (A) ASM PART: A = 8-97069-745-2, 97069745	8-97028-890-0	01	1	-
139	03.485 BRACKET; INJ PUMP (A) ASM PART: B = 8-97134-251-2, 97134251	8-97119-176-0	01	1	-
139	03.485 BRACKET; INJ PUMP (B) ASM PART: A = 8-97069-745-2, 97069745	8-97138-056-0	01	1	-
139	03.485 BRACKET; INJ PUMP (B) ASM PART: B = 8-97134-251-2, 97134251	8-97182-234-0	01	1	9706-
140	03.330 BOLT; BRKT,INJ PUMP 03.306, (A) ASM PART: B = 8-97134-251-2, 97134251	8-94313-203-0	01	1	-
140	03.330 BOLT; BRKT,INJ PUMP 03.306, (A) ASM PART: A = 8-97069-745-2, 97069745	8-94313-203-0	02	1	-
140	03.330 BOLT; BRKT,INJ PUMP (B) ASM PART: B = 8-97134-251-2, 97134251	8-97132-899-0	01	1	9706-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: A = 8-97069-745-2, 97069745	8-94174-822-0	01	1	-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: B = 8-97134-251-2, 97134251	8-97119-198-0	01	1	-9705
141	03.308 PLATE ASM; PIPE BRKT ASM PART: B = 8-97134-251-2, 97134251	8-97182-233-0	01	1	9706-
282	03.308 SCREW; POTENTIO METER (A) ASM PART: B = 8-97134-251-2, 97134251	8-97148-143-0	02	1	9706-
282	03.308 SCREW; POTENTIO METER (B) ASM PART: B = 8-97134-251-2, 97134251	8-97173-771-0	01	1	9706-
351	03.308 NUT; SCREW ASM PART: B = 8-97134-251-2, 97134251	8-97173-772-0	01	1	9706-
357	03.308 BOLT; PLATE,GOV ASM PART: B = 8-97134-251-2, 97134251	8-94174-987-0	01	1	-
415	03.306 BOLT; BRKT TO HOUSING ASM PART: B = 8-97134-251-2, 97134251	1-09054-038-0	01	1	9706-
415	03.306 BOLT; BRKT TO HOUSING ASM PART: B = 8-97134-251-2, 97134251	1-09054-038-0	02	1	-9705
415	03.306 BOLT; BRKT TO HOUSING 03.308 ASM PART: A = 8-97069-745-2, 97069745	8-94313-254-0	01	1	-
463	03.308 BOOT; POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97173-775-0	01	1	9706-
464	03.308 JOINT; POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97173-773-0	01	1	9706-

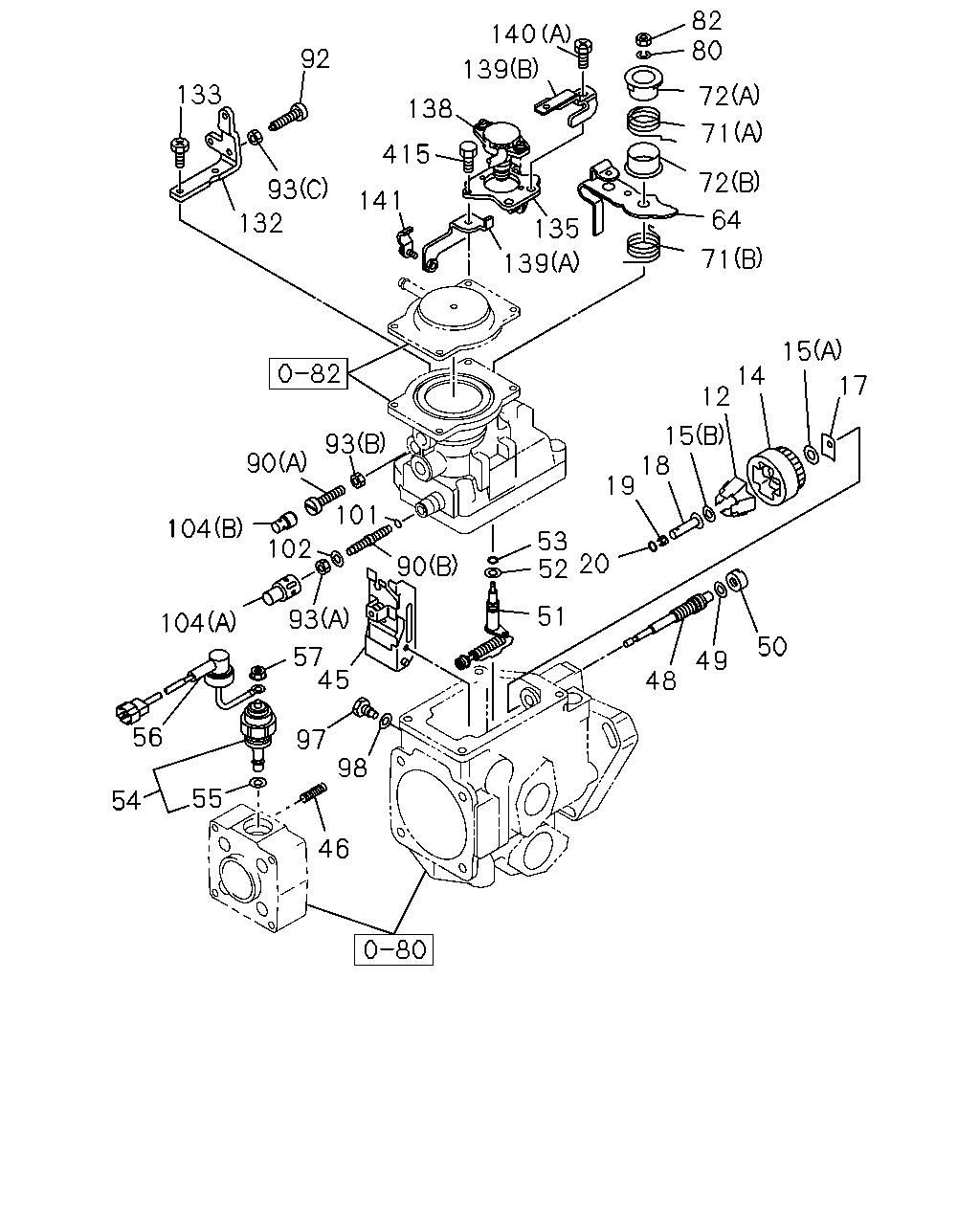

82 80 140 92 139 133 72 138 71 415 72 93 141 64 132 135 71 139 15 14 12 17 15 18 19 93 90 101 104 53 20 52 102 90 51 93 104 50 57 45 49 48 56 97 98 55 54 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97134-251-2, 97134251	8-94433-222-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97069-745-2, 97069745	8-97139-484-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97134-251-2, 97134251	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97134-251-2, 97134251	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97134-251-2, 97134251	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97134-251-2, 97134251	8-97163-170-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745	8-97078-028-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97134-251-2, 97134251	8-97119-202-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-128-0	02	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97134-251-2, 97134251	8-94248-002-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745	8-94473-130-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97069-745-2, 97069745	8-97065-710-1	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97119-180-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94242-275-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94470-582-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94473-135-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 957A ASM PART: A = 8-97069-745-2, 97069745	8-97047-007-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 958A ASM PART: A = 8-97069-745-2, 97069745	8-97047-008-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 118 ASM PART: B = 8-97134-251-2, 97134251	8-97119-200-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 119 ASM PART: B = 8-97134-251-2, 97134251	8-97119-201-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV 03.308 ASM PART: B = 8-97134-251-2, 97134251	8-94313-218-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97069-745-2, 97069745	8-97071-942-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97069-745-2, 97069745	8-97071-943-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: A = 8-97069-745-2, 97069745	8-94389-434-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: A = 8-97069-745-2, 97069745	8-97047-009-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97086-138-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97069-745-2, 97069745	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (A) ASM PART: A = 8-97069-745-2, 97069745	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (A) ASM PART: B = 8-97134-251-2, 97134251	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 03.318 ASM PART: A = 8-97069-745-2, 97069745	5-15729-268-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: B = 8-97134-251-2, 97134251	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.318, (C) ASM PART: B = 8-97134-251-2, 97134251	1-15729-006-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94426-047-1	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 16.176, (C) ASM PART: A = 8-97069-745-2, 97069745	9-09110-406-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94316-266-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97069-745-2, 97069745	8-97028-884-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97134-251-2, 97134251	8-97119-173-1	01	1	-
133	03.308 BOLT; BRKT FIX,GOV M6X12 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97134-251-2, 97134251	8-94313-267-0	02	1	-
135	03.330 BRACKET; POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97119-175-0	01	1	-
135	03.330 BRACKET; POTENTIO METER ASM PART: A = 8-97069-745-2, 97069745	8-97138-029-0	01	1	-
138	03.330 POTENTIO METER ASM PART: A = 8-97069-745-2, 97069745	8-97065-709-1	01	1	-
138	03.330 POTENTIO METER ASM PART: B = 8-97134-251-2, 97134251	8-97119-205-0	01	1	-
139	03.485 BRACKET; INJ PUMP (A) ASM PART: A = 8-97069-745-2, 97069745	8-97028-890-0	01	1	-
139	03.485 BRACKET; INJ PUMP (A) ASM PART: B = 8-97134-251-2, 97134251	8-97119-176-0	01	1	-
139	03.485 BRACKET; INJ PUMP (B) ASM PART: A = 8-97069-745-2, 97069745	8-97138-056-0	01	1	-
139	03.485 BRACKET; INJ PUMP (B) ASM PART: B = 8-97134-251-2, 97134251	8-97182-234-0	01	1	9706-
140	03.330 BOLT; BRKT,INJ PUMP 03.306, (A) ASM PART: B = 8-97134-251-2, 97134251	8-94313-203-0	01	1	-
140	03.330 BOLT; BRKT,INJ PUMP 03.306, (A) ASM PART: A = 8-97069-745-2, 97069745	8-94313-203-0	02	1	-
140	03.330 BOLT; BRKT,INJ PUMP (B) ASM PART: B = 8-97134-251-2, 97134251	8-97132-899-0	01	1	9706-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: A = 8-97069-745-2, 97069745	8-94174-822-0	01	1	-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: B = 8-97134-251-2, 97134251	8-97119-198-0	01	1	-9705
141	03.308 PLATE ASM; PIPE BRKT ASM PART: B = 8-97134-251-2, 97134251	8-97182-233-0	01	1	9706-
415	03.306 BOLT; BRKT TO HOUSING ASM PART: B = 8-97134-251-2, 97134251	1-09054-038-0	01	1	9706-
415	03.306 BOLT; BRKT TO HOUSING ASM PART: B = 8-97134-251-2, 97134251	1-09054-038-0	02	1	-9705
415	03.306 BOLT; BRKT TO HOUSING 03.308 ASM PART: A = 8-97069-745-2, 97069745	8-94313-254-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
