0-66 — GENERATOR (#45951) — 69 parça

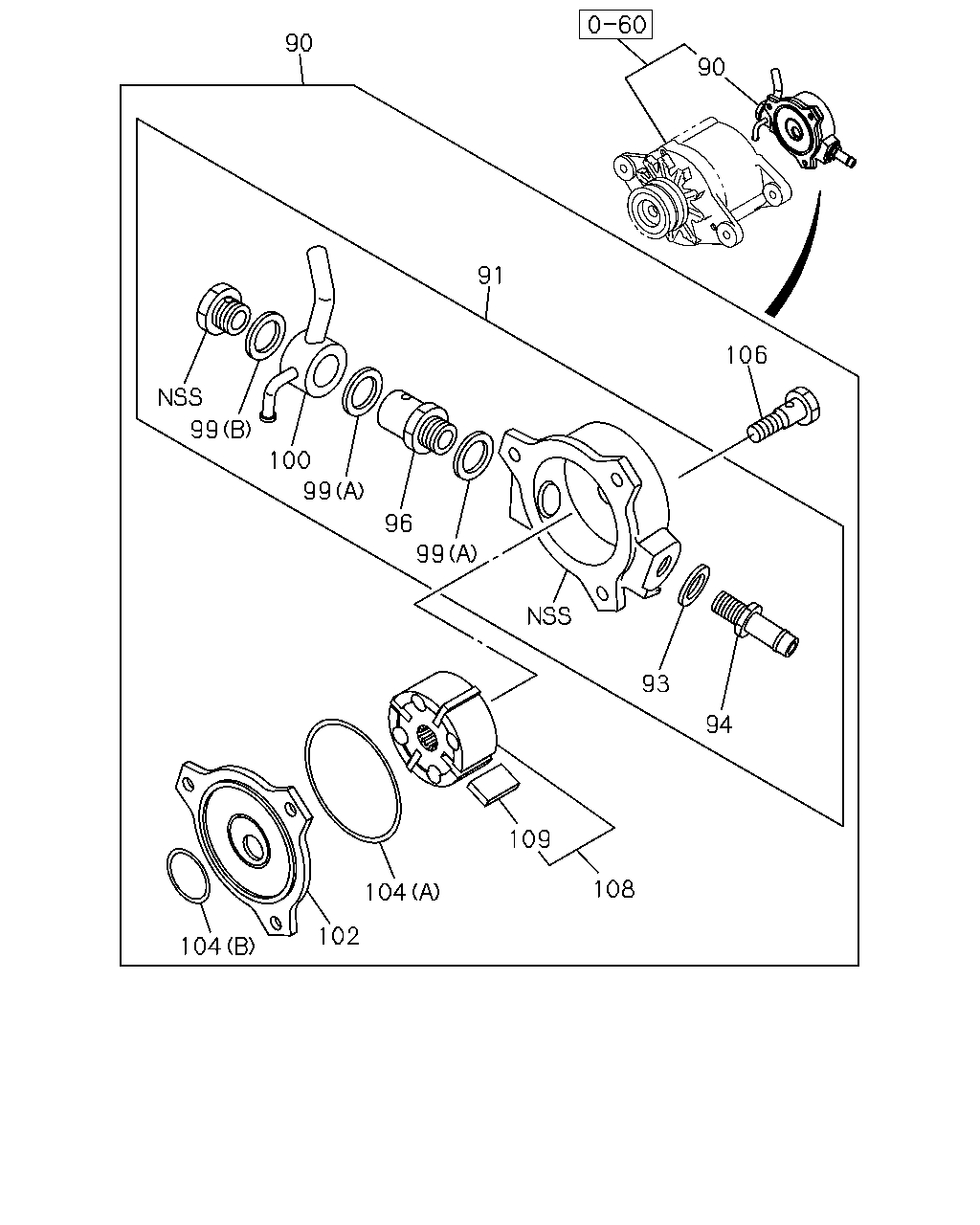

90 90 91 106 99 100 99 96 99 93 94 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94382-059-1, 94382059	8-97109-654-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-653-0, 97187653	8-97203-865-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94382-059-1, 94382059	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-653-0, 97187653	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-653-0, 97187653	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

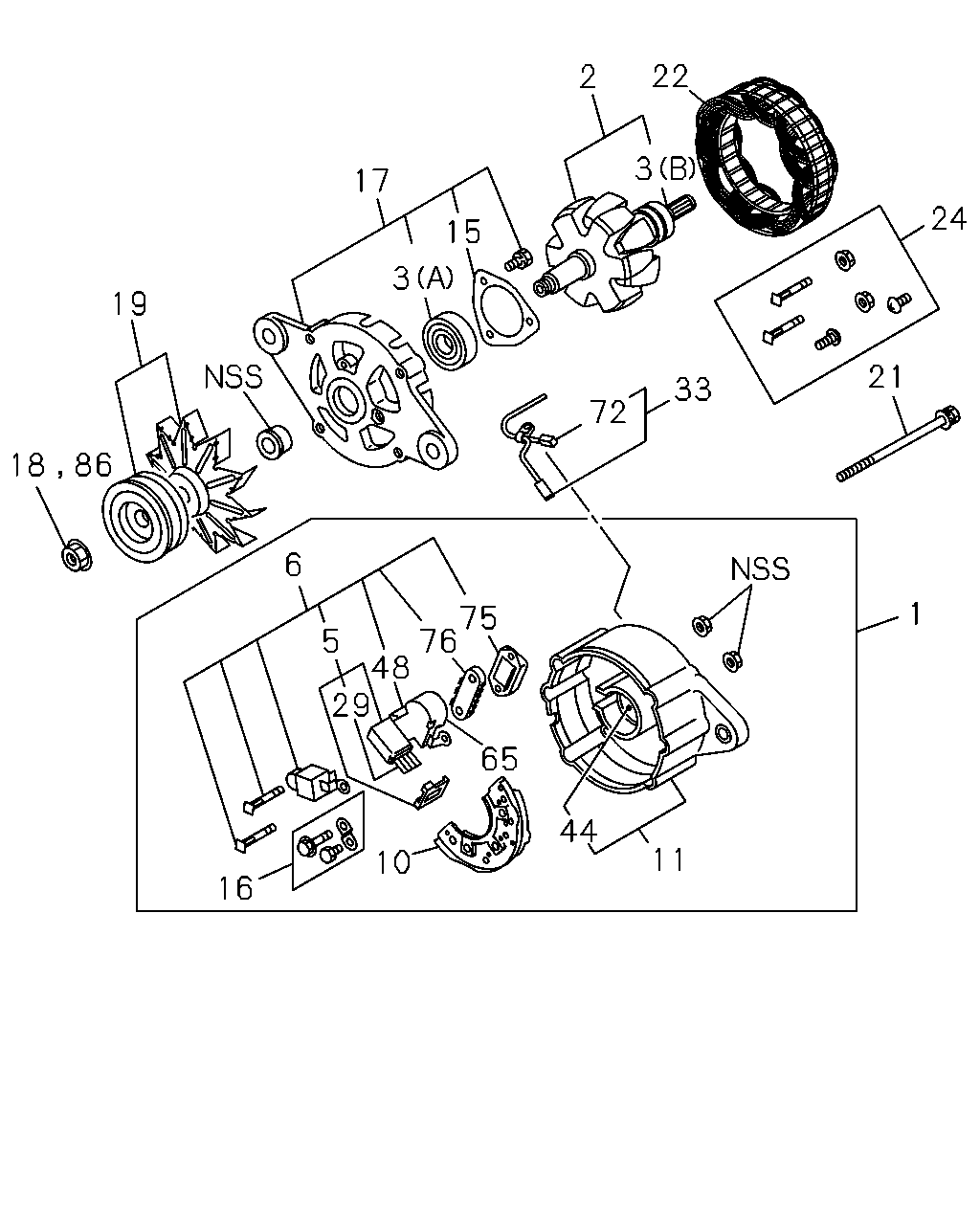

22 2 3 17 24 15 3 19 21 33 72 86 18 6 1 75 76 48 29 5 65 44 11 10 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97147-851-0, 97147851	8-94381-023-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94382-059-1, 94382059	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-653-0, 97187653	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-97083-006-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851	8-97062-744-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-653-0, 97187653	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-97083-008-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: B = 8-97147-851-0, 97147851	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97147-851-0, 97147851	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: D = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94382-059-1, 94382059	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97147-851-0, 97147851	8-97078-573-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-653-0, 97187653	8-97203-864-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-97109-653-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-97147-851-0, 97147851, D = 8-97187-655-0, 97187655	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: A = 8-94382-059-1, 94382059, C = 8-97187-653-0, 97187653	8-94310-267-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-94382-059-1, 94382059, B = 8-97147-851-0, 97147851, C = 8-97187-653-0, 97187653, D = 8-97187-655-0, 97187655	8-94156-591-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: A = 8-94382-059-1, 94382059	8-97016-301-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN 02.274 ASM PART: C = 8-97187-653-0, 97187653	8-97203-880-0	01	1	-
