Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

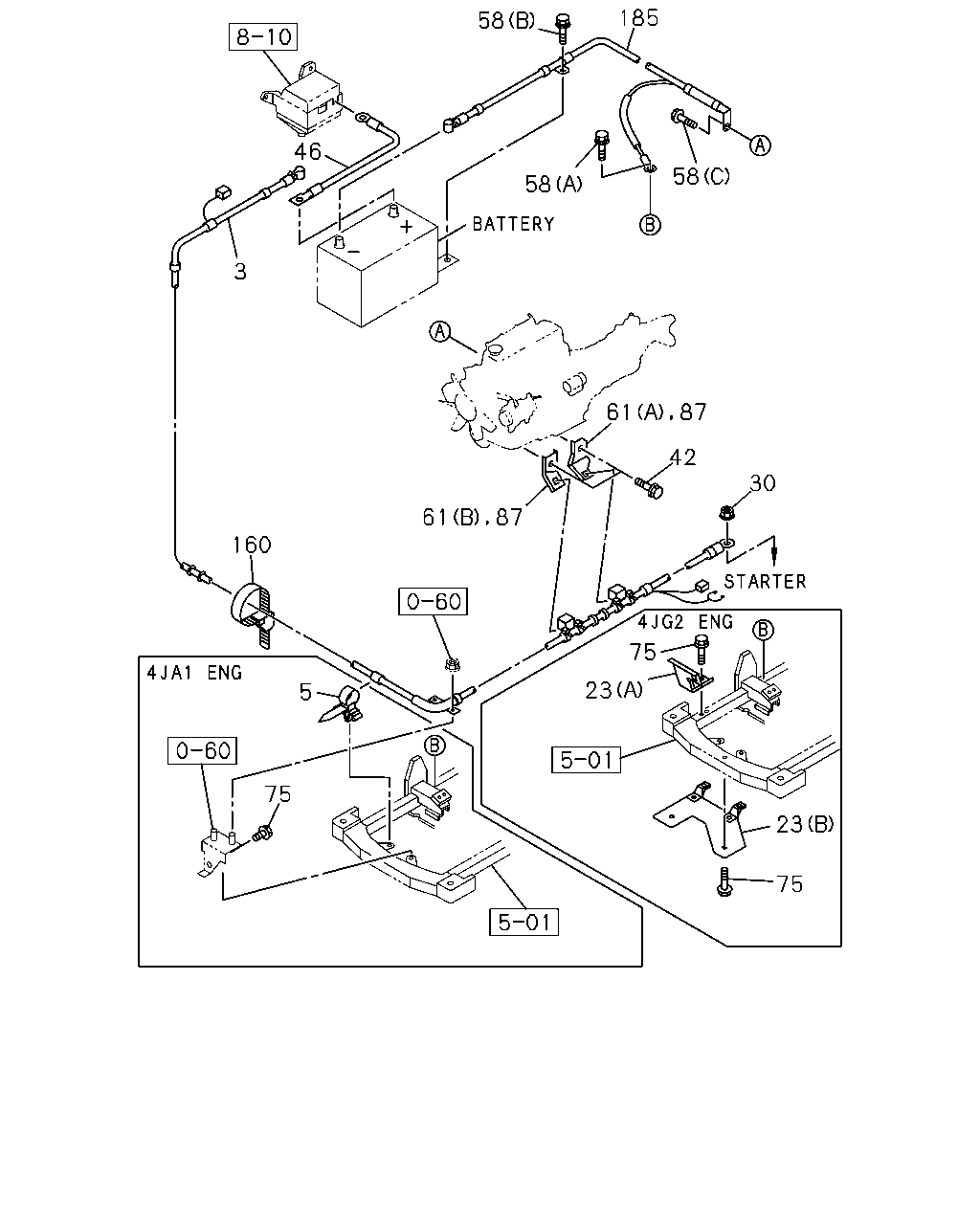

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#45949) — 19 parça
Tümü
A - 4JA1 ENG
B - 4JG2 ENG
185
58
46
58
58
3
61
87
42
30
61
87
160
75
23
5
75
23
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
8-97079-137-4
01
1
9611-
●
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
8-97069-716-5
01
1
9611-
●
5
02.559 CLIP; BATTERY CABLE TO BODY
02.587 L=172
8-94232-620-0
01
1
9611-
●
23
02.343 BRACKET; CABLE CLIP TO FRAME
(A)
8-97066-915-0
01
1
9611-
●
23
02.343 BRACKET; CABLE CLIP TO FRAME
(B)
8-97081-412-0
01
1
9611-
●
30
02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER
8-94413-537-0
01
1
9611-
●
●
42
02.343 BOLT; BRKT,BATTERY CABLE
00.206 M6X14 W/LK WASHER
0-50040-614-0
02
1
9611-
●
●
46
02.341 CABLE; BATTERY TO FUSE BOX
8-94317-787-2
01
1
9611-
●
●
58
02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE
0-28081-016-0
01
1
9611-
●
●
58
02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
9611-
●
●
58
02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9611-
●
●
61
02.333 BRACKET; BATTERY CABLE
02.343 (A)
8-94315-286-0
01
1
9611-
●
61
02.333 BRACKET; BATTERY CABLE
(B)
8-97077-656-0
01
1
9611-
●
75
02.333 BOLT; BRKT
04.686 M6X16 W/LK WASHER
0-50040-616-0
01
1
9611-
●
75
02.333 BOLT; BRKT
12.187 M6X16 W/LK&PL WASHER
0-50140-616-0
01
1
9611-
●
75
02.333 BOLT; BRKT
4X4(TFS***) 12.187 M6X16 W/LK&PL WASHER
0-50140-616-0
02
1
9611-
●
87
02.343 BRACKET; HARNESS
8-94315-286-0
02
1
9611-
●
160
02.343 CLIP; BATTERY CABLE
03.162 L=140
5-09707-031-1
01
1
9611-
●
●
185
02.525 HARNESS; CABLE,BATTERY (-)
8-97149-914-1
01
1
9611-
●
●
