0-60 — ENGINE ELECTRICAL CONTROL PARTS (#45948) — 44 parça

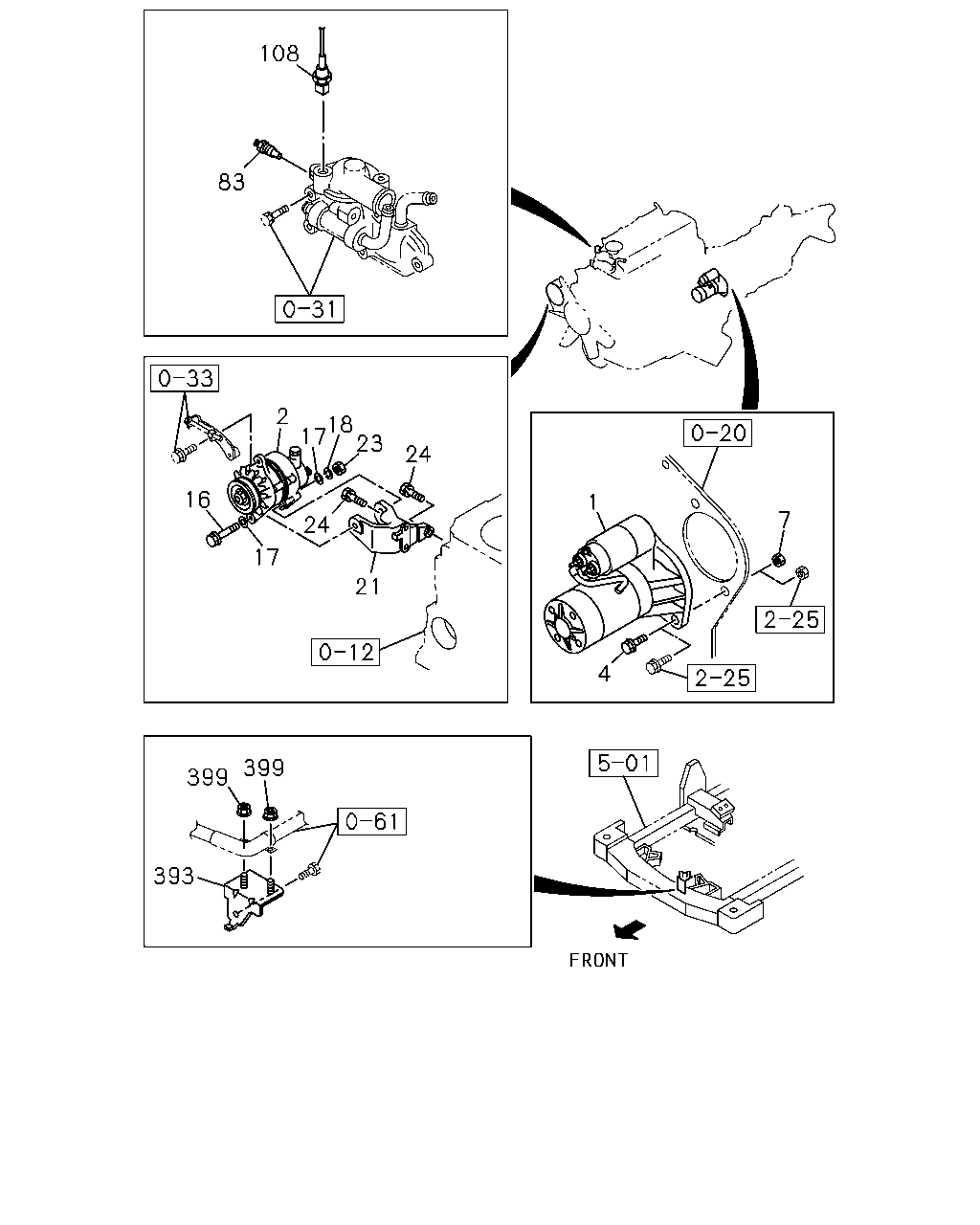

çizim 19535
108 83 2 18 17 23 24 16 1 7 24 17 21 4 399 399 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9611- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-94382-059-1 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-653-0 01 1 9802- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97147-851-0 01 1 9611-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-655-0 01 1 9802- ●
4 02.042 BOLT; STARTER
00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9611- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9611- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9611-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9611-9612 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9611-9612 ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9611- ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9611-9612 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9701- ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9611- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9611- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9611- ● ●
108 01.150 SWITCH; THERMO 8-97069-786-1 01 1 9611- ● ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9611- ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ●

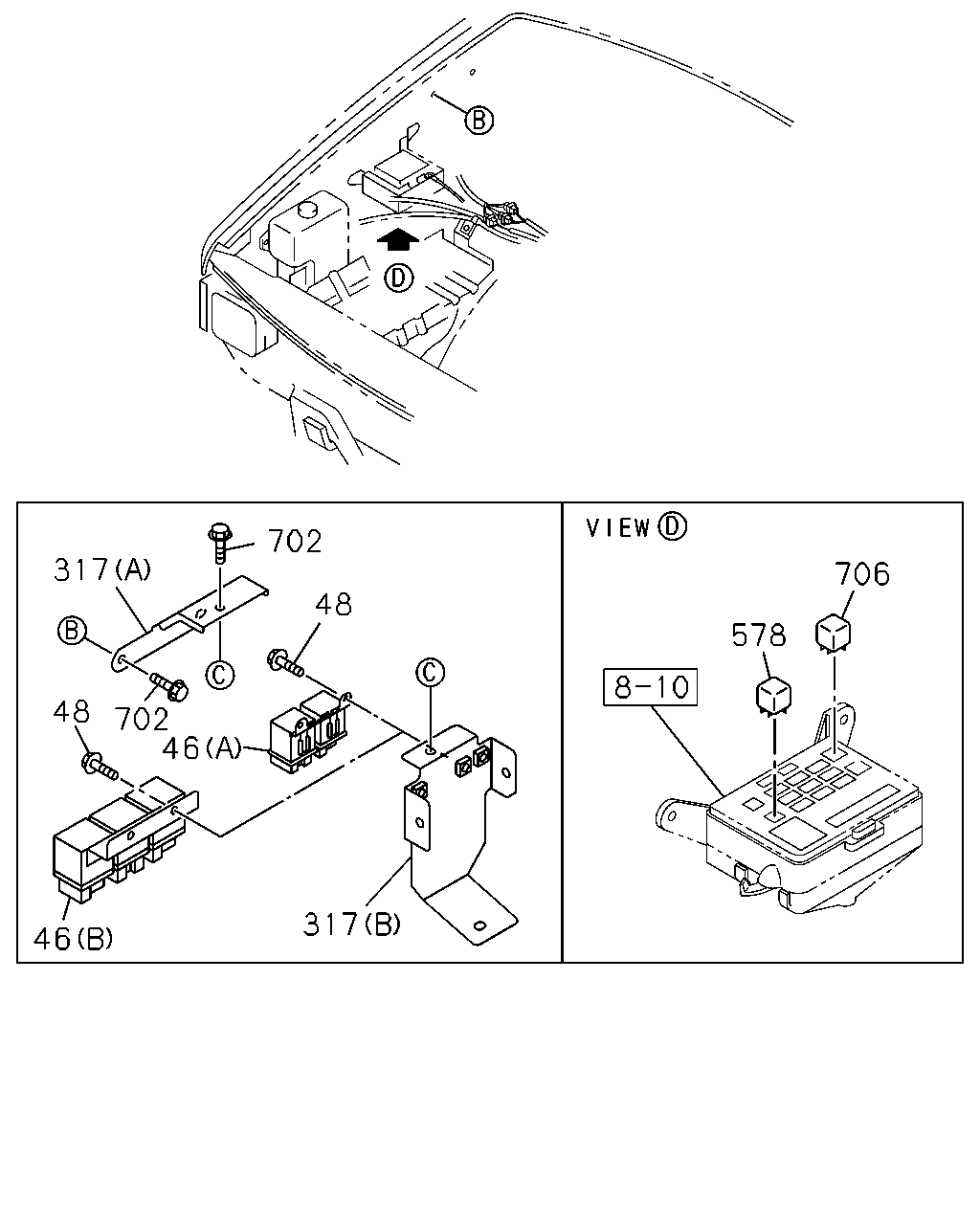

çizim 67133
702 317 706 48 578 48 702 46 317 46
BalonParca AdiParca NoAdetTipApplied Date A B
46 02.510 RELAY; GLOW PLUG
(A) 		8-94459-495-0 01 1 9611- ●
46 02.510 RELAY; GLOW PLUG
(B) 		8-97066-916-0 01 1 9611- ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9611- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9611- ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9611- ● ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9611- ● ●
706 02.510 RELAY; QWS
08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ●

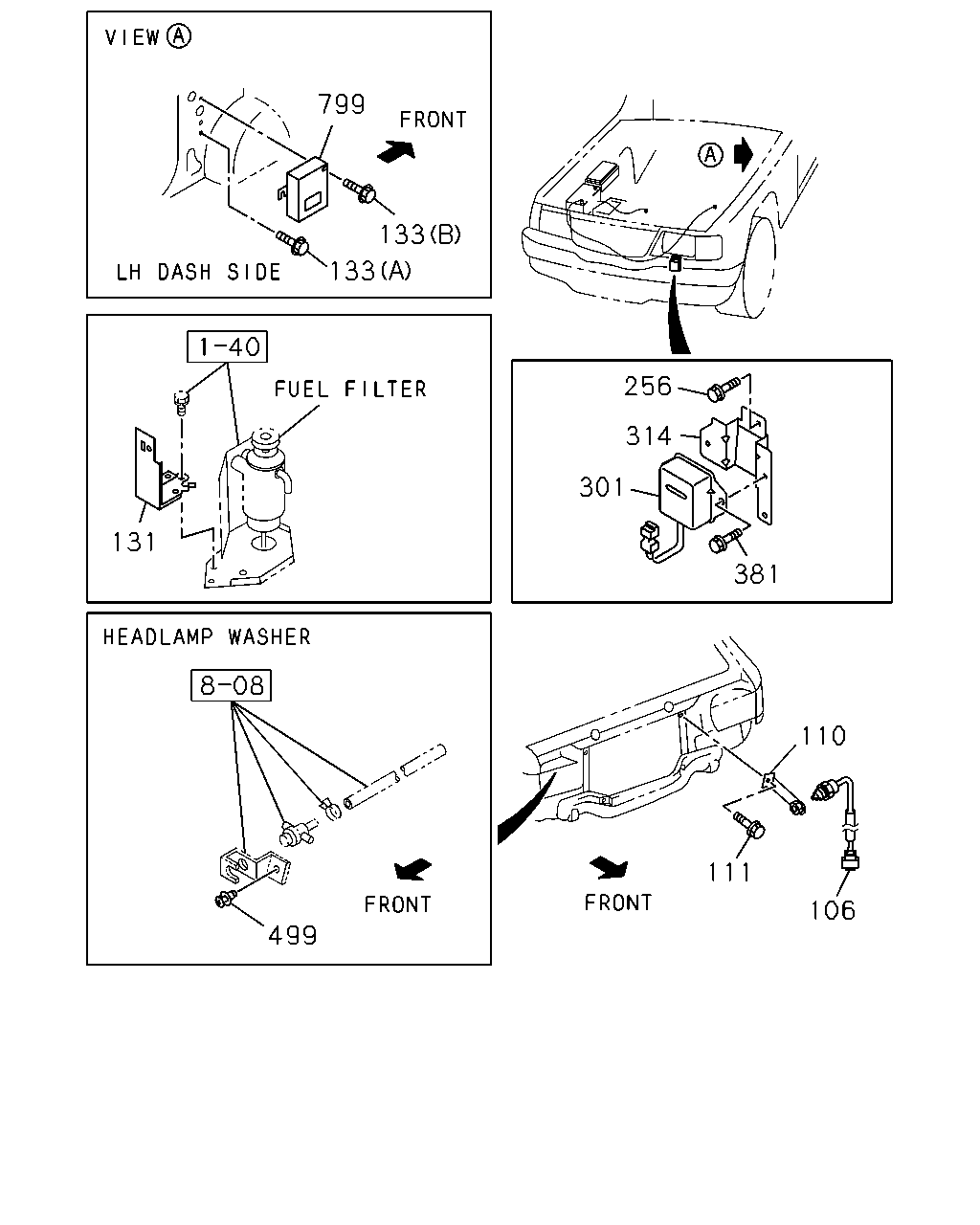

çizim 68198
799 133 133 256 314 301 131 381 110 111 106 499
BalonParca AdiParca NoAdetTipApplied Date A B
106 01.150 SWITCH; THERMO,AIR 8-97019-773-0 01 1 9611- ● ●
110 01.251 BRACKET; THERMO SW CONNECTOR 8-97079-795-0 01 1 9611- ● ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9711 ● ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ● ●
131 03.670 BRACKET; EGR 8-97143-001-0 01 1 9611- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (A) M6X16 		8-97012-496-0 02 1 9611- ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9611- ● ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (A) M6X16 		8-97012-496-0 01 1 9611- ●
256 02.510 BOLT; BRKT,RESISTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9611- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97066-700-1 01 1 9611- ●
381 02.183 BOLT; DROPPING RESISTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611- ●
499 02.510 GROMMET
HEADLAMP WASHER<CE3> 02.780 		8-94244-699-0 01 1 9611- ● ●
799 02.510 CONTROLLER; EGR/QOS 8-97116-503-2 01 1 9611- ●
799 02.510 CONTROLLER; EGR/QOS 8-97116-900-1 01 1 9611- ●
