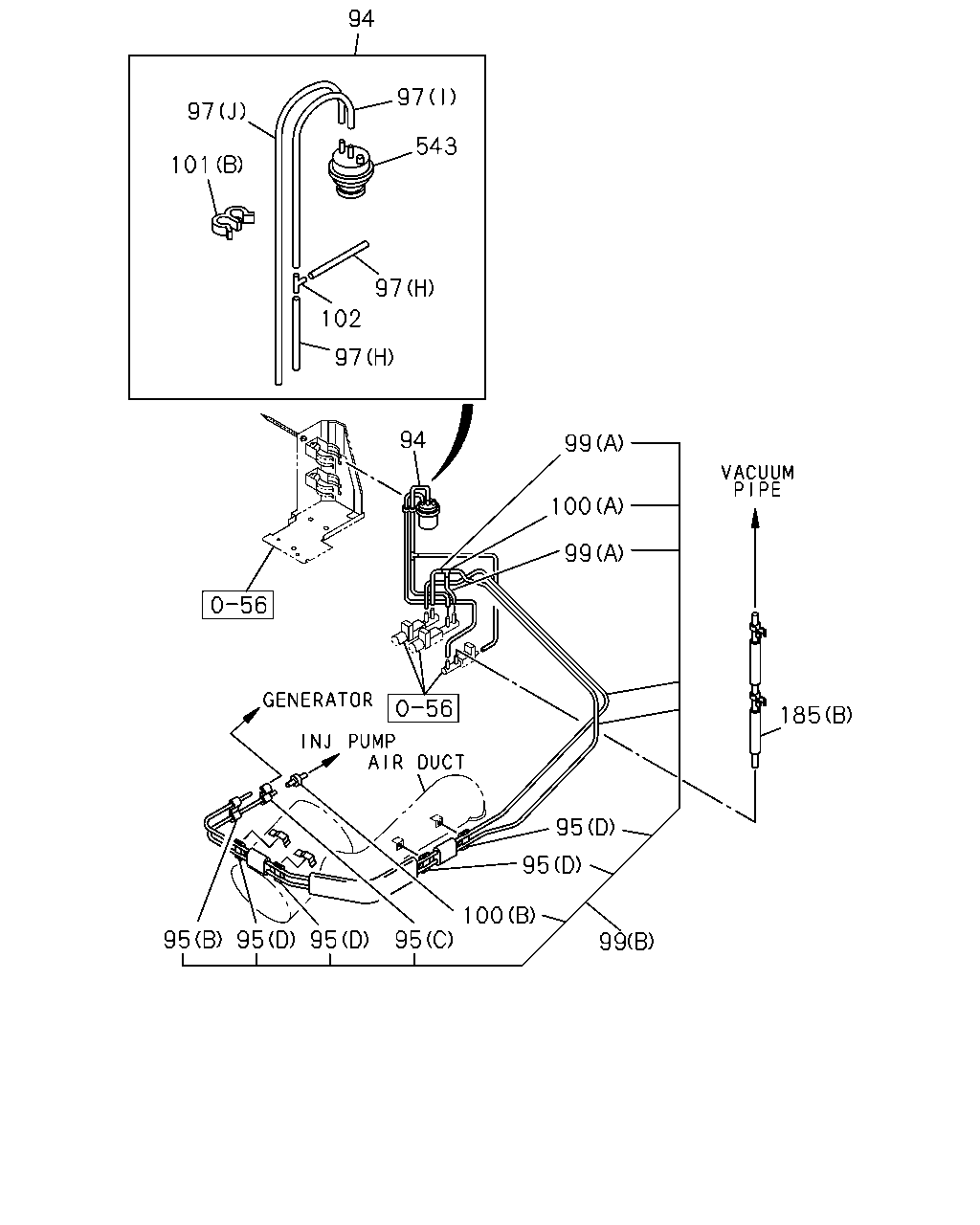

0-57 — EMISSION PIPING (#45947) — 106 parça

101 543 97 101 97 102 97 101 97 97 94 97 102 94 101 97 97 200 147 147 147 165 16 4 17 16 1 12 4 17 15 255 485 5 4 95 5 100 93 2 93 95 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97135-674-2	01	1	9611-	●
1	03.670 VALVE; EGR	8-97135-674-2	02	1	9611-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9611-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9611-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9611-	●	●
5	03.670 ADAPTER ASM (B)	8-97136-007-0	01	1	9611-	●
5	03.670 ADAPTER ASM (A)	8-97117-260-0	01	1	9611-	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	04	1	9611-	●	●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9611-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9611-	●	●
93	03.675 HOSE ASM (B)	8-97115-154-0	01	1	9611-	●
93	03.675 HOSE ASM (A)	8-97164-874-1	01	1	9611-	●
94	03.675 HOSE ASM (A)	8-97142-697-0	01	1	9611-	●
94	03.675 HOSE ASM (B)	8-97143-003-0	01	1	9611-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9611-		●
95	03.680 CLIP; HOSE 03.162 (A) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
95	03.680 CLIP; HOSE 03.162 (A) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
95	03.680 CLIP; HOSE 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-		●
95	03.680 CLIP; HOSE (D) 4XID=6.7	8-94315-422-0	04	1	9611-		●
95	03.680 CLIP; HOSE (B) ID=20 & 7X4	8-94368-500-0	01	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (G) L=530 SERVICED BY L=3000	0-04741-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9611-		●
100	03.680 JOINT; HOSE 2WAY	8-97165-694-0	01	1	9611-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9611-		●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9611-		●
101	03.675 CLIP; HOSE 03.680 (A) ID=7.2 & 10	5-09707-056-0	02	1	9611-	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●
102	03.680 JOINT; HOSE 3WAY	8-94208-695-0	02	1	9611-	●
102	03.680 JOINT; HOSE 3WAY	8-94208-695-0	01	1	9611-		●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9611-	●
147	03.680 CLIP; RUBBER HOSE 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
165	03.680 JOINT; HOSE 2WAY	8-94313-805-0	01	1	9611-	●
194	03.675 HOSE; VAC 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9611-	●
200	03.675 HOSE; VAC	8-97142-689-2	01	1	9611-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-97043-750-0	01	1	9611-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9611-		●
485	03.671 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9611-	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9611-		●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9611-	●	●

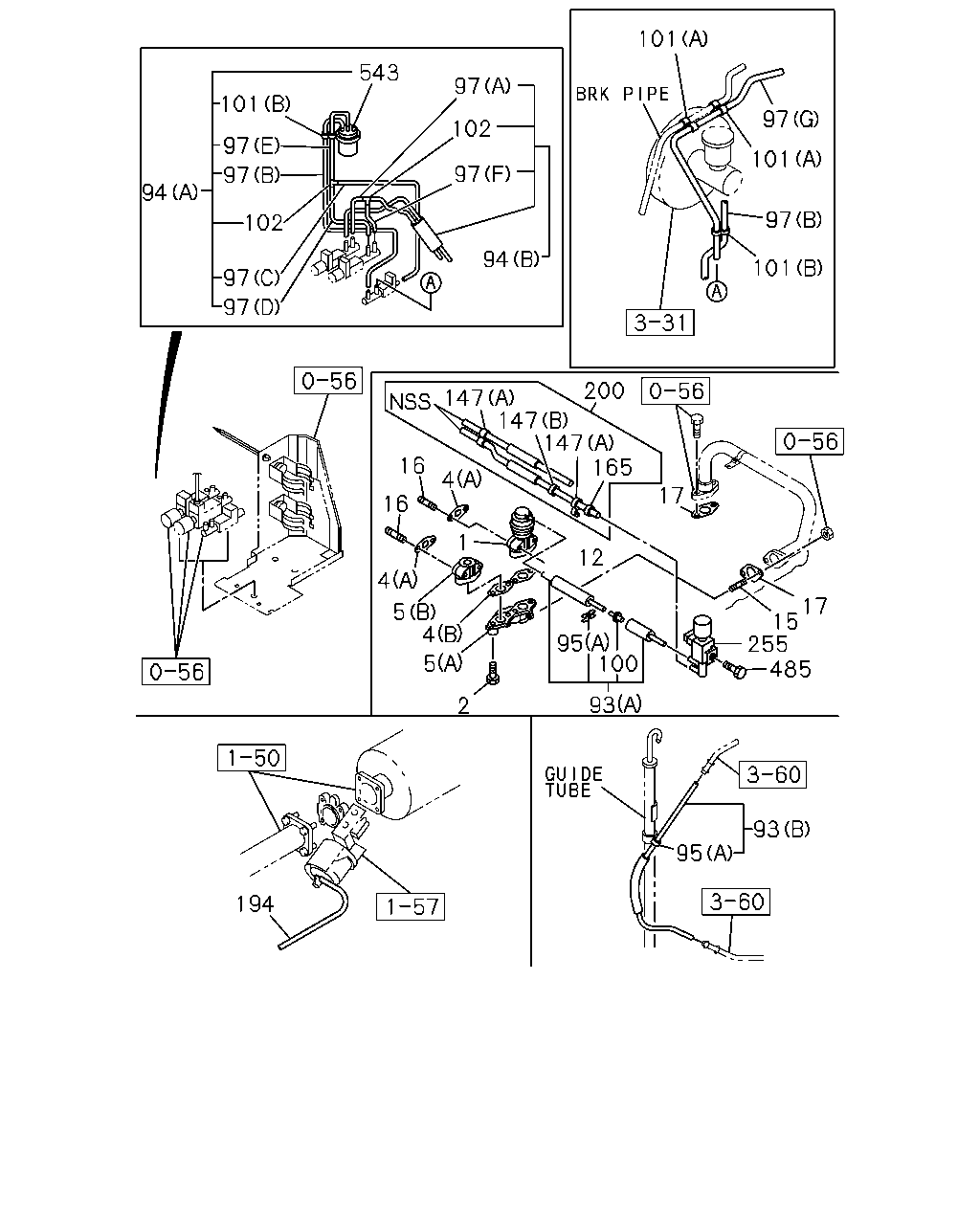

94 97 97 543 101 97 102 97 94 99 100 99 185 95 95 100 95 95 95 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	03.675 HOSE ASM (A)	8-97142-697-0	01	1	9611-	●
94	03.675 HOSE ASM (B)	8-97143-003-0	01	1	9611-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9611-		●
95	03.680 CLIP; HOSE 03.162 (A) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
95	03.680 CLIP; HOSE 03.162 (A) ID=13.2 & 7.5	8-94315-426-0	01	1	9611-	●
95	03.680 CLIP; HOSE 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9611-		●
95	03.680 CLIP; HOSE (D) 4XID=6.7	8-94315-422-0	04	1	9611-		●
95	03.680 CLIP; HOSE (B) ID=20 & 7X4	8-94368-500-0	01	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (G) L=530 SERVICED BY L=3000	0-04741-300-0	01	1	9611-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9611-		●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9611-		●
99	03.675 HOSE; RUBBER 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000	0-04730-300-0	02	1	9611-		●
99	03.675 HOSE; RUBBER (B)	8-97149-827-1	01	1	9611-		●
100	03.680 JOINT; HOSE 2WAY	8-97165-694-0	01	1	9611-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9611-		●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9611-		●
101	03.675 CLIP; HOSE 03.680 (A) ID=7.2 & 10	5-09707-056-0	02	1	9611-	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9611-	●
102	03.680 JOINT; HOSE 3WAY	8-94208-695-0	02	1	9611-	●
102	03.680 JOINT; HOSE 3WAY	8-94208-695-0	01	1	9611-		●
185	03.163 HOSE; RUBBER,VSV (A) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9611-		●
185	03.163 HOSE; RUBBER,VSV (B) L=850	8-97070-534-2	01	1	9611-		●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9611-	●	●

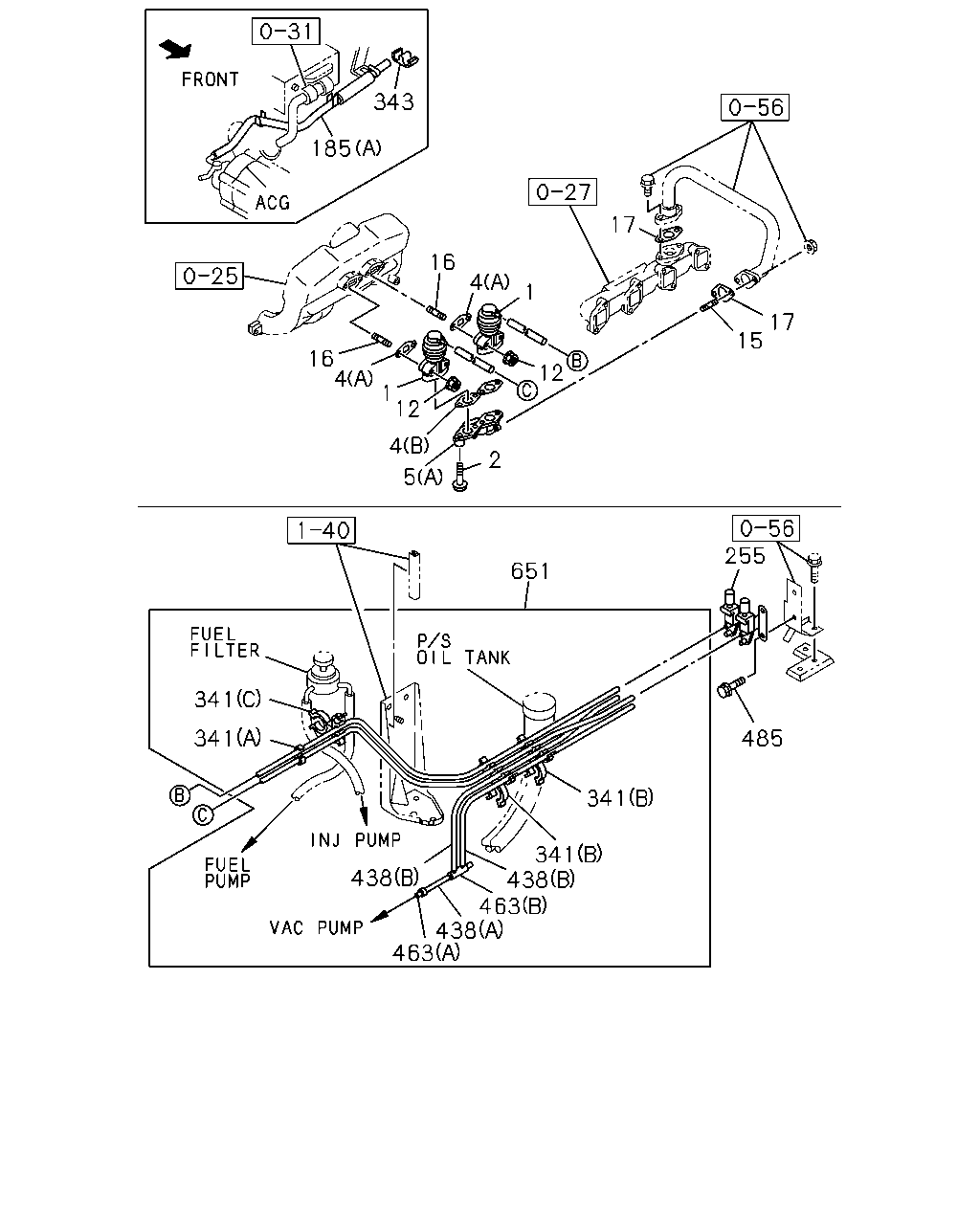

343 185 17 16 4 1 17 15 16 4 12 1 12 4 2 5 255 651 341 341 485 341 341 438 463 438 463 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97135-674-2	01	1	9611-	●
1	03.670 VALVE; EGR	8-97135-674-2	02	1	9611-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9611-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9611-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9611-	●	●
5	03.670 ADAPTER ASM (B)	8-97136-007-0	01	1	9611-	●
5	03.670 ADAPTER ASM (A)	8-97117-260-0	01	1	9611-	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	04	1	9611-	●	●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9611-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9611-	●	●
185	03.163 HOSE; RUBBER,VSV (A) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9611-		●
185	03.163 HOSE; RUBBER,VSV (B) L=850	8-97070-534-2	01	1	9611-		●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-97043-750-0	01	1	9611-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9611-		●
341	03.680 CLIP; RUBBER HOSE (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9611-		●
341	03.680 CLIP; RUBBER HOSE (B) ID=20 & 7X4	8-94368-500-0	02	1	9611-		●
341	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9611-		●
343	03.680 CLIP; RUBBER HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9611-		●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (B) L=320 SERVICED BY L=3000	0-04732-300-0	02	1	9611-		●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (A) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9611-		●
463	03.680 JOINT; RUBBER HOSE (A) 2WAY	8-94313-805-0	01	1	9611-		●
463	03.680 JOINT; RUBBER HOSE (B) 4WAY	8-94429-994-0	01	1	9611-		●
485	03.671 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9611-	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9611-		●
651	03.675 HOSE ASM; VSV,EGR	8-97175-901-0	01	1	9611-		●
