0-52 — OIL AND VACUUM PIPING; ENGINE (#45945) — 51 parça
çizim 67673
2 147 147 63 3 3 248 147 40 40 149 79 150
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 9611- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9611- ● ●
40 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9611- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97162-317-0 01 1 9611- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97086-341-0 01 1 9611- ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 9611- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 9611- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97162-106-0 01 1 9611- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97045-326-0 01 1 9611- ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 9611- ● ●

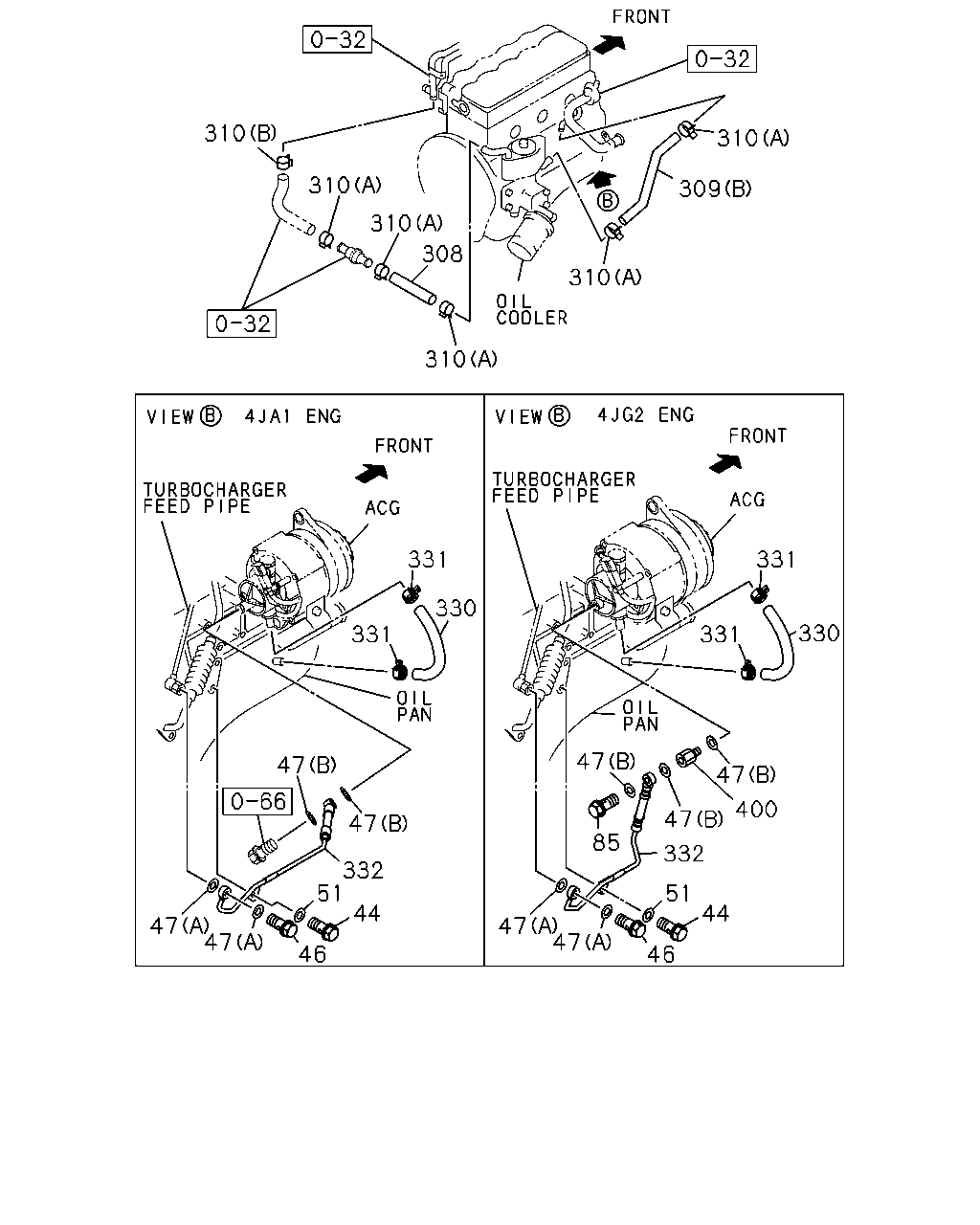

çizim 67751
310 310 310 309 310 308 310 310 331 331 330 330 331 331 47 47 47 400 47 47 85 332 332 51 51 44 44 47 47 47 47 46 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 01.531 BOLT; CLIP,OIL PIPE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9611- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9611- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 03 1 9611- ●
51 01.531 WASHER; PL,OIL PIPE,VAC PUMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 9611- ● ●
85 01.531 BOLT; EYE,OIL PIPE FIX
M10X21 FLANGE 		1-09675-078-0 01 1 9611- ●
308 01.540 HOSE; OIL COOLER FEED
08.846 L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9611- ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97049-285-0 01 1 9611- ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97069-793-1 01 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-0 08 1 9611- ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 9611- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97063-052-0 01 1 9611- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9611- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94468-522-1 01 1 9611- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97042-697-0 01 1 9611- ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-97061-857-0 01 1 9611- ●

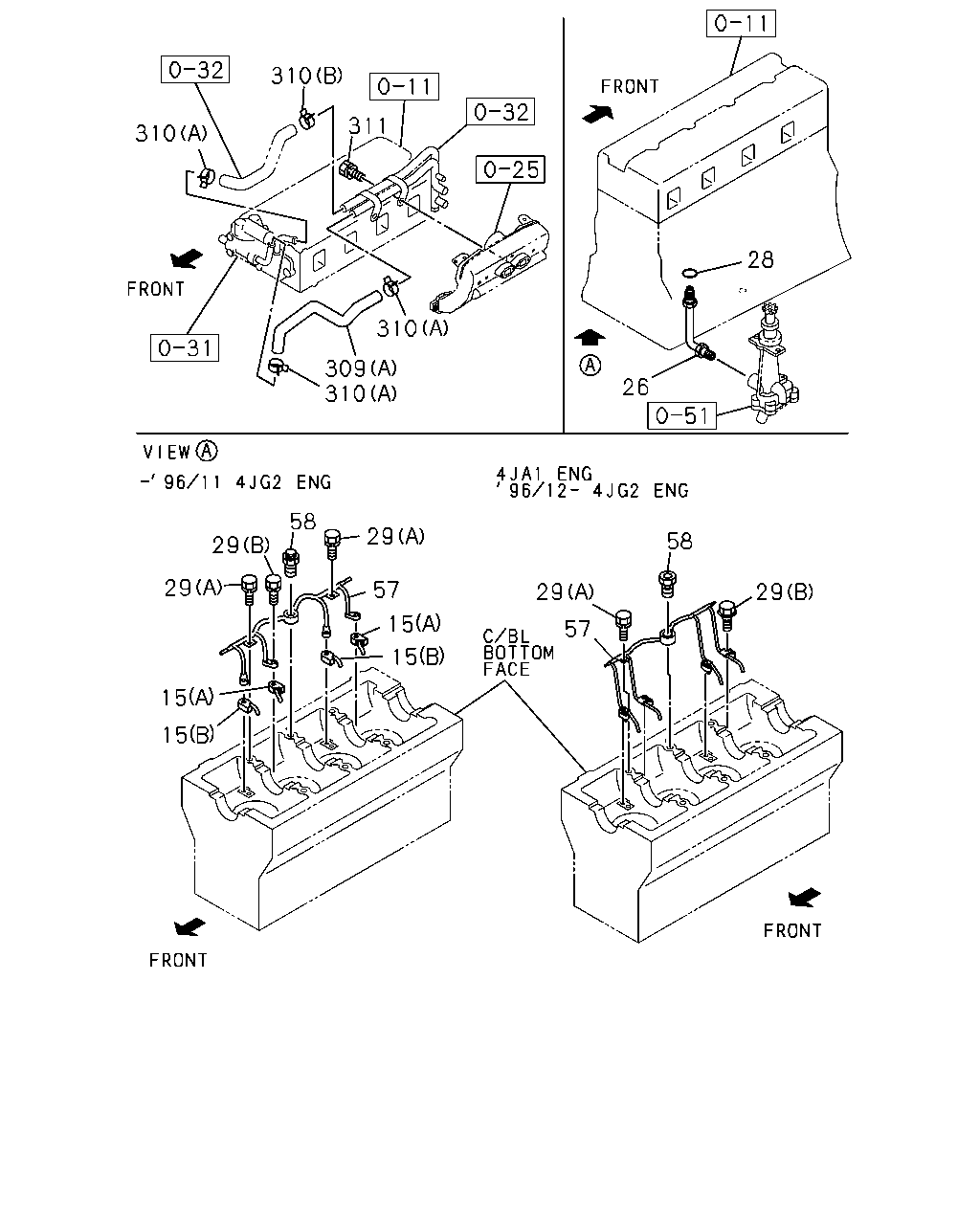

çizim 72029
310 311 310 28 310 309 310 26 58 29 58 29 29 57 29 29 15 57 15 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 01.519 PIPE; OIL JET,PISTON COOLING
(B) 		8-94372-004-1 02 1 9611-9611 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
(A) 		8-94372-005-1 02 1 9611-9611 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94434-828-2 01 1 9611- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 01 1 9611- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9611- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9612- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9611-9611 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9612- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X28 		8-94372-730-1 04 1 9611-9611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-0 04 1 9612- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-1 01 1 9611- ●
57 01.519 PIPE; OIL,OIL JET 8-97030-784-0 01 1 9611-9611 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 9612- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9611- ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97039-199-2 01 1 9611-9612 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97168-220-0 01 1 9701- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97049-285-0 01 1 9611- ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97069-793-1 01 1 9611- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-0 08 1 9611- ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 9611- ● ●
311 01.531 BOLT; PIPE FIX
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611- ● ●
