◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#45943) — 22 parça

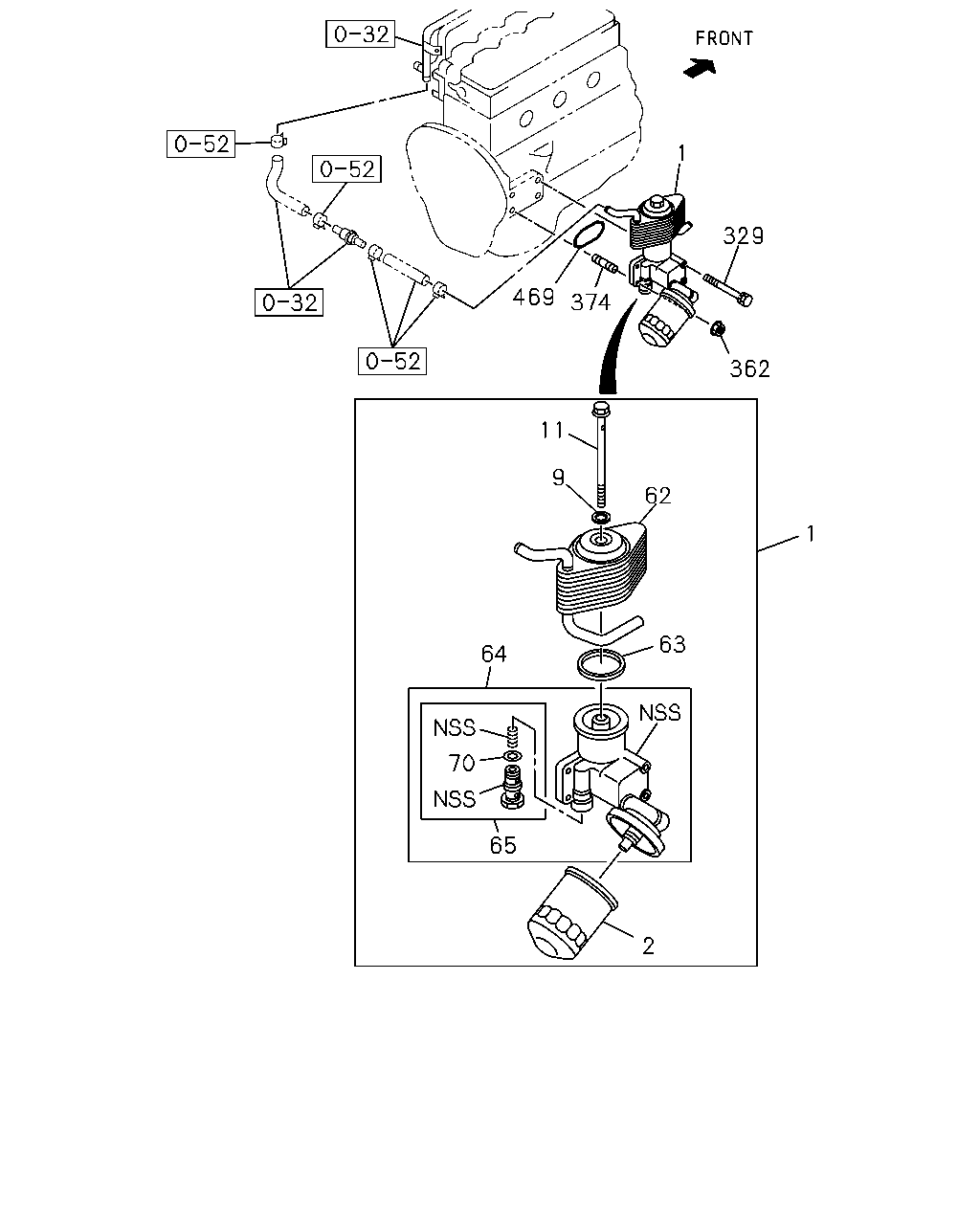

çizim 72180
1 329 469 374 362 11 9 62 1 63 64 70 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97096-622-0 01 1 9611-9612 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97169-038-1 01 1 9701- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97069-792-1 01 1 9611- ●
2 01.836 ELEMENT; OIL FILTER 8-94360-427-1 01 1 9611-9711 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9611-9711 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9712- ● ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9611- ● ●
11 01.840 BOLT; CENTER 8-97117-966-0 01 1 9611- ●
11 01.840 BOLT; CENTER 8-97046-999-1 01 1 9611- ●
62 01.540 COOLER ASM; OIL 8-97100-312-0 01 1 9611-9612 ●
62 01.540 COOLER ASM; OIL 8-97169-043-1 01 1 9701- ●
62 01.540 COOLER ASM; OIL 8-97078-376-1 01 1 9611- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9611- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97046-992-0 01 1 9611-9612 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97078-377-0 01 1 9611-9612 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97078-377-0 01 1 9701- ● ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9611- ● ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 9611- ● ●
329 01.840 BOLT; OIL FILTER
01.062 M8X100 W/LK WASHER 		0-50040-800-0 02 1 9611- ● ●
362 01.837 NUT; OIL FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
374 01.840 STUD; OIL FILTER
03.901 M8X25 L=37 		9-04110-825-0 02 1 9611- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 		8-97065-983-0 01 1 9611- ● ●
