0-45 — EVAPORATOR SYSTEM; ENGINE (#45942) — 9 parça

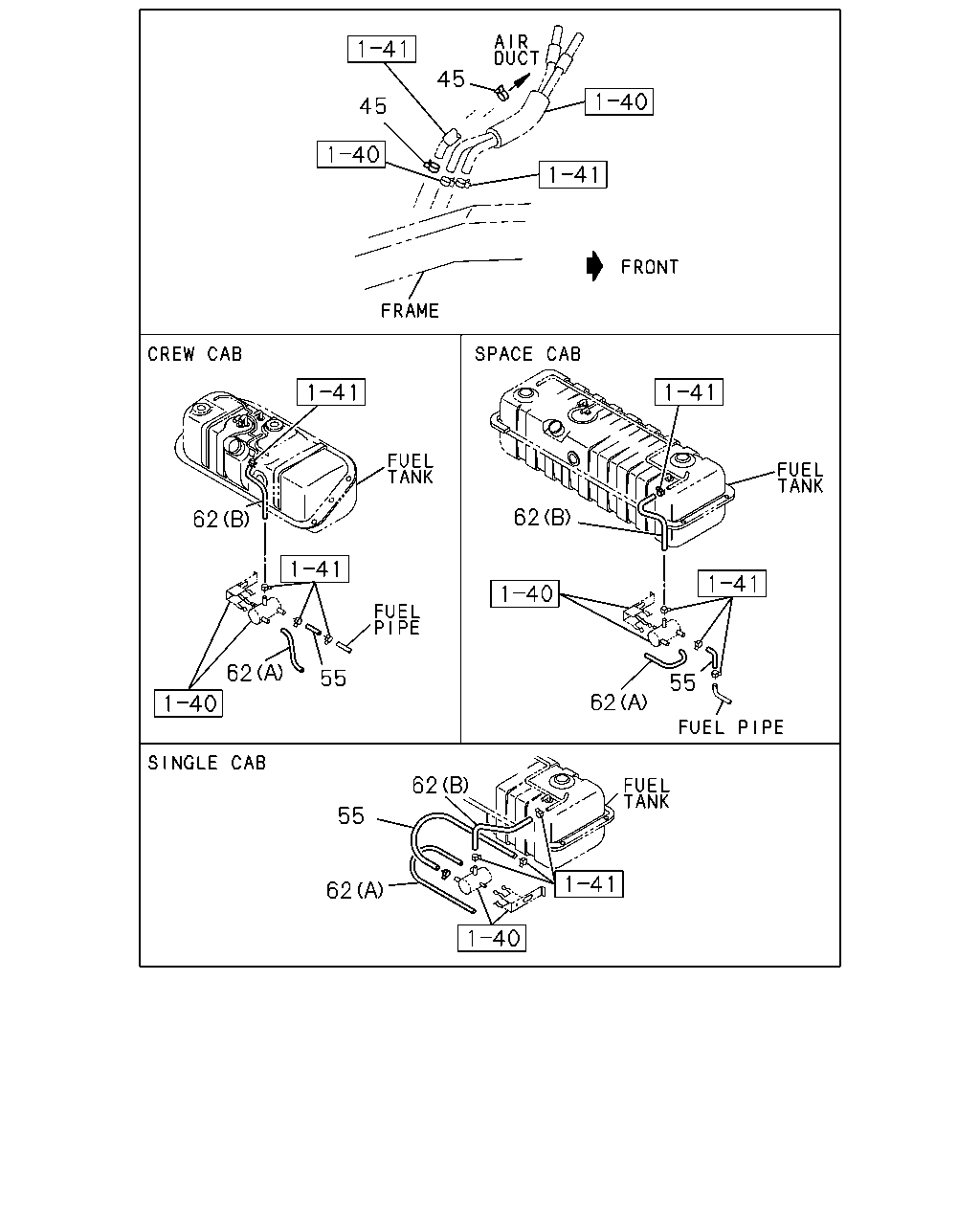

çizim 72201
45 45 62 62 62 55 55 62 62 55 62
BalonParca AdiParca NoAdetTipApplied Date A B
45 03.417 CLIP; HOSE,PURGE SIGNAL
03.163 ID=11 		8-94238-570-0 02 1 9611-9711 ● ●
45 03.417 CLIP; HOSE,PURGE SIGNAL
03.163 ID=11 		8-97173-219-0 02 1 9712- ● ●
55 03.120 HOSE; EVAP,CONT VLV TO PIPE
SPACE CAB(TF**C*) 08.962 L=290 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
55 03.120 HOSE; EVAP,CONT VLV TO PIPE
SINGLE CAB(TF**S*) 08.962 L=320 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
55 03.120 HOSE; EVAP,CONT VLV TO PIPE
CREW CAB(TF**W*) 08.962 L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
62 03.120 HOSE; EVAP,CONT VLV
08.962 (A) L=350 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
62 03.120 HOSE; EVAP,CONT VLV
SPACE CAB(TF**C*) 08.962 (B) L=370 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
62 03.120 HOSE; EVAP,CONT VLV
SINGLE CAB(TF**S*) 08.962 (B) L=250 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
62 03.120 HOSE; EVAP,CONT VLV
CREW CAB(TF**W*) 08.962 (B) L=240 SERVICED BY L=3000 		0-04750-300-0 01 1 9611- ● ●
