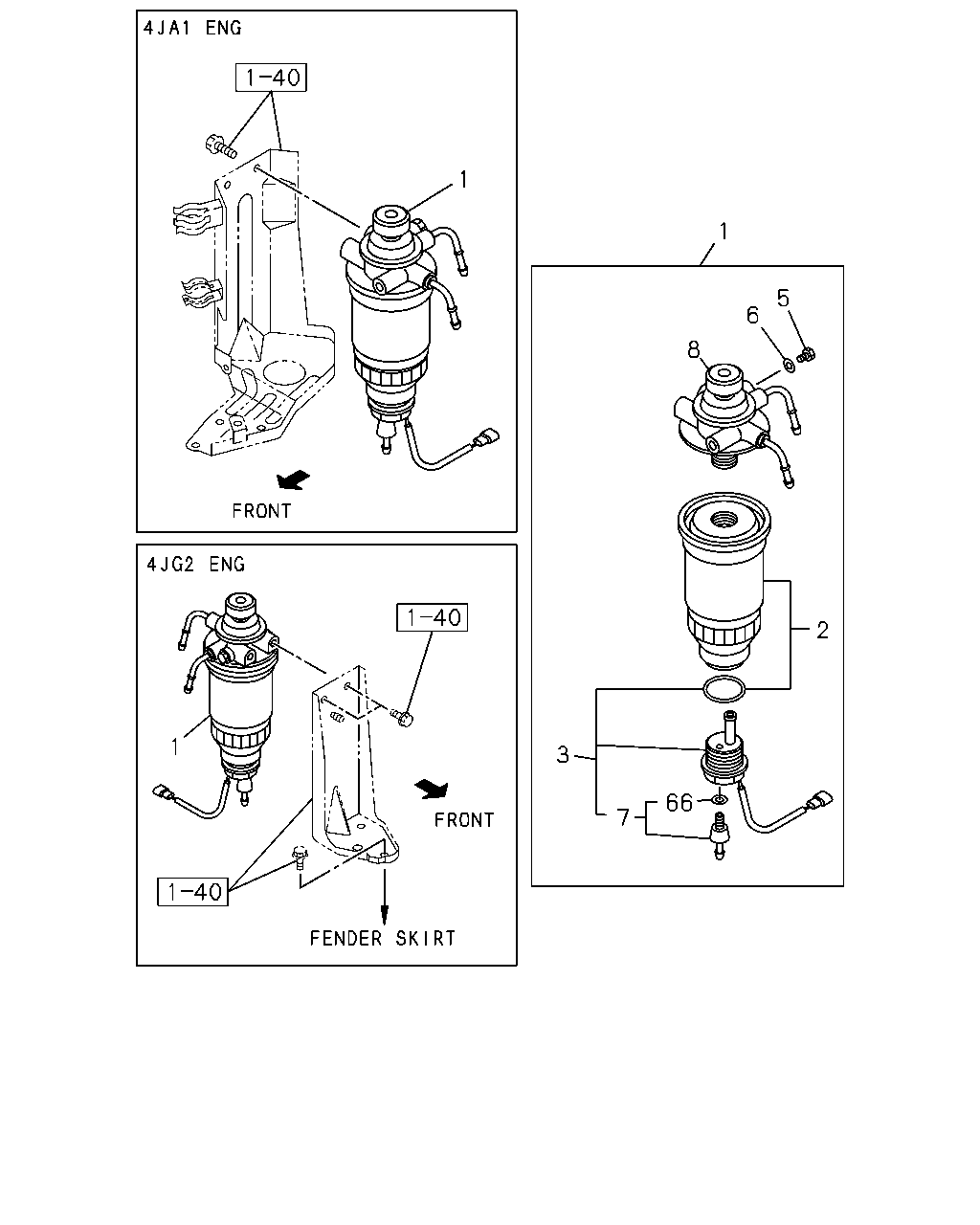

0-41 — FUEL FILTER AND BRACKET (#45941) — 8 parça

1 1 5 6 8 2 1 3 66 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9611-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94369-299-3	01	1	9611-	●	●
3	03.890 SENSOR ASM; FUEL FILTER	8-97064-712-1	01	1	9611-	●	●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	9611-	●	●
6	03.890 GASKET; FUEL FILTER	8-94132-675-0	01	1	9611-	●	●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-97123-549-0	01	1	9611-	●	●
8	03.890 COVER; FUEL FILTER	8-94450-135-2	01	1	9611-	●	●
66	03.890 GASKET; PLUG,FUEL FILTER 01.844 ID=6.8	8-94167-886-0	01	1	9611-	●	●
