0-40 — FUEL INJECTION SYSTEM (#45940) — 131 parça

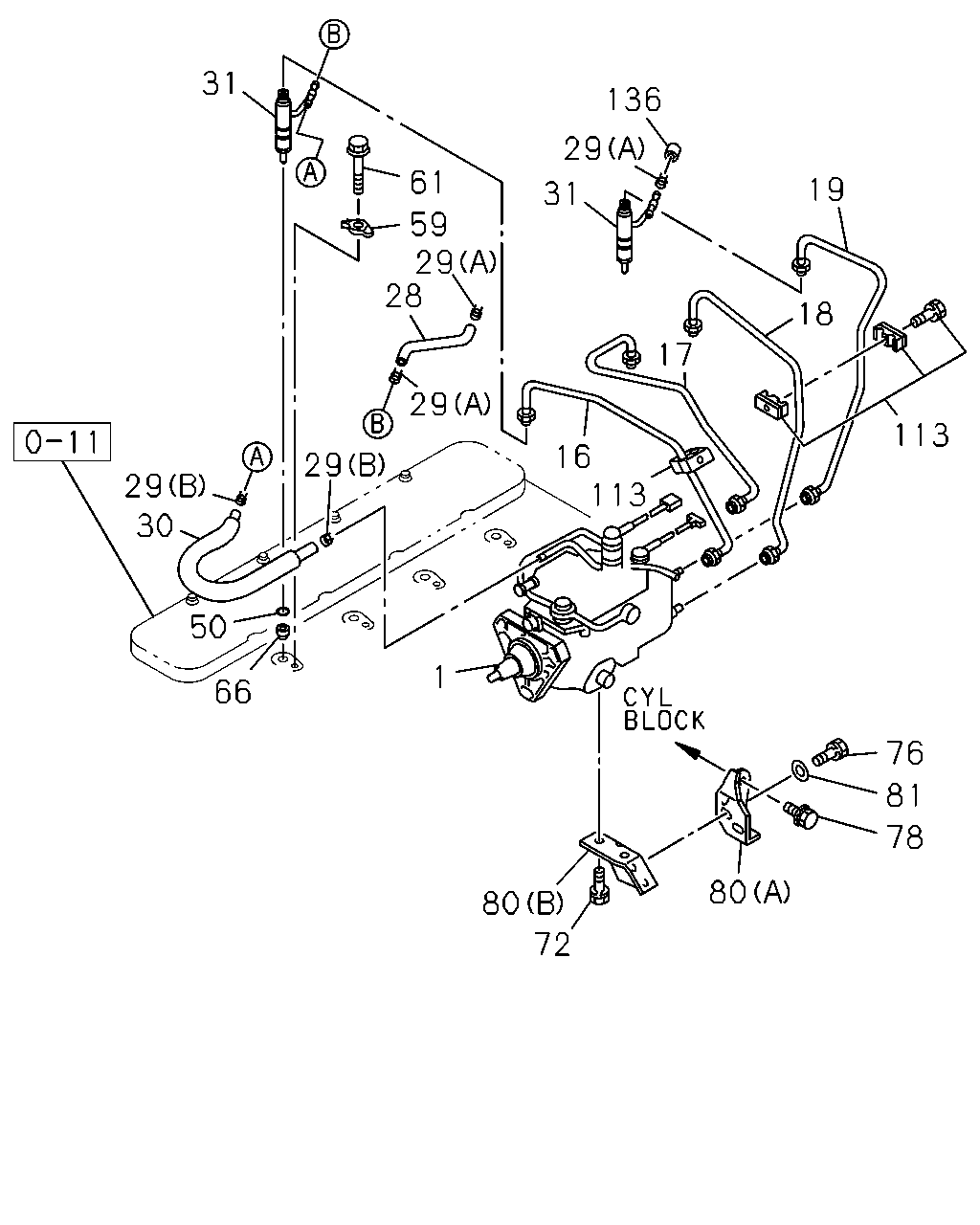

31 136 29 61 19 31 59 29 28 18 17 29 113 16 113 29 29 30 50 1 66 76 81 78 80 80 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97134-251-2	01	1	9611-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97069-745-2	01	1	9611-		●
16	03.330 PIPE; INJ NO.1	8-97109-023-2	01	1	9611-	●
16	03.330 PIPE; INJ NO.1	8-94368-242-3	01	1	9611-		●
17	03.330 PIPE; INJ NO.2	8-97109-024-2	01	1	9611-	●
17	03.330 PIPE; INJ NO.2	8-97109-539-1	01	1	9611-		●
18	03.330 PIPE; INJ NO.3	8-97109-025-2	01	1	9611-	●
18	03.330 PIPE; INJ NO.3	8-97109-540-1	01	1	9611-		●
19	03.330 PIPE; INJ NO.4	8-97109-026-2	01	1	9611-	●
19	03.330 PIPE; INJ NO.4	8-97109-541-1	01	1	9611-		●
28	03.163 HOSE; FUEL,NOZZLE TO NOZZLE	8-94152-353-0	03	1	9611-	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	07	1	9611-	●
29	03.162 CLIP; HOSE 01.219 (B) ID=12	8-94238-610-0	02	1	9611-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	9611-	●	●
31	03.332 NOZZLE ASM; INJ	8-97132-309-1	04	1	9611-	●
31	03.332 NOZZLE ASM; INJ	8-97081-157-2	04	1	9611-		●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94326-439-0	04	1	9611-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	9611-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	9611-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9611-9703	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-	●
72	03.330 BOLT; BRKT TO INJ PUMP 01.516 M10X20 W/LK WASHER	0-50051-020-0	02	1	9611-	●	●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9611-9709	●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9611-9709		●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9710-	●	●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9611-9612	●	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9701-	●	●
80	03.306 BRACKET; PUMP 03.330 (B)	8-94133-762-2	01	1	9611-	●	●
80	03.306 BRACKET; PUMP (A)	8-97117-166-1	01	1	9611-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9611-	●	●
113	03.162 CLIP; INJ PIPE 03.330	5-15419-013-1	02	1	9611-	●	●
136	03.162 CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	9611-	●

31 31 37 38 140 140 31 31 32 32 44 44 43 43 47 46 47 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	03.332 NOZZLE ASM; INJ	8-97132-309-1	04	1	9611-	●
31	03.332 NOZZLE ASM; INJ	8-97081-157-2	04	1	9611-		●
32	03.332 HOLDER ASM; NOZZLE	8-94442-225-0	04	1	9611-	●
32	03.332 HOLDER ASM; NOZZLE	8-97081-159-0	04	1	9611-		●
33	03.332 NOZZLE; INJ	8-97132-310-0	04	1	9611-	●
33	03.332 NOZZLE; INJ	8-97081-158-1	04	1	9611-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9611-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-97086-142-0	04	1	9611-		●
37	03.330 NUT; CAP,NOZZLE HOLDER 03.162 M12	8-94174-344-0	04	1	9611-		●
38	03.332 GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12 W/2-HOLE	8-94104-993-0	04	1	9611-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE	8-94312-723-0	04	1	9611-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE	8-94128-963-0	04	1	9611-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9611-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94128-964-0	04	1	9611-		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9611-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-94174-183-0	04	1	9611-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97086-141-0	04	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.500	8-94174-142-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.525	8-94174-143-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.550	8-94174-144-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.575	8-94174-145-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.600	8-94174-146-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.625	8-94174-147-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.650	8-94174-148-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.675	8-94174-149-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.700	8-94174-150-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.725	8-94174-151-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.750	8-94174-152-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.775	8-94174-153-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.800	8-94174-154-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.825	8-94174-155-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.850	8-94174-156-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.875	8-94174-157-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.900	8-94174-158-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.925	8-94174-159-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.950	8-94174-160-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=0.975	8-94174-161-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.000	8-94174-162-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.025	8-94174-163-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.050	8-94174-164-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.075	8-94174-165-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.100	8-94174-166-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.125	8-94174-167-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.150	8-94174-168-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.175	8-94174-169-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.200	8-94174-170-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.225	8-94174-171-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.250	8-94174-172-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.275	8-94174-173-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.300	8-94174-174-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.325	8-94174-175-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.350	8-94174-176-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.375	8-94174-177-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.400	8-94174-178-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.425	8-94174-179-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.450	8-94174-180-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.475	8-94174-181-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 T=1.500	8-94174-182-0	AR	1	9611-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.10	8-94176-962-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.20	8-94176-963-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.30	8-94176-964-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.40	8-94176-965-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.50	8-94176-966-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.52	8-94176-967-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.54	8-94176-968-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.56	8-94176-969-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.58	8-94176-970-0	AR	1	9611-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE T=0.80	8-94176-971-0	AR	1	9611-		●

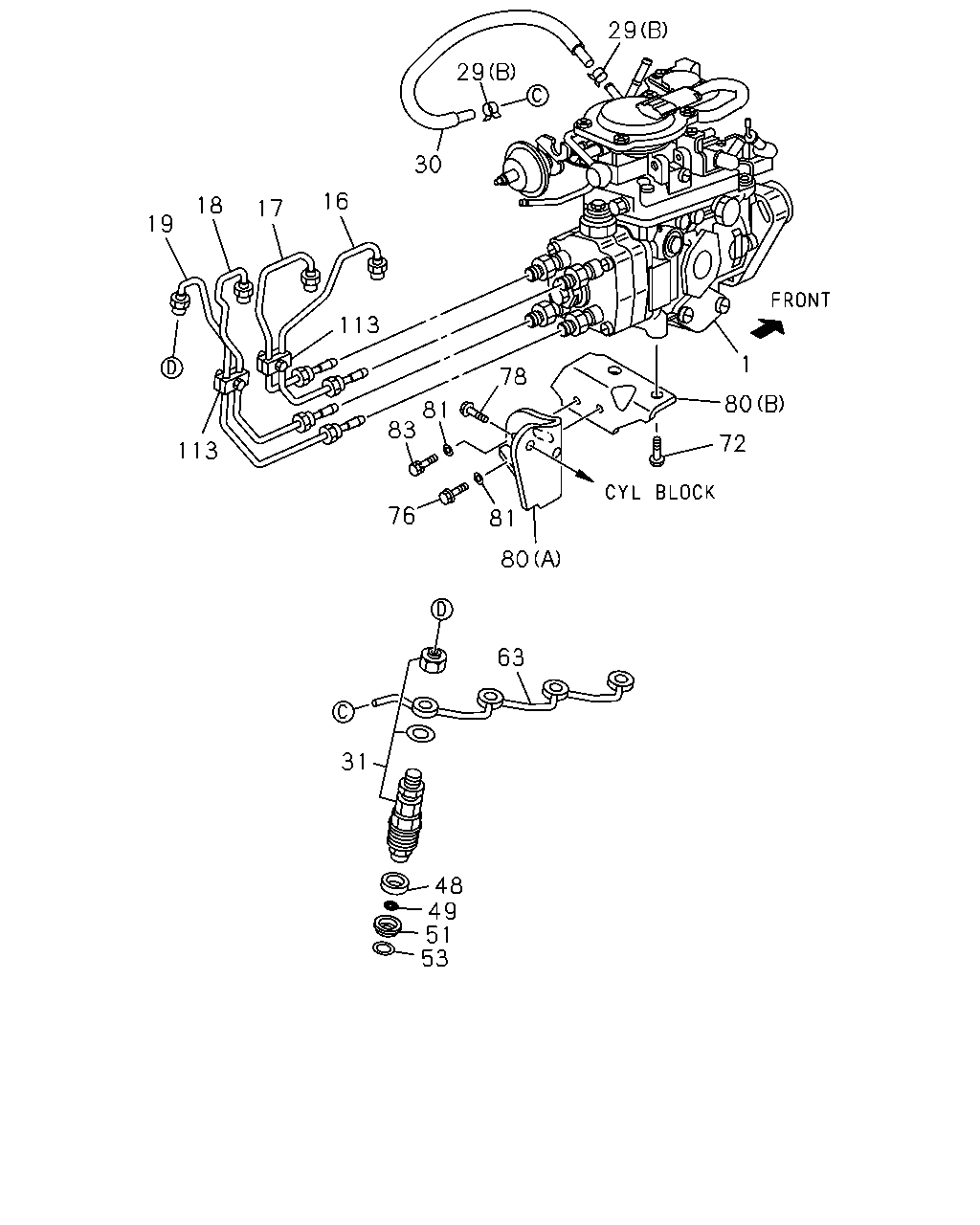

29 29 30 16 18 17 19 113 1 78 80 81 83 72 113 76 81 80 63 31 48 49 51 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97134-251-2	01	1	9611-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97069-745-2	01	1	9611-		●
16	03.330 PIPE; INJ NO.1	8-97109-023-2	01	1	9611-	●
16	03.330 PIPE; INJ NO.1	8-94368-242-3	01	1	9611-		●
17	03.330 PIPE; INJ NO.2	8-97109-024-2	01	1	9611-	●
17	03.330 PIPE; INJ NO.2	8-97109-539-1	01	1	9611-		●
18	03.330 PIPE; INJ NO.3	8-97109-025-2	01	1	9611-	●
18	03.330 PIPE; INJ NO.3	8-97109-540-1	01	1	9611-		●
19	03.330 PIPE; INJ NO.4	8-97109-026-2	01	1	9611-	●
19	03.330 PIPE; INJ NO.4	8-97109-541-1	01	1	9611-		●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	07	1	9611-	●
29	03.162 CLIP; HOSE 01.219 (B) ID=12	8-94238-610-0	02	1	9611-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	9611-	●	●
31	03.332 NOZZLE ASM; INJ	8-97132-309-1	04	1	9611-	●
31	03.332 NOZZLE ASM; INJ	8-97081-157-2	04	1	9611-		●
48	03.332 WASHER; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-710-0	04	1	9611-		●
49	03.330 WASHER; CORRUGATED,NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=5.4 OD=10.6 CORRUGATED WASHER	8-94420-247-0	04	1	9611-		●
51	03.332 SHIELD; HEAT,INJ NOZZLE	8-97139-711-0	04	1	9611-		●
53	03.332 WASHER; HEAT SHIELD ID=14.2 OD=17.3	8-94257-593-0	04	1	9611-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94368-249-2	01	1	9611-		●
72	03.330 BOLT; BRKT TO INJ PUMP 01.516 M10X20 W/LK WASHER	0-50051-020-0	02	1	9611-	●	●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9611-9709	●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9611-9709		●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9710-	●	●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9611-9612	●	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9701-	●	●
80	03.306 BRACKET; PUMP 03.330 (B)	8-94133-762-2	01	1	9611-	●	●
80	03.306 BRACKET; PUMP (A)	8-97117-166-1	01	1	9611-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9611-	●	●
83	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9611-		●
113	03.162 CLIP; INJ PIPE 03.330	5-15419-013-1	02	1	9611-	●	●
