0-36 — TURBOCHARGER SYSTEM (#45938) — 28 parça

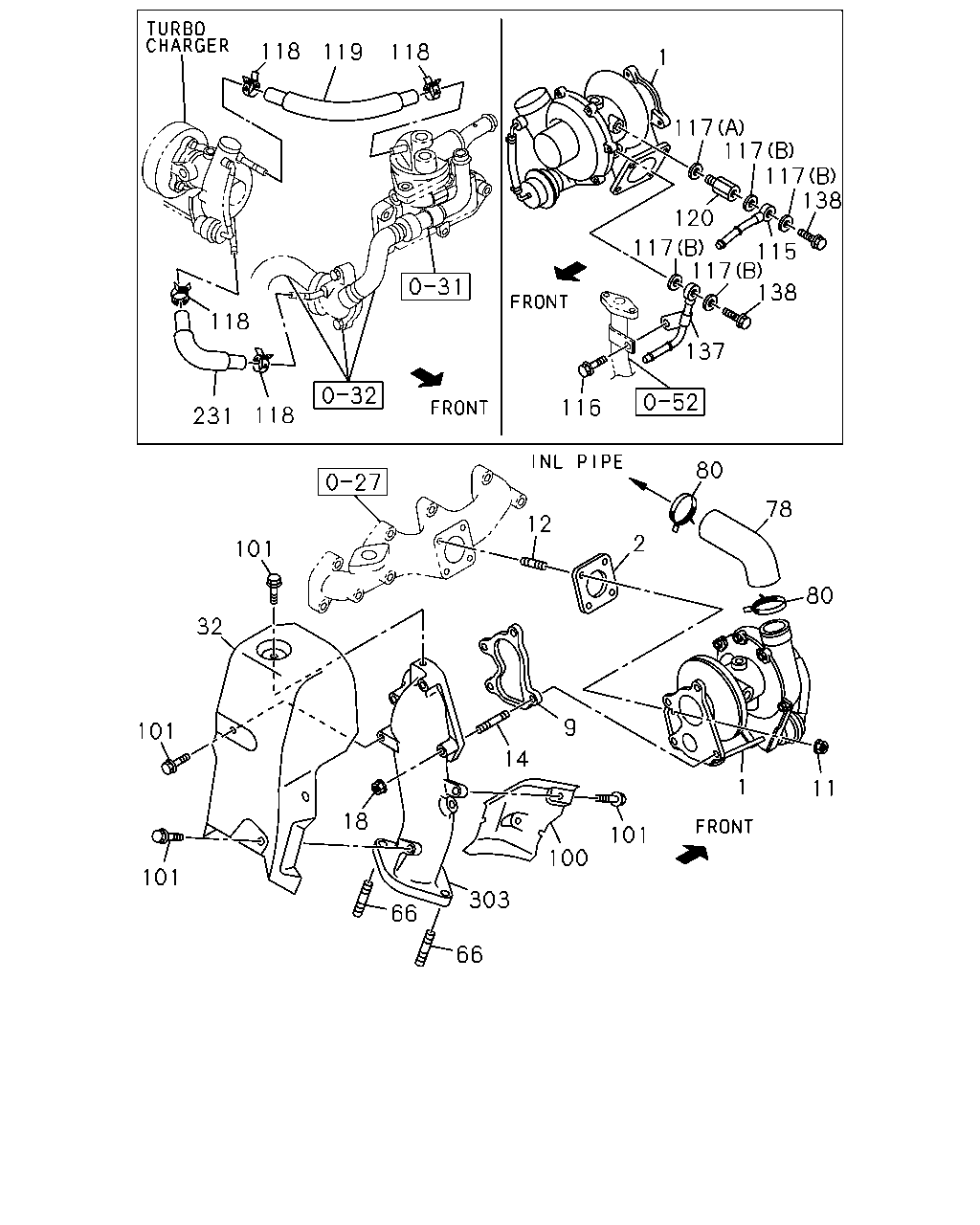

çizim 18586
118 119 118 1 117 117 117 138 120 117 115 117 138 118 137 116 118 231 80 12 78 2 101 80 32 9 101 14 11 18 101 100 101 303 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97095-880-5 01 1 9611- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97070-029-2 01 1 9611- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 9611- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 9611- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 9611- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 9611- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 9611-9711 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 9712- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 9611- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-97087-029-0 01 1 9611- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 9611- ● ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97096-628-2 01 1 9611- ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97120-727-0 01 1 9611- ●
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 		8-97131-943-0 02 1 9611- ● ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 9611- ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 9611- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 9611- ● ●
116 03.342 BOLT; WATER PIPE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5 		8-94472-584-1 01 1 9611- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 04 1 9611- ● ●
118 03.342 CLIP; WATER HOSE
03.162 ID=15.5 		8-94221-519-0 04 1 9611- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
L=250 W/INSULATOR 		8-94340-669-1 01 1 9611- ● ●
120 01.097 ADAPTER; WATER 8-94472-583-0 01 1 9611- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97086-342-0 01 1 9611- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
03.342 		8-94472-585-2 01 1 9611- ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 9611- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 9611- ● ●
303 03.440 ADAPTER; THROTTLE BODY,EXH 8-97087-028-1 01 1 9611- ● ●
