Isuzu WW
▶
PICKUP
▶
TFR
▶
50727 - TFR/TFS(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

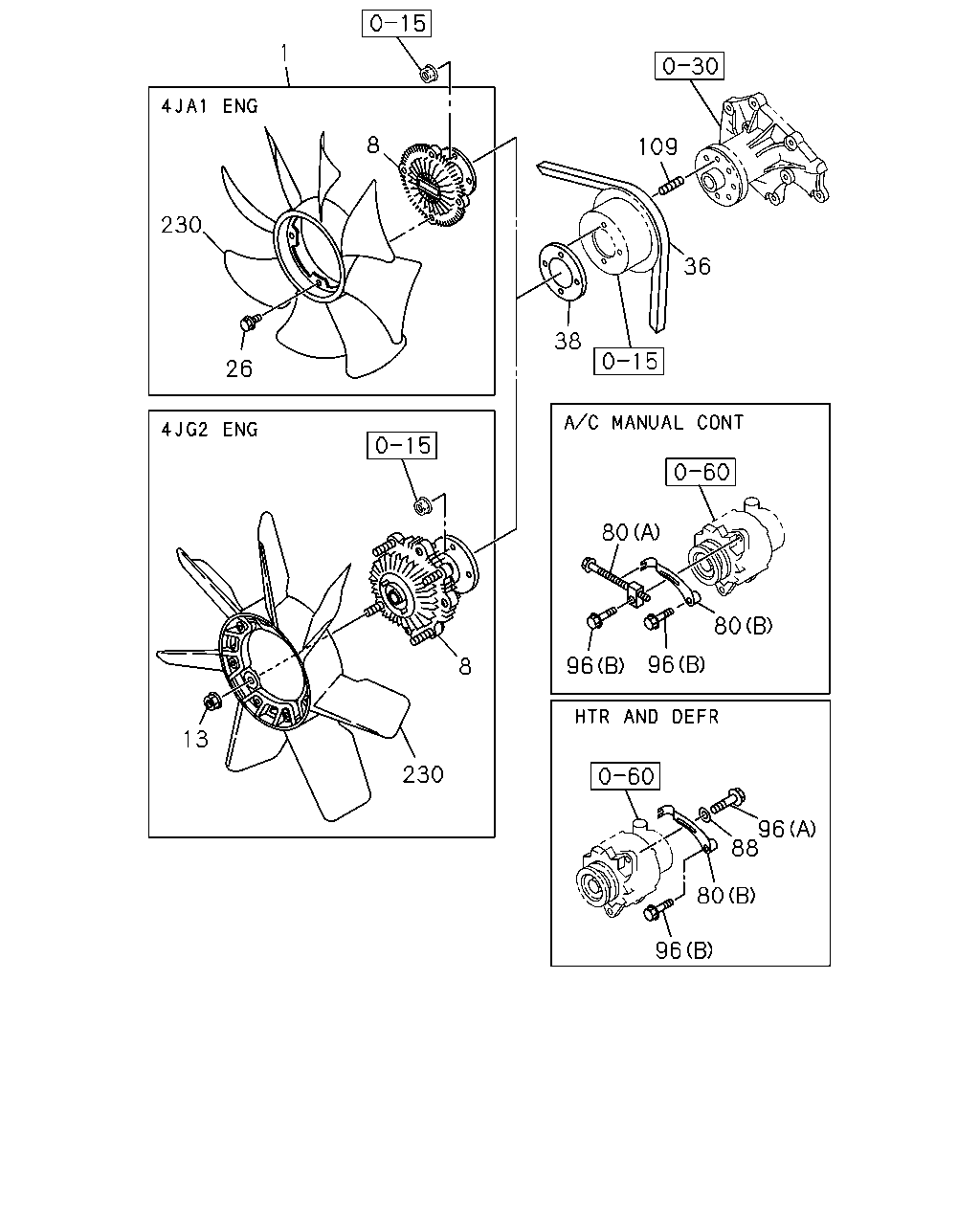

0-33 — FAN AND FAN BELT
(#45937) — 18 parça
Tümü
A - 4JA1 ENG
B - 4JG2 ENG
1
8
109
230
36
38
26
80
80
96
96
8
13
230
96
88
80
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.064 FAN; COOLING
OD=390
8-94175-331-0
01
1
9611-
●
8
01.064 CLUTCH; COOLING FAN
8-94311-257-0
01
1
9611-
●
8
01.064 CLUTCH; COOLING FAN
8-97069-783-0
01
1
9611-
●
13
01.062 NUT; COOLING FAN
07.829 M6 FLANGE
5-09440-004-0
04
1
9611-
●
26
01.062 BOLT; FAN TO CLU
03.671 M6X20
0-28020-620-0
04
1
9611-
●
36
01.066 BELT; COOLING FAN
L=1051
8-94161-841-0
01
1
9611-
●
36
01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI
8-97043-551-0
01
1
9611-9701
●
36
01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI
8-97141-514-0
01
1
9702-
●
38
01.062 SPACER; FAN
8-94441-848-0
01
1
9611-
●
●
80
02.317 PLATE; ADJ
(B)
8-97132-049-0
01
1
9611-
●
●
80
02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97132-048-0
01
1
9611-
●
●
88
02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) 07.633 ID=8.4 OD=22
9-09164-708-0
01
1
9611-
●
●
96
02.317 BOLT; ADJ PLATE
01.252 (B) M8X45 W/LK WASHER
0-50040-845-0
01
1
9611-
●
●
96
02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 01.252 (B) M8X45 W/LK WASHER
0-50040-845-0
01
1
9611-
●
●
96
02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 (A) M8X25 W/LK WASHER
0-50040-825-0
01
1
9611-
●
●
109
01.062 STUD; FAN CLU
M6X25 L=33
8-94340-628-0
04
1
9611-
●
●
230
01.055 FAN; COOLING
01.604
8-94311-258-0
01
1
9611-
●
230
01.055 FAN; COOLING
01.604 OD=450 8-BLADE
8-97049-499-1
01
1
9611-
●
