◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#45936) — 21 parça

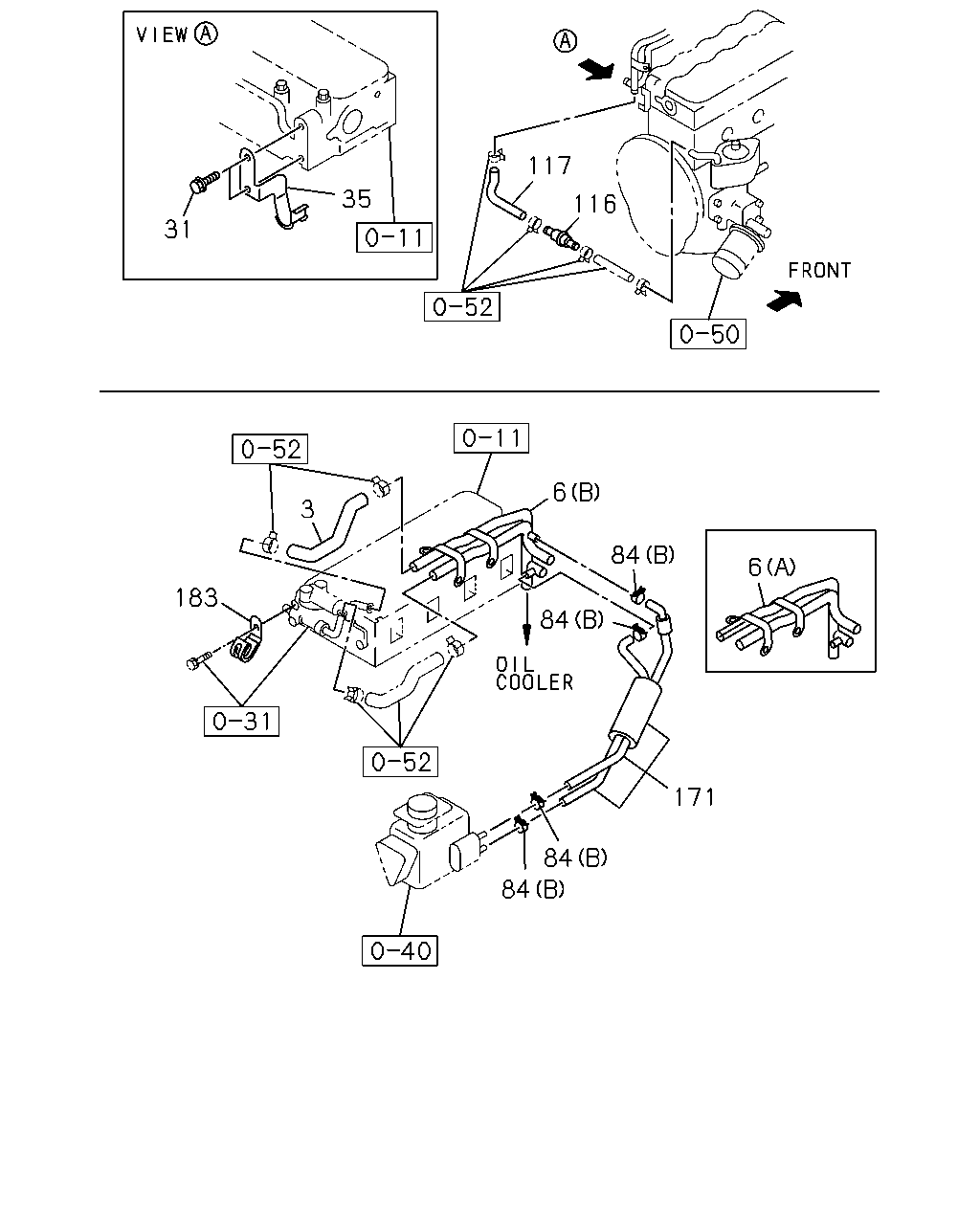

çizim 67709
117 35 116 31 6 3 84 6 183 84 171 84 84
BalonParca AdiParca NoAdetTipApplied Date A B
3 01.540 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9611- ● ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
(A) 		8-97116-640-0 01 1 9710-9802 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
(B) 		8-97049-193-4 01 1 9611- ● ●
31 01.159 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9611- ● ●
35 01.242 CLIP; RUBBER HOSE
01.540 		8-97039-302-0 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
03.162 (B) ID=15.5 		8-94221-519-0 04 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
02.559 (A) ID=12 		5-09700-331-0 01 1 9611- ●
116 01.540 VALVE ASM; THERMO,OIL COOLER 5-21770-001-2 01 1 9611- ● ●
117 01.855 HOSE; RUBBER,OIL COOLER TO THERM 8-97039-420-0 01 1 9611- ● ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97048-903-3 01 1 9611- ● ●
183 01.242 CLIP; VACUUM HOSE
02.559 ID=12 		5-09700-331-0 01 1 9611- ● ●

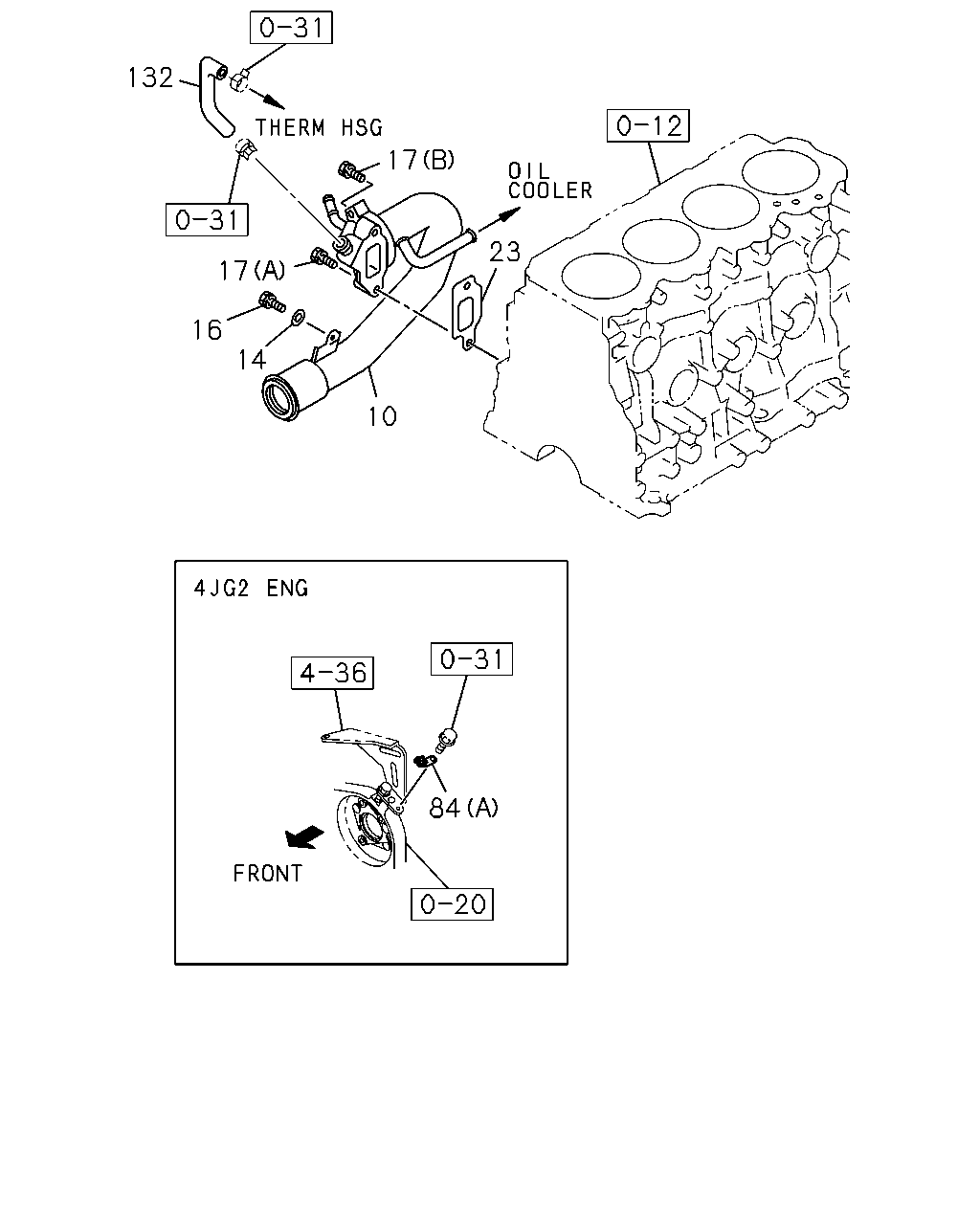

çizim 67985
132 17 23 17 16 14 10 84
BalonParca AdiParca NoAdetTipApplied Date A B
10 01.153 PIPE; SUCTION 8-97041-039-3 01 1 9611- ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9611- ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9611- ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9611- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
03.162 (B) ID=15.5 		8-94221-519-0 04 1 9611- ● ●
84 01.240 CLIP; HOSE,W/CSD
02.559 (A) ID=12 		5-09700-331-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 9611- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9611- ●
