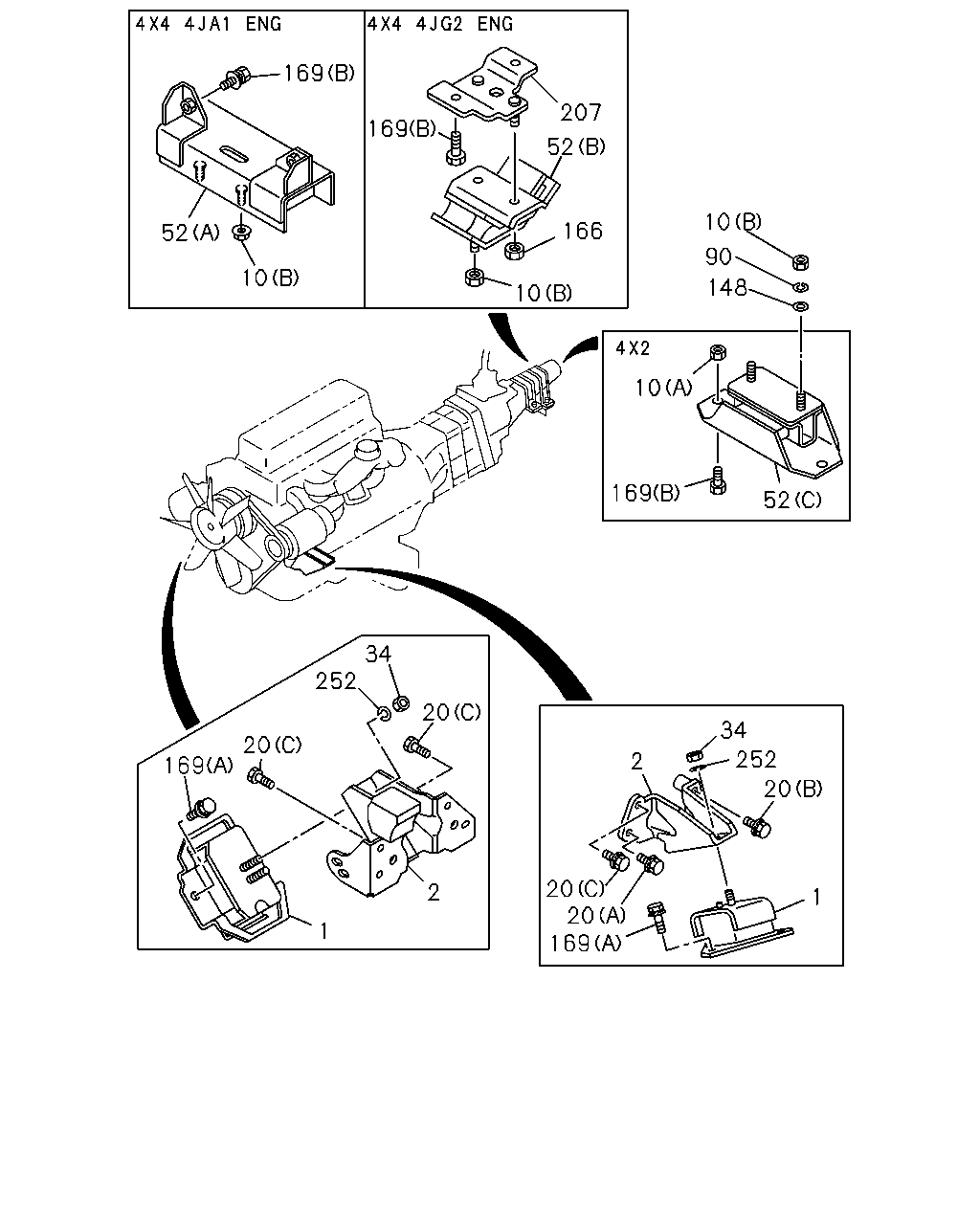

0-22 — ENGINE MOUNTING (#45930) — 28 parça

169 207 169 52 10 166 52 90 10 148 10 10 169 52 34 252 20 34 20 252 2 169 20 20 20 169 2 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9611-9801	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9802-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9611-	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9611-	●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9611-	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9611-	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 09.011 (A) M10	9-09110-410-0	02	1	9611-9711	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	06	1	9611-	●	●
20	00.029 BOLT; ENG FOOT 09.171 (B) M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-	●	●
20	00.029 BOLT; ENG FOOT 00.002 (A) M14X25 W/LK WASHER	0-50041-425-0	01	1	9611-	●	●
34	00.002 NUT; RUBBER TO ENG 09.011 M10	9-09110-410-0	04	1	9611-9710	●	●
34	00.002 NUT; RUBBER TO ENG 04.785 M10 FLANGE	0-91150-110-0	04	1	9711-9712	●	●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9801-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) (A)	8-94472-973-0	01	1	9611-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (C)	8-94434-208-1	01	1	9611-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) (B)	8-97039-196-6	01	1	9611-	●
90	00.002 WASHER; LK 4X2(TFB***) 08.929 ID=10.2	9-09150-810-0	02	1	9611-9711	●	●
148	00.002 WASHER; PL 4X2(TFB***) 06.896 ID=10.5	9-09164-510-0	02	1	9611-9711	●	●
166	00.002 NUT; SUPPORT RUBBER 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	9611-	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711		●
169	00.029 BOLT; SUPPORT 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) 00.002 (B) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9611-		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●
207	00.029 BRACKET; SUPPORT,FRAME 4X4(TFS***)	8-97063-019-3	01	1	9611-	●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9611-9710	●	●
