◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#4593) — 26 parça

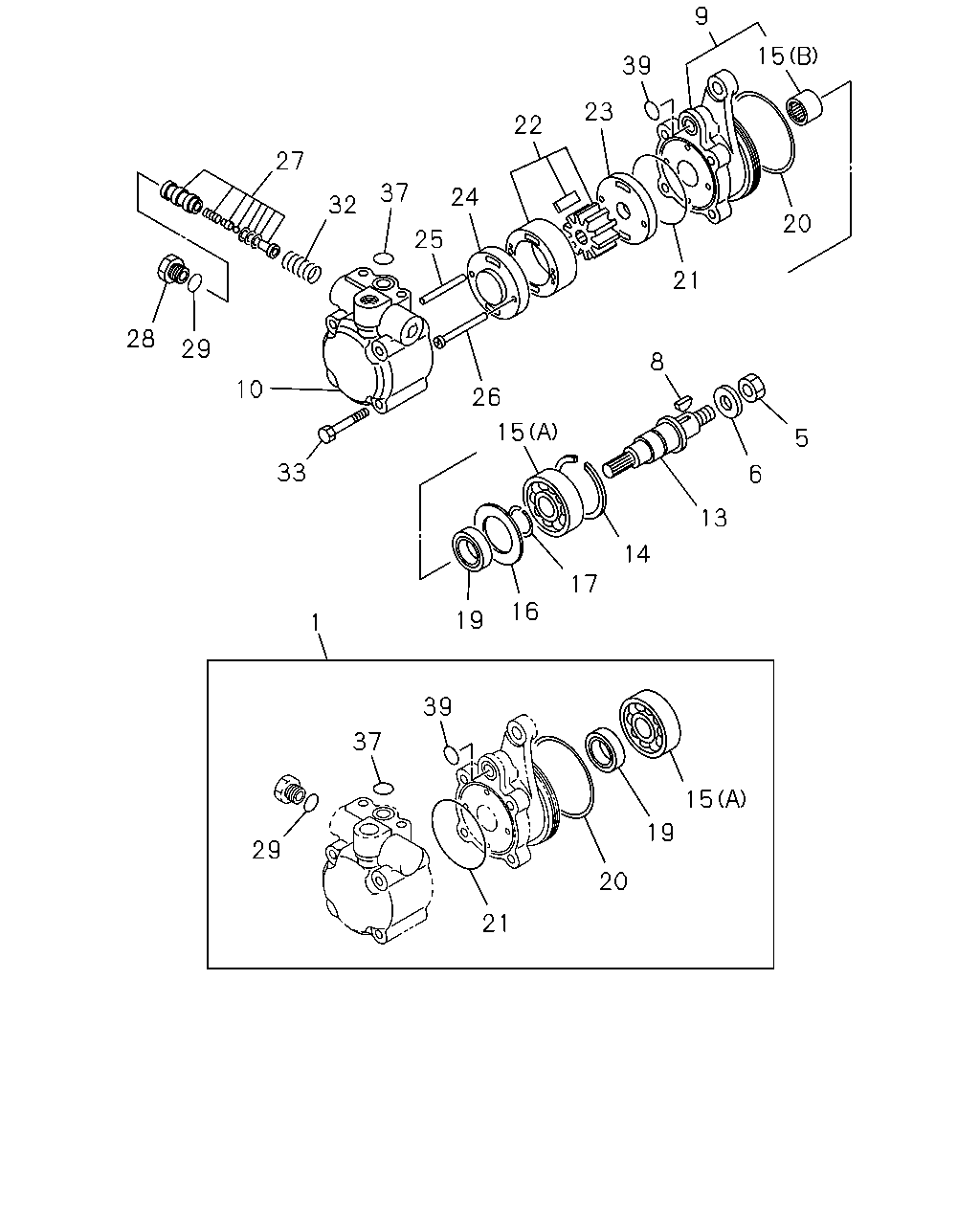

çizim 3331
9 15 39 23 22 27 37 24 32 20 25 21 28 29 8 10 26 15 5 33 6 13 14 17 16 19 1 39 37 15 19 29 20 21
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-413-0 		1-85574-008-0 01 1 -
5 NUT; SHAFT,P/S PUMP
ASM PART: A = 1-19500-413-0 		9-88510-424-0 01 1 -
6 WASHER; PL,OIL PUMP
ID=17 ASM PART: A = 1-19500-413-0 		1-19519-294-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-413-0 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19511-113-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19511-063-1 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-413-0 		1-19521-020-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
(A) ASM PART: A = 1-19500-413-0 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-413-0 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-413-0 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-252-0 01 1 -
20 GASKET; FRT,OIL PUMP
ID=77 ASM PART: A = 1-19500-413-0 		1-09623-143-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-413-0 		9-88510-234-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-132-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-284-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-413-0 		1-19519-281-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-413-0 		9-88510-408-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-413-0 		1-19519-106-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-285-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-413-0 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-413-0 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-413-0 		1-19519-244-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-413-0 		9-48429-028-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-413-0 		1-19519-100-0 01 1 -
