0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#45929) — 22 parça

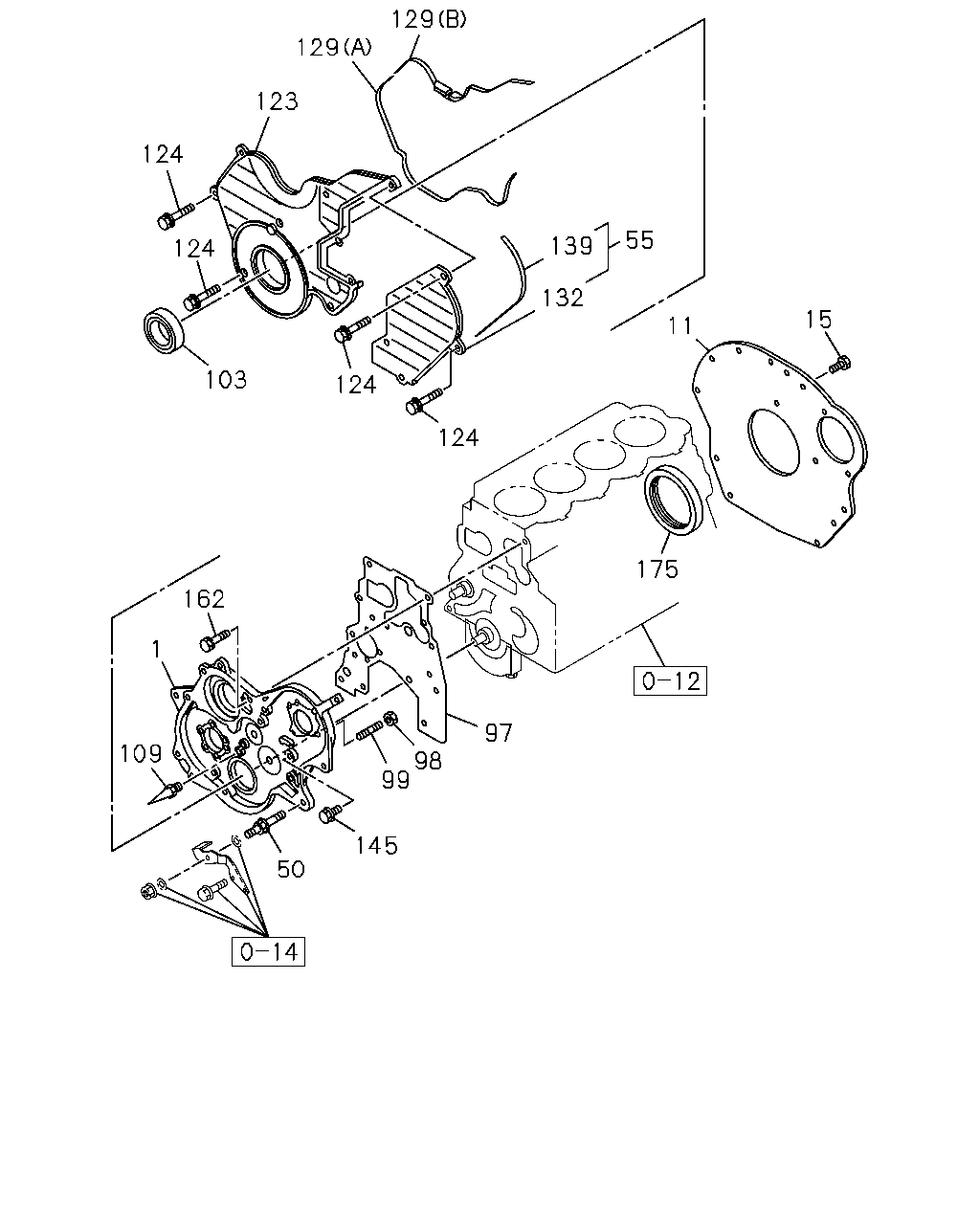

çizim 70337
129 129 123 124 55 139 124 132 15 11 103 124 124 175 162 1 97 109 98 99 145 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-97160-960-0 01 1 9611- ● ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 9611- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9611- ● ●
50 00.206 STUD
M8X42.5 L=69 		8-97148-539-0 01 1 9611- ● ●
55 00.206 COVER; NOISE SHIELD 8-97038-102-1 01 1 9709- ● ●
97 00.206 GASKET; BLOCK TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-428-0 01 1 9611- ●
97 00.206 GASKET; BLOCK TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-429-0 01 1 9611- ●
98 00.206 NUT; STUD,INJ PUMP
03.340 M8 		8-94224-829-0 03 1 9611- ● ●
99 00.206 STUD; INJ PUMP
00.004 M8X28 L=44 		9-04020-828-0 03 1 9611- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9611- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97071-560-1 01 1 9611- ●
109 00.219 POINTER; TIMING
M5X7.5 		8-94133-500-0 01 1 9611- ● ●
123 00.206 COVER; TIMING,LWR 8-97038-105-1 01 1 9611- ● ●
124 00.206 BOLT; TIMING COVER
M6X35 W/LK&PL WASHER 		0-50140-635-0 07 1 9611- ● ●
124 00.206 BOLT; TIMING COVER
M6X50 W/LK WASHER 		8-94152-616-1 03 1 9611- ● ●
129 00.207 GASKET; TIMING COVER,LWR
ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560 		8-94464-695-1 01 1 9611- ● ●
129 00.207 GASKET; TIMING COVER,LWR
ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366 		8-94464-696-0 01 1 9611- ● ●
132 00.206 COVER; TIMING,UPR 8-97038-103-1 01 1 9611- ● ●
139 00.207 GASKET; TIMING COVER,UPR
ALSO INCLUDED IN GASKET SET(ENGINE). L=215 		8-94139-961-0 01 1 9611- ● ●
145 00.206 BOLT; TENSIONER GUIDE
M8X20 		8-94152-617-1 01 1 9611- ● ●
162 00.206 BOLT; FRT PLATE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 04 1 9611- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 9611- ● ●
