0-14 — CAMSHAFT AND VALVE (#45927) — 53 parça

85 87 86 84 78 78 78 56 55 78 78 78 86 85 95 86 53 83 55 54 88 81 54 78 89 84 78 56 65 65 71 68 72 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.296 VALVE; INL	8-94464-921-0	04	1	9611-	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9611-		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9611-	●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9611-		●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9611-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9611-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9611-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9611-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-	●	●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9611-	●	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9611-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9611-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9611-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9611-	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9611-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9611-	●	●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9611-	●	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9611-	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9611-	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9611-	●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9611-	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9611-		●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9611-	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9611-	●	●

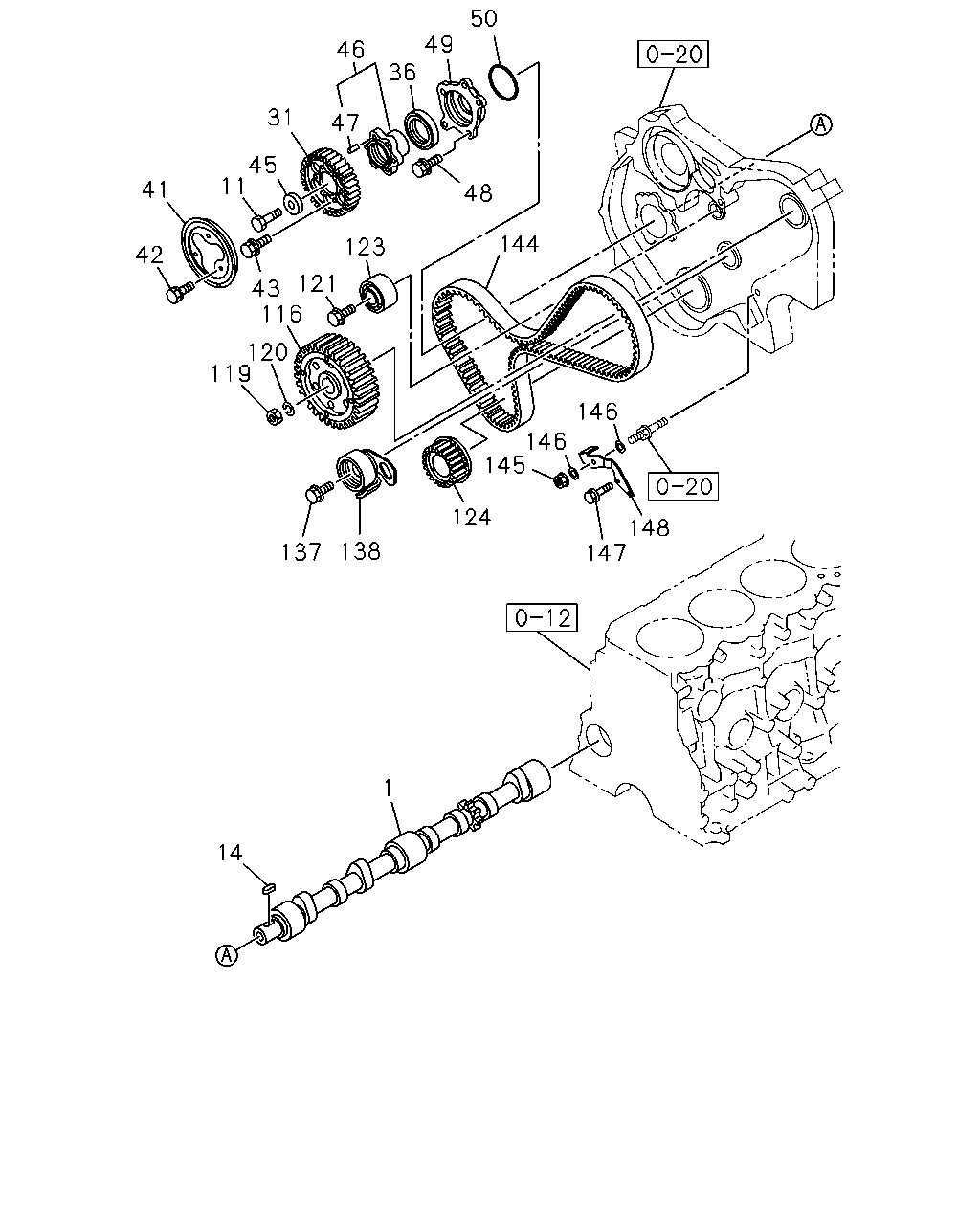

50 49 36 46 31 47 45 11 41 48 144 123 42 121 43 116 120 119 146 146 145 124 148 147 138 137 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9611-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9611-	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9611-	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9611-	●	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9611-	●	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9611-	●	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9611-	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9611-	●	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9611-	●	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9611-	●	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9611-	●	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9611-	●	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9611-	●	●
116	00.659 PULLEY; TIMING,INJ PUMP	8-97088-392-0	01	1	9611-	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9611-		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9611-	●	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9611-	●	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9611-	●	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9611-	●	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9611-	●	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9611-	●	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9611-	●	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9611-	●	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9611-	●	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-	●	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9611-	●	●
