0-13 — OIL PAN AND LEVEL GAUGE (#45926) — 24 parça

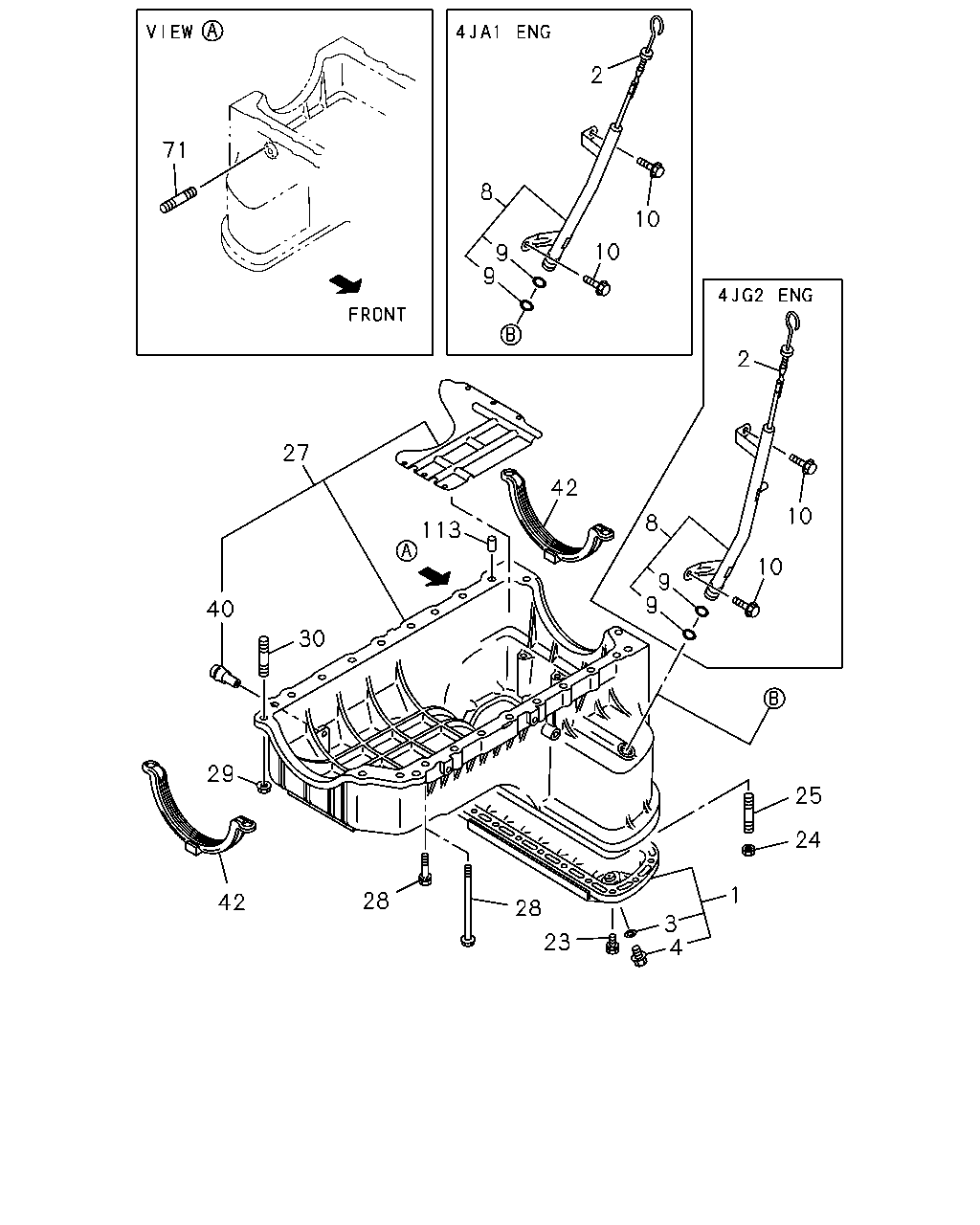

çizim 71200
2 71 8 10 10 9 9 2 27 42 10 8 113 10 9 40 30 29 25 24 1 28 42 28 3 4 23 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97137-921-0 01 1 9611- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97137-921-0 01 1 9611- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97137-919-0 01 1 9611- ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 9611- ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9611- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 9611- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97109-027-0 01 1 9611- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97113-145-0 01 1 9611- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9611- ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9611- ● ●
23 01.428 BOLT; OIL PAN
M6X13 W/PL WASHER 		8-97135-141-0 15 1 9611- ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 9611- ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 9611- ● ●
27 01.426 CRANKCASE
W/BAFFLE-PLATE & PIPE 		8-97120-920-1 01 1 9611- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 M8X32 W/LK WASHER 		0-50040-832-0 19 1 9611- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
M8X125 W/LK WASHER 		8-94142-256-1 01 1 9611-9612 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE 		0-28085-812-0 01 1 9701- ● ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 9611- ● ●
30 01.780 STUD; CRANKCASE
08.981 M8X35 L=47 		9-04110-835-0 02 1 9611- ● ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 9611- ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). FRONT 		8-97120-933-0 01 1 9611- ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). REAR 		8-97123-342-0 01 1 9611- ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		9-04110-818-0 02 1 9611- ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 9611- ● ●
