◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#45924) — 25 parça

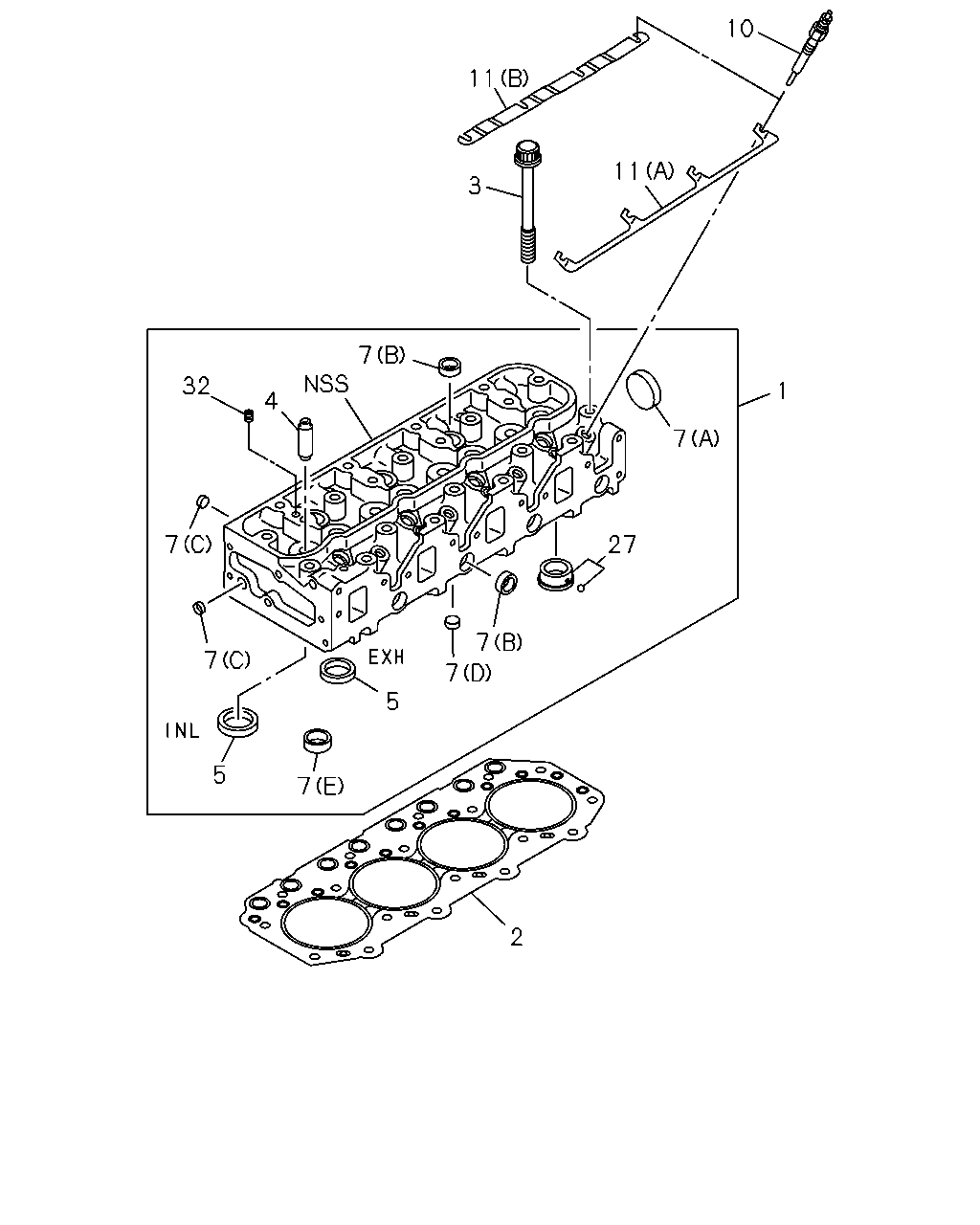

çizim 71794
10 11 11 3 7 32 1 4 7 27 7 7 7 7 5 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97086-338-4 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9611- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9611- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9611- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-7 04 1 9611- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9611- ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-1 04 1 9611- ●
11 02.251 CONNECTOR; GLOW PLUG
(A) 		8-97146-517-0 01 1 9611- ●
11 02.251 CONNECTOR; GLOW PLUG
(B) 		8-97146-518-0 01 1 9611- ●
27 00.253 PLUG; HOT 8-97086-450-0 04 1 9611- ●
32 00.004 ORIFICE 8-97190-639-0 01 1 9711-9802 ●
