◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50727 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#45922) — 12 parça

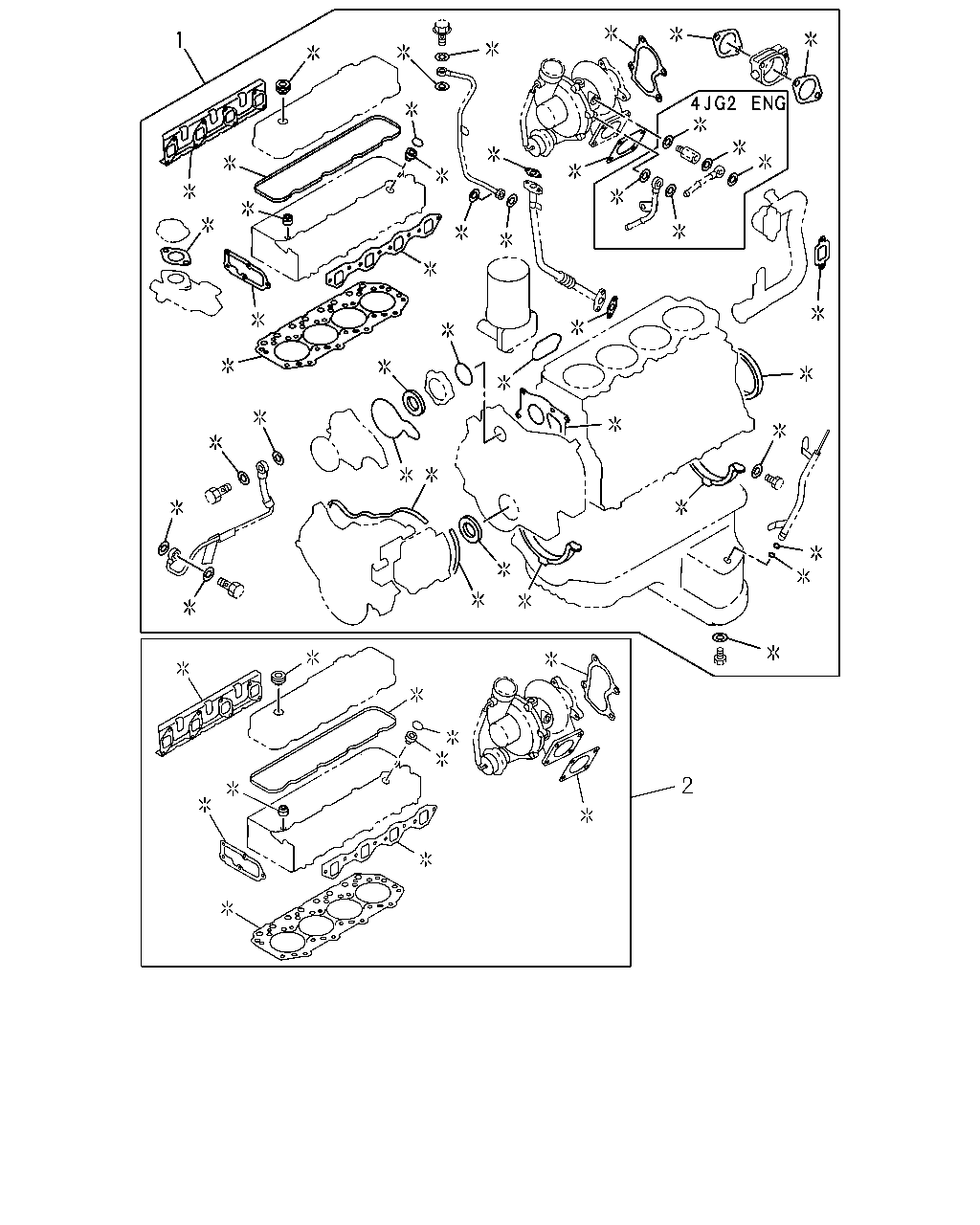

çizim 20934
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-916-2 01 1 9611- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-917-2 01 1 9611- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-918-2 01 1 9611- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-929-1 01 1 9611- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-930-1 01 1 9611- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-931-1 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-901-4 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-902-4 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-903-2 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-939-1 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-940-1 01 1 9611- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-941-1 01 1 9611- ●
