Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#45920) — 127 parça

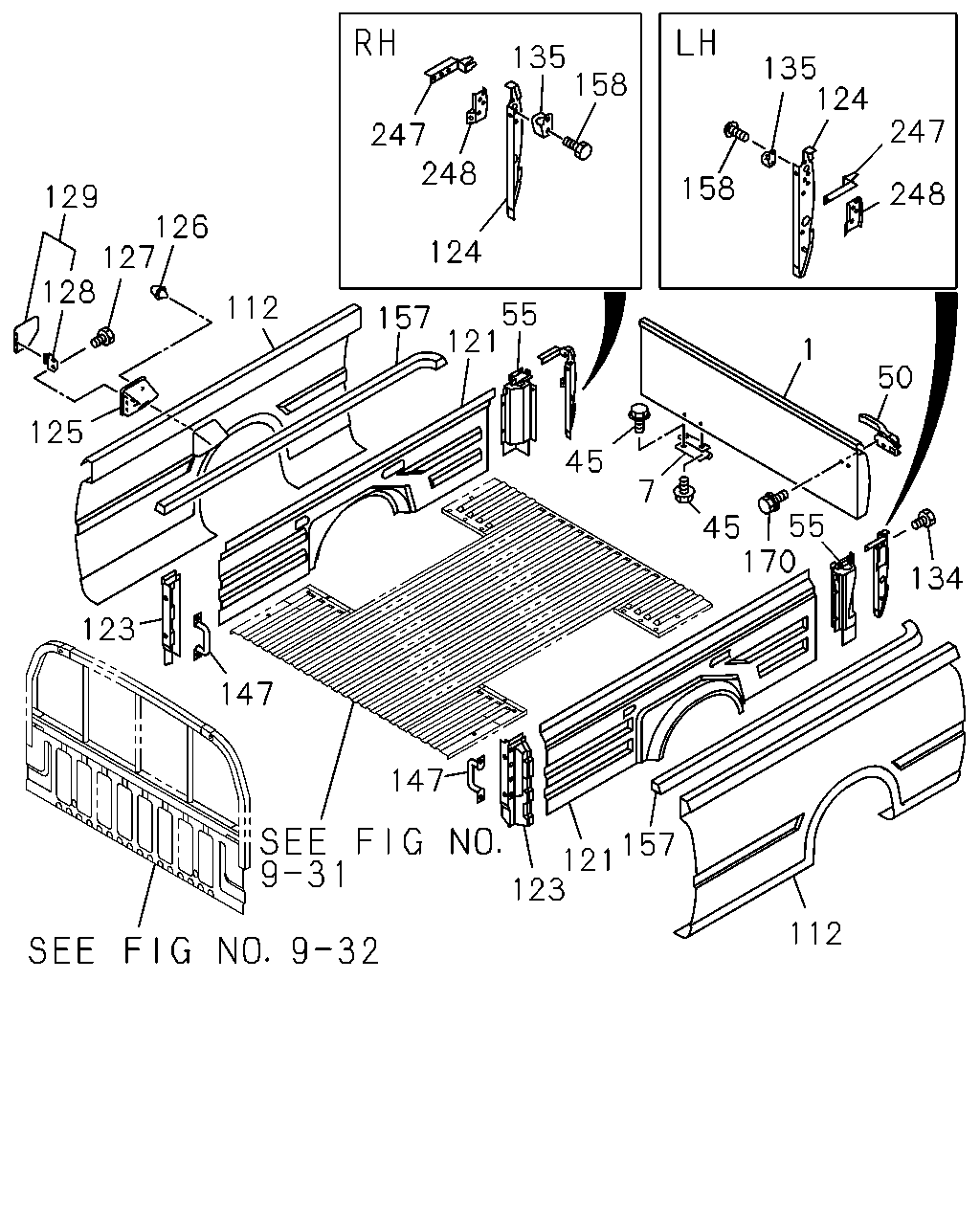

135 158 135 124 247 247 248 158 248 129 126 127 128 124 112 157 55 121 1 50 125 45 7 45 55 170 134 123 147 147 157 121 123 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	17.185 GATE ASM; RR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-835-1	01	1	9611-	●	●	●	●	●	●	●	●
1	17.185 GATE ASM; RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-984-2	01	1	9611-	●	●	●	●	●	●	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-94198-013-0	01	1	9611-			●
7	17.208 HINGE ASM; RR GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-472-2	02	1	9611-	●	●	●	●	●	●	●	●
7	17.208 HINGE ASM; RR GATE RR BODY FLAT BED<RS6>	8-94197-074-0	04	1	9611-			●
45	17.208 BOLT; TAIL GATE TO RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.198 M8X18	8-94419-345-0	10	1	9611-9706	●	●	●	●	●	●	●	●
45	17.208 BOLT; TAIL GATE TO RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.198 M8X18	8-94419-345-0	08	1	9707-	●	●	●	●	●	●	●	●
50	17.204 LOCK ASM; TAIL GATE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97037-420-0	02	1	9611-	●	●	●	●	●	●	●	●
55	17.505 PANEL; RR CORNER RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-970-6	01	1	9611-	●	●	●	●	●	●	●	●
55	17.505 PANEL; RR CORNER RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-912-6	01	1	9611-	●	●	●	●	●	●	●	●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-925-5	01	1	9611-	●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-867-6	01	1	9611-	●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-926-5	01	1	9611-		●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-868-6	01	1	9611-		●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-924-5	01	1	9611-			●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-866-6	01	1	9611-			●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-927-5	01	1	9611-				●				●
112	17.455 PANEL; SIDE GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-869-7	01	1	9611-				●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-962-3	01	1	9611-	●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-904-3	01	1	9611-	●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-963-3	01	1	9611-		●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-905-3	01	1	9611-		●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-961-3	01	1	9611-			●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-903-3	01	1	9611-			●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-964-1	01	1	9611-				●				●
121	17.442 PANEL; SIDE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-906-1	01	1	9611-				●				●
123	17.442 PANEL; EXT,FRT INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-965-3	01	1	9611-	●	●	●		●	●	●
123	17.442 PANEL; EXT,FRT INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97118-579-2	01	1	9611-	●	●	●		●	●	●
124	17.505 PANEL; EXT,RR CORNER POST,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-942-5	01	1	9611-	●	●	●	●	●	●	●	●
124	17.505 PANEL; EXT,RR CORNER POST,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-883-5	01	1	9611-	●	●	●	●	●	●	●	●
125	17.505 RECESS; FUEL FILLER NECK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-885-2	01	1	9611-	●	●	●	●	●	●	●	●
126	17.507 RUBBER; STOPPER,FUEL FILLER LID RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97166-112-0	01	1	9611-	●	●	●	●	●	●	●	●
127	17.507 BOLT; FUEL FILLER LID RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9611-	●	●	●	●	●	●	●	●
128	17.505 HINGE; FUEL FILLER LID,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97162-602-0	01	1	9611-	●	●	●	●	●	●	●	●
129	17.505 LID ASM; FUEL FILLER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97163-109-0	01	1	9611-	●	●	●		●	●	●
129	17.505 LID ASM; FUEL FILLER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-026-2	01	1	9611-				●				●
134	17.507 BOLT; STRIKER,TAIL GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 04.197 M6X10	8-97020-236-0	02	1	9611-	●	●	●	●	●	●	●	●
135	17.198 STRIKER; TAIL GATE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97018-747-3	01	1	9611-	●	●	●	●	●	●	●	●
135	17.198 STRIKER; TAIL GATE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97018-746-3	01	1	9611-	●	●	●	●	●	●	●	●
147	17.505 HOOK ASM; ROPE,FRT RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97138-542-3	02	1	9611-	●	●	●	●	●	●	●	●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-821-4	01	1	9611-	●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-825-4	01	1	9611-	●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-887-4	01	1	9611-	●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-946-4	01	1	9611-	●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-820-4	01	1	9611-		●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-824-4	01	1	9611-		●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-888-4	01	1	9611-		●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-947-4	01	1	9611-		●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-823-4	01	1	9611-			●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-819-4	01	1	9611-			●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-945-4	01	1	9611-			●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-886-4	01	1	9611-			●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-822-4	01	1	9611-				●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-826-4	01	1	9611-				●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-889-4	01	1	9611-				●				●
157	17.505 RAIL ASM; SIDE PANEL UPR,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-948-4	01	1	9611-				●				●
158	17.185 SCREW; STRIKER,TAIL GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.198	9-03065-816-0	04	1	9611-	●	●	●	●	●	●	●	●
170	17.635 BOLT; TAIL GATE LOCK RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 08.015 M6X20 W/WASHER	8-94112-987-1	04	1	9611-	●	●	●	●	●	●	●	●
247	17.442 REINFORCEMENT; CARGO RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-956-4	01	1	9611-	●	●	●	●	●	●	●	●
247	17.442 REINFORCEMENT; CARGO RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-898-4	01	1	9611-	●	●	●	●	●	●	●	●
248	17.442 PATCH; CARGO RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-943-0	01	1	9611-	●	●	●	●	●	●	●	●
248	17.442 PATCH; CARGO RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97114-884-0	01	1	9611-	●	●	●	●	●	●	●	●

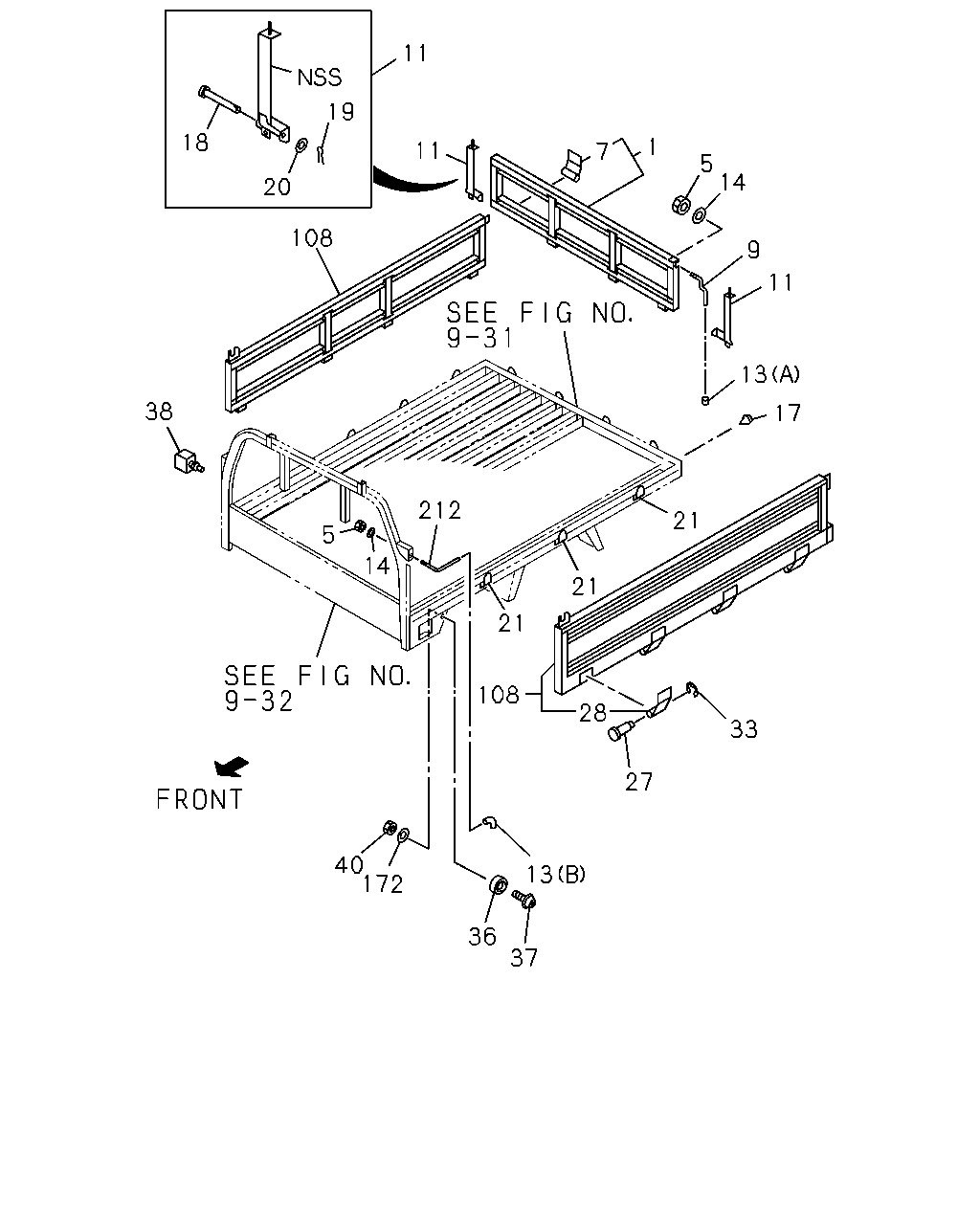

19 18 5 20 13 38 212 21 5 21 28 27 40 172 13 36 37 11 11 1 7 108 14 11 9 17 21 108 33 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	17.185 GATE ASM; RR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97132-835-1	01	1	9611-	●	●	●	●	●	●	●	●
1	17.185 GATE ASM; RR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-984-2	01	1	9611-	●	●	●	●	●	●	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-94198-013-0	01	1	9611-			●
5	17.204 NUT; LATCH HANDLE RR BODY FLAT BED<RS6> 07.347 M12	9-99111-412-0	04	1	9611-			●
7	17.208 HINGE ASM; RR GATE RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-472-2	02	1	9611-	●	●	●	●	●	●	●	●
7	17.208 HINGE ASM; RR GATE RR BODY FLAT BED<RS6>	8-94197-074-0	04	1	9611-			●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-050-0	01	1	9611-			●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-049-0	01	1	9611-			●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94197-037-1	01	1	9611-			●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94197-036-1	01	1	9611-			●
13	17.615 RUBBER; GATE HANDLE,RR BODY RR BODY FLAT BED<RS6> (A) ID=12	9-61203-650-0	02	1	9611-			●
13	17.615 RUBBER; GATE HANDLE,RR BODY RR BODY FLAT BED<RS6> (B)	9-61203-937-0	02	1	9611-			●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22	9-09164-806-0	04	1	9611-			●
17	17.202 RUBBER; BUMPER,VERTICAL LOCK,RR RR BODY FLAT BED<RS6>	9-61203-673-0	02	1	9611-			●
18	17.198 PIN; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94197-090-0	02	1	9611-			●
19	17.198 PIN; SPLIT,VERTICAL LOCK RR BODY FLAT BED<RS6>	9-08103-015-0	02	1	9611-			●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	9611-			●
21	17.208 HINGE; LEAF,LWR RR BODY FLAT BED<RS6>	8-94197-073-0	12	1	9611-			●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6>	8-94197-062-0	12	1	9611-			●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94197-074-0	08	1	9611-			●
33	17.208 RING; SNAP,HINGE PIN,RR BODY RR BODY FLAT BED<RS6> ID=6	9-09185-006-0	12	1	9611-			●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> OD=45 H=30	5-66900-013-0	06	1	9611-			●
37	17.202 SCREW RR BODY FLAT BED<RS6> M6X30 W/PL WASHER	9-03900-630-0	06	1	9611-			●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6>	8-94238-211-0	02	1	9611-			●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 16.176 M6	9-09110-406-0	06	1	9611-			●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94198-012-0	01	1	9611-			●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94198-011-0	01	1	9611-			●
172	17.447 WASHER; PL,STOPPER,TAIL GATE RR BODY FLAT BED<RS6> 02.183 ID=6.4 OD=14	9-09160-606-0	06	1	9611-			●
212	17.455 HANDLE; FRT,RR BODY RR BODY FLAT BED<RS6>	8-94197-048-0	02	1	9611-			●

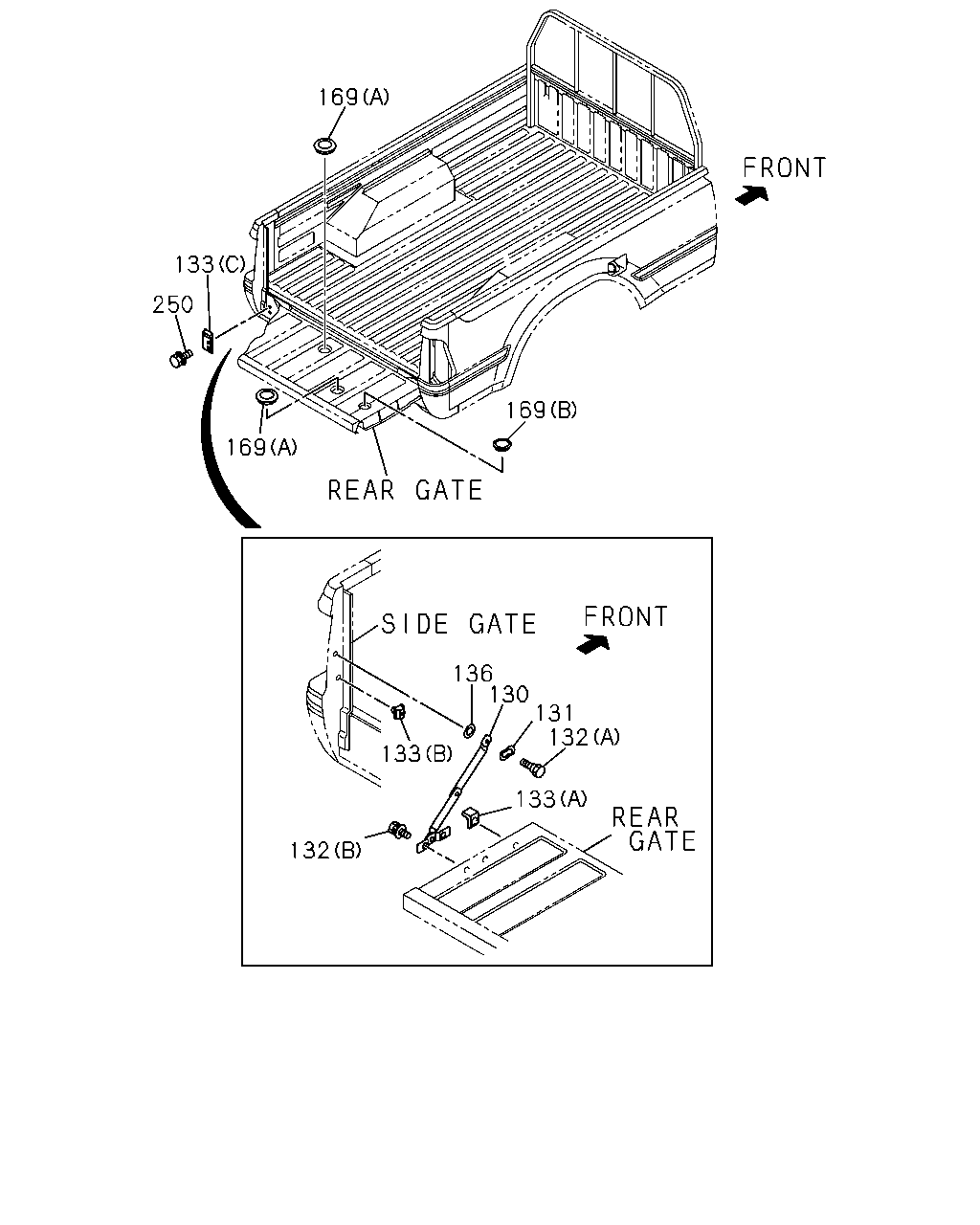

136 130 131 132 133 133 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
130	17.225 LINK ASM; TAIL GATE,RR BODY	8-97063-897-1	02	1	9611-9701	●	●	●	●	●	●	●	●
130	17.225 LINK ASM; TAIL GATE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97063-897-2	02	1	9702-	●	●	●	●	●	●	●	●
131	17.635 WASHER; WAVE,TAIL GATE LINK,RR B	8-94481-020-0	02	1	9611-9701	●	●	●	●	●	●	●	●
131	17.635 WASHER; WAVE,TAIL GATE LINK,RR B RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-94481-020-0	02	1	9702-	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY (A) M8X14	8-94481-021-0	02	1	9611-9701	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) M8X14	8-94481-021-0	02	1	9702-	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY 17.507 (B) M8X22	8-97104-889-0	04	1	9611-9701	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.507 (B) M8X22	8-97104-889-0	04	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY (A)	8-94370-056-0	02	1	9611-9701	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94370-056-0	02	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY (B)	8-94433-529-1	02	1	9611-9701	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B)	8-94433-529-1	02	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (C)	8-97131-679-4	01	1	9611-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (C)	8-97131-678-4	01	1	9611-	●	●	●	●	●	●	●	●
136	17.635 WASHER; PL,TAIL GATE LINK,RR BOD 16.674 ID=8.4	9-09160-508-0	02	1	9611-9701	●	●	●	●	●	●	●	●
136	17.635 WASHER; PL,TAIL GATE LINK,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 16.674 ID=8.4	9-09160-508-0	02	1	9702-	●	●	●	●	●	●	●	●

169 133 250 169 169 136 130 131 132 133 133 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
130	17.225 LINK ASM; TAIL GATE,RR BODY	8-97063-897-1	02	1	9611-9701	●	●	●	●	●	●	●	●
130	17.225 LINK ASM; TAIL GATE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97063-897-2	02	1	9702-	●	●	●	●	●	●	●	●
131	17.635 WASHER; WAVE,TAIL GATE LINK,RR B	8-94481-020-0	02	1	9611-9701	●	●	●	●	●	●	●	●
131	17.635 WASHER; WAVE,TAIL GATE LINK,RR B RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-94481-020-0	02	1	9702-	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY (A) M8X14	8-94481-021-0	02	1	9611-9701	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) M8X14	8-94481-021-0	02	1	9702-	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY 17.507 (B) M8X22	8-97104-889-0	04	1	9611-9701	●	●	●	●	●	●	●	●
132	17.635 BOLT; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.507 (B) M8X22	8-97104-889-0	04	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY (A)	8-94370-056-0	02	1	9611-9701	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94370-056-0	02	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY (B)	8-94433-529-1	02	1	9611-9701	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B)	8-94433-529-1	02	1	9702-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (C)	8-97131-679-4	01	1	9611-	●	●	●	●	●	●	●	●
133	17.225 STOPPER; TAIL GATE LINK,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (C)	8-97131-678-4	01	1	9611-	●	●	●	●	●	●	●	●
136	17.635 WASHER; PL,TAIL GATE LINK,RR BOD 16.674 ID=8.4	9-09160-508-0	02	1	9611-9701	●	●	●	●	●	●	●	●
136	17.635 WASHER; PL,TAIL GATE LINK,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 16.674 ID=8.4	9-09160-508-0	02	1	9702-	●	●	●	●	●	●	●	●
169	17.185 GROMMET; TAIL GATE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-97166-110-0	04	1	9611-	●	●	●	●	●	●	●	●
169	17.185 GROMMET; TAIL GATE INNER,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B)	8-97166-111-0	02	1	9611-	●	●	●	●	●	●	●	●
250	17.505 BOLT; STOPPER RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 08.080 M6X16 FLANGE	8-97803-298-0	04	1	9611-9611	●	●	●	●	●	●	●	●
250	17.505 BOLT; STOPPER RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 08.077 M6X18	8-97071-681-0	04	1	9612-	●	●	●	●	●	●	●	●
