9-32 — REAR BODY; GUARD FRAME (#45919) — 27 parça

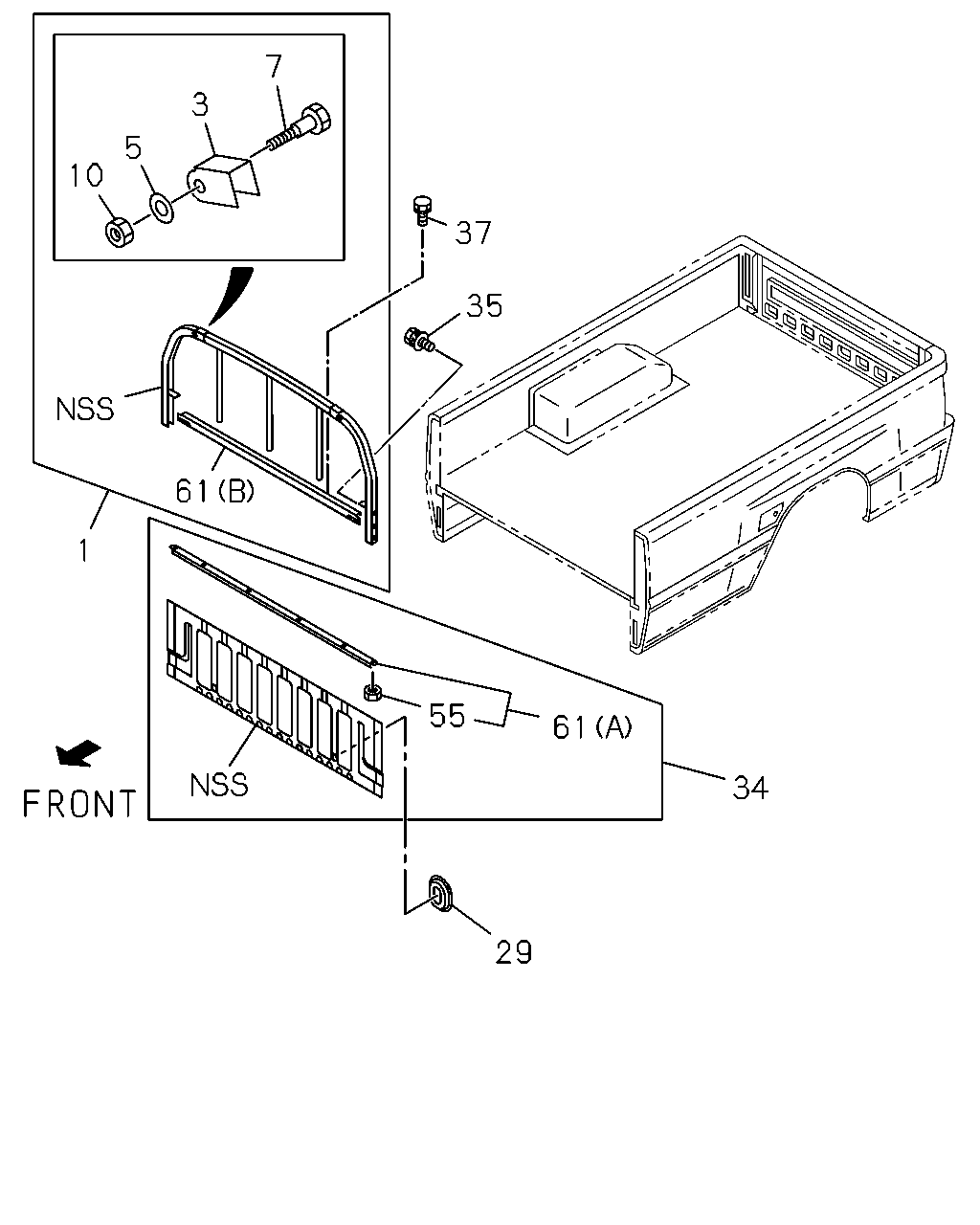

çizim 70358
7 3 5 10 37 35 61 1 55 61 34 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97118-527-3 01 1 9611- ● ● ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97143-137-0 01 1 9611- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-94217-998-0 02 1 9611- ● ● ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9611- ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-94481-019-0 02 1 9611- ● ● ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) M6X45 		8-94481-022-0 02 1 9611- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) M6 FLANGE 		8-94481-428-0 02 1 9611- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9611- ●
29 17.455 COVER; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 17.447 		8-94430-184-1 02 1 9611- ● ● ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97114-839-1 01 1 9611- ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97114-841-2 01 1 9611- ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 02.559 M8X25 FLANGE 		0-28680-825-0 10 1 9611- ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9611- ● ●
37 17.455 BOLT; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 00.738 M6X16 FLANGE 		0-28080-616-0 06 1 9611- ● ● ● ● ● ● ● ●
55 17.070 NUT; MEMBER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 16.545 M6 		9-09114-086-0 06 1 9611- ● ● ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) 		8-97117-550-1 01 1 9611- ● ● ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) 		8-97115-003-0 01 1 9611- ● ● ● ● ● ● ● ●

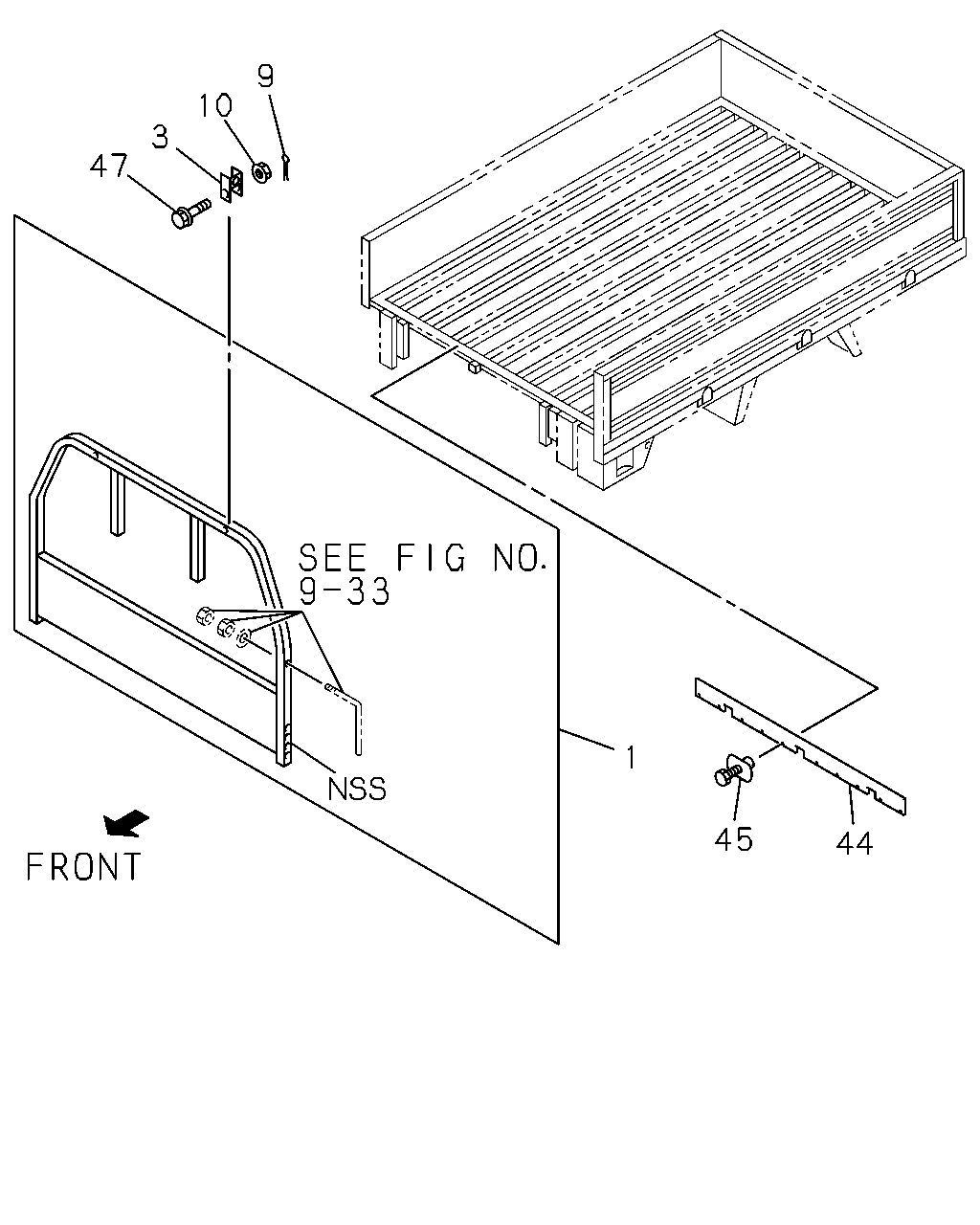

çizim 72211
9 10 3 47 1 45 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97118-527-3 01 1 9611- ● ● ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97143-137-0 01 1 9611- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-94217-998-0 02 1 9611- ● ● ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9611- ●
9 17.447 PIN; SPLIT,GUARD FRAME
RR BODY FLAT BED<RS6> 06.234 OD=1.8 L=20 		9-08112-020-0 02 1 9611- ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) M6 FLANGE 		8-94481-428-0 02 1 9611- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9611- ●
44 17.507 COVER; DUST SHIELD,FRT PANEL,RR
RR BODY FLAT BED<RS6> 		8-94240-032-0 01 1 9611- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
RR BODY FLAT BED<RS6> 08.154 		8-94221-150-0 10 1 9611- ●
47 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> M10X60 		8-94197-069-0 02 1 9611- ●
