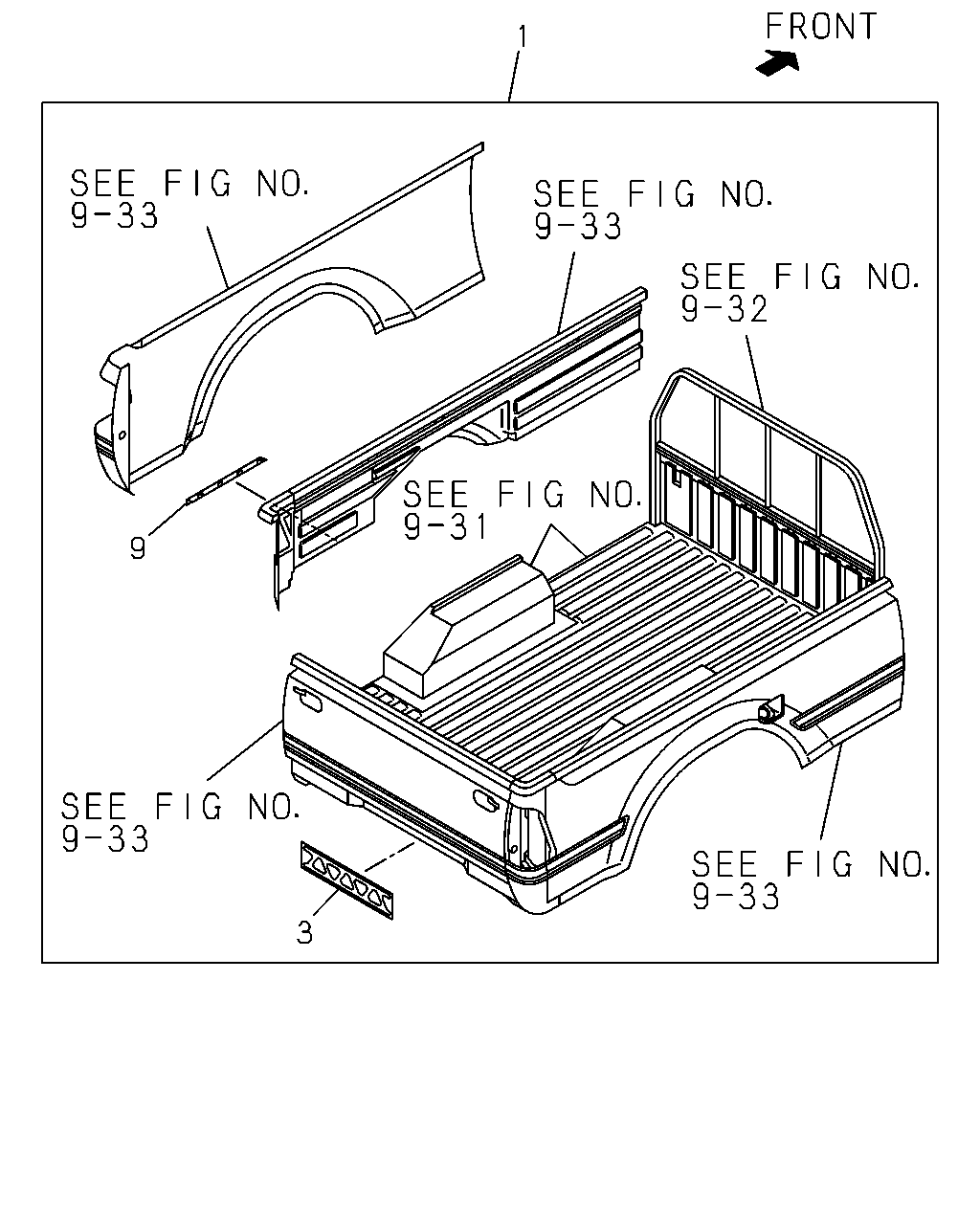

9-30 — REAR BODY ASM AND MOUNTING (#45917) — 73 parça

1 9 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-322-0	01	1	9611-	●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-318-0	01	1	9611-	●	●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-320-0	01	1	9611-			●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-319-0	01	1	9611-			●	●
1	17.090 BODY ASM; REAR RR BODY FLAT BED<RS6>	8-94198-020-0	01	1	9611-					●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-321-0	01	1	9611-					●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-317-0	01	1	9611-					●	●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97115-475-0	01	1	9611-							●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-323-0	01	1	9611-							●	●
3	07.800 BRACKET; LICENSE PLATE LAMP RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-001-3	01	1	9611-	●	●	●	●	●	●	●	●
3	07.800 BRACKET; LICENSE PLATE LAMP RR BODY FLAT BED<RS6>	8-94404-323-0	01	1	9611-					●
9	17.505 COVER; MUD,FLOOR SIDE,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-008-0	02	1	9611-	●	●	●	●	●	●	●	●

1 36 15 14 36 49 49 3 2 49 49 13 16 12 15 16 15 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-322-0	01	1	9611-	●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-318-0	01	1	9611-	●	●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-320-0	01	1	9611-			●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-319-0	01	1	9611-			●	●
1	17.090 BODY ASM; REAR RR BODY FLAT BED<RS6>	8-94198-020-0	01	1	9611-					●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97114-321-0	01	1	9611-					●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-317-0	01	1	9611-					●	●
1	17.090 BODY ASM; REAR RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ)	8-97115-475-0	01	1	9611-							●	●
1	17.090 BODY ASM; REAR RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97114-323-0	01	1	9611-							●	●

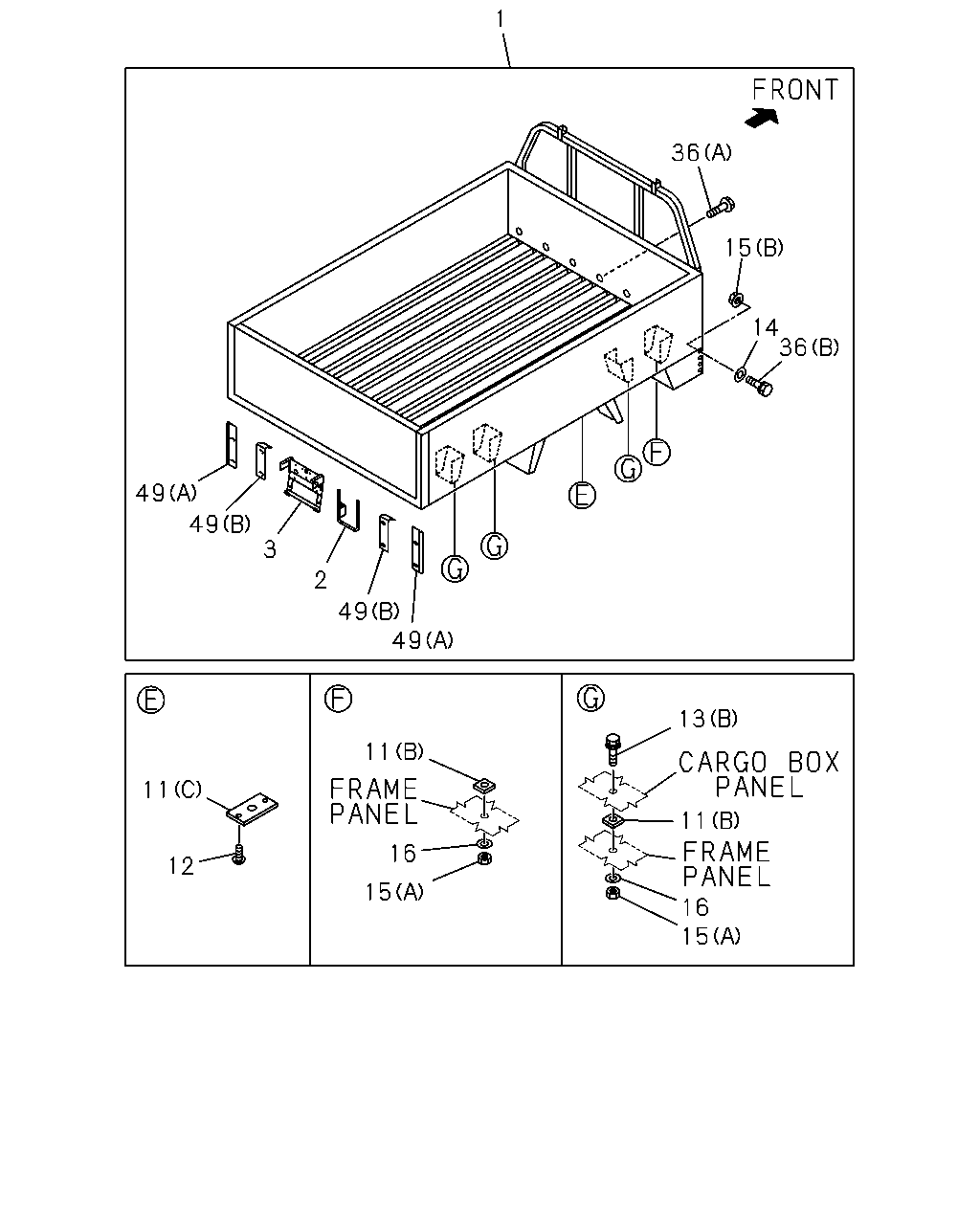

2	17.185 STEP; RR RR BODY FLAT BED<RS6>	8-94178-853-0	01	1	9611-					●
3	07.800 BRACKET; LICENSE PLATE LAMP RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ)	8-97115-001-3	01	1	9611-	●	●	●	●	●	●	●	●
3	07.800 BRACKET; LICENSE PLATE LAMP RR BODY FLAT BED<RS6>	8-94404-323-0	01	1	9611-					●
11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94331-737-0	04	1	9611-	●	●	●	●	●	●
11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B)	8-94331-738-1	06	1	9611-	●	●					●	●
11	09.007 GASKET; RR BODY MTG RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) (B)	8-94331-738-1	08	1	9611-			●	●	●	●
11	09.007 GASKET; RR BODY MTG RR BODY FLAT BED<RS6> (C)	8-94331-736-0	02	1	9611-					●
11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94331-737-0	02	1	9611-							●	●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 03.163 M6X20	9-07077-620-0	08	1	9611-	●	●	●	●	●	●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD	9-07006-516-0	02	1	9611-					●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 03.163 M6X20	9-07077-620-0	04	1	9611-							●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X35 W/PL WASHER	8-94483-977-0	02	1	9611-9701	●	●	●	●	●	●	●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X40 W/PL WASHER	8-97169-423-0	02	1	9702-	●	●	●	●	●	●	●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94479-376-1	02	1	9611-9702	●	●	●	●			●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-97169-896-0	02	1	9703-	●	●	●	●			●	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER	8-94483-977-0	06	1	9611-9701					●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER	8-97169-423-0	06	1	9702-					●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94479-376-1	04	1	9611-9702					●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-97169-896-0	04	1	9703-					●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 17.455 OD=22 ID=10.5	8-97065-438-0	12	1	9611-					●
15	09.011 NUT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) M12 FLANGE	8-97028-764-0	06	1	9611-	●	●					●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) (A) M12 FLANGE	8-97028-764-0	08	1	9611-			●	●	●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE	8-97065-439-0	12	1	9611-					●
16	09.011 WASHER; FRAME END,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 07.874 ID=12.5	5-09503-093-0	06	1	9611-	●	●					●	●
16	09.011 WASHER; FRAME END,RR BODY RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 07.874 ID=12.5	5-09503-093-0	08	1	9611-			●	●	●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE	0-28680-825-0	07	1	9611-					●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 17.455 (B) M10X22 FLANGE M10X22 FLANGE	8-97065-440-0	12	1	9611-					●
49	02.662 BRACKET; RR COMB LAMP RR BODY FLAT BED<RS6> 17.090 (A)	8-94232-734-0	01	1	9611-					●
49	02.662 BRACKET; RR COMB LAMP RR BODY FLAT BED<RS6> (B)	8-94311-685-0	01	1	9611-					●
49	02.662 BRACKET; RR COMB LAMP RR BODY FLAT BED<RS6> 17.090 (A)	8-94232-733-0	01	1	9611-					●
49	02.662 BRACKET; RR COMB LAMP RR BODY FLAT BED<RS6> (B)	8-94311-684-0	01	1	9611-					●

13 11 12 11 11 16 15 16 15 13 11 16 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

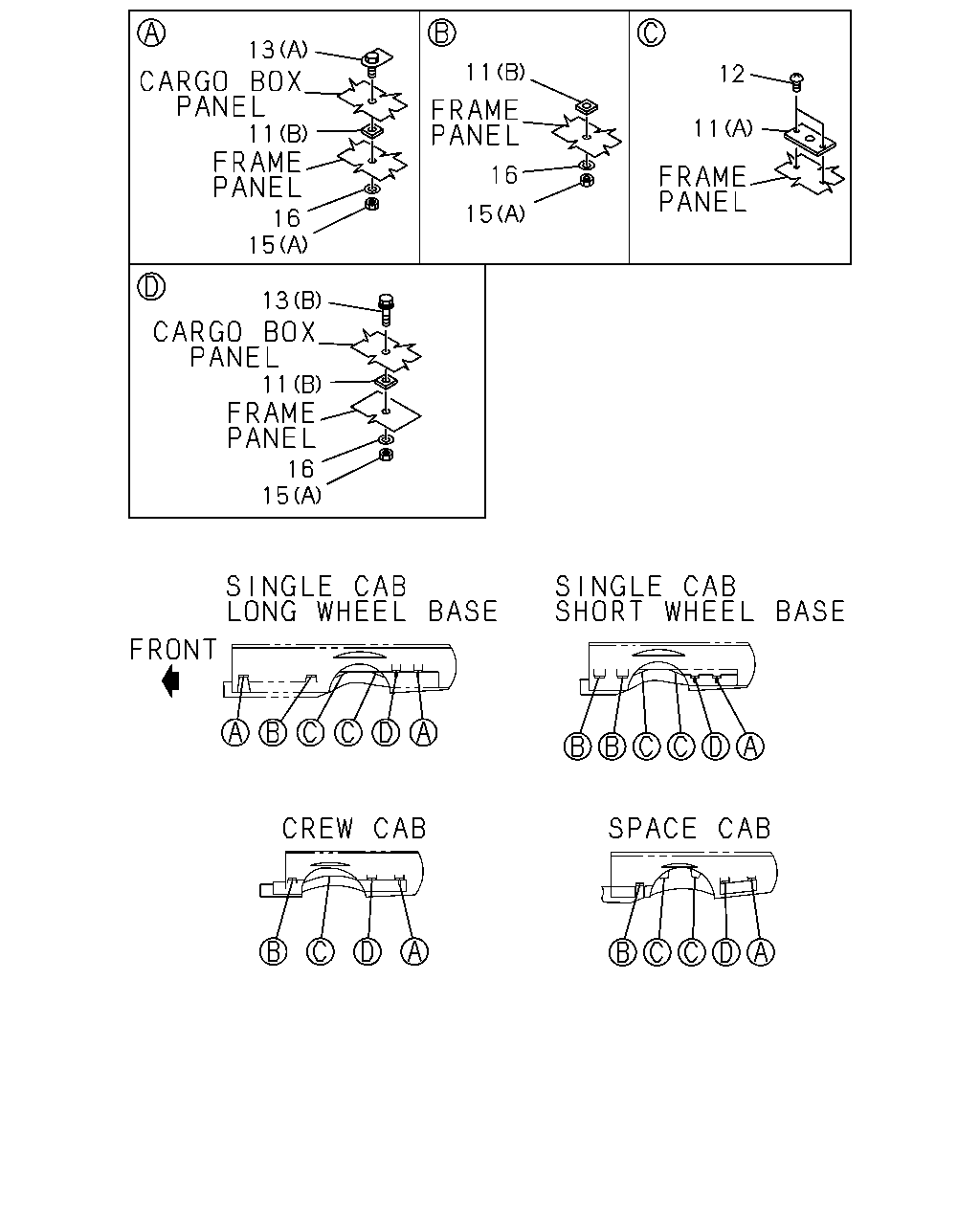

11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94331-737-0	04	1	9611-	●	●	●	●	●	●
11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B)	8-94331-738-1	06	1	9611-	●	●					●	●
11	09.007 GASKET; RR BODY MTG RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) (B)	8-94331-738-1	08	1	9611-			●	●	●	●
11	09.007 GASKET; RR BODY MTG RR BODY FLAT BED<RS6> (C)	8-94331-736-0	02	1	9611-					●
11	09.007 GASKET; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94331-737-0	02	1	9611-							●	●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 03.163 M6X20	9-07077-620-0	08	1	9611-	●	●	●	●	●	●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD	9-07006-516-0	02	1	9611-					●
12	09.011 SCREW; RR BODY MTG GASKET RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 03.163 M6X20	9-07077-620-0	04	1	9611-							●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X35 W/PL WASHER	8-94483-977-0	02	1	9611-9701	●	●	●	●	●	●	●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (B) M12X40 W/PL WASHER	8-97169-423-0	02	1	9702-	●	●	●	●	●	●	●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94479-376-1	02	1	9611-9702	●	●	●	●			●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-97169-896-0	02	1	9703-	●	●	●	●			●	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER	8-94483-977-0	06	1	9611-9701					●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER	8-97169-423-0	06	1	9702-					●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-94479-376-1	04	1	9611-9702					●	●
13	09.008 BOLT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A)	8-97169-896-0	04	1	9703-					●	●
15	09.011 NUT; RR BODY MTG RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) (A) M12 FLANGE	8-97028-764-0	06	1	9611-	●	●					●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) (A) M12 FLANGE	8-97028-764-0	08	1	9611-			●	●	●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE	8-97065-439-0	12	1	9611-					●
16	09.011 WASHER; FRAME END,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 07.874 ID=12.5	5-09503-093-0	06	1	9611-	●	●					●	●
16	09.011 WASHER; FRAME END,RR BODY RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 07.874 ID=12.5	5-09503-093-0	08	1	9611-			●	●	●	●
