9-01 — TOOLS (#45916) — 67 parça

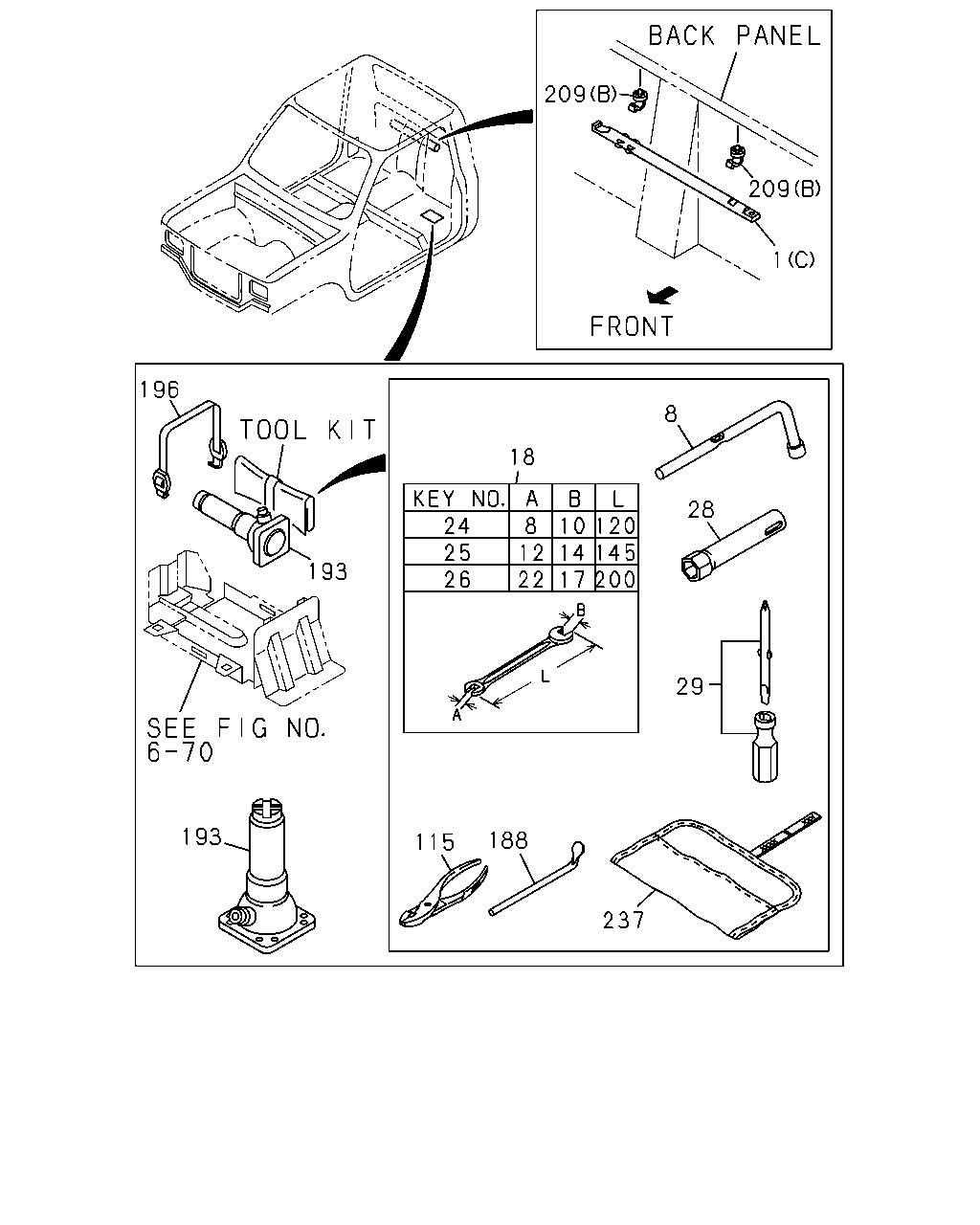

çizim 16335
209 209 196 8 18 24 25 26 193 29 193 188 115 237 1 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-0 01 1 9611- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9611- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9611- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9611- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9611- ● ● ● ● ● ● ● ●
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94366-368-0 01 1 9611- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9803- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9611- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9611- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9611- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM 8-97132-734-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-223-0 01 1 9703- ● ● ● ●
193 08.820 JACK ASM 8-97160-148-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9703- ● ● ● ●
196 08.820 BAND; JACK
00.643 		8-94319-180-0 01 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9611- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9611- ● ● ● ● ● ● ● ●

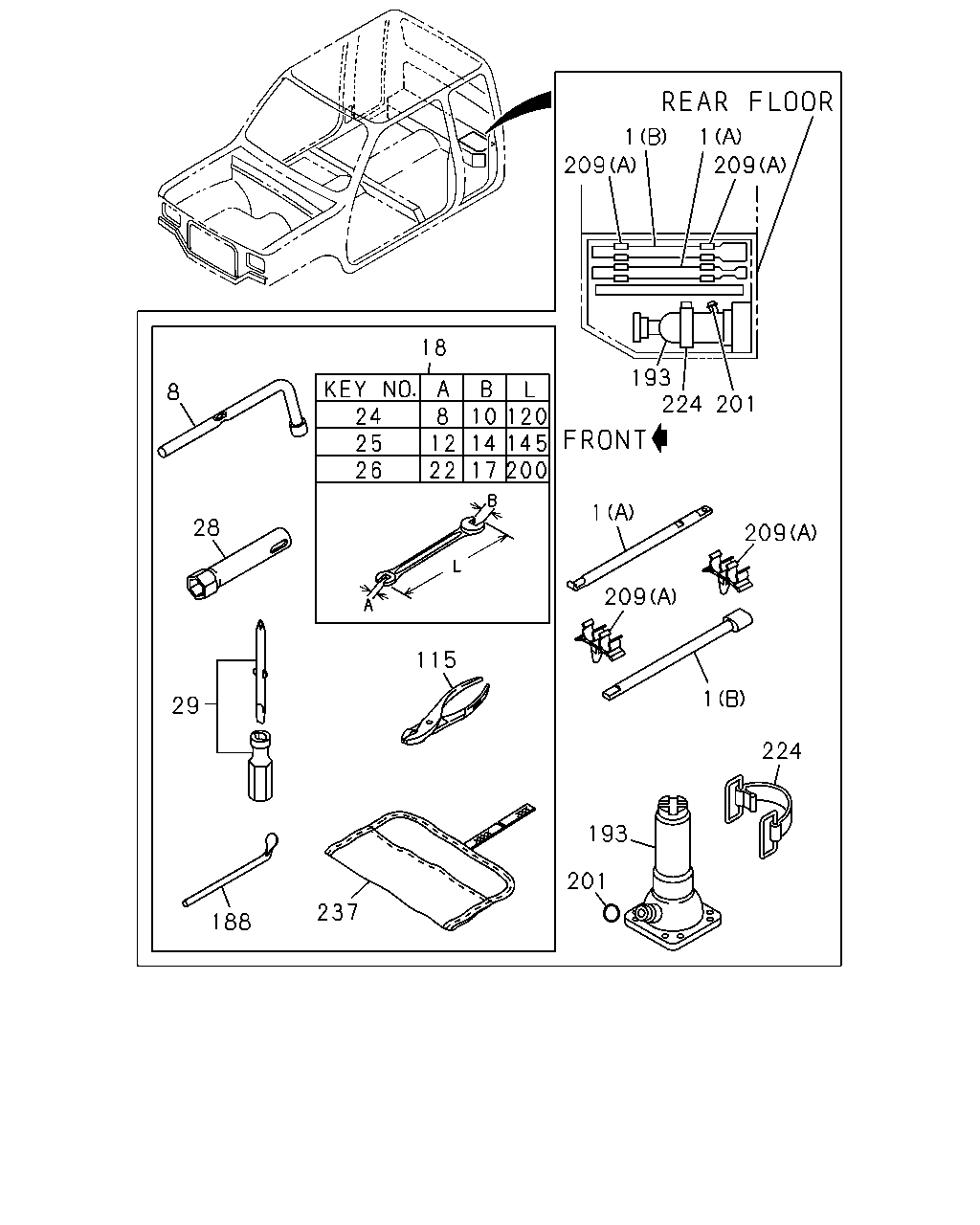

çizim 70268
209 209 18 193 24 25 26 8 28 209 209 115 29 224 193 237 188 1 1 224 201 1 1 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-0 01 1 9611- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9611- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9611- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9611- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9611- ● ● ● ● ● ● ● ●
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94366-368-0 01 1 9611- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9803- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9611- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9611- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9611- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM 8-97132-734-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-223-0 01 1 9703- ● ● ● ●
193 08.820 JACK ASM 8-97160-148-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9703- ● ● ● ●
201 08.820 GASKET; JACK
04.439 		9-09561-324-0 01 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9611- ● ● ● ●
224 08.821 BAND; RUBBER,JACK
08.820 		9-68399-059-0 01 1 9611- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9611- ● ● ● ● ● ● ● ●

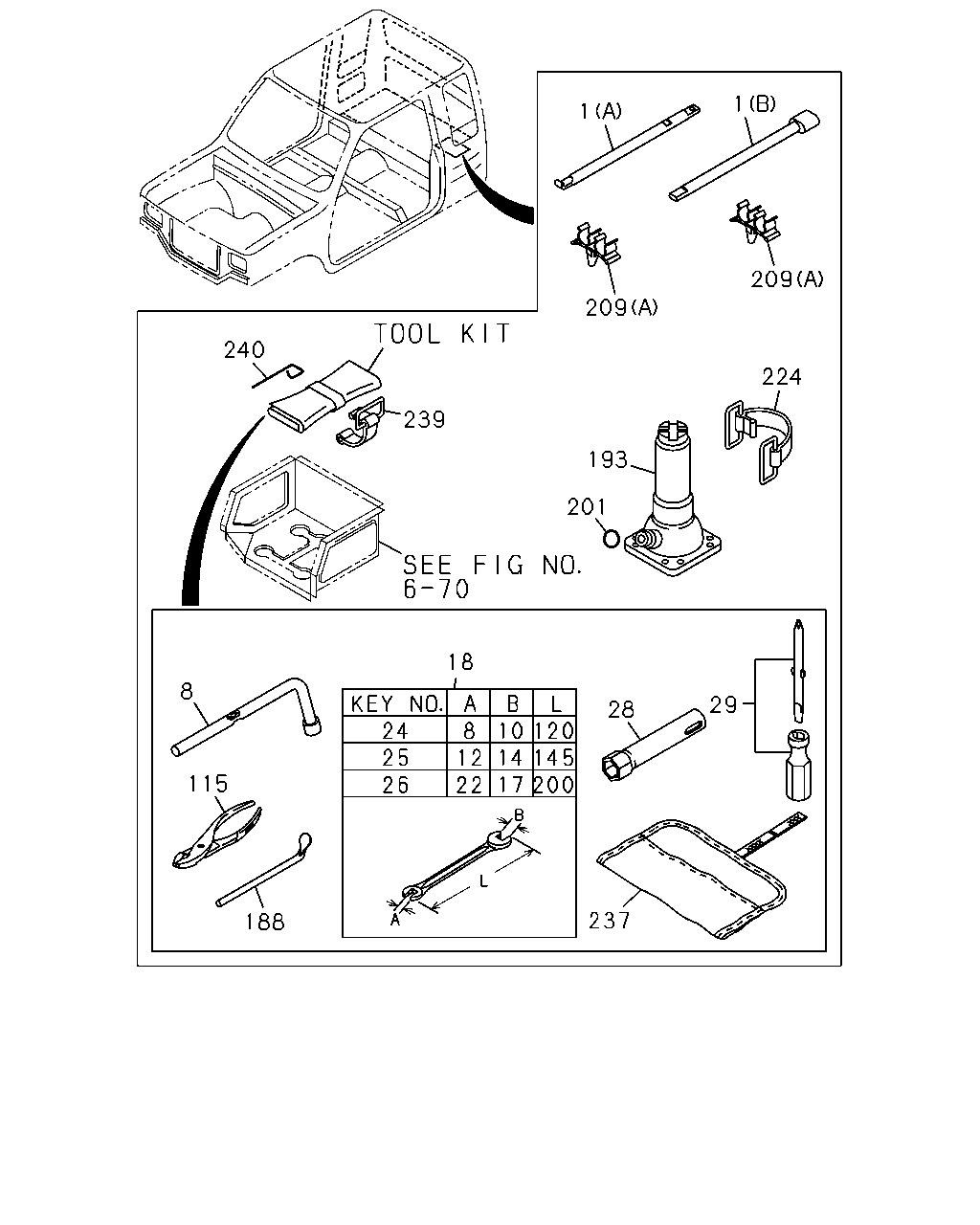

çizim 70654
209 209 240 224 239 201 18 8 29 28 115 237 188 1 1 193 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-0 01 1 9611- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-0 01 1 9611- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9611- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9611- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9611- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9611- ● ● ● ● ● ● ● ●
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94366-368-0 01 1 9611- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9803- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9611- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9611- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9611- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM 8-97132-734-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-223-0 01 1 9703- ● ● ● ●
193 08.820 JACK ASM 8-97160-148-0 01 1 9611-9702 ● ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9703- ● ● ● ●
201 08.820 GASKET; JACK
04.439 		9-09561-324-0 01 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9611- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9611- ● ● ● ●
224 08.821 BAND; RUBBER,JACK
08.820 		9-68399-059-0 01 1 9611- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9611- ● ● ● ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=82 		9-68399-060-0 01 1 9611- ● ●
240 08.820 PIN; SPLIT,TOOL BAG BAND
D=2.5 L=43 		8-94335-692-2 01 1 9611- ● ●
